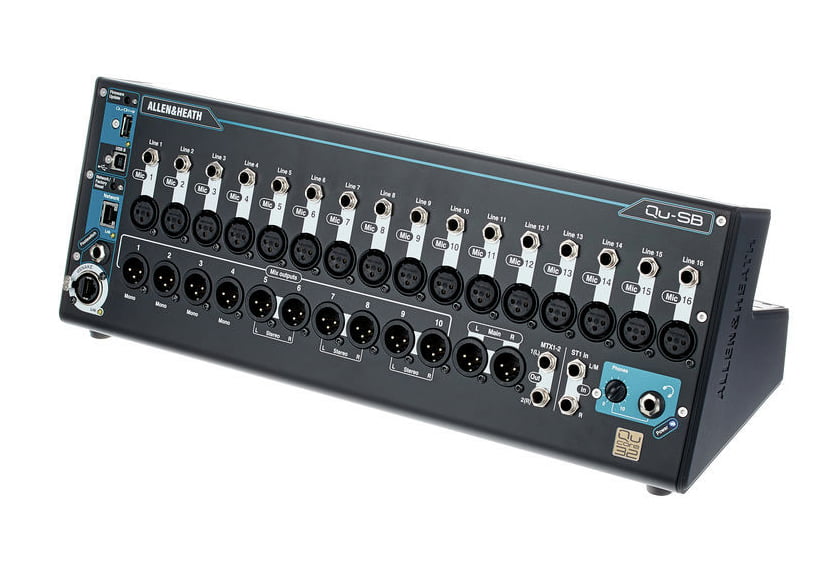

Allen&Heath QU-SB - portable digital mixer with 18 inputs and 14 outputs, rack-mountable, which can be used as a 32x32 USB recording audio interface. It features 16 AnalogiQ microphone preamps, a 5-core ARM processor, and a wide variety of integrated effects and processing, including a 4-band parametric EQ, compressors, delay, and reverb. The mixer is compatible with the ME Personal Mixing System and the dSNAKE digital connection system, offering up to 38 inputs. It is designed to operate with the Qu-Pad app, allowing you to mix from any point in the room when connected to a wireless network using an iPad.
General features:
16 mono inputs (TRS + XLR) 1 stereo input (TRS) 12 outputs (LR, Mono Mix 1-4, Stereo Mix 1-3) 1 Stereo Matrix output (TRS) Built-in Qu-32 Core (32 mono channels + 3 stereo inputs) Up to 11 monitor mixes (4 mono + 7 stereo) 4 FX processors 4 FX send/return channels 4 mute groups 4 DCA groups AnalogiQ microphone preamps iLive FX library Expandable to 38 inputs via dSNAKE Remote Audio Port Automatic mic mixer 32x32 audio interface Direct multitrack recording/playback Qu-Drive to USB Compatibility with ME Personal Mixing System Qu-Pad iPad app Qu-You personal monitoring app for iPhone/Android smartphones All inputs feature trim, polarity, HPF, gate, insert/ducker, 4-band PEQ, compressor, and delay All mix outputs feature insert, 1/3 octave GEQ, 4-band PEQ, compressor, and delay Built-in signal generator RTA indicator with Peak Band 19” rack mountable with additional mounting brackets Technical specifications:
Line/microphone inputs: XLR and 1/4" TRS balanced connectors Input sensitivity: -60 to +5 dBu / -50 to +15 dBu (XLR / TRS) Analog gain: -5 to +60 dB, in 1 dB steps Maximum input level: +19 / +29 dBu Input impedance: >5 kOhms (XLR), >10 kOhms (TRS) THD+N, gain unit 0 dB: 0.0005%, -89 dBu (20 Hz to 20 kHz, direct out at 0 dBu, 1 kHz) THD+N, Mid Gain +30 dB: 0.001%, -83 dBu (20 Hz to 20 kHz, direct out at 0 dBu, 1 kHz) Stereo line inputs: Connector ST1: 1/4" (6.3 mm) TRS balanced jack, normalised to half Input sensitivity (ST1): +4 /0 dBu, nominal Trim: ±24 dB Maximum input level (ST1): +22 /+18 dBu Input impedance: >7 kOhms Line outputs: Mix 1 to 10 & LR Out: balanced XLR Output impedance: Nominal output: +4 dBu = 0 dB meter reading Maximum output level: +22 dBu Residual output noise: -90 dBu (in mute mode, 20 Hz to 20 kHz) Stereo outputs: MTX 1-2: 1/4" (6.3 mm) TRS balanced jack Source (Alt output / 2 Trk output): Patchable/LR post fade Output impedance: Nominal output: +4 dBu = 0 dB indicated on meter Maximum output signal: +22 dBu Residual output noise: -90 dBu (in mute mode, 20 Hz to 20 kHz) dSNAKE inputs: remote source for CH1-32, ST1, ST2, ST3 dSNAKE outputs: Patchable for Mix 1-10, LR, Grp 1-8, MTX 1-4 Compatible with AudioRacks AR2412, AR84, AB168 System: Dynamic range: 112 dB Frequency response: 20 Hz to 20 kHz (+0/-0.5 dB) Headroom: +18 dB Internal operating level: 0 dB dBFS alignment: +18 dBu = 0 dBFS (+22 dBu at XLR output) Meter calibration: 0 dB meter = -18 dBFS (+4 dBu at XLR output) Indicators: Peak meter indication: -3 dBFS (+19 dBu at XLR output), multi-point sensitivity Signal meter indication: -48 dBFS (-26 dBu at XLR output) Meter type: fast response (peak) Sampling rate: 48 kHz ±100 PPM Converters: 24-bit Delta-Sigma Latency: 1.2 ms (XLR input to XLR output) 0.7 ms (XLR input to AES output) Operating temperature: 0 to 35°C Power: 100-240 VAC, 50/60 Hz, 150 W maximum USB Audio: Qu-Drive: USB A Device: use a USB hard drive (not a USB stick) Stereo recording: 2-channel, WAV, 48 kHz, 24-bit, patchable Stereo playback: 2-channel, WAV, 44.1 or 48 kHz, 16- or 24-bit, to ST1 Multitrack recording: 18-channel, WAV, 48 kHz, 24-bit, patchable Multitrack playback: 18-channel, WAV, 48 kHz, 24-bit USB Audio Streaming: USB B, compliant with core audio Send (upstream): 32-channel, WAV, 48 kHz, 24-bit Return (downstream): 32-channel, WAV, 48 kHz, 24-bit Controls: Groups: Mute groups: 4 DCA groups: 4 Network: TCP/IP Ethernet for MIDI commands and iPad app Input processing: Sources: Channels 1 to 32: Local, dSNAKE, or USB ST1, ST2: Local, dSNAKE, or USB ST3: Local, dSNAKE, or USB Stereo Global USB source: Qu-Drive or USB B streaming Stereo Linking: Stereo Linking: Odd/even in pairs of inputs Parameter linking: EQ, dynamics, insert, delay, assignments, sends Link options: Preamp, polarity, sidechains, fader, mute, pan Polarity: HPF: 12 dB/octave, 20 Hz to 20 kHz Insert: assign FX1-4 to input channels Delay: up to 85 ms Gate: Self-key sidechain Threshold: -72 to +18 dBu Depth: 0 to 60 dB Attack: 50 μs to 300 ms Hold: 10 ms to 5 s Release: 10 ms to 1s Equalisation: 4-band fully parametric, 20 Hz to 20 kHz, +/-15 dB Band 1: selectable LF shelving (Baxandall), bell Bands 2 and 3: Bell Band 4: selectable HF shelving (Baxandall), bell Bell Width: variable, non-constant Q, 1.5 to 1/9 octave Compressor: Self-key sidechain Threshold: -46 to 18 dBu Ratio: 1:1 to infinity Attack: 300 μs to 300 ms Release: 100 ms to 2 s Knee: Soft or Hard Types: Manual Peak, Manual RMS, SlowOpto, PunchBag Mix processing: USB output: Direct Out channel to USB: Follow fader, follow mute (global options) Source selection (global): Post-preamp, pre-EQ, post-EQ, post-delay Insert: assign FX to Mix channels Delay: up to 170 ms Equalisation: Graphic EQ: 1/3 octave constant, 28 bands from 31 Hz to 16 kHz, +/-12 dB Parametric EQ: 4-band fully parametric, 20 Hz to 20 kHz, +/- 15 dB Band 1: selectable LF shelving (Baxandall), bell Bands 2 & 3: Bell Band 4: Selectable HF shelving (Baxandall), bell Bell Width: variable, non-constant Q, 1.5 to 1/9 octave Compressor: Self-key sidechain Threshold: -46 to 18 dBu Ratio: 1:1 to infinity Attack: 300 μs to 300 ms Release: 100 ms to 2 s Knee: Soft or Hard Types: Manual Peak, Manual RMS, SlowOpto, PunchBag Effects: Internal FX: 4x RackFX processors, Send>Return or Inserted Types: Reverb, delay, gate reverb, ADT, chorus, symphonic chorus, phaser, flanger 4x dedicated returns for stereo FX: Fader, pan, mute, routing to Mix/LR, 4-band PEQ Audio tools: PAFL: PFL or stereo in-place AFL 0 to -24 dB trim 85 ms delay Talkback: Assignable to any mix 12 dB/octave HPF Signal generator: Assignable to any mix Sine, white, pink, bandpass noise General: Dimensions (WxDxH): Mounted on desk: 435.5 x 174.5 x 161.0 mm Rack mounted: 483.0 x 135.4 x 177.0 mm, 4U Weight: 5.8 kg
