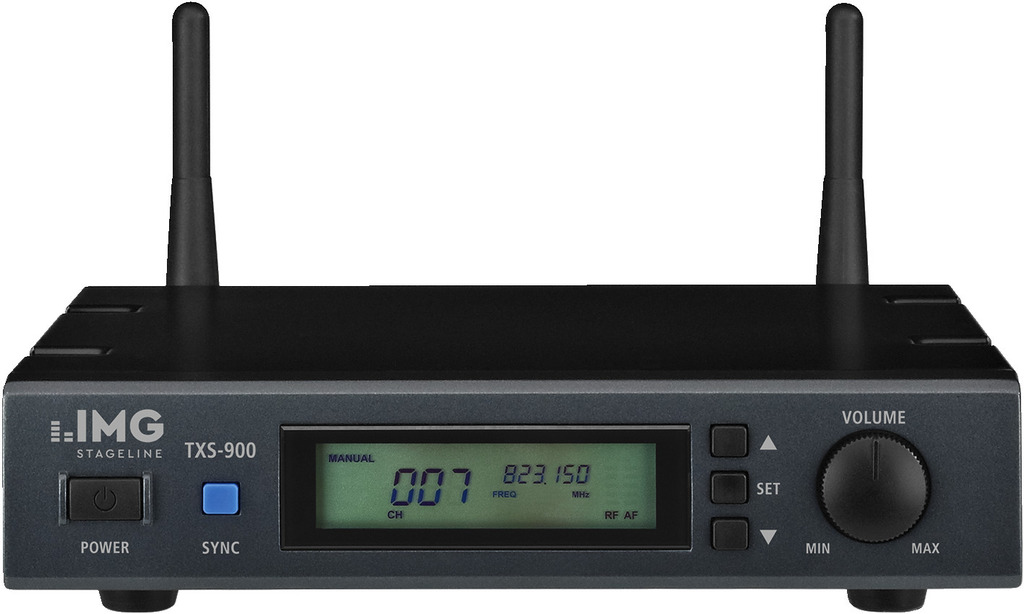

Img Stage Line TXS-900 - Receiver with UHF PLL technology, 2 frequency ranges, true diversity system with detachable antennas and a robust metal construction:
2 frequency ranges (band E: 823-832 MHz and 863-865 MHz)
Frequency response: 80 - 18,000 Hz
442 selectable channels
Preset without intermodulation, 4 groups with 8 channels each
12 channels can be used in parallel, without intermodulation (automatic scanning)
SYNC function for transmitting the selected frequency to the pocket transmitter TXS-900HSE (optional) or to the handheld microphone TXS-900HT(optional) via infrared signal.
Automatic scanning function
True diversity system with detachable antennas (BNC connection)
Pilot tone squelch
Volume and squelch control
LCD for indicating group/channel, frequency, RF reception level, AF audio level
Balanced XLR output and balanced 6.3 mm jack output with microphone/line switch
8 V power available for active antennas or antenna amplifiers
Robust metal housing
Dimensions: 200 mm(width) x 42 mm(height) x 183 mm(depth)
Weight: 1.1 kg
Installation in a 482 mm (19") rack possible with included mounting brackets
