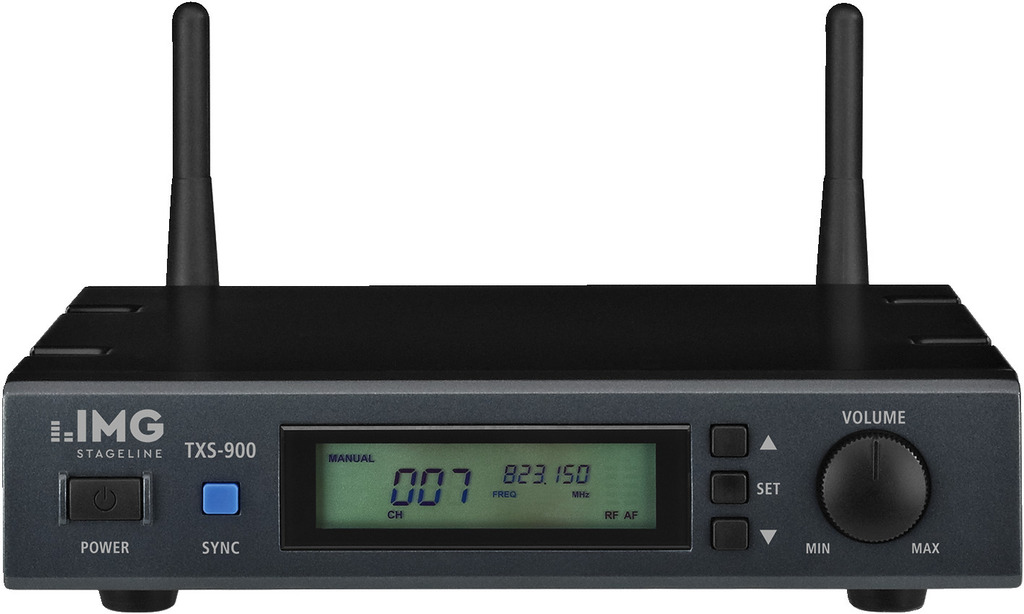

img Stage Line TXS-900

Wireless Receiver

UHF PLL technology with 2 frequency ranges: 823-832 MHz and 863-865 MHz.
442 selectable channels and automatic scanning function.
true diversity system with detachable antennas (BNC connection).
balanced XLR and 6.3 mm jack outputs with microphone/line switch.
Robust metal housing, suitable for rack installation.

438⁴⁰ €

On order – delivery date confirmed after ordering Request details

Add to cart

also deliverable via

2359 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

img Stage Line TXS-900 Add to cart: 438⁴⁰ €

Img Stage Line TXS-900 - Receiver with UHF PLL technology, 2 frequency ranges, true diversity system with detachable antennas and a robust metal construction:

2 frequency ranges (band E: 823-832 MHz and 863-865 MHz)
Frequency response: 80 - 18,000 Hz
442 selectable channels
Preset without intermodulation, 4 groups with 8 channels each
12 channels can be used in parallel, without intermodulation (automatic scanning)
SYNC function for transmitting the selected frequency to the pocket transmitter TXS-900HSE (optional) or to the handheld microphone TXS-900HT(optional) via infrared signal.
Automatic scanning function
True diversity system with detachable antennas (BNC connection)
Pilot tone squelch
Volume and squelch control
LCD for indicating group/channel, frequency, RF reception level, AF audio level
Balanced XLR output and balanced 6.3 mm jack output with microphone/line switch
8 V power available for active antennas or antenna amplifiers
Robust metal housing
Dimensions: 200 mm(width) x 42 mm(height) x 183 mm(depth)
Weight: 1.1 kg
Installation in a 482 mm (19") rack possible with included mounting brackets
Power supply included
