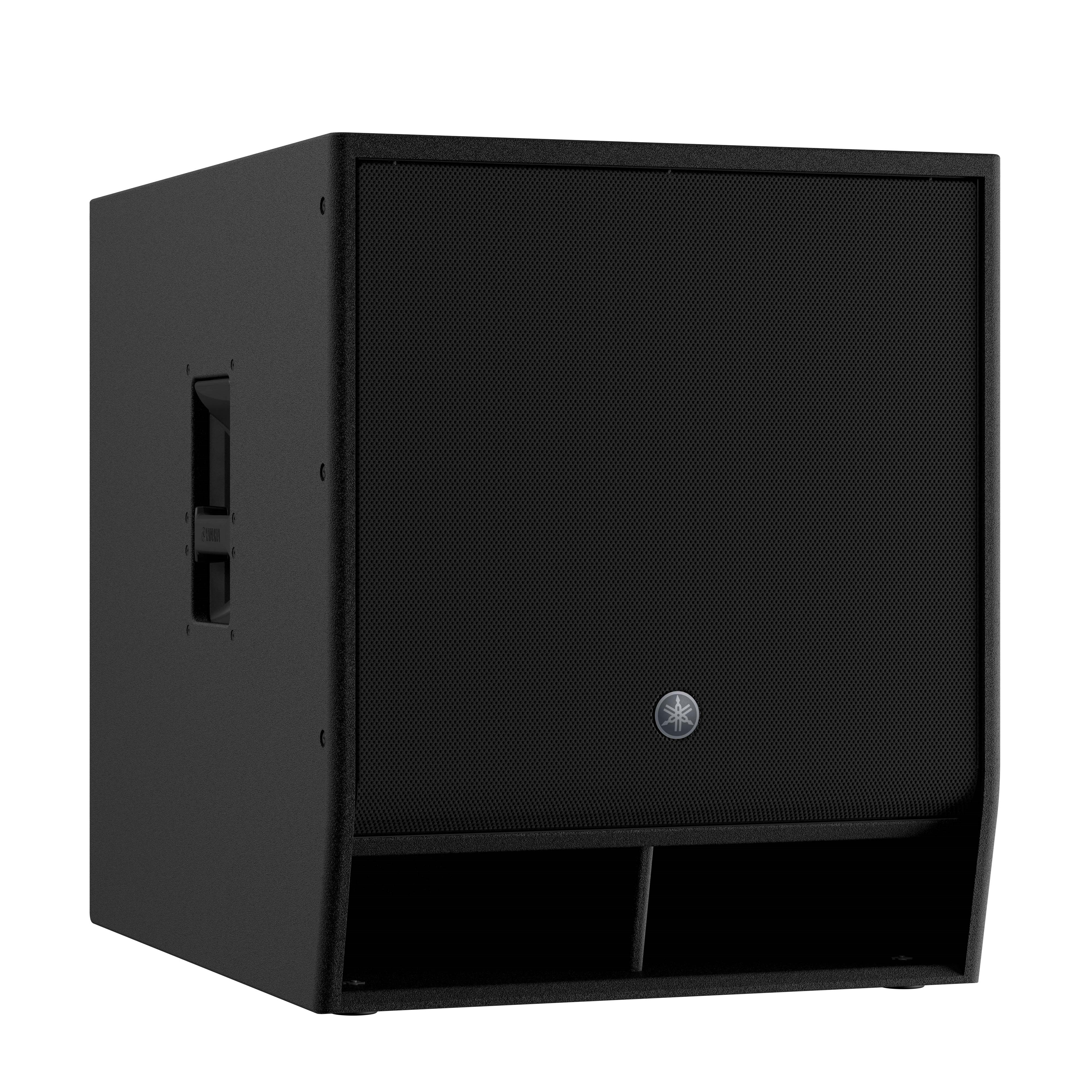

Yamaha CXS 18 XLF

Name: Yamaha CXS 18 XLF
Brand: Yamaha
SKU: ZQ53220
Price: 1099.53 EUR
Availability: OutOfStock

Passive subwoofer

18" passive Bass-Reflex subwoofer, ideal for use with CZR series speakers.
delivers extended low frequencies with a maximum SPL of 133 dB.
features an 18” driver with a 4” voice coil and supports 1000W power.
can be used in cardioid mode for directional sound control.
durable plywood cabinet with a polyurethane finish and three SpeakON connectors.

1 099⁵³ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

5658 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Yamaha CXS 18 XLF Add to cart: 1 099⁵³ €

Yamaha CXS 18 XLF – 18" passive subwoofer, ideal for use alongside full-range speakers from the CZR series. It delivers extended low frequencies and clear, powerful sound, reaching an impressive level of 133 dB SPL.

It features an 18” driver with a 4” voice coil and supports a power of 1000W. The Bass-Reflex plywood cabinet is covered with a durable Polyurethane layer. Additionally, the subwoofer can also be used in cardioid mode for sound direction control, and connectivity is provided through three SpeakON connectors.

Passive Bass-Reflex subwoofer
Frequency response:
- Passive: 32 Hz - 3kHz,
- Normal (*1): 32 Hz - 150 Hz
- Extended (*1): 29 Hz - 150 Hz
18” driver, 4” voice coil
Power:
- Noise: 500 W
- Program: 1000 W
- Peak: 2000 W
Nominal impedance: 8 Ω
Max SPL: 133 dB
Inputs / Outputs: 3 x SpeakON NL4MP (Parallels x2, Outputs x1)
Aluminium handle
Accepts subwoofer-satellite pole with a diameter of 35 mm, M20 thread
Plywood cabinet, polyurethane finish
Dimensions: 550 x 657 x 720 mm
Weight: 43.6 kg
