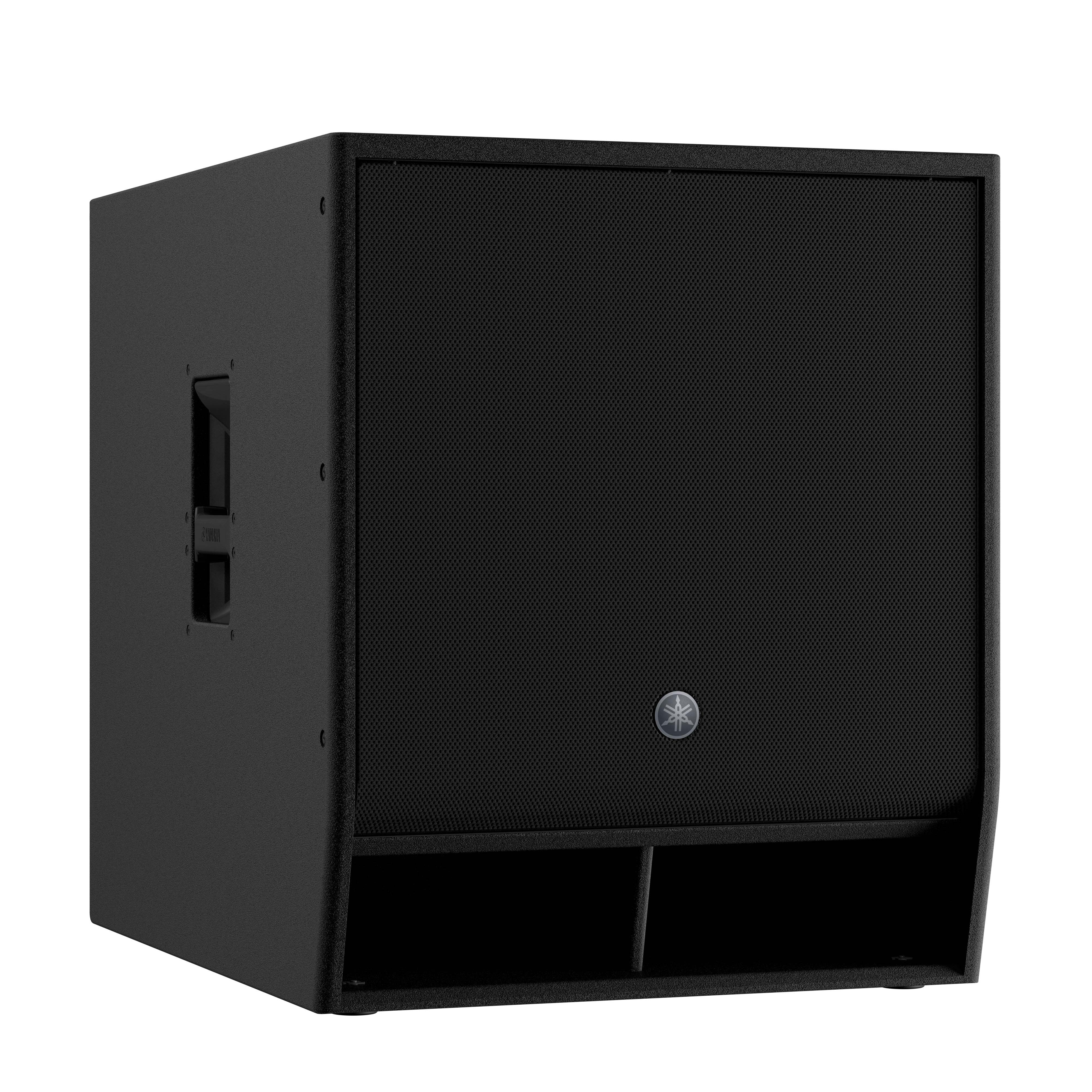

Yamaha CXS-18 XLF

Yamaha CXS 18 XLF – 18" passive subwoofer, ideal for use alongside full-range speakers from the CZR series. It offers extended low frequencies and a clear, powerful sound, reaching an impressive level of 133 dB SPL.

It features an 18” driver with a 4” voice coil and supports a power of 1000W. The Bass-Reflex plywood cabinet is covered with a durable Polyurethane layer. Additionally, the subwoofer can also be used in cardioid mode for directional sound control, and connectivity is ensured through three SpeakON connectors.

• Passive Bass-Reflex subwoofer
• Frequency response:
  • Passive: 32 Hz - 3kHz,
  • Normal (*1): 32 Hz - 150 Hz
  • Extended (*1): 29 Hz - 150 Hz
• 18” driver, 4” voice coil
• Power:
  • Noise: 500 W
  • Program: 1000 W
  • Peak: 2000 W
• Nominal impedance: 8 Ω
• Max SPL: 133 dB
• Inputs / Outputs: 3 x SpeakON NL4MP (Parallel x2, Outputs x1)
• Aluminium handle
• Accepts subwoofer-satellite pole with a diameter of 35 mm, M20 thread
• Plywood cabinet, polyurethane finish
• Dimensions: 550 x 657 x 720 mm
• Weight: 43.6 kg
