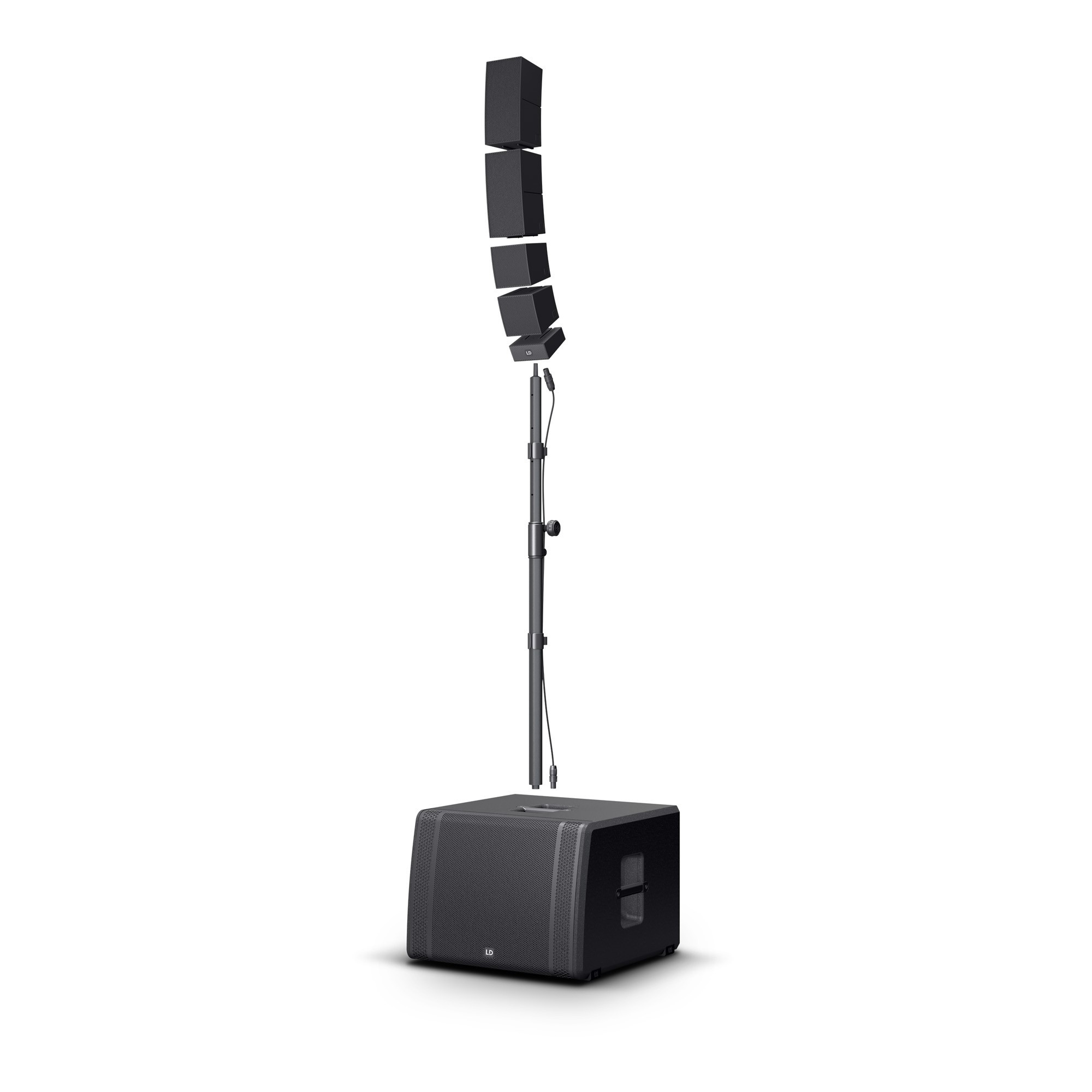

LD Systems CURV 500 TS, a curved vertical line array sound system with a powered subwoofer and integrated DSP, and satellites featuring WaveAhead® technology. Each single satellite has a 4" midrange driver and 3 x 1" high-frequency drivers, connecting via the SmartLink® plug-n-play system.
The 15" subwoofer includes a Class D amplifier and DSP with protections and 6 presets.
The CURV 500 TS system delivers 1000W RMS power and a peak sound pressure of 131 dB SPL, including the subwoofer, satellites, a SmartLink® adapter, pole mount, and cable for the satellites.
curved vertical line array system
system power: 1000 W RMS
700 W RMS low frequencies
300W satellites
peak amplification: 2000W
sound pressure: 125 dB SPL continuous, 131 dB peak
frequency response: 40 Hz - 20 kHz
coverage H x V: 110° x 30°
integrated protections, DSP limiter, short circuit, overheating, overcurrent
