LD Systems CURV 500 TS


Sound System

  • curved vertical line array sound system with integrated DSP.
  • delivers 1000W RMS power and 131 dB SPL peak sound pressure.
  • includes a 15" subwoofer and 4 satellites with WaveAhead® technology.
  • frequency response of 40 Hz - 20 kHz and coverage of 110° x 30°.
  • lightweight design at 48.2 kg with integrated protections.
LD Systems
1 77632
Currently unavailable. Request details
Central warehouse: 0
Add to cart
9047 points of loyalty
Shipping free
Warranty 24 months
Returns 14 days

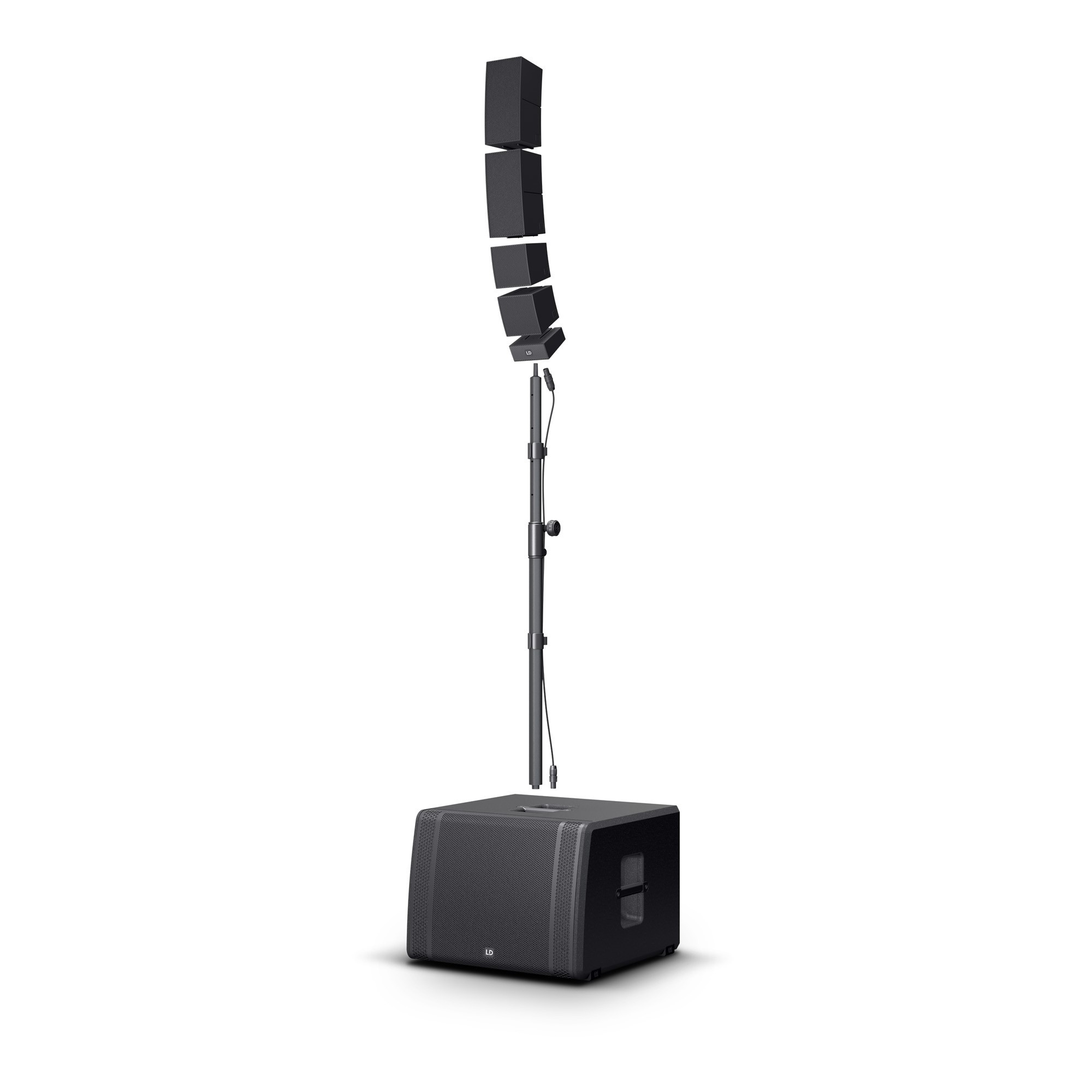

LD Systems CURV 500 TS, a curved vertical line array sound system with a powered subwoofer and integrated DSP, and satellites featuring WaveAhead® technology. Each single satellite has a 4" midrange driver and 3 x 1" high-frequency drivers, connecting via the SmartLink® plug-n-play system.

The 15" subwoofer includes a Class D amplifier and DSP with protections and 6 presets.

The CURV 500 TS system delivers 1000W RMS power and a peak sound pressure of 131 dB SPL, including the subwoofer, satellites, a SmartLink® adapter, pole mount, and cable for the satellites.

  • curved vertical line array system
  • system power: 1000 W RMS
    • 700 W RMS low frequencies
    • 300W satellites
  • peak amplification: 2000W
  • sound pressure: 125 dB SPL continuous, 131 dB peak
  • frequency response: 40 Hz - 20 kHz
  • coverage H x V: 110° x 30°
  • integrated protections, DSP limiter, short circuit, overheating, overcurrent
  • satellite mount with M20 thread
  • system weight: 48.2 kg

Product code: LDCURV500TS

Unit of sale: piece

Specifications:
power: 1000 W
woofer: 15"
number of input channels: 1
number of microphone channels: 0
digital playback: without
