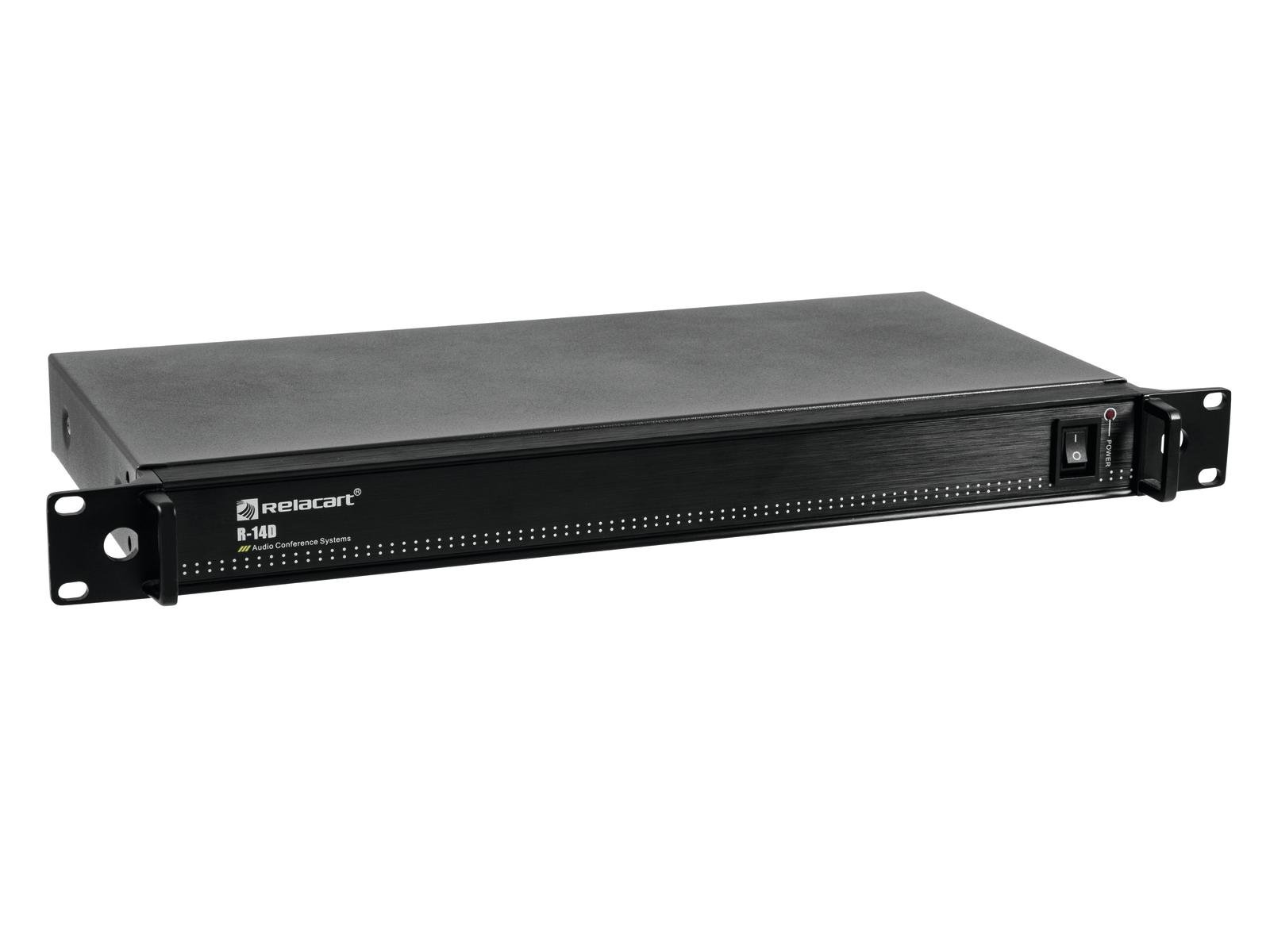

Relacart R-14D Antenna Distribution System


Antenna Distributor (470 - 900 MHz)

  • active antenna distributor for up to four UHF receivers with true diversity.
  • enhances interference safety and increases operational range.
  • replaces individual receiver antennas and power supplies.
  • connect up to five R-14D distributors for a total of 16 microphones.
  • includes low voltage outputs for powering four UHF receivers.
Relacart
46432
Currently unavailable. Request details
Central warehouse: 0
Add to cart
2405 points of loyalty
Shipping free
Warranty 24 months
Returns 14 days
Relacart R-14D Antenna Distribution System Add to cart: 46432


Antenna Distributor (470 - 900 MHz)

  • Active antenna distributor for operating up to four UHF receivers with true diversity on a pair of multiple antennas
  • Enhances interference safety and increases range
  • Replaces the respective antennas and PSUs of individual receivers
  • Up to five R-14D antenna distributors can be connected together for a total of 16 microphones
  • Low voltage outputs for powering four UHF receivers, incl. suitable DC connection cables
  • Usable across the entire UHF frequency range (470 - 900 MHz)
  • All antenna connections via BNC connectors, incl. 10 x BNC cable
  • UHF 470 - 900MHz license-free and approved in large parts of Europe
  • (19") 48.3 cm rack installation

Package contents

  • 1 x device, 1 x power cable, 10 x BNC cable, 4 x adapter cable, 1 x user manual, 1 x declaration of conformity


Type: Antennas and distributors
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: Max. 60 W
Power connection: Mains input via IEC (M) connector power cable with safety plug (supplied)
Impedance: 50 ohms
Gain: Output: 0 dB
Output voltage: 4 x 12 V DC
Status LED: Power

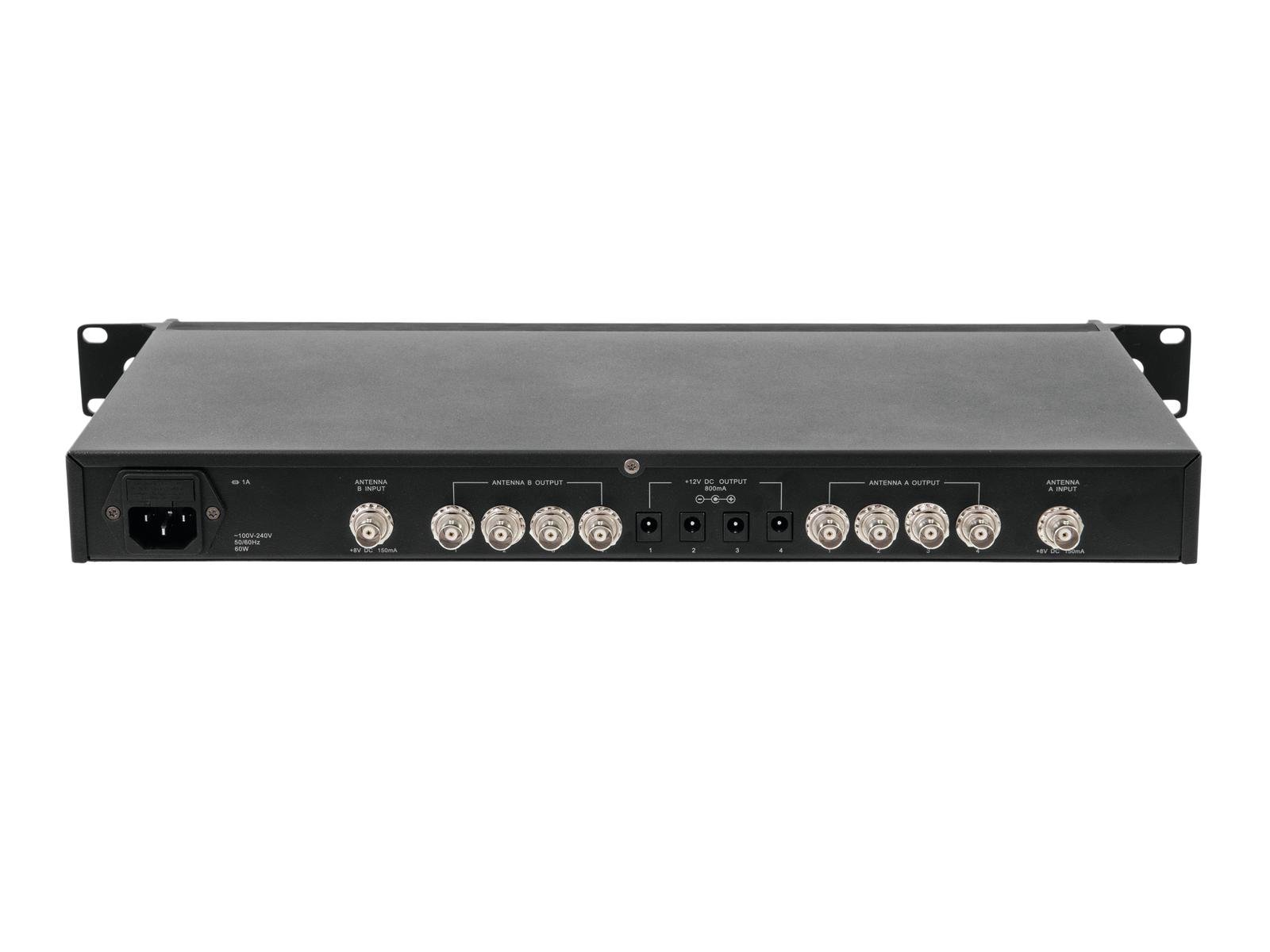

Connections: Input: antenna via 2 x BNC (F) 8 V
Output: antenna via 8 x BNC (F)
Frequency band: UHF 470 - 900MHz
Switch: On/off switch
Material: Metal
Colour: Black
Housing design: (19") 48.3 cm rack installation
Dimensions: Width: 48.3 cm
Depth: 24.2 cm
Height: 4.45 cm
Weight: 3.00 kg

Product code: 13055194

Unit of sale: piece
