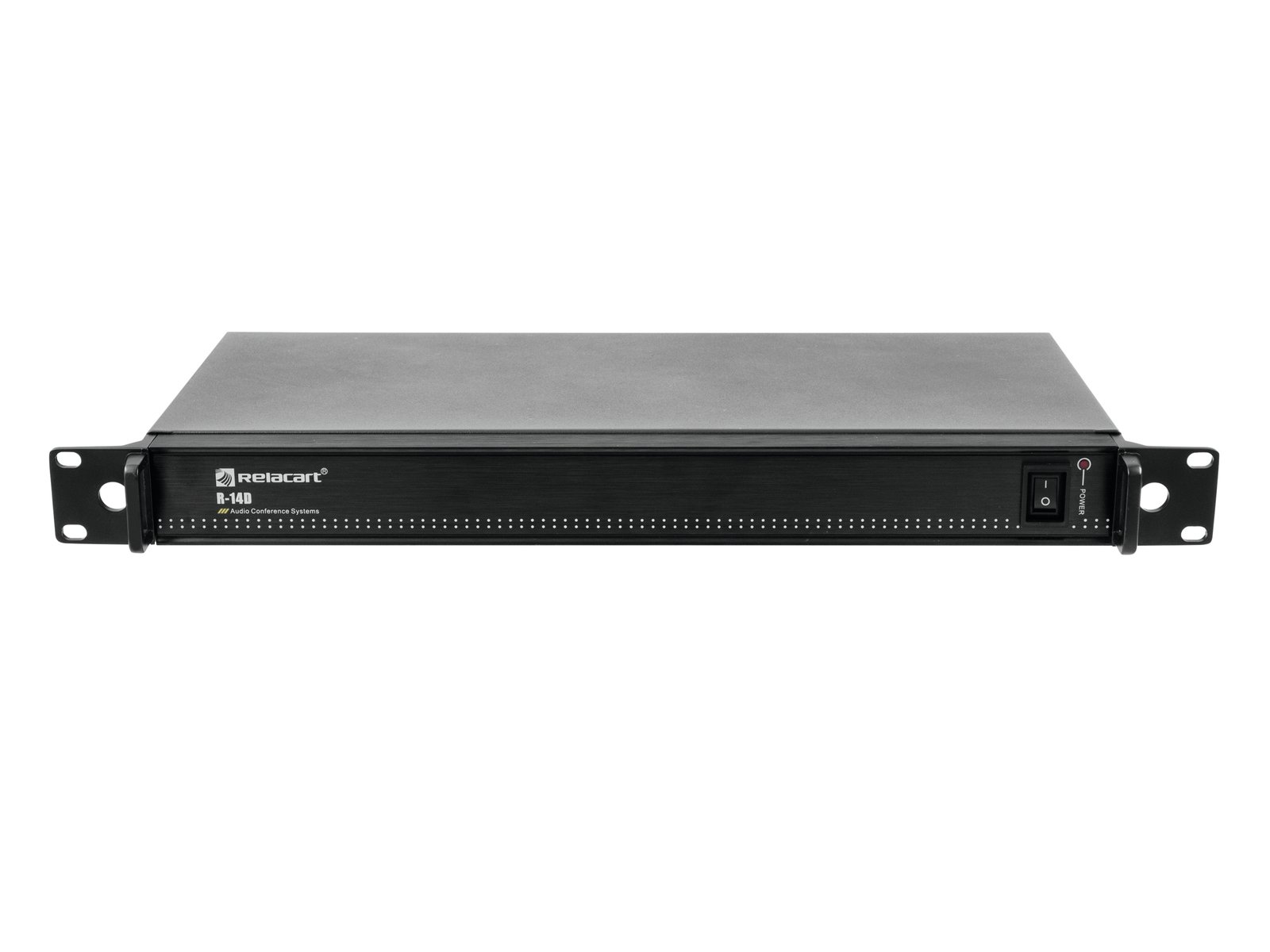

Relacart R-14D Antenna Distribution System

Name: Relacart R-14D Antenna Distribution System
Brand: Relacart
SKU: 13055194
Price: 456.46 EUR
Availability: OutOfStock

Antenna Distributor (470 - 900 MHz)

456⁴⁶ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

2405 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Relacart R-14D Antenna Distribution System Add to cart: 456⁴⁶ €

Antenna Distributor (470 - 900 MHz)

Active antenna distributor for operating up to four UHF receivers with true diversity on a pair of multiple antennas
Enhances interference safety and increases range
Replaces the respective antennas and PSUs of individual receivers
Up to five R-14D antenna distributors can be connected together for a total of 16 microphones
Low voltage outputs for powering four UHF receivers, incl. suitable DC connection cables
Usable across the entire UHF frequency range (470 - 900 MHz)
All antenna connections via BNC connectors, incl. 10 x BNC cable
UHF 470 - 900MHz license-free and approved in large parts of Europe
(19") 48.3 cm rack installation

Package contents

1 x device, 1 x power cable, 10 x BNC cable, 4 x adapter cable, 1 x user manual, 1 x declaration of conformity

Type:	Antennas and distributors
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	Max. 60 W
Power connection:	Mains input via IEC (M) connector power cable with safety plug (supplied)
Impedance:	50 ohms
Gain:	Output: 0 dB
Output voltage:	4 x 12 V DC
Status LED:	Power
Connections:	Input: antenna via 2 x BNC (F) 8 V Output: antenna via 8 x BNC (F)
Frequency band:	UHF 470 - 900MHz
Switch:	On/off switch
Material:	Metal
Colour:	Black
Housing design:	(19") 48.3 cm rack installation
Dimensions:	Width: 48.3 cm Depth: 24.2 cm Height: 4.45 cm
Weight:	3.00 kg

Product code: 13055194

Unit of sale: piece
