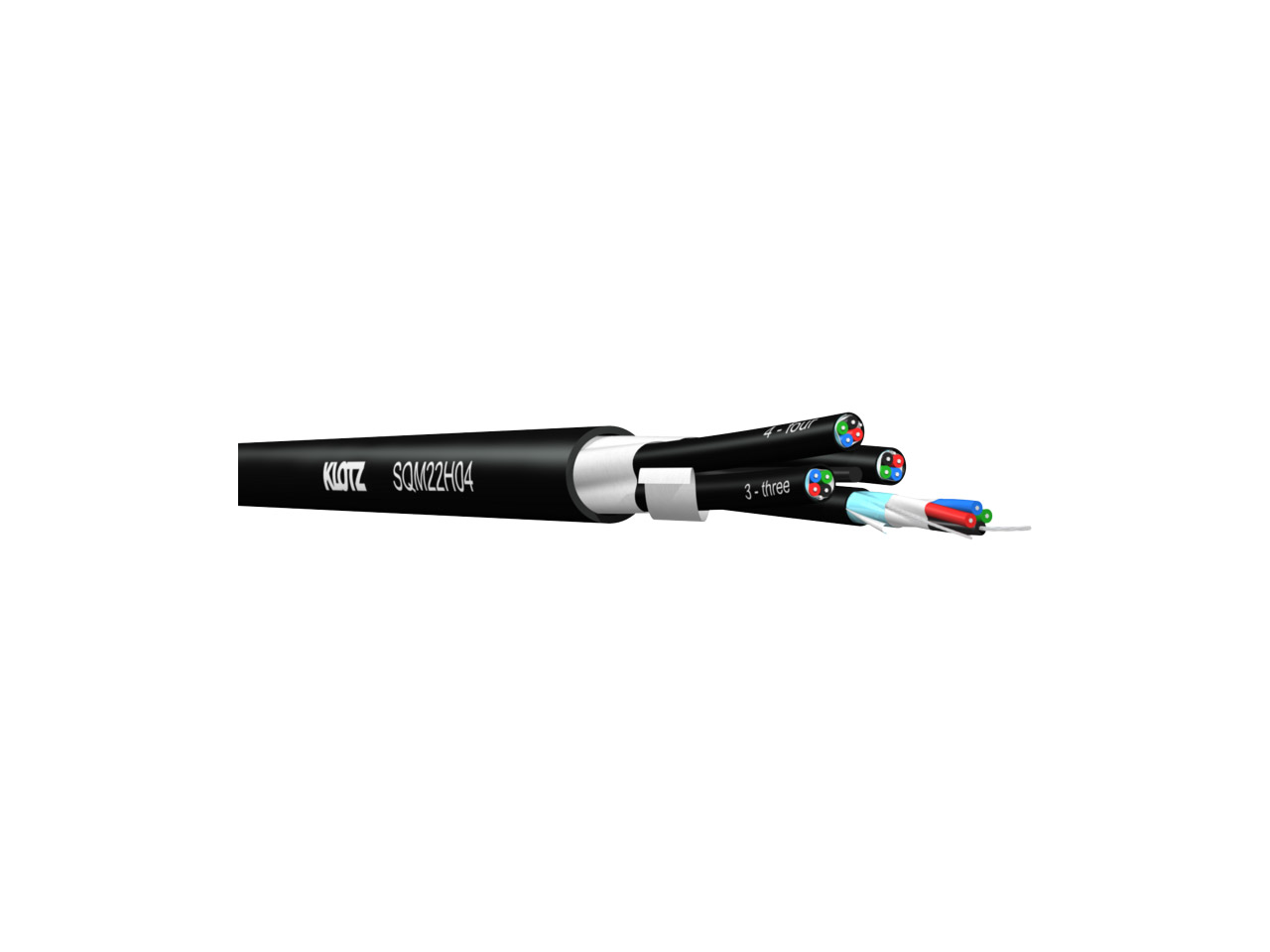

Klotz StarQuad SQM22

Klotz StarQuad SQM22, a multicore microphone cable that combines four cables based on the conductive properties of the SQ422H cable. It features a halogen-free FRNC sheath, flame-resistant, ideal for installations. Each individual cable consists of a star quad with electrically opposite cores, minimising electromagnetic interference. The aluminium-covered foil shield effectively protects against interference. The layered twisting of the individual cables creates a stable and robust structure for durability.

• Conductor construction: tinned copper, 7 x 0.20 mm
• Conductor cross-section: 0.22 mm²
• Insulation: polyethylene (PE)
• Core arrangement: 4 twisted cores in star quad
• Drain wire: tinned copper, 7 x 0.20 mm
• Shielding: AL/PETP foil
• Element jacket: LSZH, black, numbered
• Twisting: 4 twisted elements
• Outer jacket: FRNC, black
• Minimum bending radius: 10x total diameter
• Halogen-free: according to IEC 60754-2
• Flame resistance: according to IEC 60332-1
• Conductor resistance: 85 Ω/km
• Insulation resistance: > 10 GΩ x km
• Capacitance:
  • cond./cond.: 120 pF/m
  • cond./screen: 180 pF/m

cond./cond.²: 50 pF/m
cond./screen²: 100 pF/m
