Sonicview 24 is a digital mixer featuring 3 touch-screen displays, a microphone preamplifier with 24 channels, Dante audio interface 44 in / 24 bus, USB, and optional multitrack recording capability.
- Tascam VIEW interface (Visual Interactive Ergonomic Workflow) allowing intuitive operation with three different viewing modes

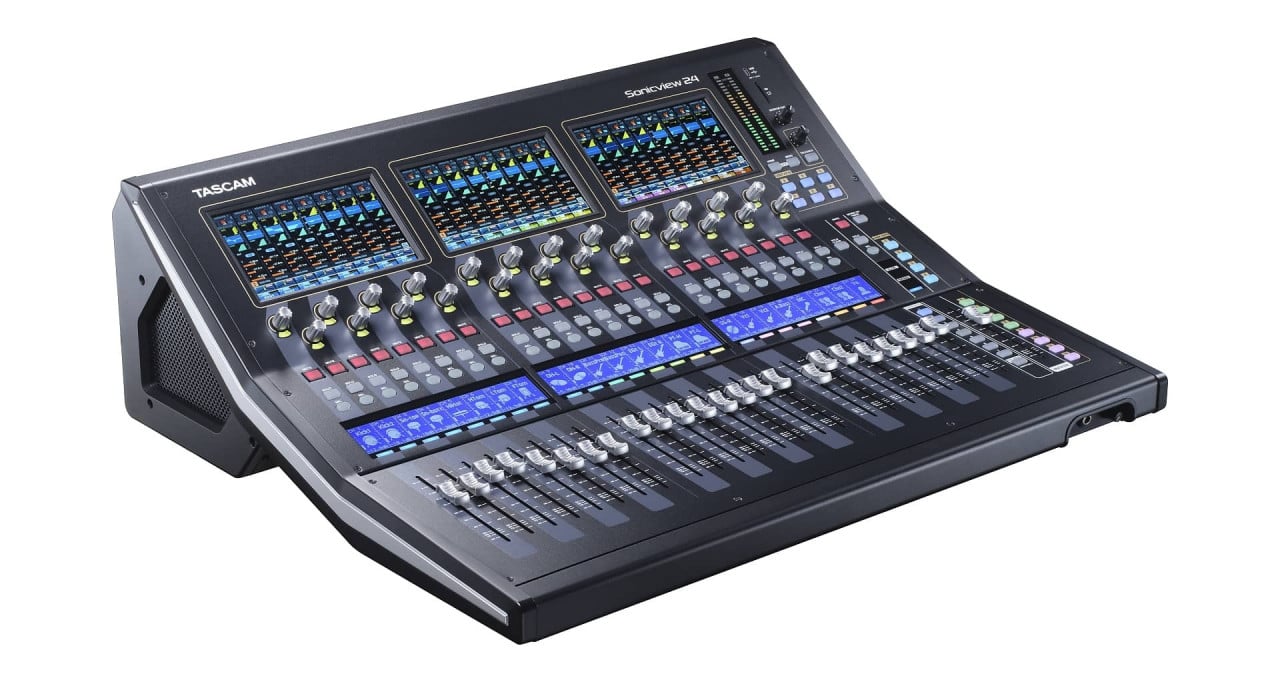

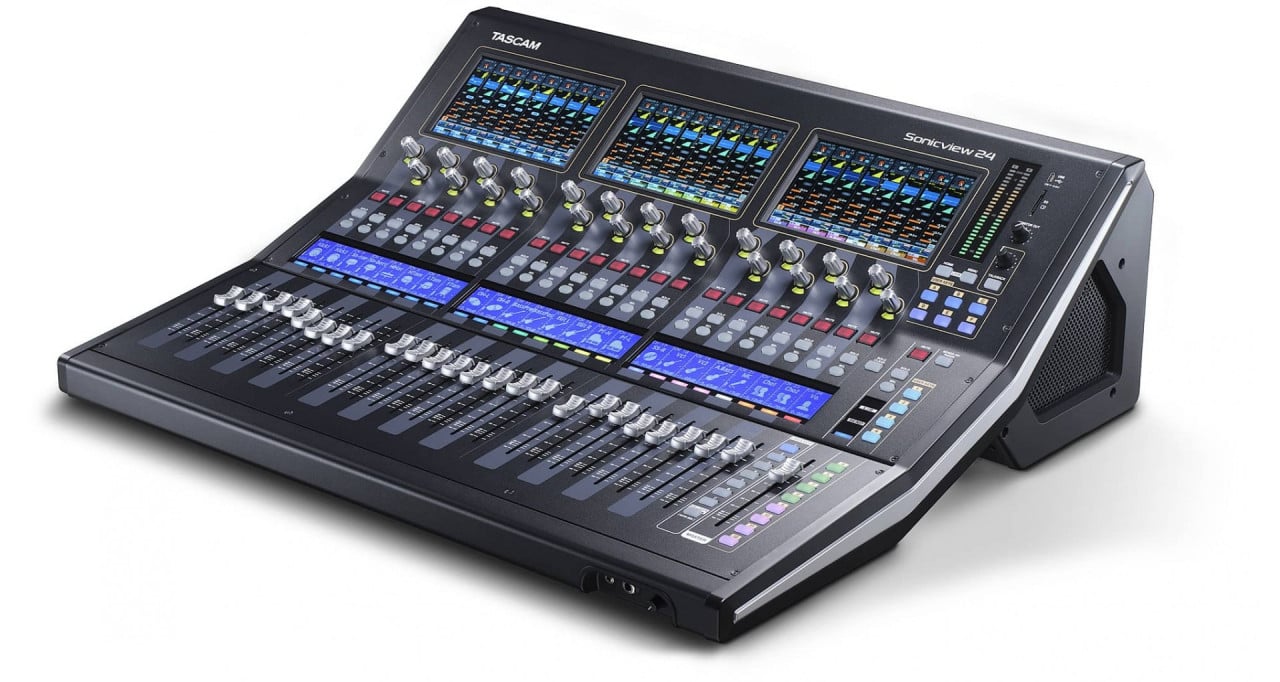

- Multiple displays via three 7-inch colour touch-screen displays
- 44 input channels (40 mono, 2 stereo)
- 22 flexible output buses plus main L/R bus with 31-band graphic EQ
- 54-bit float-point FPGA mixing engine, 96 kHz sampling rate
- Ultra-low latency: 2× Fs (20.8 μs) in mixing engine, 0.51 ms analog-to-analog
- 32-bit/96 kHz A/D and D/A conversion
- Tascam HDIA microphone preamplifiers (High-Definition Instrumentation Architecture).
- Built-in Dante interface (64 inputs/outputs); supports redundancy, AES67, DDM, and SMPTE 2110
- 32-bit/96 kHz USB audio interface (32 inputs/outputs)

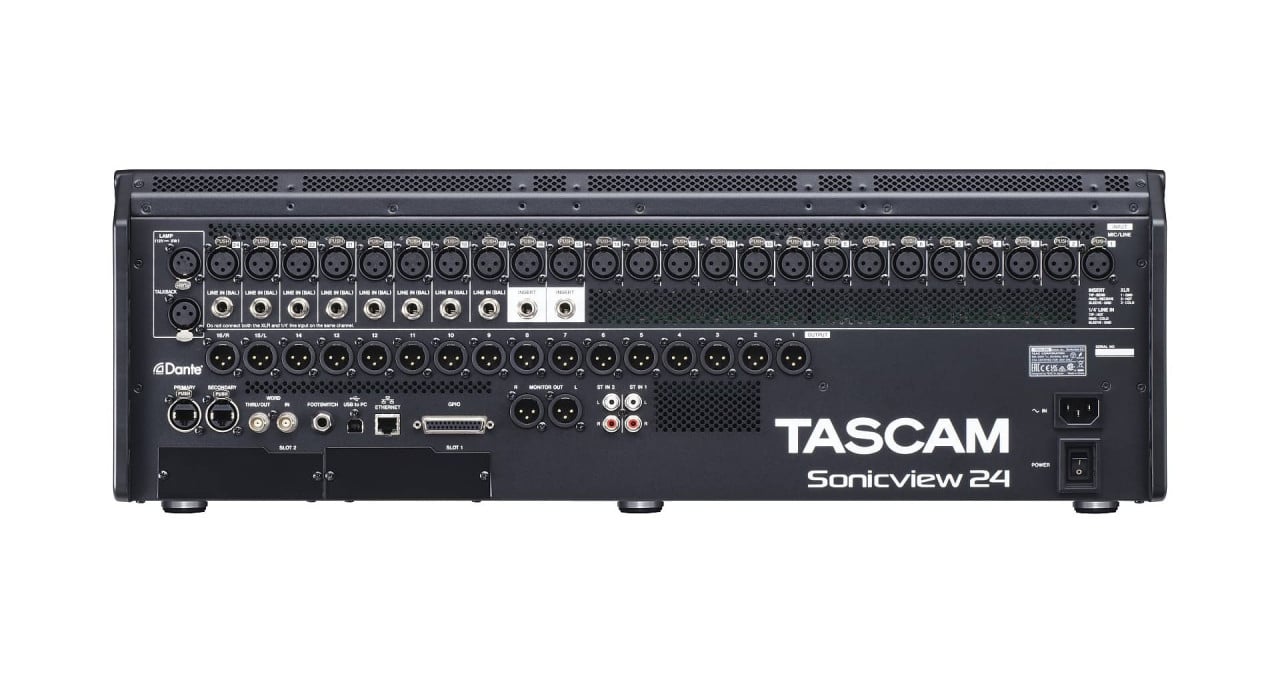

- 24 microphone/line inputs (up to +32 dBu), 16 XLR line outputs with flexible routing
- Four multi-effects processors
- Tascam Sonicview Control software for Windows, macOS, and iPadOS enables remote control and offline editing
- Two Tascam expansion slots
- SDXC recorder with 32 tracks, MADI, AES/EBU, and analogue I/O cards available for the second slot
- Faders can be removed and replaced individually, the top panel can be disassembled without disconnecting cables for easy maintenance
- 18 customisable user buttons, 8 DCA groups

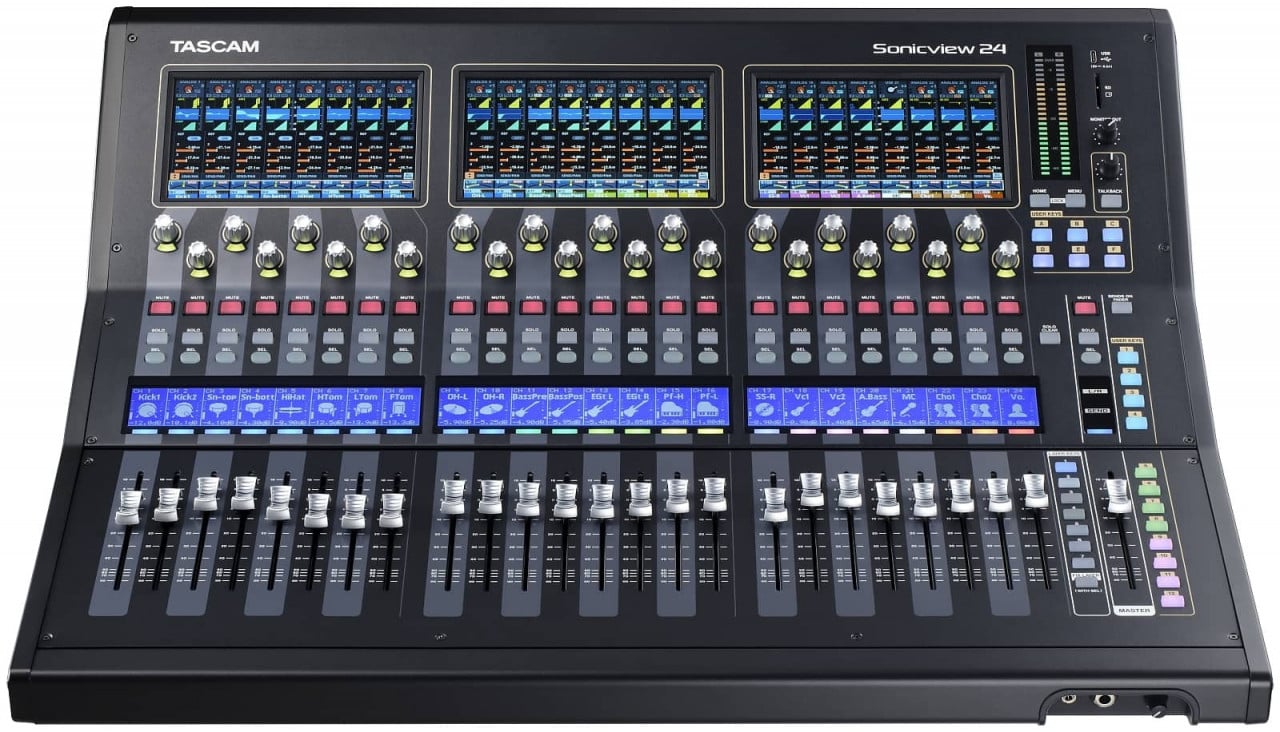

- 24 +1 motorised faders of 100 mm
- 24 encoders with coloured LEDs
- 24 LC displays with coloured LEDs for channel name, input level, and gain meter
- Internal recording/playback with 2 tracks using SD card or USB flash drive
- 8 TRS line inputs, 2 pairs of RCA stereo inputs, talkback XLR input
- XLR monitor outputs
- Standard (6.3 mm) and mini (3.5 mm) headphone outputs
- Wordclock In, Out/Thru
- 1000BASE-T gigabit Ethernet
- GPIO 8-in/8-out on DB25 connector
- Footswitch TRS connector
- XLR 4-31 lamp connector
Technical Specifications:
Inputs: 52 (40 mono, 2 stereo, 4 stereo effect returns)
Busses: 32
Built-in effects: 4
Selectable input sources
At 96 kHz: 160 max
At 48 kHz: 256 max
Microphone/Line (XLR): 24
Line (RCA): 4 (2 × stereo)
Dante: 32 (96 kHz), 64 (48 kHz)
Expansion cards: 2 × 32 (96 kHz), 2 × 64 (48 kHz)
USB audio: 32
Built-in player: 2 (1 × stereo)
Oscillator: 1
Talkback: 1
Selectable output targets
At 96 kHz: 148 max
At 48 kHz: 244 max
Line (XLR): 16
Dante: 32 (96 kHz), 64 (48 kHz)
Expansion cards: 2 × 32 (96 kHz), 2 × 64 (48 kHz)
USB audio: 32
Monitor output (analog): 2 (1 × stereo)
Built-in recorder: 2 (1 × stereo)
Inserts
Analogue insert points: 2 (micro/line inputs 7–8)
Digital signal processing
Mixing engine: 54-bit floating point, 96 kHz
A/D converters: 32-bit, 96 kHz
D/A converters: 24-bit, 96 kHz
Digital I/O sampling rate: 96 kHz, 48 kHz
Analogue audio inputs and outputs
Micro/line inputs (balanced, MIC/LINE): XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Maximum input level
+12 dBu (TRIM minimum, Pad off)
+32 dBu (TRIM minimum, Pad on)
Minimum input level
–62 dBu (TRIM maximum, Pad off)
–42 dBu (TRIM maximum, Pad on)
Input impedance: ≥5 kΩ
Line inputs: (LINE IN (BAL)): 6.3-mm standard TRS, (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level
+12 dBu (TRIM minimum, Pad off)
+32 dBu (TRIM minimum, Pad on)
Minimum input level
–62 dBu (TRIM maximum, Pad off)
–42 dBu (TRIM maximum, Pad on)
Input impedance: ≥5 kΩ
Inserts (INSERT): 6.3-mm standard TRS (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level (Return): +18 dBu
Nominal input level (Return): -2 dBu
Input impedance (return): ≥5 kΩ
Maximum output level (Send): +18 dBu
Nominal output level (Send): -2 dBu
Output impedance (Send): ≤100 Ω
Talkback input (TALKBACK): XLR-3-31 (1: GND, 2: HOT, 3: RECE)
Maximum input level: +10 dBu
Minimum input level: -65 dBu
Gain adjustment range: 0-55 dB
Input impedance: ≥5 kΩ
Phantom power: +48 V
Stereo inputs (ST IN 1-2 L/R): RCA
Maximum input level: +6 dBV (1.995 Vrms)
Nominal input level: –10 dBV (0.316 Vrms)
Headroom: 16 dB
Input impedance: ≥10 kΩ
Line outputs (OUTPUT 1–16): XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Maximum output level (selectable)
+15 dBu (Ref(D): –9 dBFS, Ref(A): +6 dBu)
+18 dBu (Ref(D): –14 dBFS, Ref(A): +4 dBu)
+20 dBu (Ref(D): –16 dBFS, Ref(A): +4 dBu)
+18 dBu (Ref(D): –18 dBFS, Ref(A): 0 dBu)
+20 dBu (Ref(D): –20 dBFS, Ref(A): 0 dBu)
+22 dBu (Ref(D): –18 dBFS, Ref(A): +4 dBu)
+24 dBu (Ref(D): –20 dBFS, Ref(A): +4 dBu)
Nominal output level (selectable)
+6 dBu (Ref(D): –9 dBFS)
+4 dBu (Ref(D): –14 dBFS, –16 dBFS)
+4 dBu or 0 dBu (Ref(D): –18 dBFS, –20 dBFS)
Output impedance: ≤100 Ω
Monitor outputs (MONITOR OUT L/R): XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Maximum output level: +24 dBu
Nominal output level: +4 dBu
Output impedance: ≤100 Ω
Headphone outputs (PHONES): Standard 6.3 mm stereo Jack, 3.5 mm Jack
Maximum output power: 100 mW + 100 mW (32 Ω)
Digital audio inputs and outputs
USB audio: USB type B
Input (USB to Sonicview): 32 channels
Output (Sonicview to USB): 32 channels
Sampling rates: 48 kHz, 96 kHz
Bit depth: 32bit
Dante PRIMARY/SECONDARY: Compatible etherCON Cat5e
Number of audio channels: 64 channels (48 kHz), 32 channels (96 kHz)
Supported modes: Redundant mode, Switched mode
Compatible standard: Gigabit Ethernet (1000BASE-T, IEEE 802.3ab)
Recommended cables: Cat5e STP or better
I/O ControlGPIO: 25-pin D-sub (8-in/8-out, female, inch-standard)
Input circuit: Pull-up (5 V)
Output circuit
Output impedance: 10 Ω
Voltage resistance: 20 V
Maximum output current: 35 mA
Maximum power supply current (+5 V) 50m A
FOOTSWITCH Connection Standard 6.3 mm TS Jack
Network connector (ETHERNET): RJ45
Compatible standards: 100BASE-TX, 1000BASE-T
Protocol: TCP/IP
Wordclock (WORD IN): BNC
Input level: 0.5–5 Vpp
Input impedance: 75 Ω ±10%
Input frequency: 48 kHz, 96 kHz
Allowed frequency deviation: ±100 ppm
Wordclock output (WORD THRU/OUT): BNC
Output level: TTL level, 5 V
Output frequency: 48 kHz, 96 kHz
USB port: 4-pin USB Type-C
Standard: USB 2.0 High Speed (480 Mbit/s)
Bus power: 5 V, 0.5 A
Class: HID, mass storage
USB Port (rear panel): USB Type-B
Standard: USB 2.0 High Speed (480 Mbit/s)
Power output for lamp (LAMP): XLR 4-pin female (pin 4: +12V, pin 3: GND)
Power supply voltage: DC 0–12 V (adjustable brightness)
Maximum output power: 5 W
Audio performance:
EIN (equivalent input noise) microphone amplifier: ≤–128 dBu
Frequency response
20 Hz – 20 kHz: +0 dB, –0.5 dB (48 kHz, JEITA)
20 Hz – 40 kHz: +0 dB, –1.0 dB (96 kHz, JEITA)
Dynamic range:
≥108 dB (Mic/Line input to Line output, PAD off, TRIM min., Ref(D) –20 dBFS, internal word clock, JEITA)
≥110 dB (Mic/Line input to Dante output, PAD off, TRIM min., internal word clock, JEITA)
≥112 dB (Dante input to Line output, PAD off, TRIM min., internal word clock, JEITA)
Distortion:
≤0.002 % (Mic/Line input to Line output, +4 dBu input signal, PAD off, TRIM min., JEITA)
≤0.002 % (Mic/Line input to Dante output, +4 dBu input signal, PAD off, TRIM min., JEITA)
≤0.002 % (Dante input to Line output, 0 dBFS input signal, JEITA)
Crosstalk: ≥–100 dB (Mic/Line input to Line output, 1 kHz sine wave, JEITA)
Power and other specifications
Main displays: 3 colour touch-screen displays of 7 inches (17.8 cm), 800 × 480 px
Power supply: AC 100–240 V, 50/60 Hz
Power consumption: 85 W
Overall dimensions (width × height × depth): 691 mm × 228 mm × 554 mm
Weight: 18 kg
Operating temperature range: 0–40 °C
