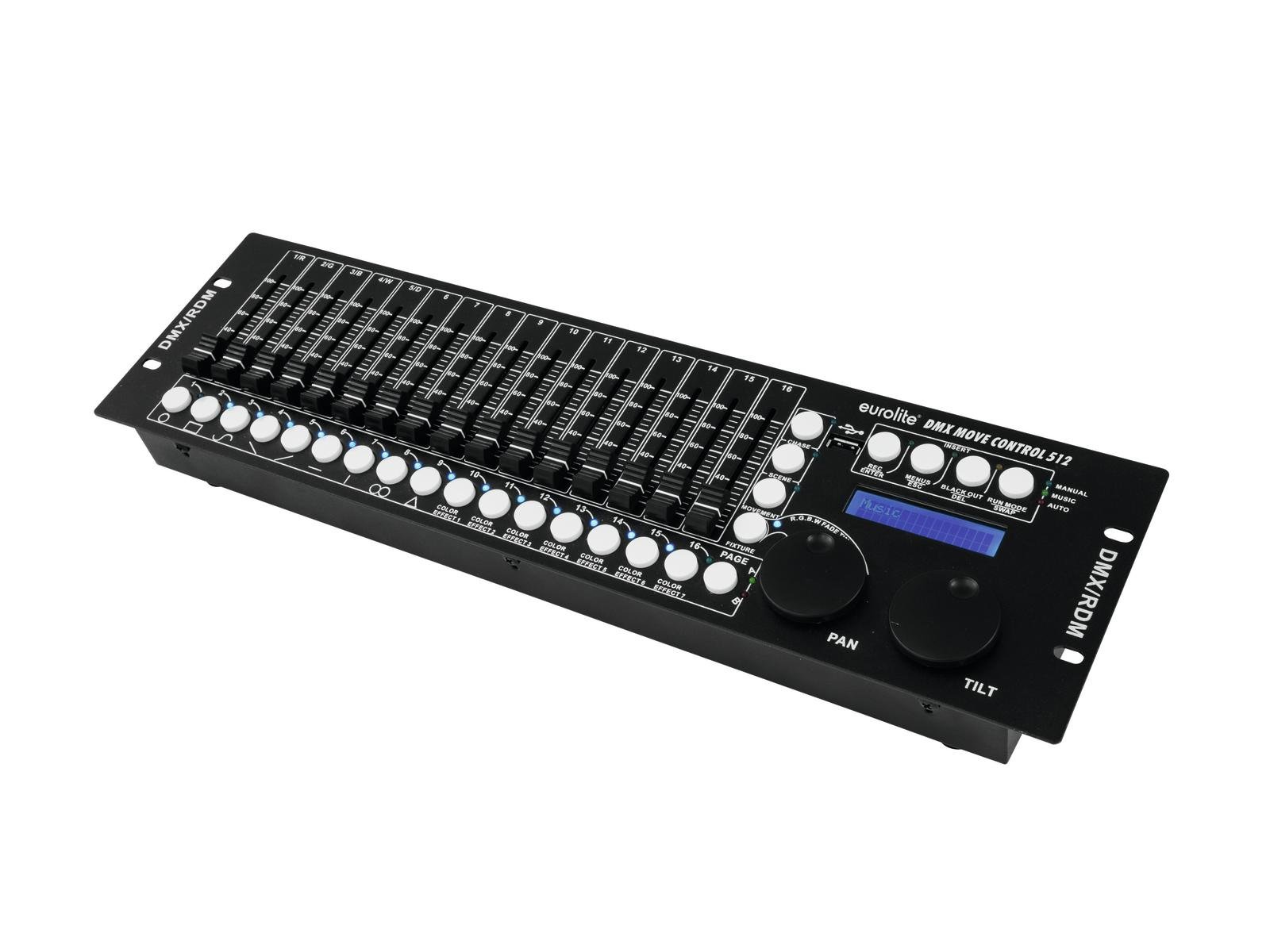

Eurolite DMX Move Controller 512

DMX Controller

dMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
512 DMX channels can be assigned and inverted as desired to 32 control channels (softpatch)
for 28 fixtures with 18 control channels each
uSB port for storing program data
quick programming thanks to 9 integrated movement patterns and 7 color effects (PAN/TILT position, fade time and running time adjustable)

187⁴⁰ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

992 points of loyalty

Shipping 13.00 €

Warranty 24 months

Returns 14 days

request details

Eurolite DMX Move Controller 512 Add to cart: 187⁴⁰ €

Controller with color & motion effects (28 devices, 18 control channels each)

DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
512 DMX channels can be assigned and inverted as desired to 32 control channels (softpatch)
For 28 fixtures with 18 control channels each
USB port for storing program data
Quick programming thanks to 9 integrated movement patterns and 7 color effects (PAN/TILT position, fade time and running time adjustable)
Manual, time-controlled or sound-controlled chase running mode
2 DMX fixture levels can be controlled, each with up to 18 channels
16 DMX channel faders
2 jog wheels for pan/tilt
Blackout function
Firmware update via USB
Programmable 32 sequencens each with 600 scenes
Can transmit up to 512 DMX channels
Control via DMX; RDM
Monochrome LCD display
(19") 48.3 cm rack installation 3 U
Desktop console housing
For application areas such as: Clubs/dancing school; Stage; mobile djs/entertainer
Silent operation

Package contents

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	2,70 W
IP classification:	IP20
Protection class:	Protection class III
Power connection:	Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Programs:	Programmable 32 Sequences Each with 600 Scenes
DMX channels:	Output 512
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	DMX; RDM
Housing color:	Black
Display type:	Monochrome LCD display
Available storage media:	USB devices (FAT 32)
USB port:	Typ A
Housing design:	(19") 48.3 cm rack installation 3 U Desktop console housing
Dimensions:	Width: 48,3 cm Depth: 13 cm Height: 8,9 cm
Weight:	2,39 kg
Noise classification:	Class 0 (no noise at all)
