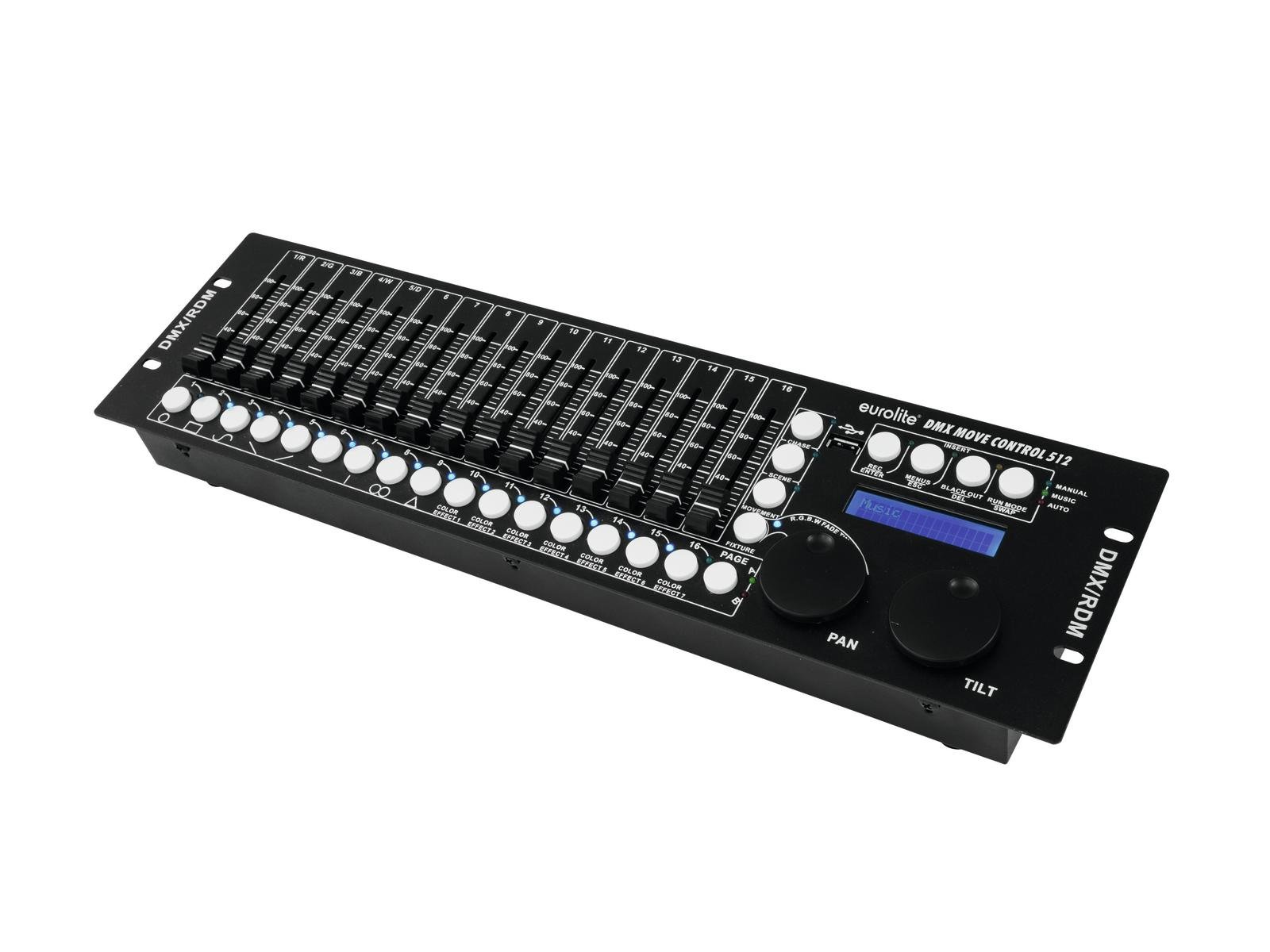

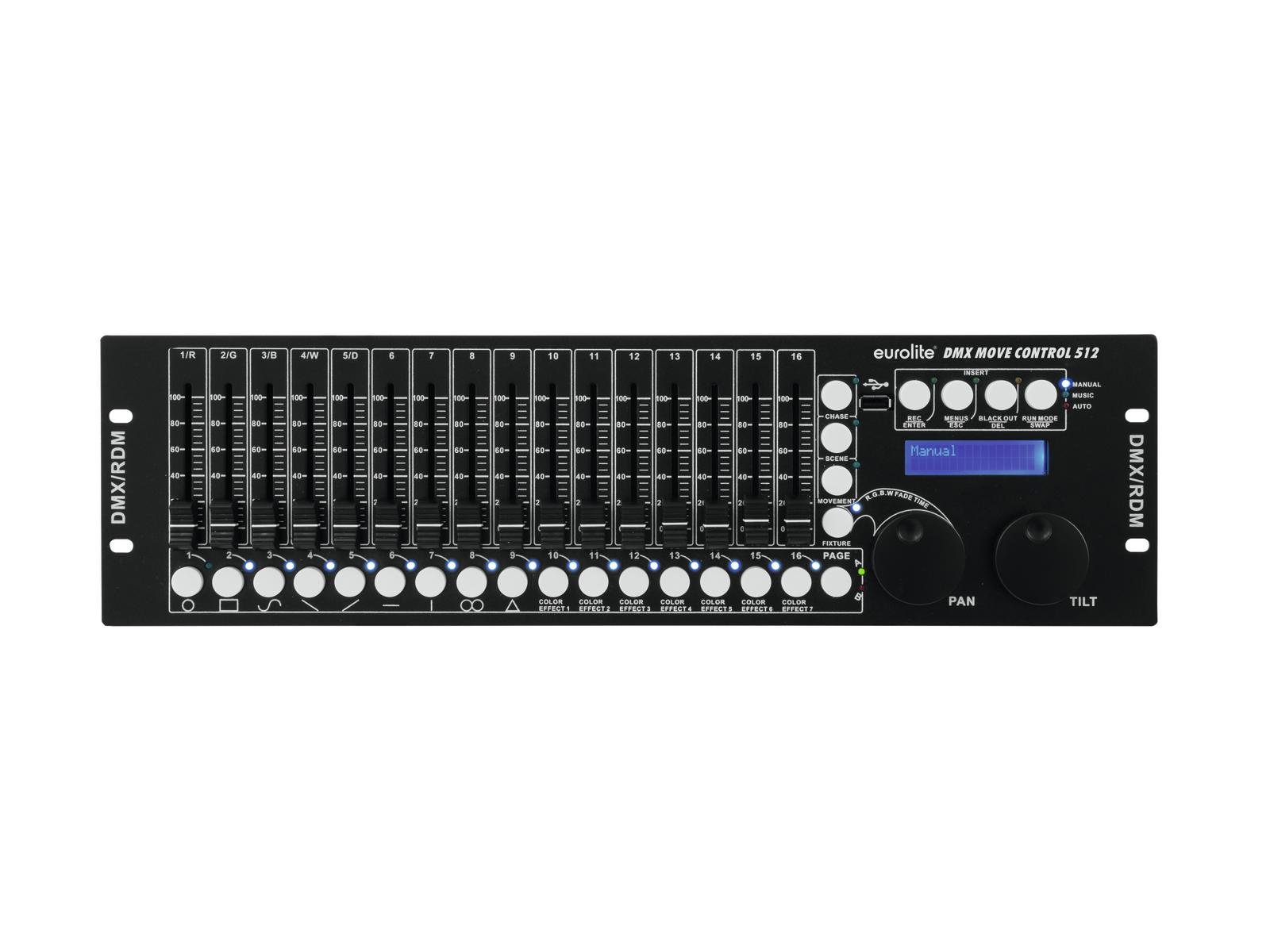

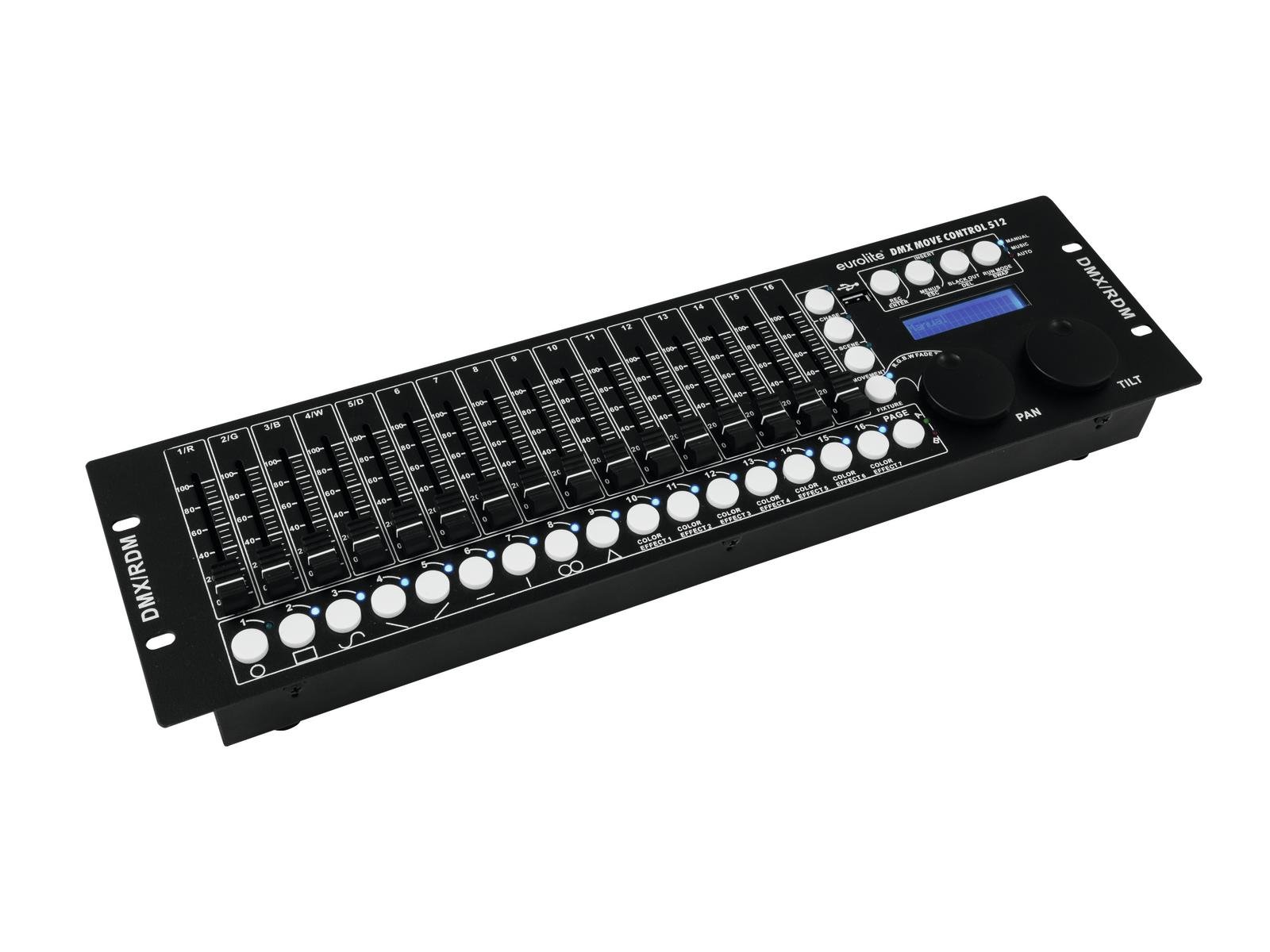

Eurolite DMX Move Controller 512


DMX Controller

  • dMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
  • 512 DMX channels can be assigned and inverted as desired to 32 control channels (softpatch)
  • for 28 fixtures with 18 control channels each
  • uSB port for storing program data
  • quick programming thanks to 9 integrated movement patterns and 7 color effects (PAN/TILT position, fade time and running time adjustable)
Eurolite
19132
Currently unavailable. Request details
Central warehouse: 0
Add to cart
992 points of loyalty
Shipping free
Warranty 24 months
Returns 14 days

Controller with color & motion effects (28 devices, 18 control channels each)

  • DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
  • 512 DMX channels can be assigned and inverted as desired to 32 control channels (softpatch)
  • For 28 fixtures with 18 control channels each
  • USB port for storing program data
  • Quick programming thanks to 9 integrated movement patterns and 7 color effects (PAN/TILT position, fade time and running time adjustable)
  • Manual, time-controlled or sound-controlled chase running mode
  • 2 DMX fixture levels can be controlled, each with up to 18 channels
  • 16 DMX channel faders
  • 2 jog wheels for pan/tilt
  • Blackout function
  • Firmware update via USB
  • Programmable 32 sequencens each with 600 scenes
  • Can transmit up to 512 DMX channels
  • Control via DMX; RDM
  • Monochrome LCD display
  • (19") 48.3 cm rack installation 3 U
  • Desktop console housing
  • For application areas such as: Clubs/dancing school; Stage; mobile djs/entertainer
  • Silent operation

Package contents

  • 1 x controller, 1 x user manual, 1 x external mains adapter


Power supply:100-240 V AC, 50/60 Hz
Power consumption:2,70 W
IP classification:IP20
Protection class:Protection class III
Power connection:Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Programs:Programmable
32 Sequences
Each with 600 Scenes
DMX channels:Output 512

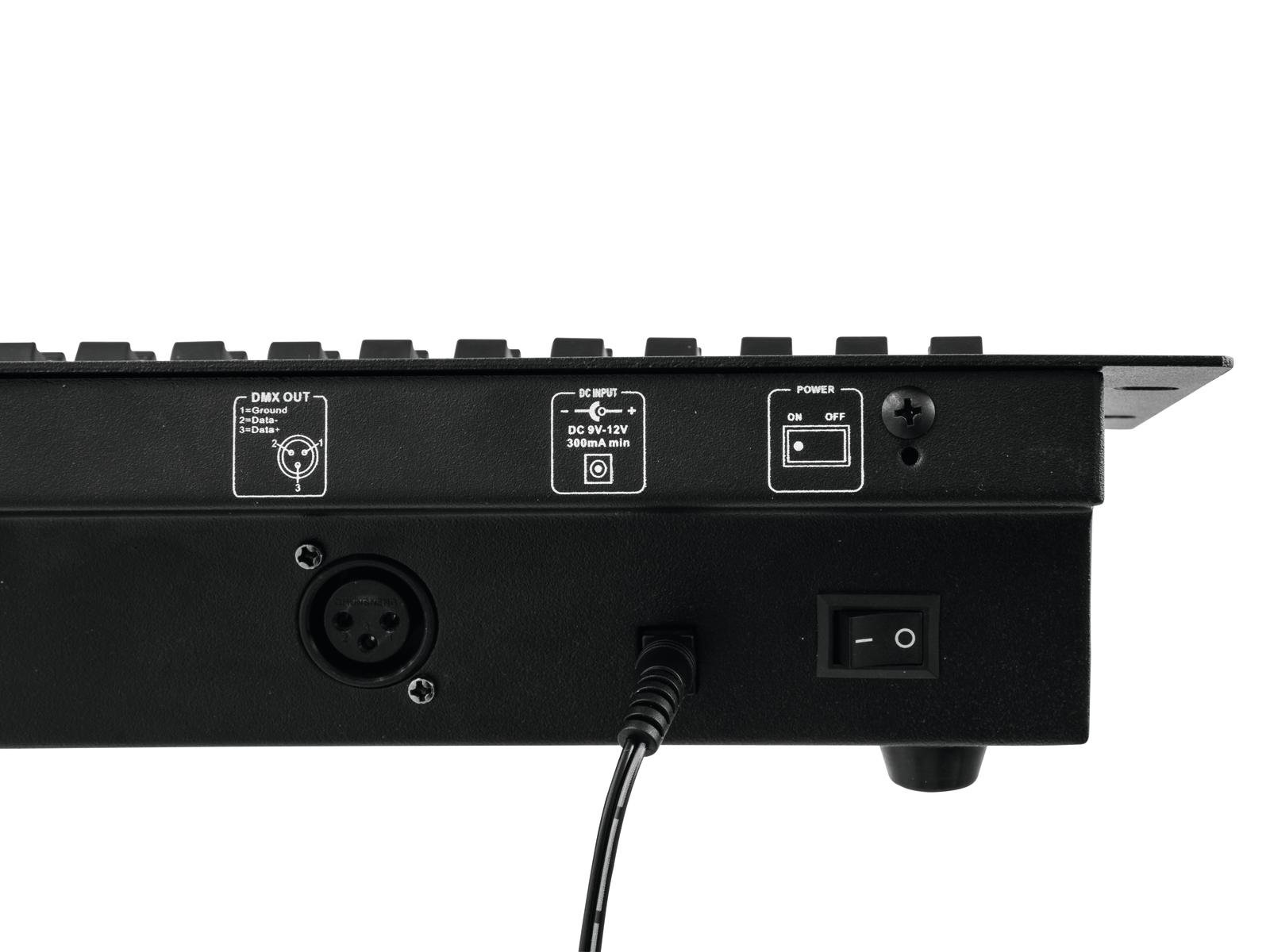

DMX output:1 x 3-pin XLR (F) mounting version
Control:DMX; RDM
Housing color:Black
Display type:Monochrome LCD display
Available storage media:USB devices (FAT 32)
USB port:Typ A
Housing design:(19") 48.3 cm rack installation 3 U
Desktop console housing
Dimensions:Width: 48,3 cm
Depth: 13 cm
Height: 8,9 cm
Weight:2,39 kg
Noise classification:Class 0 (no noise at all)

Product code: 70064515

Unit of sale: piece
