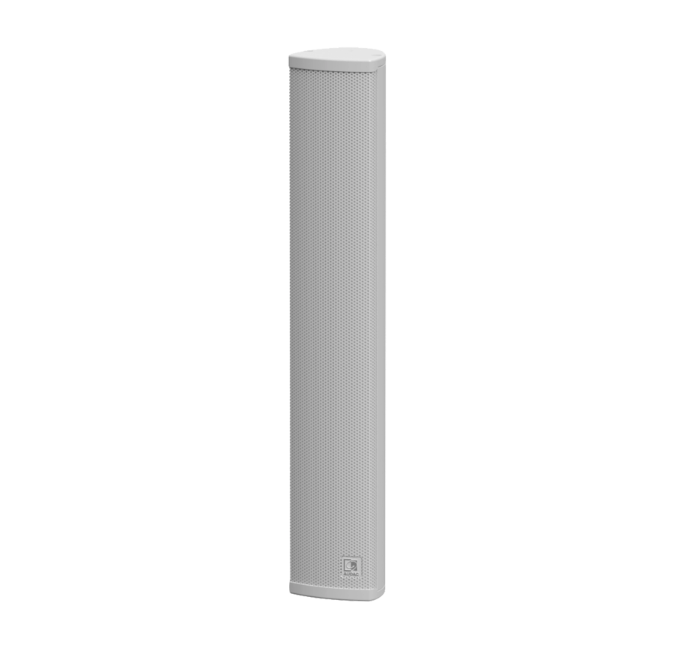

Audac LINO 4 White

Audac LINO 4 White - Column speaker with wall mounting, consisting of 4 low/mid frequency 2" units, along with a centrally positioned 1" tweeter for high frequencies. It reaches a power of 20 watts, while a multi-tap line transformer allows its connection in 70V/100V sound systems with power outputs for 20W, 10W and 5W (2.5 W only for use at 70V).

Installation is done via an L-shaped bracket at the top and bottom, providing optimal flexibility for mounting and directional placement. The distance from the speaker to the wall is 10 mm, while it can be tilted vertically by 4°.

• Speaker type - column
• Peak power 80 W
• Programmable power  40 W
• RMS/AES power 20 W
• Impedance 8 Ω
• Sensitivity (1W/1m) 88 dB
• Sound pressure SPL (max. W/1m) 101 dB
• Frequency range (-10 dB) 120 Hz - 20 kHz
• Frequency response (± 3 dB) 170 Hz - 15 kHz
• Line transformer Connections
  • 1 - 250 Ω - 100 V / Not used - 70 V / 20 W
  • 2 - 500 Ω - 100 V / 20 W - 70 V / 10 W
  • 3 - 1000 Ω - 100 V / 10 W - 70 V / 5 W
  • 4 - 2000 Ω - 100 V / 5 W - 70 V / 2.5 W
• 4 Drivers for low/mid 2" & for high - a single 1" driver
• EURO TERMINAL BLOCK connectors with 6 pins
• Operating temperature -20 - 50 °C
• Dispersion
  • horizontal 160° (-6 dB avg 1 kHz - 4 kHz)
  • vertical 33° (-6 dB avg 1 kHz - 4 kHz)
• Colour WHITE RAL 9003
• Construction Aluminium
• Front finish - Aluminium grille
• Dimensions 72 x 414 x 68.3 mm
• Weight 1.8 kg
• Included accessories
  • 1 x EURO TERMINAL BLOCK with 6 pins Input connectors
  • Mounting bracket
