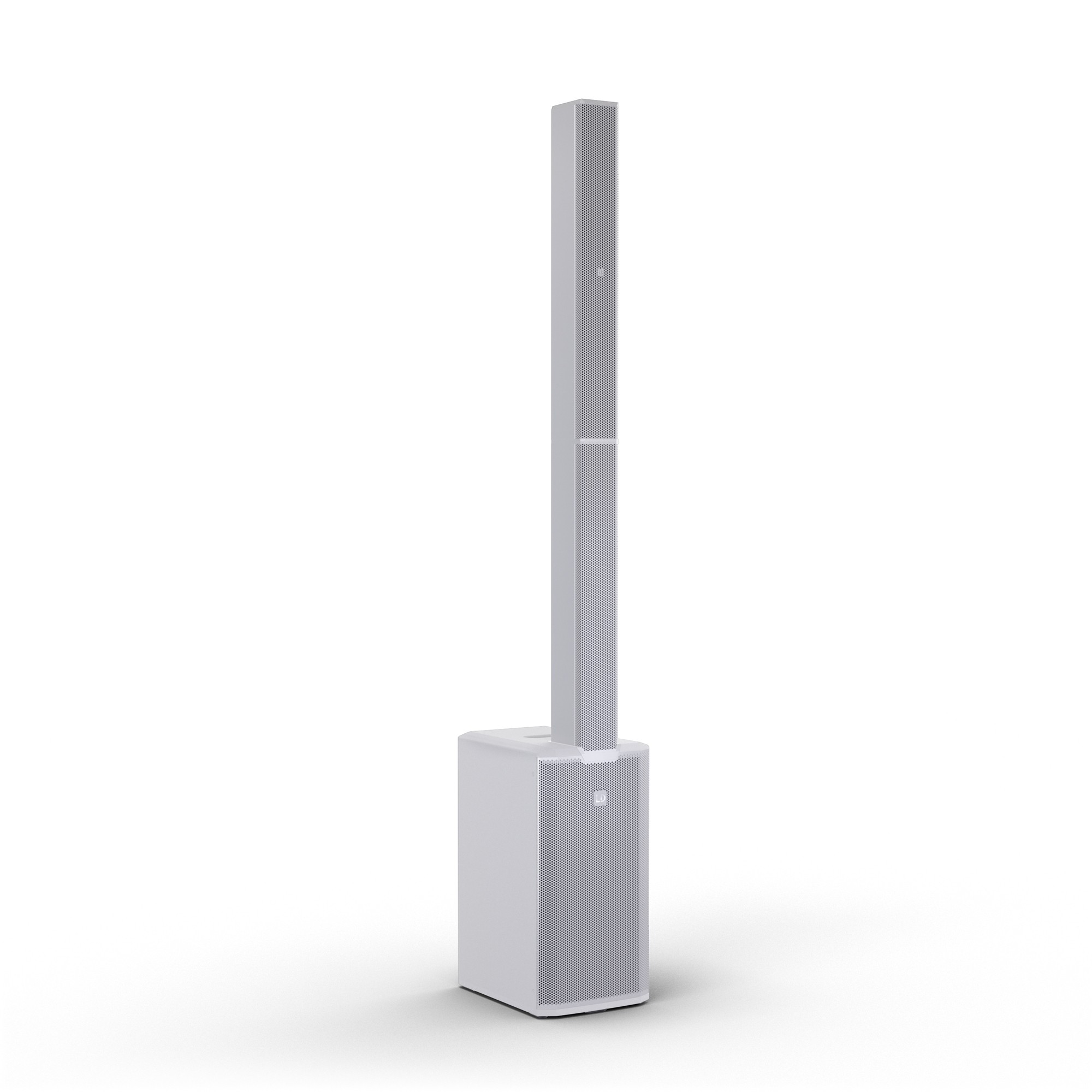

LD Systems MAUI 11 G3, is a compact column sound system that delivers huge, powerful, and precise sound, with an RMS power of 730 W (peak 1,460 W), suitable for all applications: as a main PA for concerts, sound system for mobile DJs, or public address system at weddings, corporate events, and many more.
The columns are equipped with 6 mid-range drivers of 3.5 inches and 2 tweeters of 1 inch, providing uniform sound distribution with constant horizontal dispersion in combination with the innovative phase plug design. Additionally, the curved waveguide in front of the tweeters carries high frequencies even into the audience areas at the back.
The MAUI 11 G3 columns are designed as cardioid units. This allows for control of low-mids in front and up to 18 dB of attenuation at the back, resulting in a clean sound on stage. Equipped with two 8-inch woofers and four bass reflex ports, the MAUI 11 G3 subwoofer delivers a clear, tight, and powerful low end down to 39 Hz. By using a second subwoofer, the bass response can also be increased by up to 6 dB and can be driven in cardioid configuration by pressing a button (cardioid preset).
Features:
- Bluetooth audio streaming
- Cardioid column
- DSP-based signal processing
- Excellent sound dispersion
- Mono/stereo application
Technical Specifications:
- General:
- Colour: Black
- Max. SPL (peak): 125 dB
- Frequency response (-10dB): 39 - 20,000 Hz
- Dispersion (H x V): 120° x 30°
- Total height: 2052 mm
- Weight: 30.7 kg
- Subwoofer:
- Woofer: 2 x 8"
- Magnet: Ferrite
- Voice coil: 2"
- Cabinet construction: Bass Reflex
- Cabinet material: 15 mm birch plywood
- Cabinet surface: Polyurea
- Dimensions: 305 x 607 x 403 mm
- Weight: 20.5 kg
- Mid/Hi System:
- Mid dimensions: 6 x 3.5"
- Mid magnet: Ferrite
- Mid voice coil: 0.75"
- Tweeter: 2 x 1"
- Tweeter magnet: Neodymium
- Tweeter coil: 1"
- Wave Guide: CD Waveguide
- Speaker inputs: 1
- Custom multipin speaker input connections
- Cabinet construction: Passive cardioid
- Cabinet material: Aluminium
- Cabinet surface: Powder coated
- Width: 103 mm
- Height: 1460 mm
- Depth: 135 mm
- Weight: 10.2 kg
- Amplifier module (integrated in subwoofer):
- Amplifier: Class D
- Power (RMS): 730 W
- Power (peak): 1460 W
- Protection circuits: DC protection, multiband limiter, short circuit, thermal protection
- Cooling: Convection
- Controls: Bluetooth HOLD TO LINK button, Cardioid On/Off, Master level, Power On/Off, Secondary level
- Indicators: Bluetooth, Cardioid On/Off, Monitor mode, Limiting, Power, Protection (protection circuit activated), Signal, Subwoofer mode
- Network connector: IEC power cable (included)
- Voltage: 100 V AC - 120 V AC, 50 - 60 Hz, 220 V AC - 240 V AC, 50-60 Hz
- Fuse: T 3.15AL / 250 V
- Power consumption: 300 W
- Operating ambient temperature: 0 - 40 °C
- Relative humidity: < 80% (without condensation)
- Line inputs: 2
- Line input connectors: Combo XLR / TRS
- Line outputs: 1 x Sub OUT, 2 x THRU
- Line output connectors: Male XLR
- Number of speaker outputs: 1
- Speaker output connectors: Custom multipins
- Bluetooth standard: A2DP
- Bluetooth audio decoder: AAC, SBC
- DSP Features:
- AD/DA converter: 24 bits
- Sampling frequency: 48 kHz
