LD Systems X-ECI

Name: LD Systems X-ECI
Brand: LD Systems
SKU: LDXECI
Price: 229.26 EUR
Availability: OutOfStock

Ethernet control interface for the IPA series

fast-Ethernet 100 Mbps control interface via Cat5 connection.
remote DSP control and configuration using QUESTRA® software.
status LED for monitoring operation.
iP reset button for quick troubleshooting.
compatible with standard IT infrastructures.

229²⁶ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

1179 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

LD Systems X-ECI Add to cart: 229²⁶ €

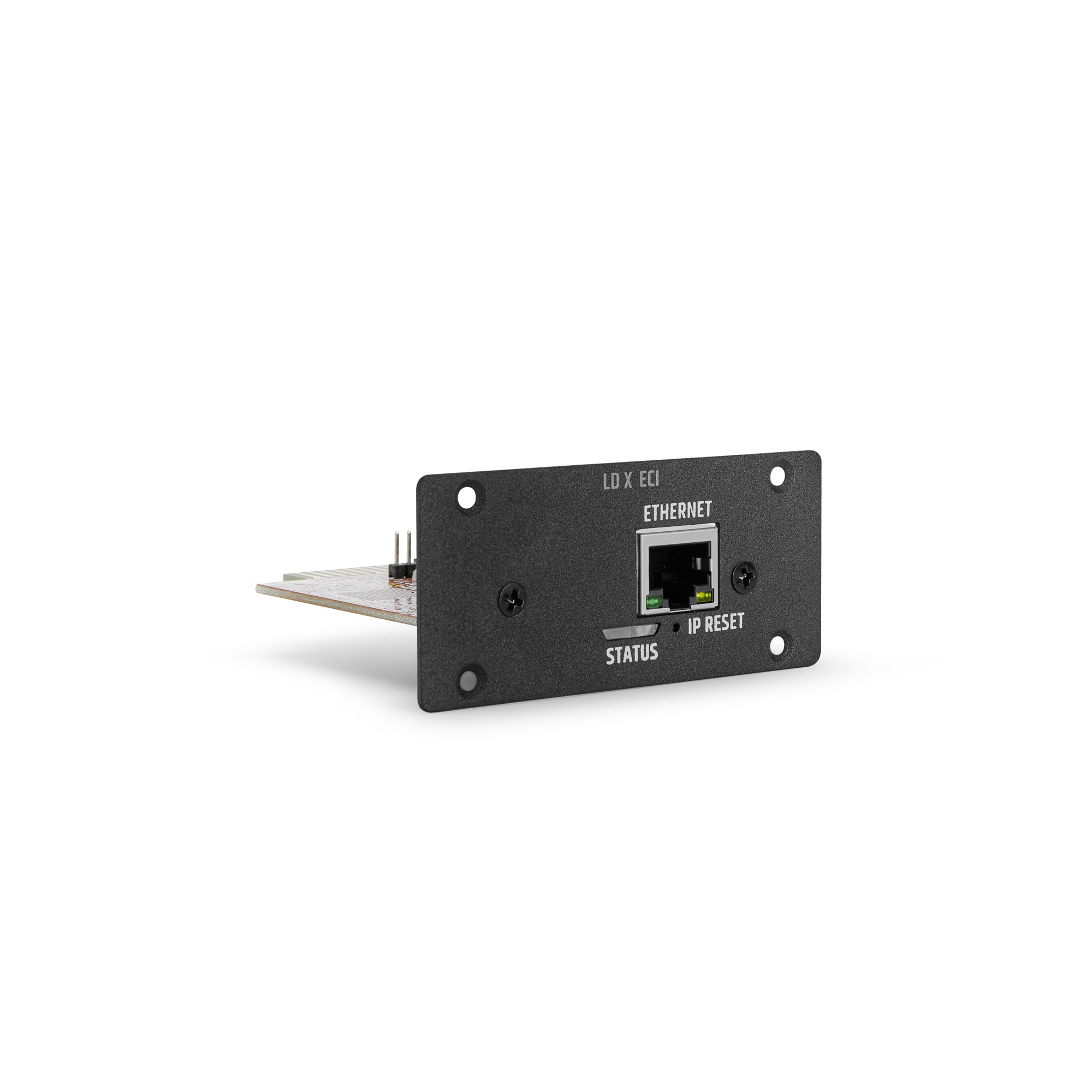

LD Systems X-ECI - Fast-Ethernet 100 Mbps control card for the IPA series. It is the ideal solution for integrating and remotely managing LD Systems IPA DSP installation amplifiers. It offers complete control and flexible configuration through the QUESTRA® software, making it suitable for professional audio installations of any size.

Fast-Ethernet 100 Mbps control interface via Cat5 connection
Remote DSP control and configuration via QUESTRA® software
Status LED for monitoring operation
IP reset button for quick troubleshooting
Asymmetrical pins for correct, error-free mounting
Compatible with standard IT infrastructures

Technical specifications:

Product type: Ethernet control extension card
Interface type: Ethernet
Chipset: STM32H743
Connector: RJ45
Transmission protocols: TCP/IP, UDP
Ethernet standard: 10/100 Base-T
Power consumption: 1.075 W (Link Down), 1.375 W (Link Up)
LED indicators: RJ45 LEDs (Link/Activity), internal connection status LED
Dimensions (L x H x D): 82.5 x 36.5 x 76.3 mm
Weight: 0.5 kg
Compatible devices: LDIPA412T, LDIPA424T
Compatible software: QUESTRA®
