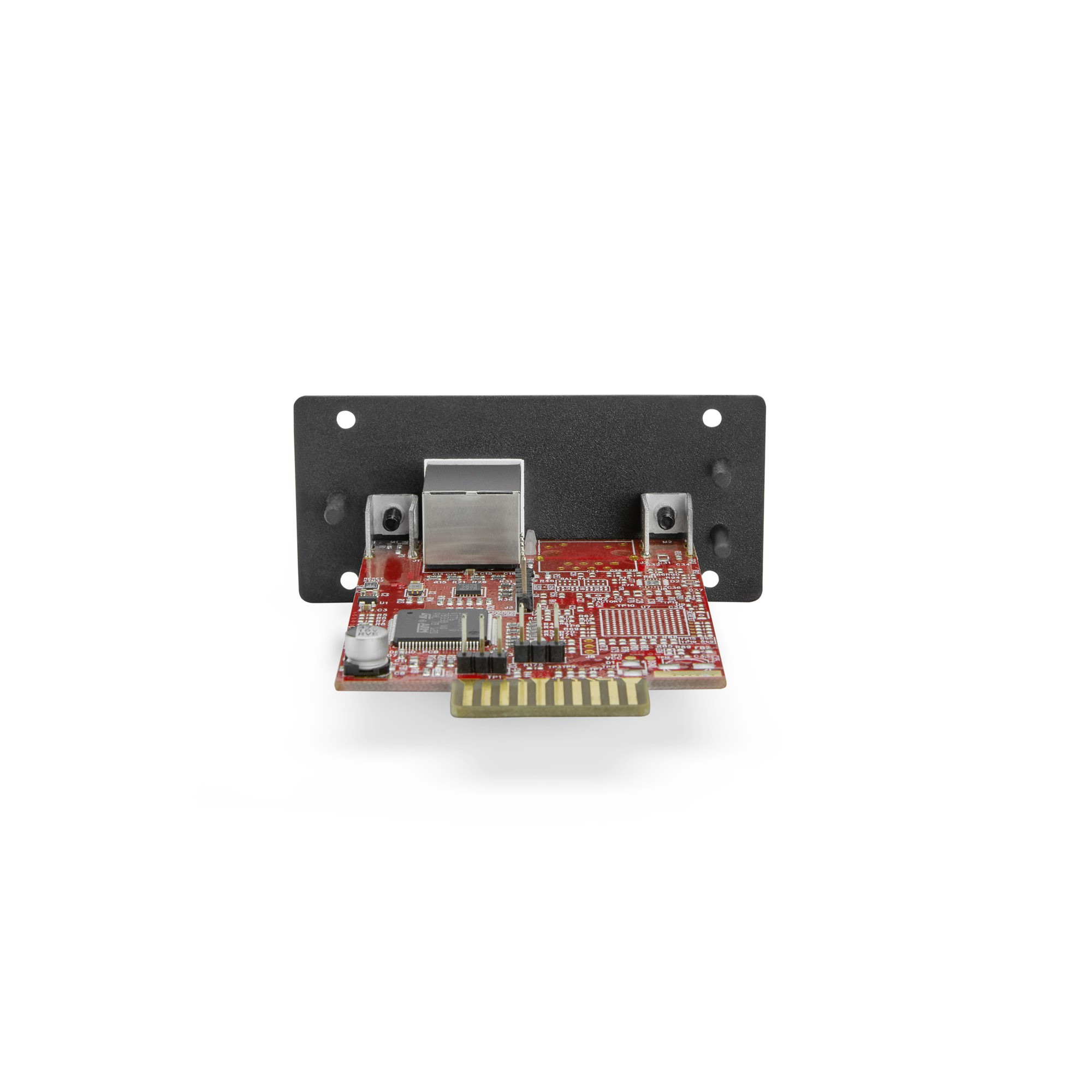

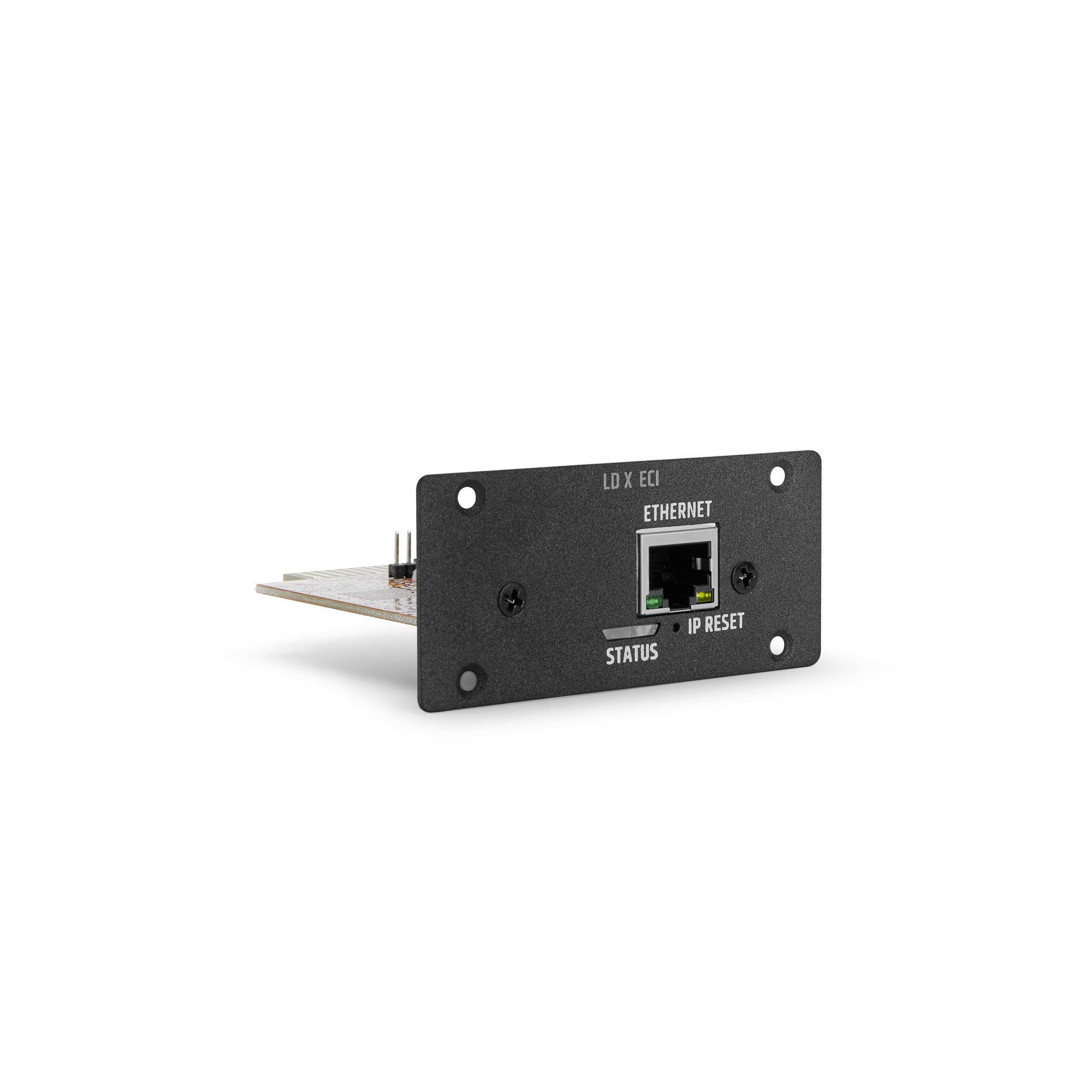

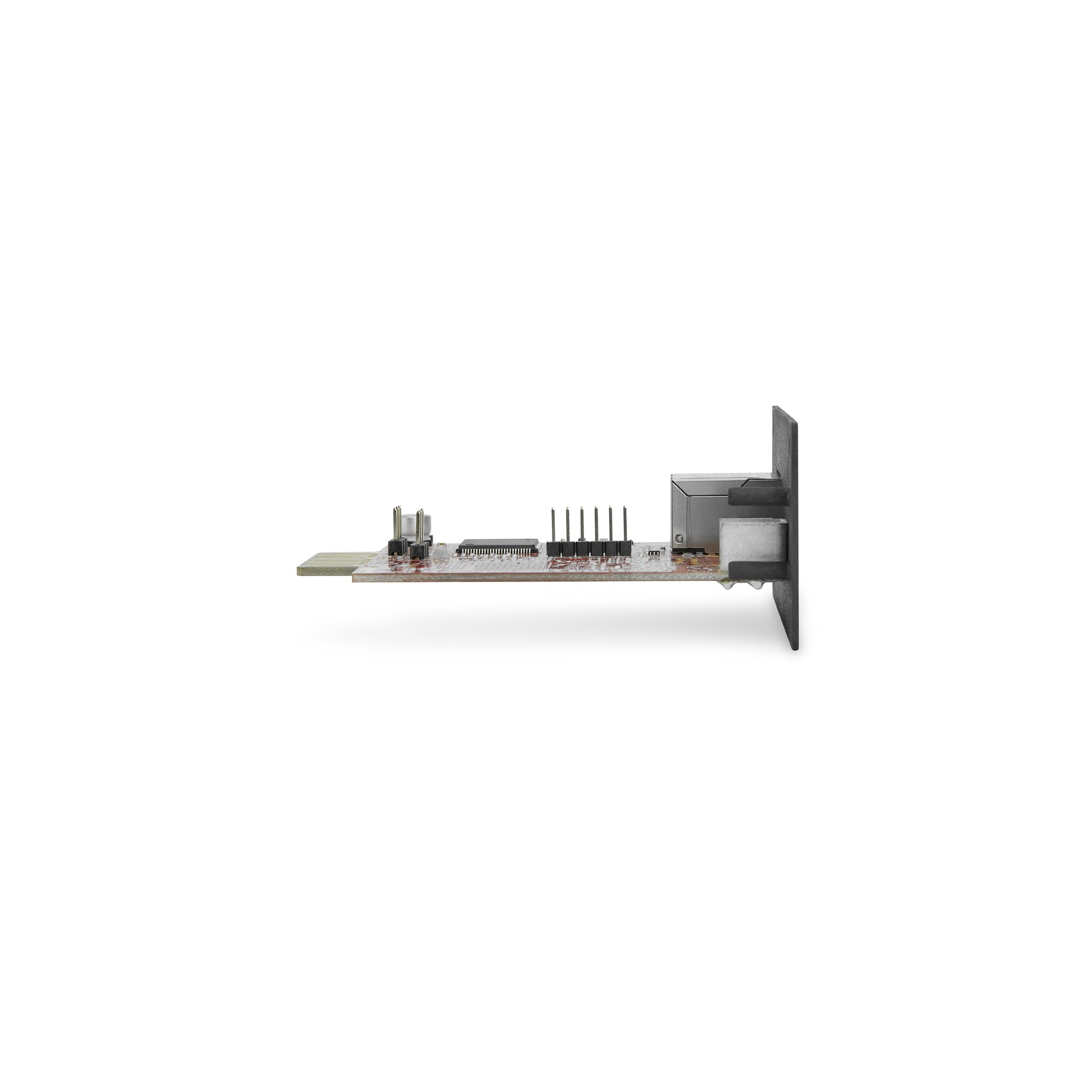

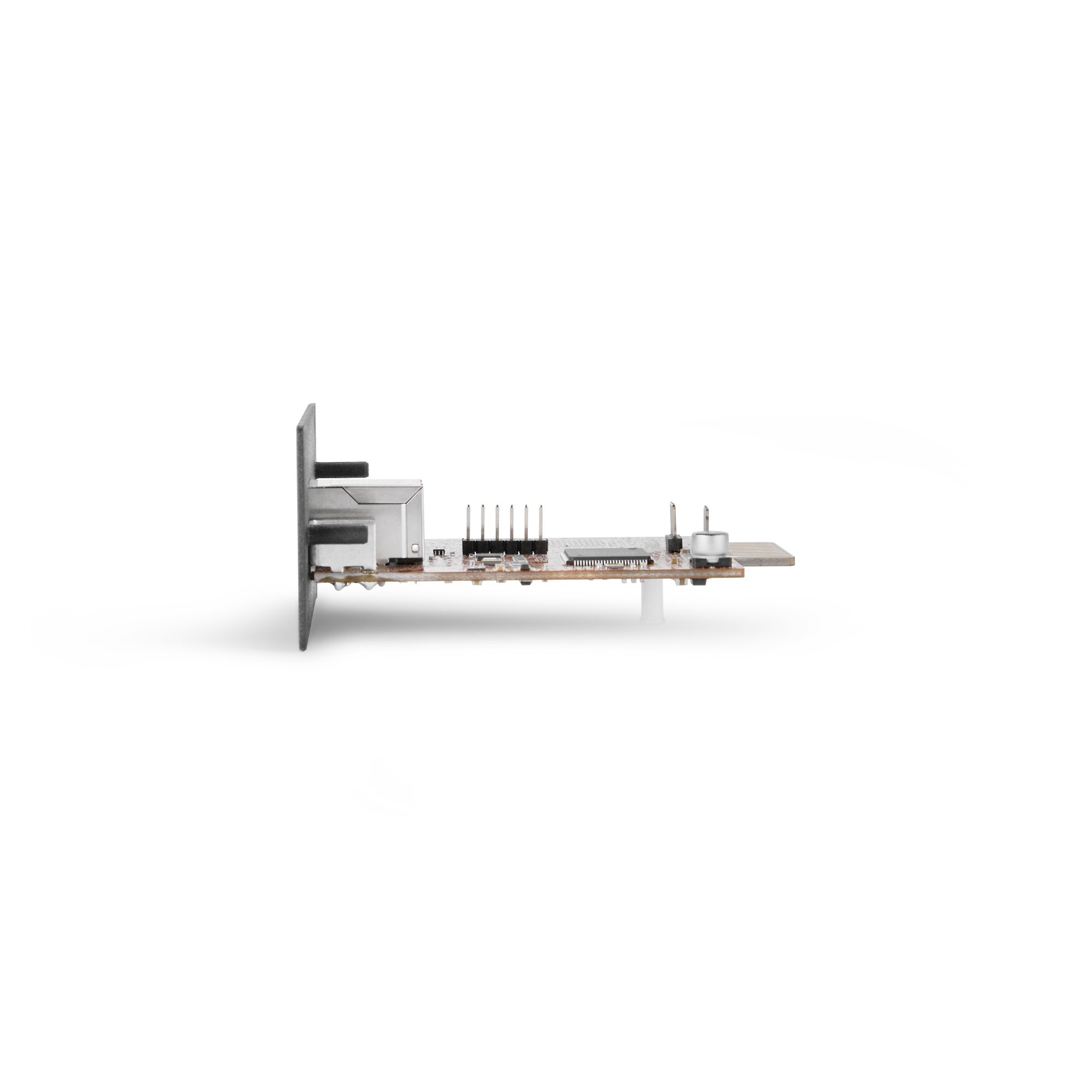

LD Systems X-ECI

LD Systems X-ECI - Fast-Ethernet 100 Mbps control card for the IPA series. It is the ideal solution for integrating and remotely managing LD Systems IPA DSP installation amplifiers. It offers complete control and flexible configuration through the QUESTRA® software, making it suitable for professional audio installations of any size.

• Fast-Ethernet 100 Mbps control interface via Cat5 connection
• Remote DSP control and configuration via QUESTRA® software

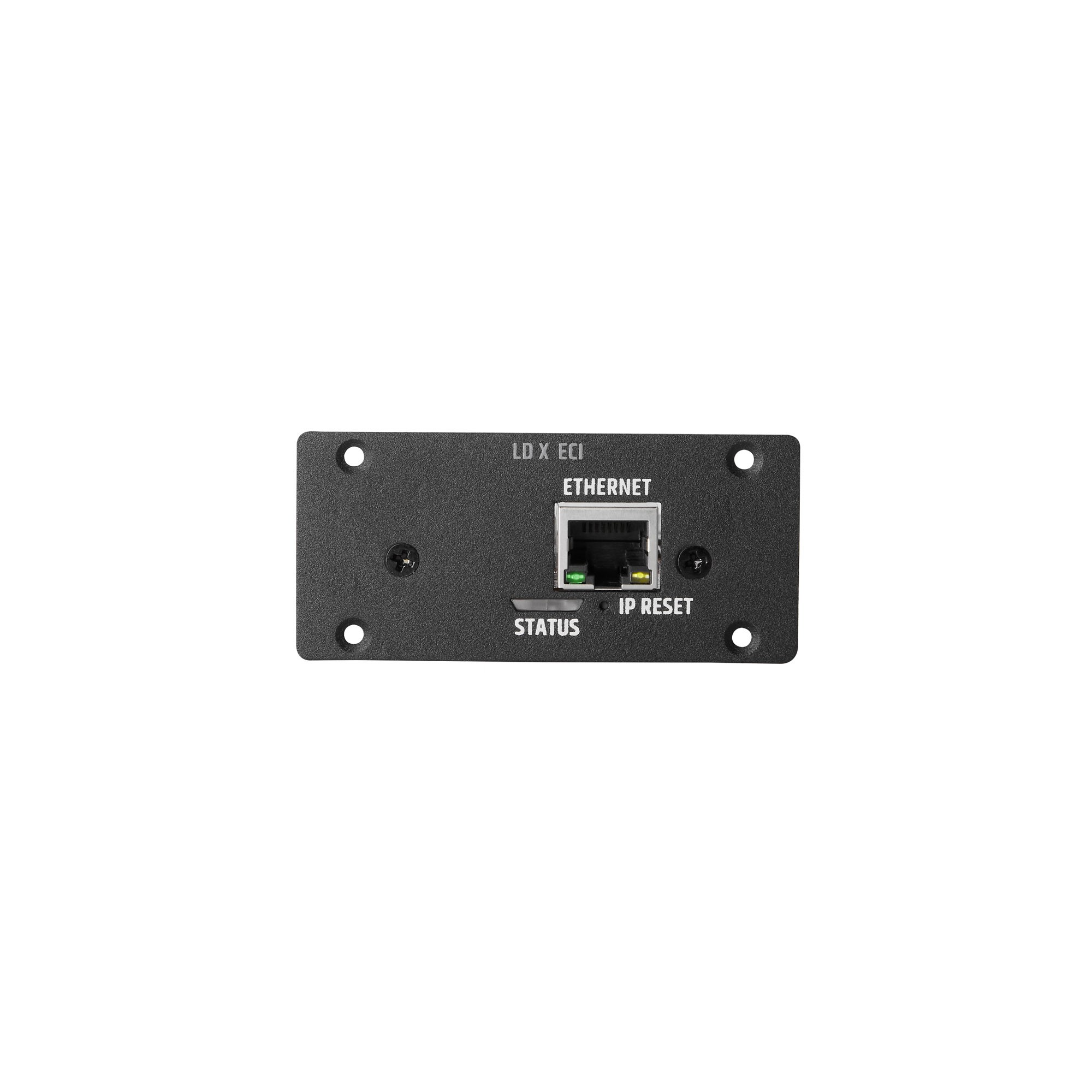

• Status LED for monitoring operation
• IP reset button for quick troubleshooting
• Asymmetrical pins for correct, error-free mounting
• Compatible with standard IT infrastructures

Technical specifications:

• Product type: Ethernet control extension card
• Interface type: Ethernet

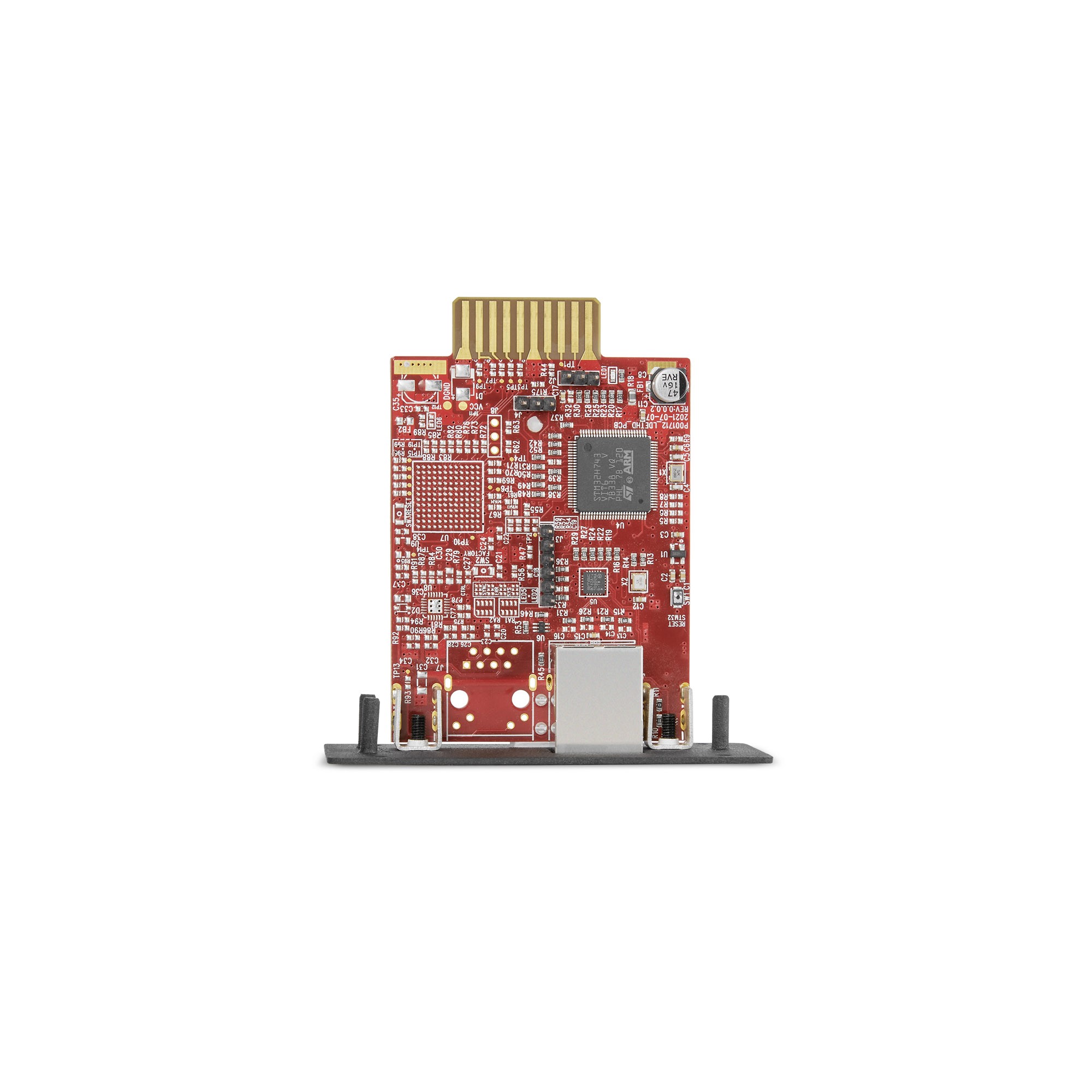

• Chipset: STM32H743
• Connector: RJ45
• Transmission protocols: TCP/IP, UDP
• Ethernet standard: 10/100 Base-T
• Power consumption: 1.075 W (Link Down), 1.375 W (Link Up)
• LED indicators: RJ45 LEDs (Link/Activity), internal connection status LED
• Dimensions (L x H x D): 82.5 x 36.5 x 76.3 mm
• Weight: 0.5 kg
• Compatible devices: LDIPA412T, LDIPA424T
• Compatible software: QUESTRA®
