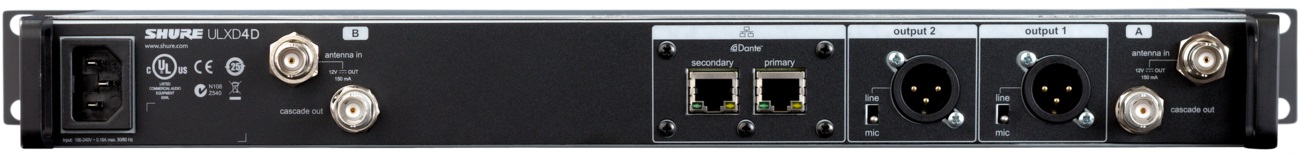

Shure ULX-D4D, dual wireless receiver with digital transmission system, highly efficient RF performance, network control and AES-256 encryption, audio conversion 24-bit / 48 kHz.
- 2 x receivers in a single 1U unit
- integrated Dante network interface
- predictive frequency switching
- High Density mode - optimises ULX-D systems to operate multiple channels simultaneously in applications up to 30 metres
- intelligent frequency scanning - finds and switches to the cleanest RF frequency
- adjustable gain −18 to +42 dB
- connectable and controllable via network
- RF frequency bandwidth: 166 MHz
- UHF band G56: 470 - 636 MHz
- latency: less than 2.9 ms
- operating distance: up to 100 metres in open field
- RF sensitivity: −98 dBm at 10-5 BER
- dynamic range:
- analog: > 120 dB
- Dante digital: 130 dB
- harmonic distortion THD −12 dBFS input, System Gain @ +10: <0.1%
- line/microphone output switching:
- line +18 dBV
- microphone −12 dBV
- dimensions: 44 x 482 x 274 mm
- weight: 3.36 kg
