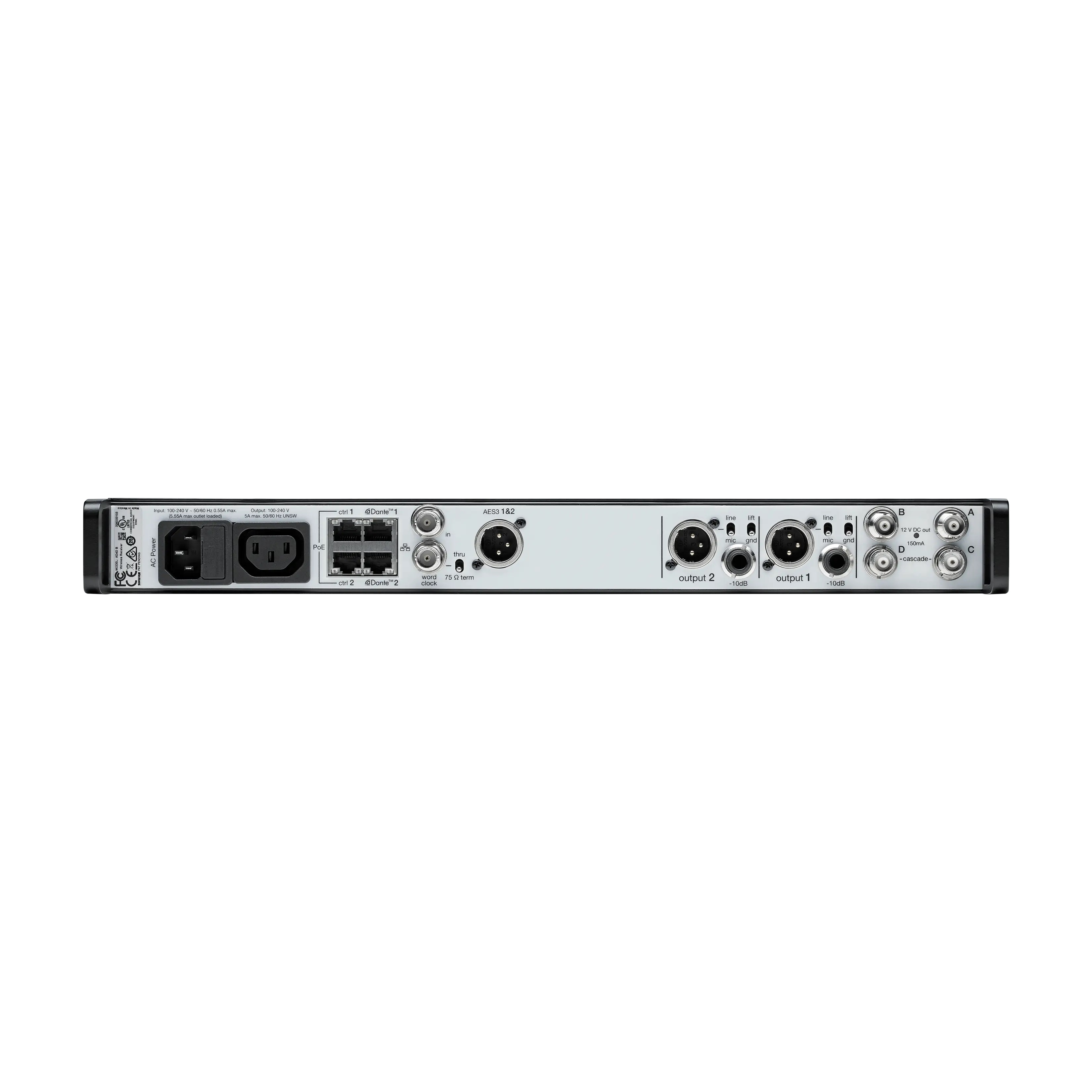

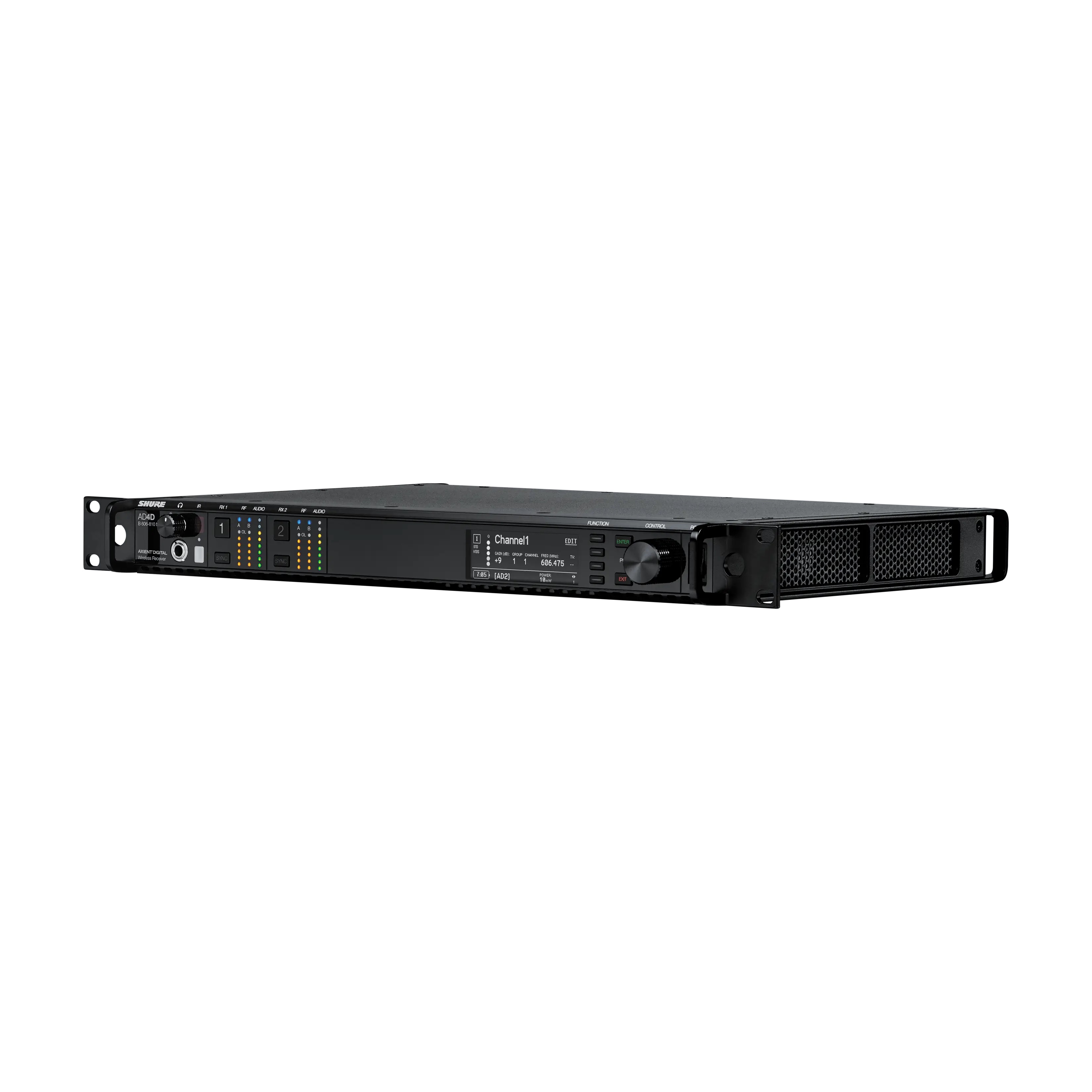

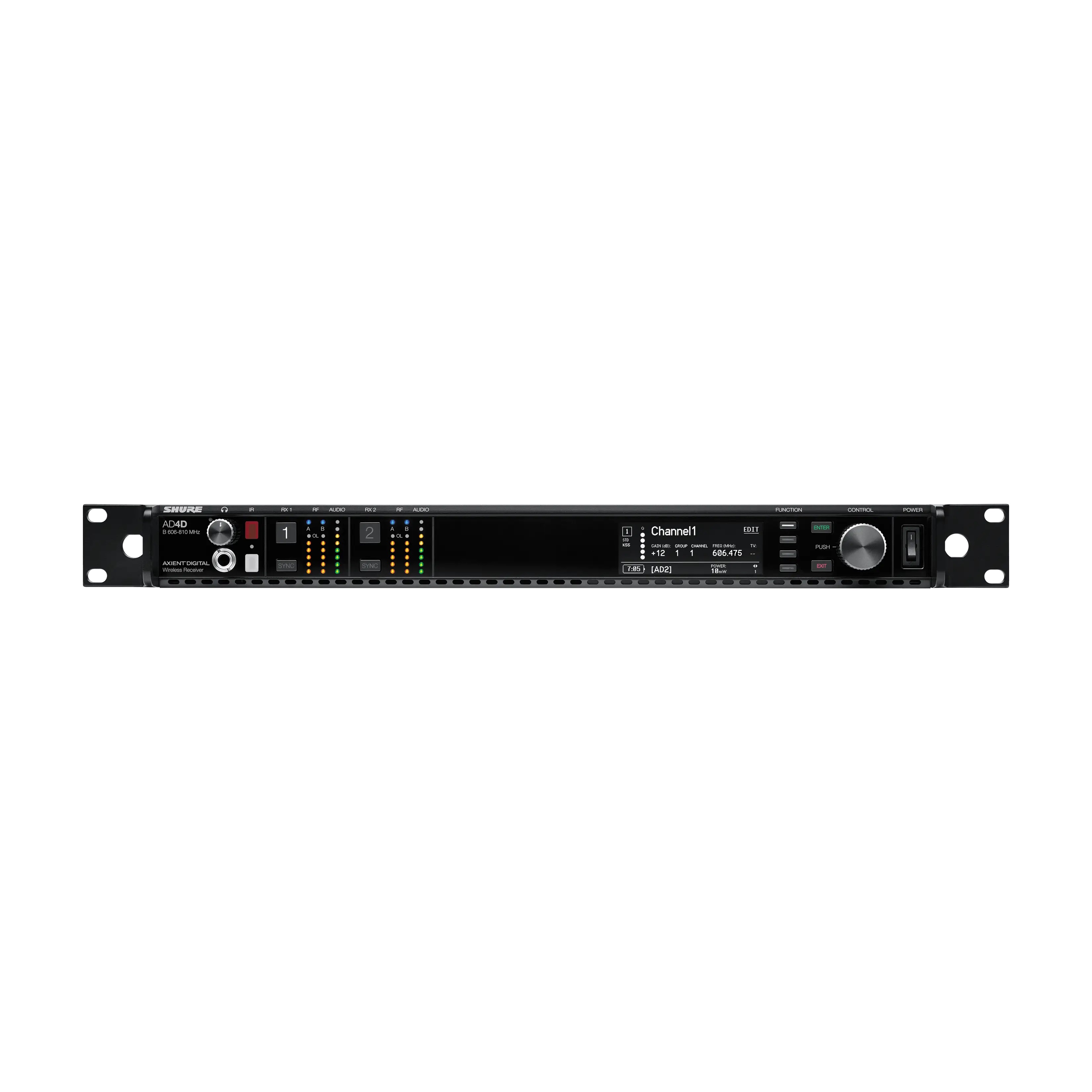

Shure AD4D Axient Digital Dual Receiver


Wireless Receiver

  • wide UHF tuning range of 166 MHz: UHF 470 - 636 MHz.
  • true digital diversity reception for dropout resistance.
  • network control with Wireless Workbench® and ShurePlus™ Channels.
  • configurable Ethernet connector for redundant digital Dante output.
  • dynamic range of 120 dB with low THD: < 0.01%.
Shure
For details about the price, please ask a SoundCreation consultant.
Central warehouse: 0
also deliverable via  Deliverable via parcel locker
Shipping free
Warranty 24 months
Returns 14 days

Incorporating the most innovative wireless audio technology in the world, Axient Digital has been designed from the ground up for professional productions that demand flawless execution. With an unprecedented level of signal stability and audio clarity, plus flexibility in hardware options, advanced connectivity, and complete control, it is a wireless system built to meet the challenges of today and tomorrow.

The dual receiver AD4D Axient sets a new standard in transparent digital audio and maximum spectral efficiency. Innovative performance features include a wide tuning range, low latency, and high-density (HD) mode, ensuring solid performance in the most challenging RF environments.

Network control, AES3 + AES67 + Dante™ options, and signal routing bring a new level of management and flexibility to the entire workflow. Compatible with all Axient digital transmitters.

  • widely adjustable UHF tuning range of 166 MHz: UHF 470 - 636 MHz
  • True digital diversity reception per channel for dropout resistance
  • network control with Wireless Workbench® and ShurePlus™ Channels applications
  • the front panel headphone connection allows monitoring of Dante Cue and Dante Browse
  • configurable Ethernet connector for redundant digital Dante output
  • AES3 output
  • the channel quality meter displays the RF signal-to-noise ratio on the front panel
  • gain adjustment range: -18 to +42 dB in 1 dB steps + mute
  • XLR outputs, microphone/line signal switch
  • operating range: 100 m in open field
  • spacing between channels:
    • standard 350 kHz
    • High Density mode: 125 kHz
  • dynamic range: 120 dB
  • THD: < 0.01%
  • BNC cascading output
  • dimensions: 44 x 483 x 333 mm
  • weight: 4.6 kg

Product code: AD4DE=-A

Documentation, manuals:
