Sennheiser EW-DX EM 2 R1-9 - Digital semi-rack receiver (9.5") with two channels for use with portable Evolution Wireless Digital transmitters, for body and table mount. Extended switching bandwidth of 88 MHz, interference-free operation for up to 293 channels with secure AES-256 encryption and redundant power via Power over Ethernet (PoE).
- Semi-rack digital with two channels (9.5") in a robust metal housing
- Switching bandwidth of up to 88 MHz
- Low transmission latency without wires of 1.9 ms due to Sennheiser's performance audio codec (SePAC)
- Input dynamic range of 134 dB - no need to set gain on your wireless transmitters at all, thanks to Sennheiser's performance audio codec (SePAC)
- Equidistant spacing of channels for easy allocation of interference-free channels: Standard mode with 600 kHz spacing for up to 146 channels; Link Density (LD) mode with 300 kHz spacing for up to 293 channels
- Network activated for extended remote control with Sennheiser Control Cockpit, Wireless System Manager (WSM - Available mid-2023) and third-party media control systems via plug-in
- Power over Ethernet (PoE IEEE 802.3af Class 3)
- Ethernet connectivity (IPv4 and IPv6)
- Secure transmission of confidential content using AES 256 encryption
- AutoScan function quickly scans your environment and implements frequencies with equidistant channel spacing - even without RF knowledge
- Link Quality Indicator (LQI) showing link quality separately from RF levels
- Remote control via the Smart Assist app via Bluetooth® Low Energy (BLE) at distances of up to 25 m (available at the end of 2023)

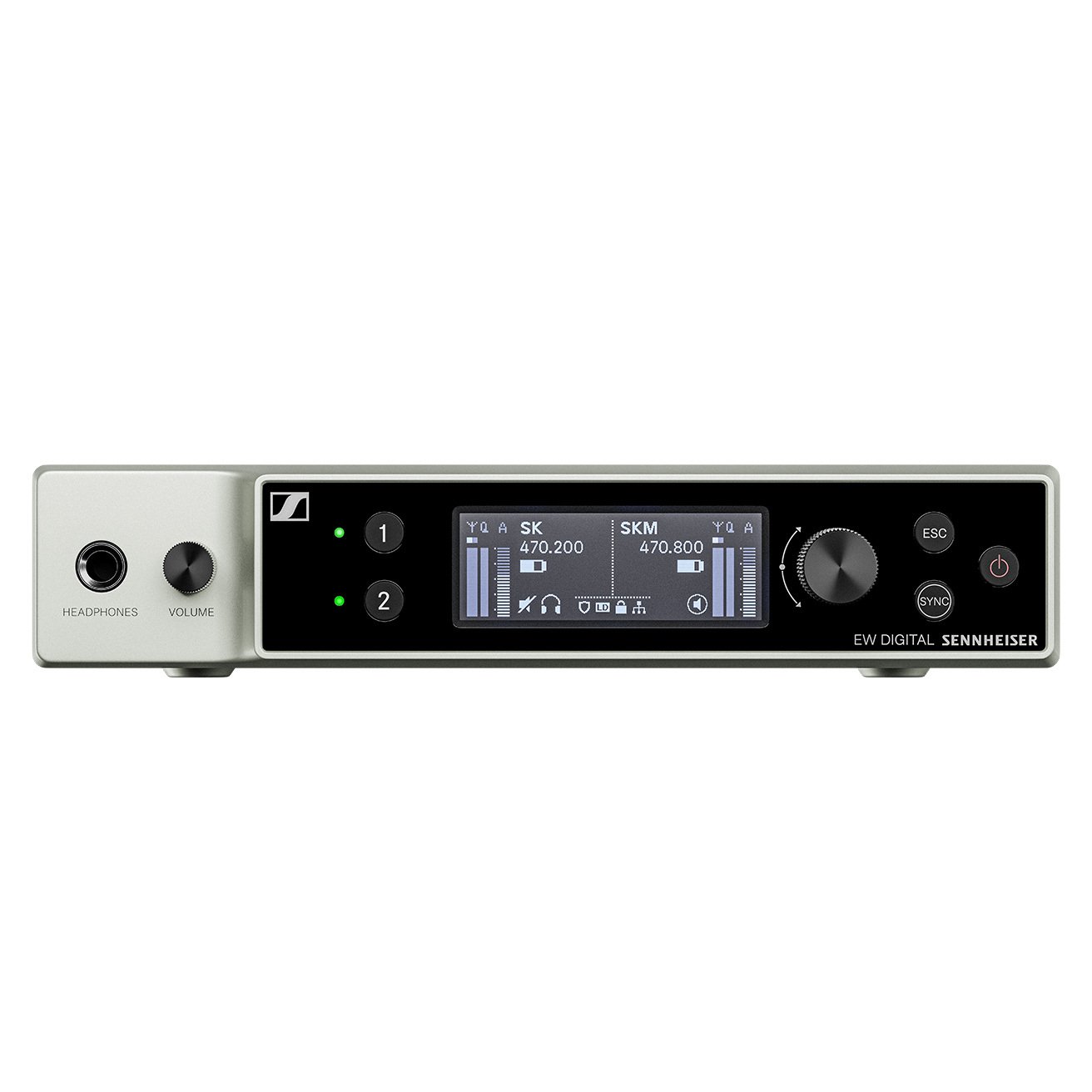

- Clear and easy-to-focus user interface, with OLED display, jog wheel navigation and control buttons
- Selective output for headphones with volume control on the front panel
- Extensive menu settings, such as custom frequency list, selectable sync parameter and walk test
- External power supply 12V/1A
- Worldwide use (specific frequencies are subject to local RF regulations)
Technical Specifications:
- UHF frequency range of transmission: 520 - 607.8 MHz
- Bluetooth® Low Energy (BLE) frequency range: 2405 - 2480 MHz
- Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
- THD, total harmonic distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level
- Dynamic range: 134 dB
- System latency: 1.9 ms
- RF technology: Intelligent switching diversity
- Operating temperature: -10 °C - +55 °C
- Operating relative humidity: 5 - 95 % (without condensation)
- Input voltage: 11 - 13 V DC or PoE IEEE 802.3af Class 0
- Input current: ≤ 1A
- Transmission power (radiated): BLE: max. 10 mW EIRP
- Audio output power: 18 dBu max.

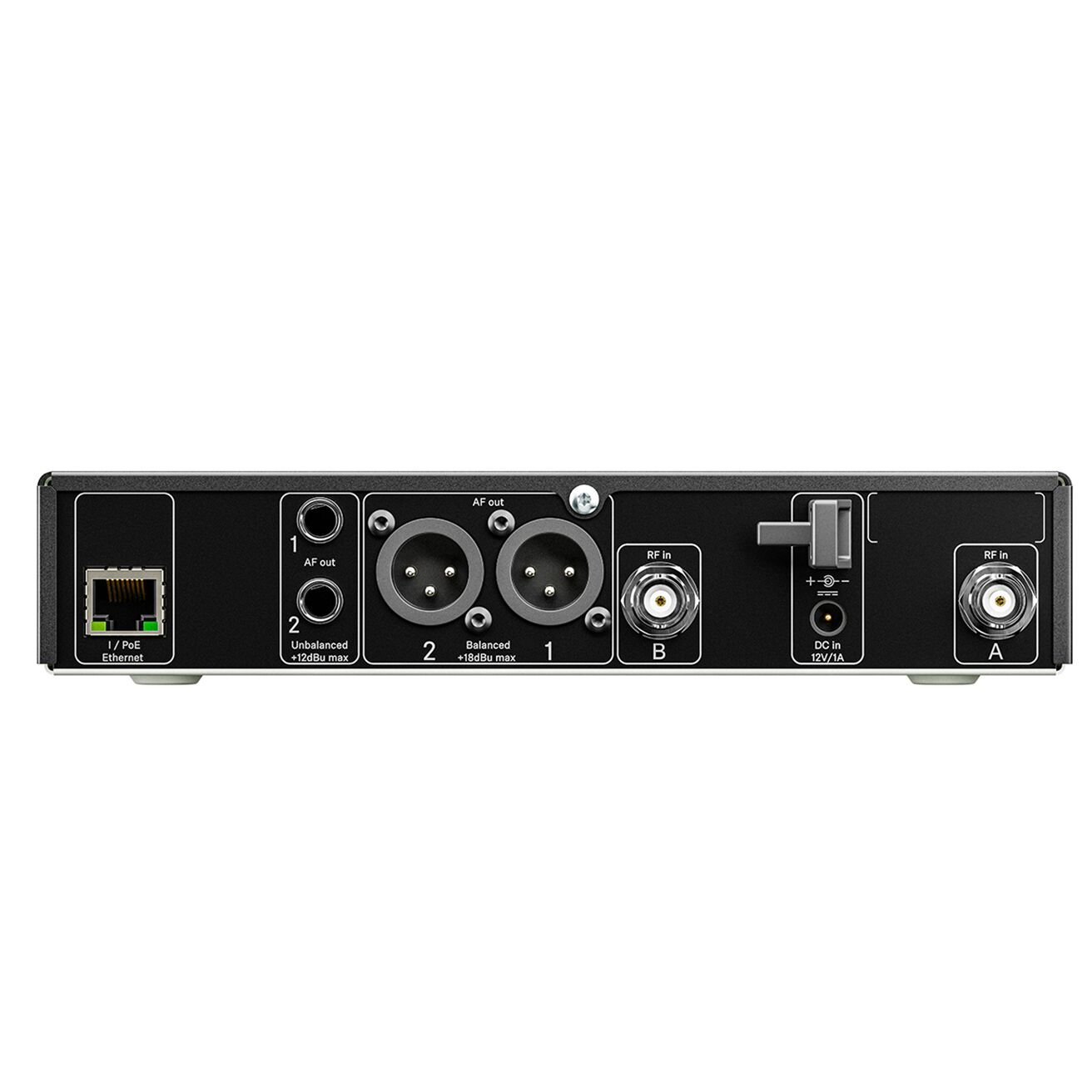

- Ethernet:
- RJ-45 connector, IEEE802.3
- 100Base-TX (half+full duplex)
- 10Base-T (half+full duplex)
- (CAT5e or higher)
- Dimensions: 212 x 44 x 189 mm
- Weight: Approximately 1000 g (without antennas and power supply)
- What's in the box:
- EW-DX EM 2
- Rack mount kit GA 3
- EW-D power supply with adapters for various countries
- 2 rod antennas
- 4 rubber feet
