UR-222D is an affordable and reliable UHF system for everyday use. The device operates with 90 preset channels in 10 groups. Up to 9 channels can be operated in parallel. True Diversity receiver technology, pilot tone, and adjustable noise squelch ensure reliable transmission. Configuration is quick and easy using automatic scanning and infrared synchronization.
Dual-channel multi-frequency wireless receiver with high-quality diversity reception
10 groups with 90 fixed frequencies on an 11 MHz switching bandwidth
Parallel operation of up to 9 systems is possible without interference
Frequency pilot squelch technology eliminates RF interference
Automatic frequency scanning (AFS) finds interference-free channels
Easy and error-free synchronization between receiver and transmitter via infrared signal
2 detachable BNC antennas allow use with the R-14D antenna splitter
Robust metal housing
Multicolour LCD display
UHF 863 - 865 MHz license-free and approved in Europe
UHF 823 - 832 MHz license-free and approved in large parts of Europe
Operating range of up to 80 m with line of sight
Desktop console housing
(19") 48.3 cm installation possible 1 U

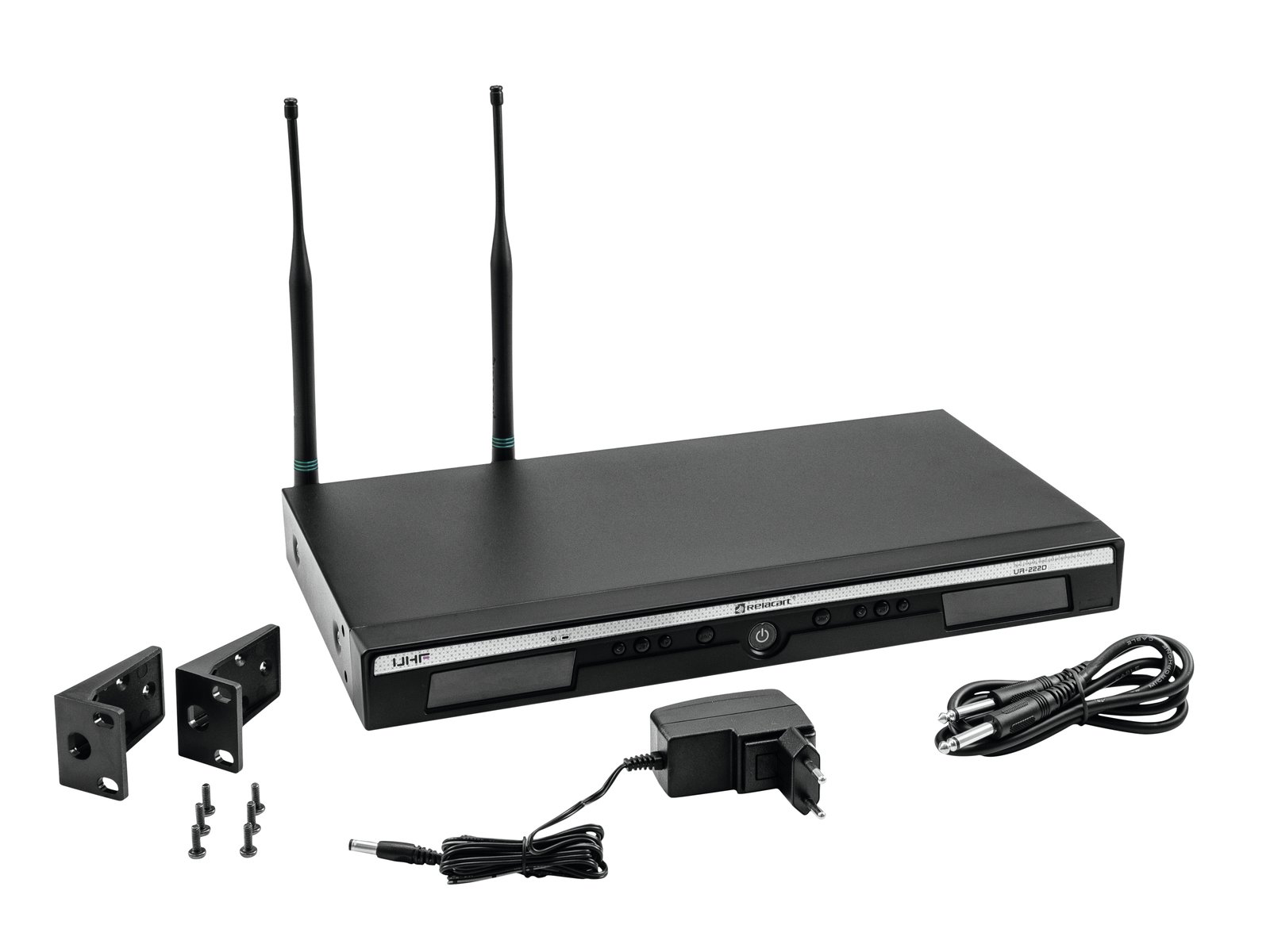

Package contents
1 x receiver, 1 x external power adapter, 2 x antennas, 2 x mounting brackets, 6 x screws, 2 x jack cables, 1 x user manual, 1 x declaration of conformity
Type:
Receiver
Power supply:
100-240 V AC, 50/60 Hz 12 V DC 1 A
Power consumption:
5 W
Power connection:
Network input via coaxial power connector (M) power cable mounting version with AC adapter (supplied)
Number of channels:
2
Frequency range:
45 - 18000 Hz
S/N ratio:
>105 dB
Display type:
Multicolour LCD display
Display:
Load level, antenna A/B, RF signal level, audio AF level; frequency
Control elements:
Navigation buttons, menu, groundlift selector
Connections:
Output: line via 2 x XLR 3-pin Output: line via 2 x 6.3 mm jack (unbalanced) Antenna via 2 x BNC (F) 8 V
Frequency band:
UHF 863 - 865 MHz; UHF 823 - 832 MHz
Frequency selection:
90 switchable frequencies In 10 groups with up to 10 preset frequencies each
Modulation:
FM
Frequency stability:
± 0.0005 %
Range:
Operating range of up to 80 m with line of sight
Bandwidth switching:
11 MHz
Diversity:
Antenna diversity
Material:
Metal
Housing design:
Desktop console housing (19") 48.3 cm installation possible 1 U
