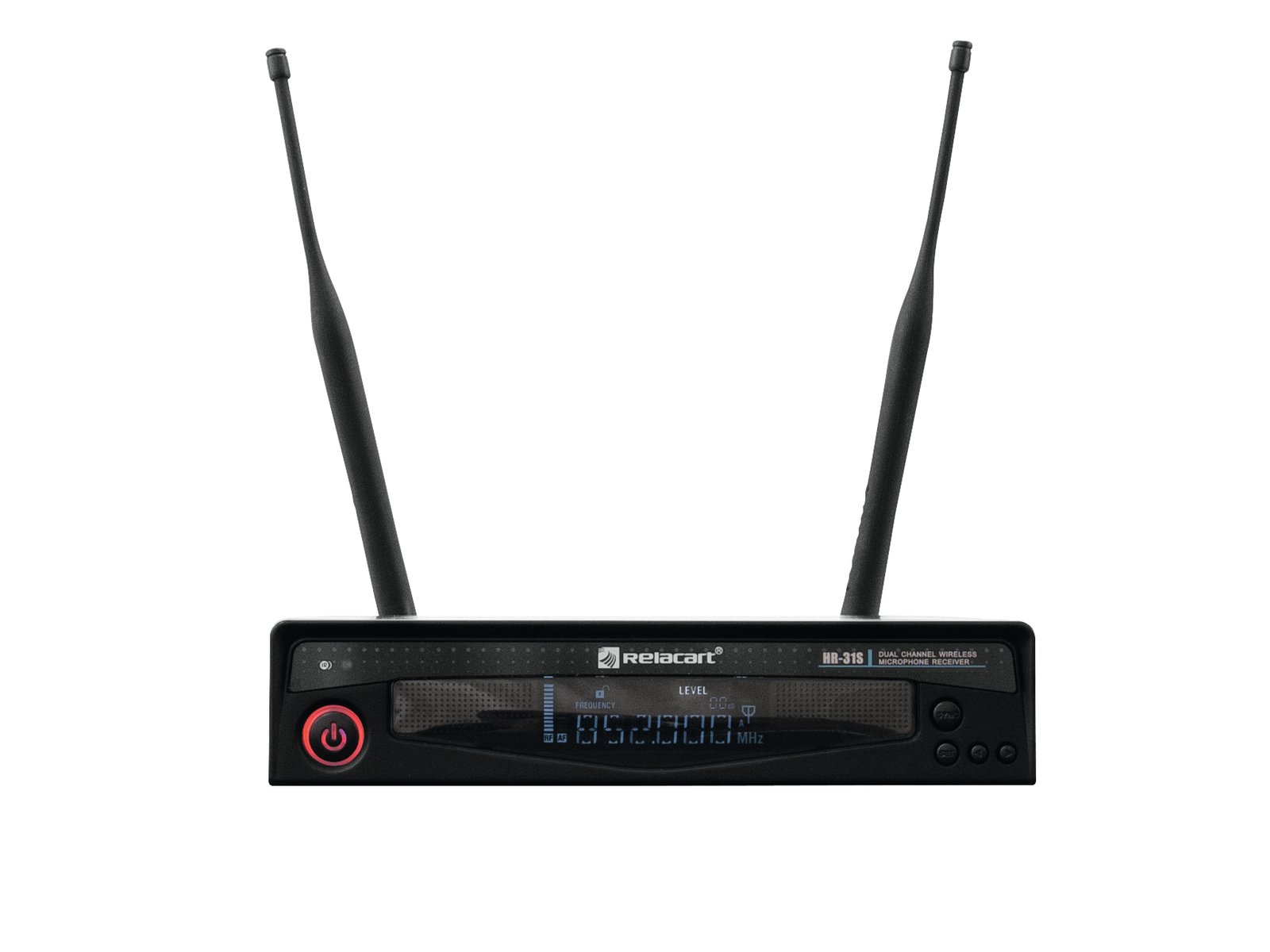

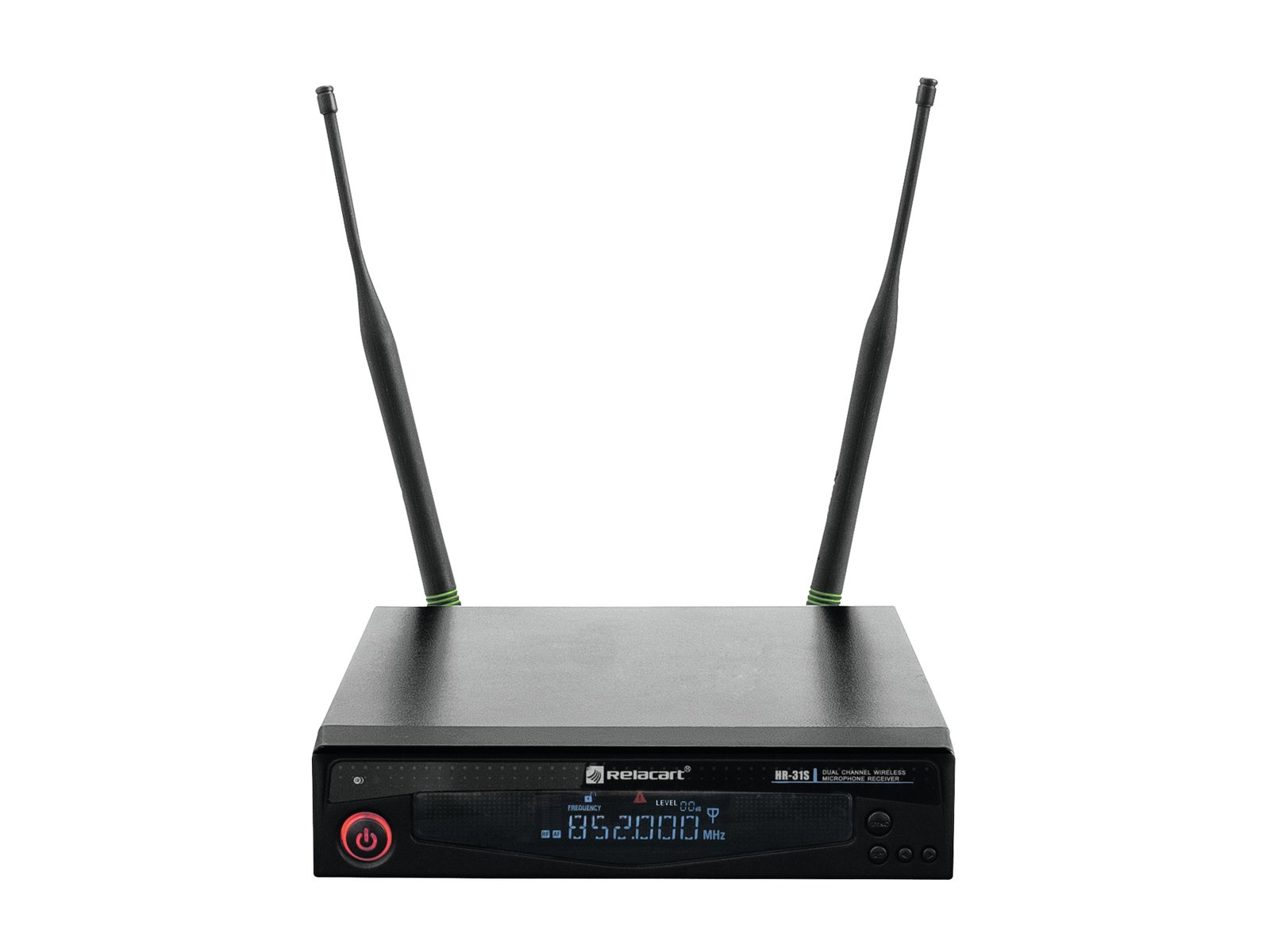

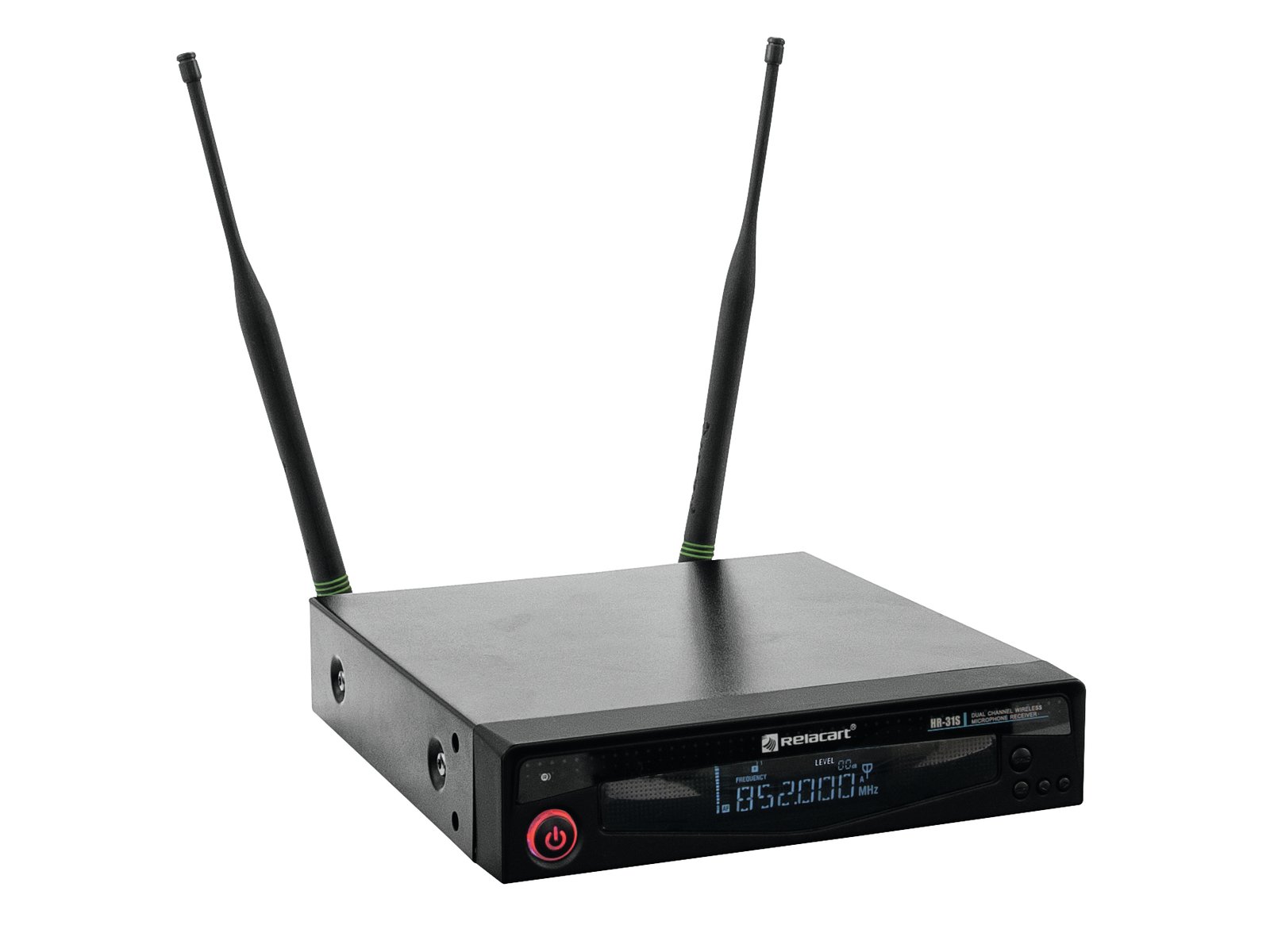

The HR-31S is a premium true diversity system in the UHF spectrum, which can fully exploit its strengths, especially in connection with the RWW software. Transmission occurs either in the professional switchable band of 731-790 MHz or in the unlicensed range of 823-832 MHz. Other features are also appealing: quick setup via infrared and an exceptionally long transmitter life of up to 15 hours with a single set of batteries.
True Diversity Wireless Receiver with PC Control
Multi-frequency wireless receiver with high-quality true diversity reception
Real-time monitoring and data management using RWW PC software
731-790 MHz (requires a license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
292 manually adjustable frequencies in 25 kHz steps within a switching bandwidth of 68 MHz
Parallel operation of up to 16 systems is possible without interference
Pilot frequency squelch technology eliminates wireless RF interference
Automatic frequency scanning (AFS) finds interference-free channels
Easy and error-free synchronization between receiver and transmitter via infrared signal
RS-485 serial interface for connecting a computer with optional USB/RS-485 U485 converter
Up to 32 units can be connected with network cables
Lock function to prevent unwanted changes to settings
2 detachable BNC antennas allow use with the R-14D antenna splitter
Monochrome LCD display
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 731 - 790 MHz License-free and approved in large parts of Europe
Operating range of up to 80 m with line of sight
The device can be connected via the RJ14 (F) mounting version to a PC in connection with RELACART RWW software and Dongle (optional)
Desktop console housing
(19") 48.3 cm installation possible 1 U
Package Contents
1 x device, 2 x antenna, 1 x external power adapter, 1 x jack cable, 1 x user manual, 1 x declaration of conformity, 1 x bag, 3 x mounting bracket, 10 x screws
Type:
Receiver
Power Supply:
100-240 V AC, 50/60 Hz 12 V DC
Power Consumption:
3.5 W
Power Connection:
Mains input via coaxial power connector (M) power cable mounting version with AC adapter (supplied)
Number of Channels:
1
Frequency Range:
45 - 18000 Hz
S/N Ratio:
>108 dB
THD:
<0.6 % at 1 kHz
Display Type:
Monochrome LCD
Display:
Battery level, antenna A/B, RF signal level, audio AF level; frequency
Control Elements:
Menu, navigation keys
Connections:

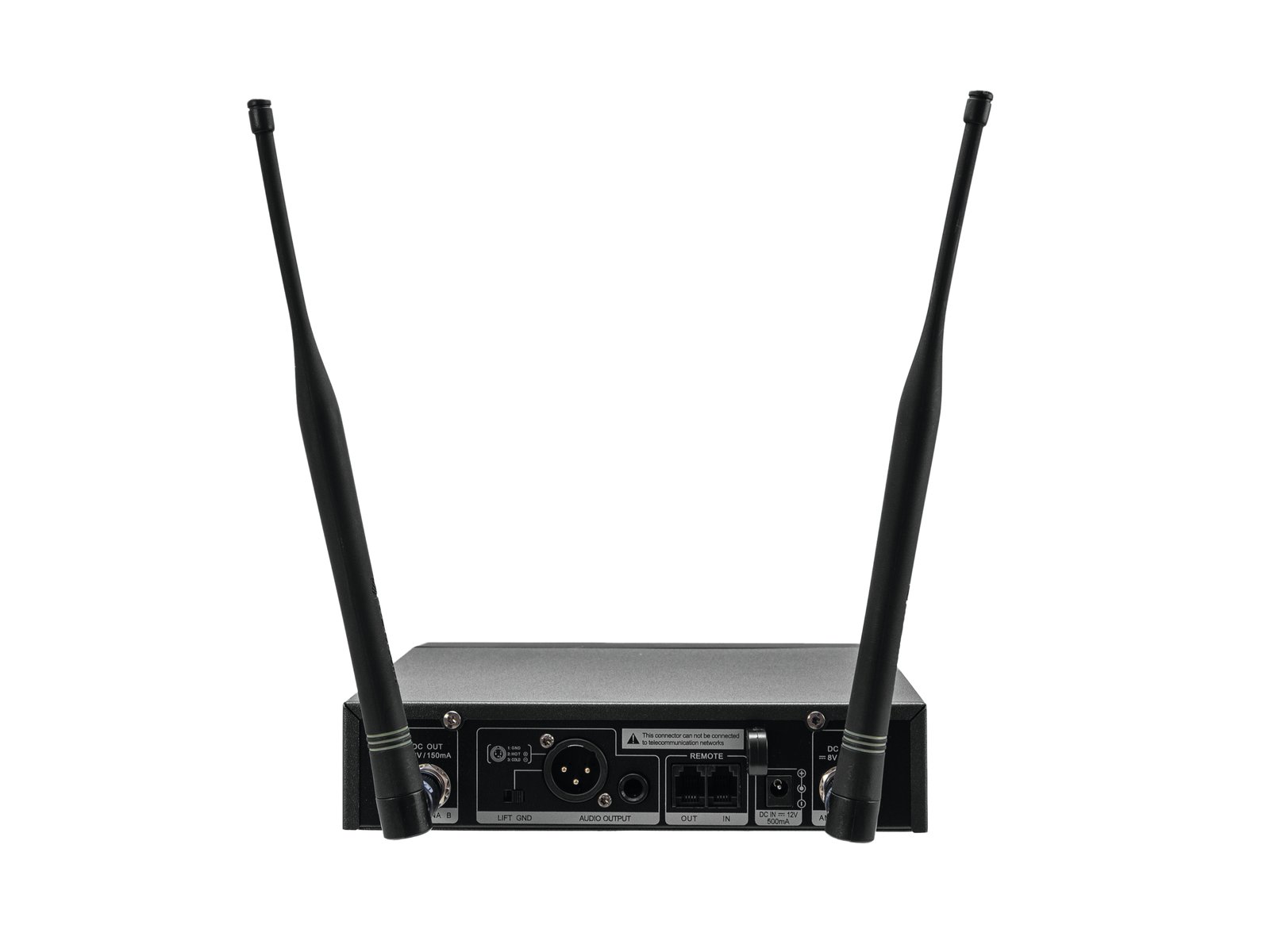

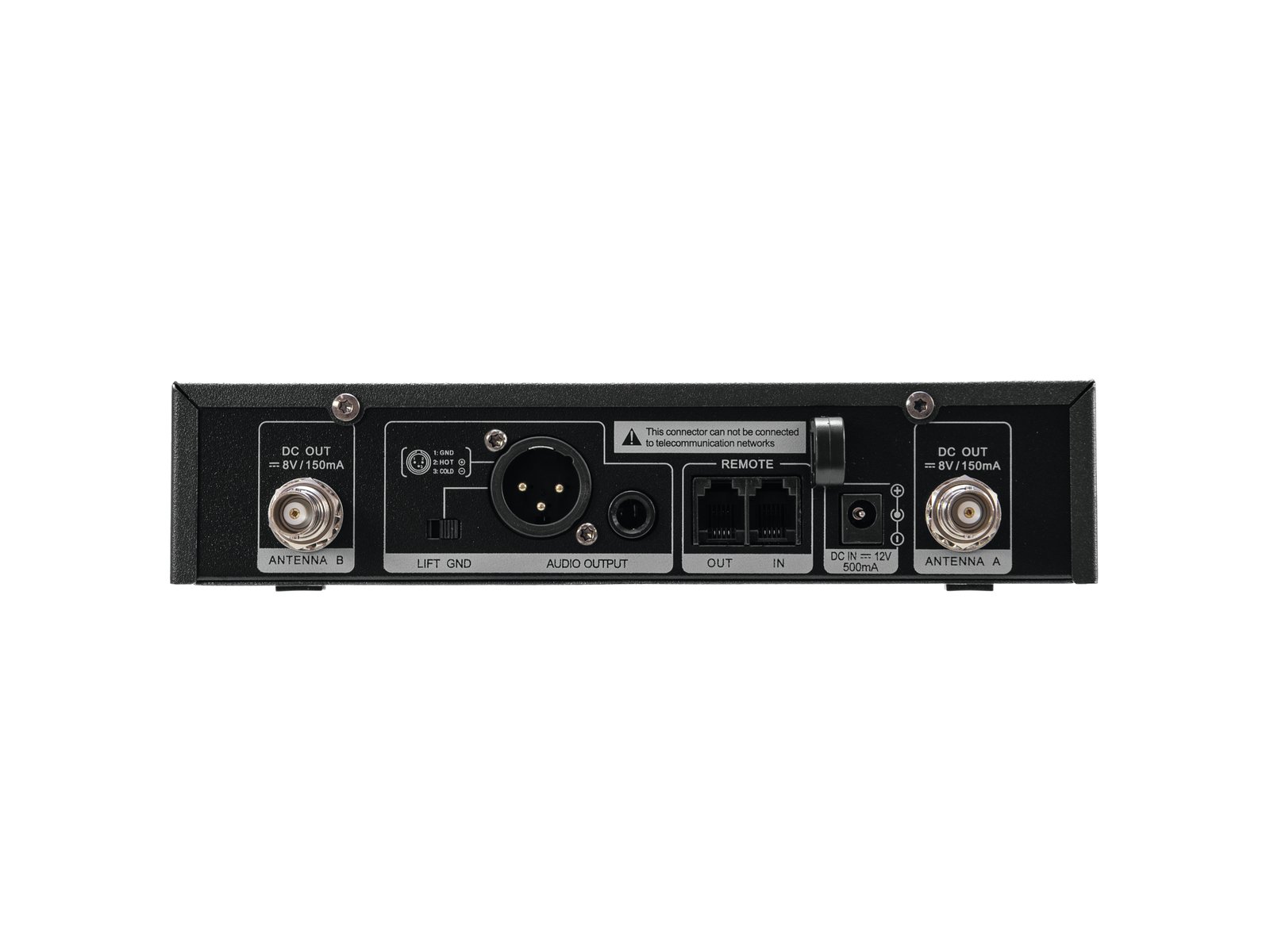

Antenna via 2 x BNC (F) 8 V Output: line via XLR (M) mounting version with 1 x 3 pins Output: line via 1 x 6.3 mm jack mounting version (stereo). Link: 2 x RJ14 (F) mounting version
Frequency Band:
UHF 823 - 832 MHz; UHF 731 - 790 MHz
Frequency Selection:
292 switchable frequencies In 10 groups with up to 25 preset frequencies each and In 8 groups with up to 7 preset frequencies each
Modulation:
FM
Frequency Stability:
± 0.0005 %
Range:
Operating range of up to 80 m with line of sight
Bandwidth Switching:
68 MHz
Switch:
On/Off switch
Diversity:
True diversity
Material:
Metal
Colour:
Black
PC Connection:
RELACART RWW software with Dongle (optional) via RJ14 (F) mounting version.
Housing Design:
Desktop console housing (19") 48.3 cm installation possible 1 U
