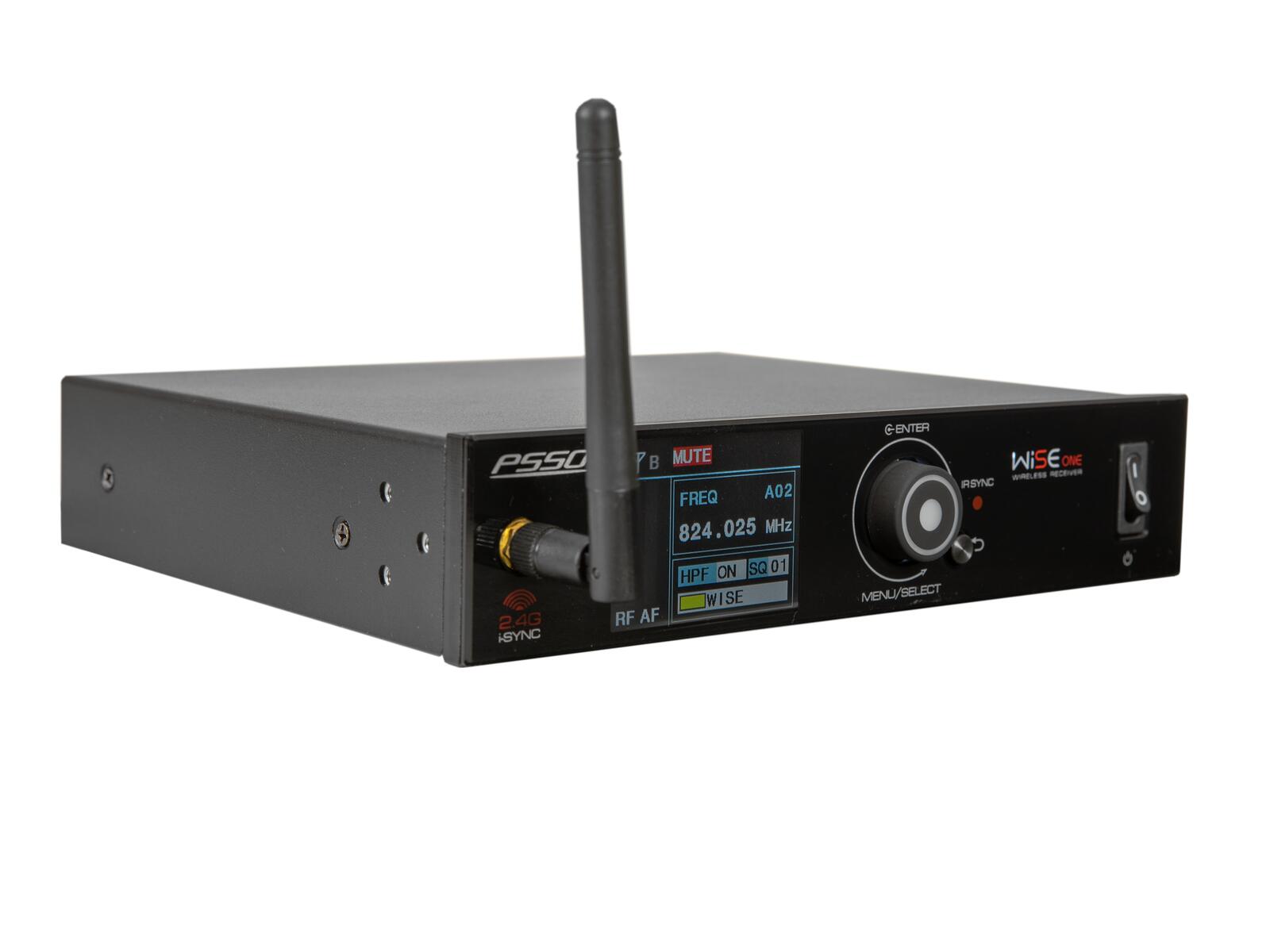

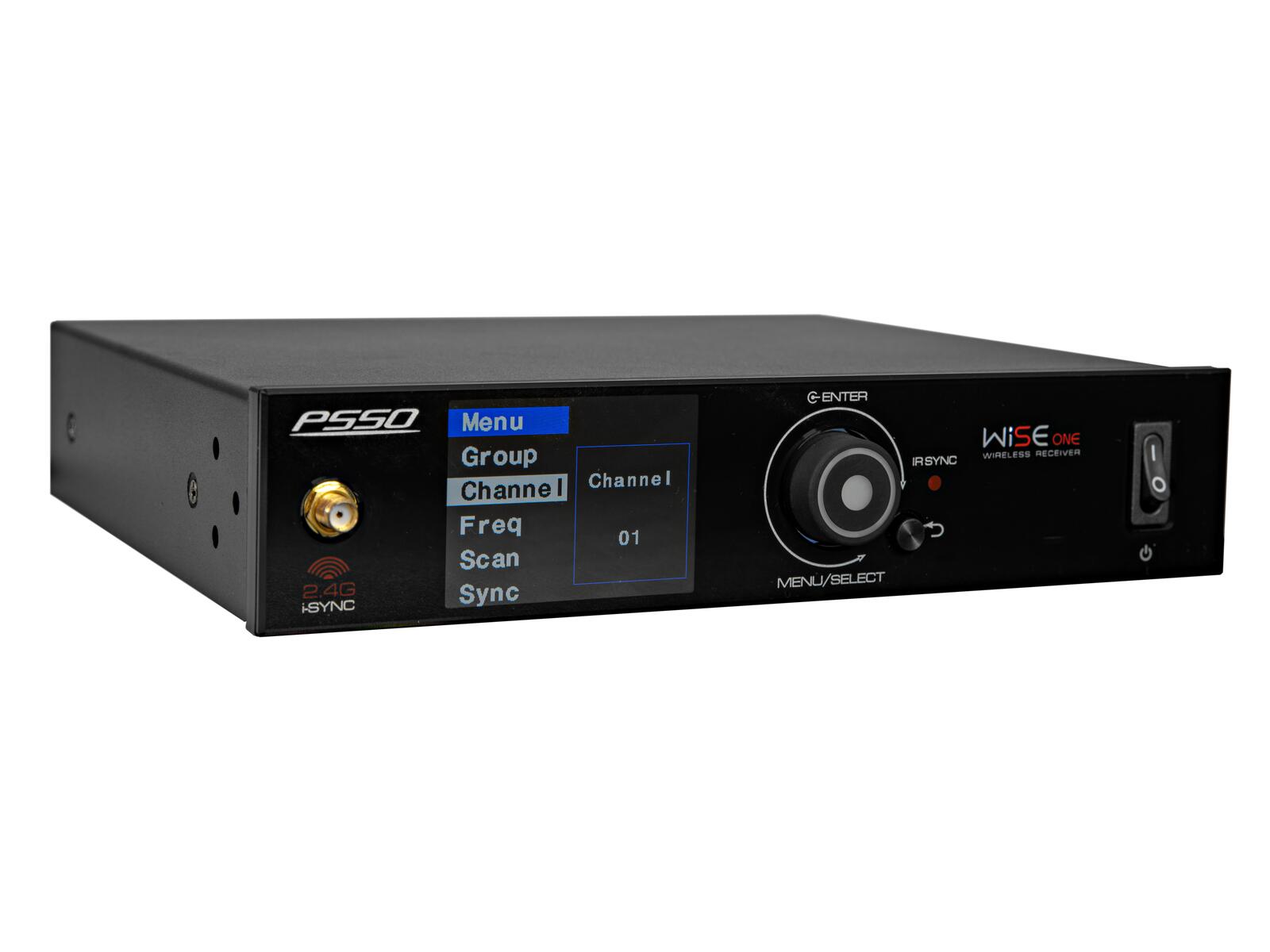

PSSO WISE ONE 1-Channel True Diversity Receiver 823-832/863-865MHz - True Diversity wireless receiver without a licence with 2.4 GHz iSync control management, ideal for large multi-channel systems (parallel operation possible for up to 26 systems). High-quality components and smart features ensure the best performance and high reliability.
Professional multi-frequency "true diversity" wireless receiver for stage use
Ideal for large multi-channel systems (parallel operation possible for up to 26 systems)
45 preset channels in 5 channel groups
2.4 GHz iSync - real-time synchronisation and monitoring
Automatic frequency setup
Pilot frequency squelch technology eliminates RF interference without wires
Multifunction jog dial for menu settings
Lock function to prevent unwanted changes to settings
Micro/line selector switch

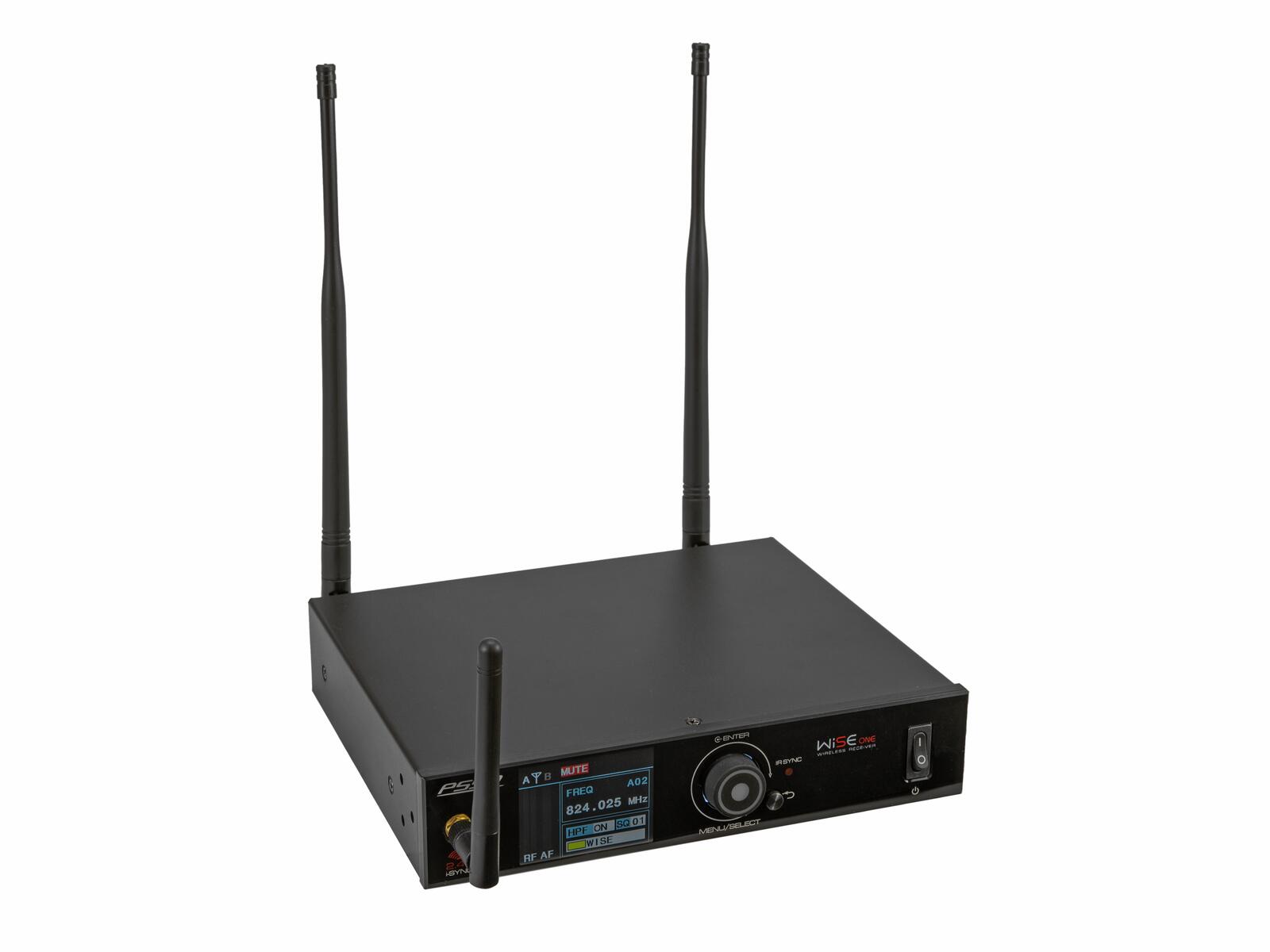

2 detachable BNC antennas allow use with external antenna splitter
USB port for software updates
2 receivers can share a single power adapter
Multicolour LCD display
UHF 823 - 832 MHz without a licence and approved in many parts of Europe
UHF 863 - 865 MHz without a licence and approved in Europe
Operating range of up to 60 m with line of sight
Desktop console housing
(19") 48.3 cm installation possible 1 U

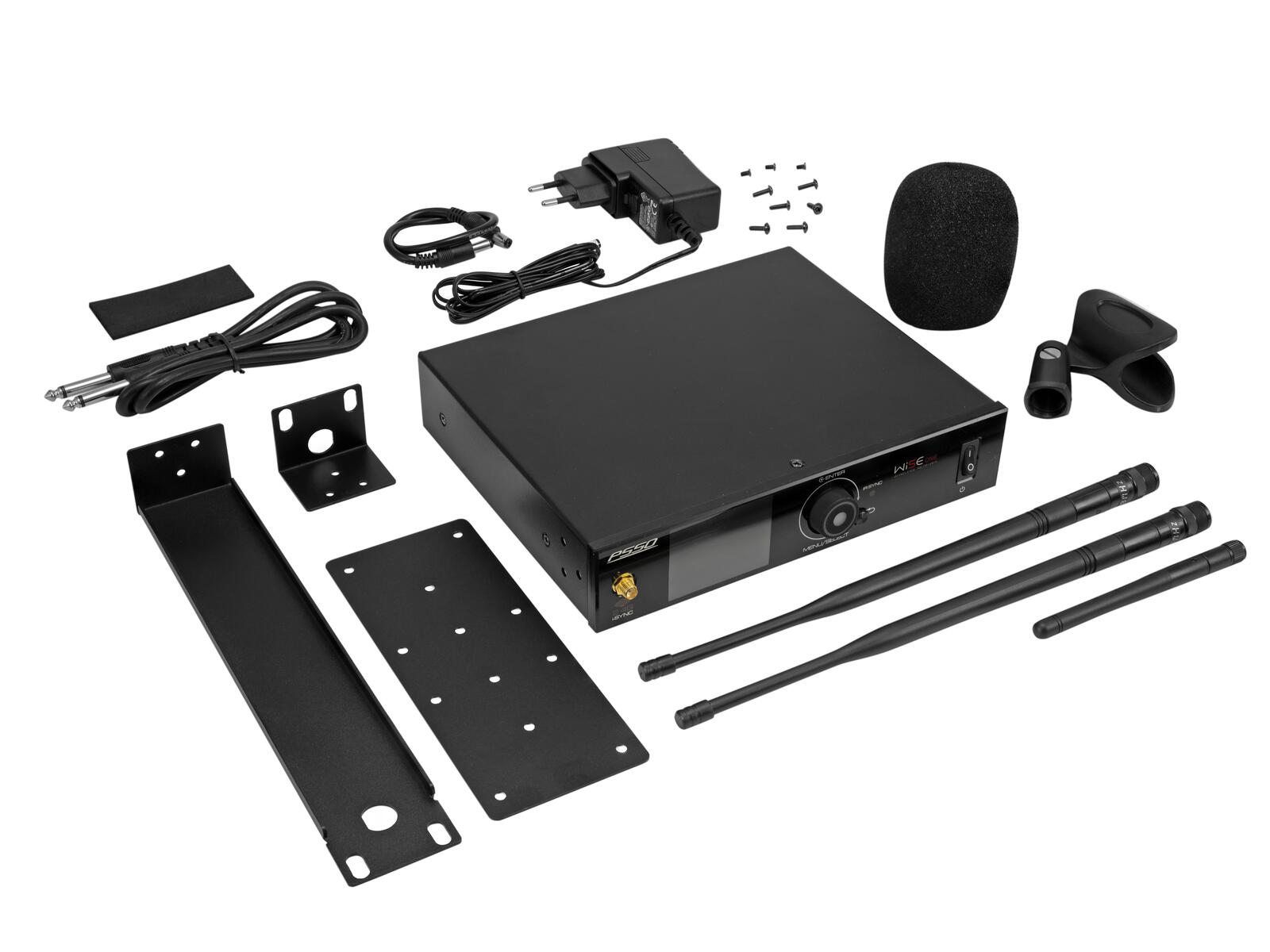

Package contents
1 x receiver, 1 x external power adapter, 1 x adapter, 3 x antennas, 3 x mounting brackets, 9 x screws, 4 x feet, 1 x jack cable, 1 x adapter cable, 1 x bracket, 1 x windscreen, 1 x user manual, 1 x declaration of conformity, 2 x battery
Type:
Receiver
Power supply:
100-240 V AC, 50/60 Hz 12-15 V DC 800 mA
Power consumption:
4 W
Power connection:
Network input via coaxial power connector (M) power cable mounting version with AC adapter (supplied)
Number of channels:
1
Frequency range:
50 - 20000 Hz
S/N ratio:
>96 dB
THD:
<0.1 % at 1 kHz
Gain:
Microphone -32 dB to +4 dB Output: -32 dB to +4 dB
Display type:
Multicolour LCD display
Control elements:
Power switch, groundlift selector, menu, encoder

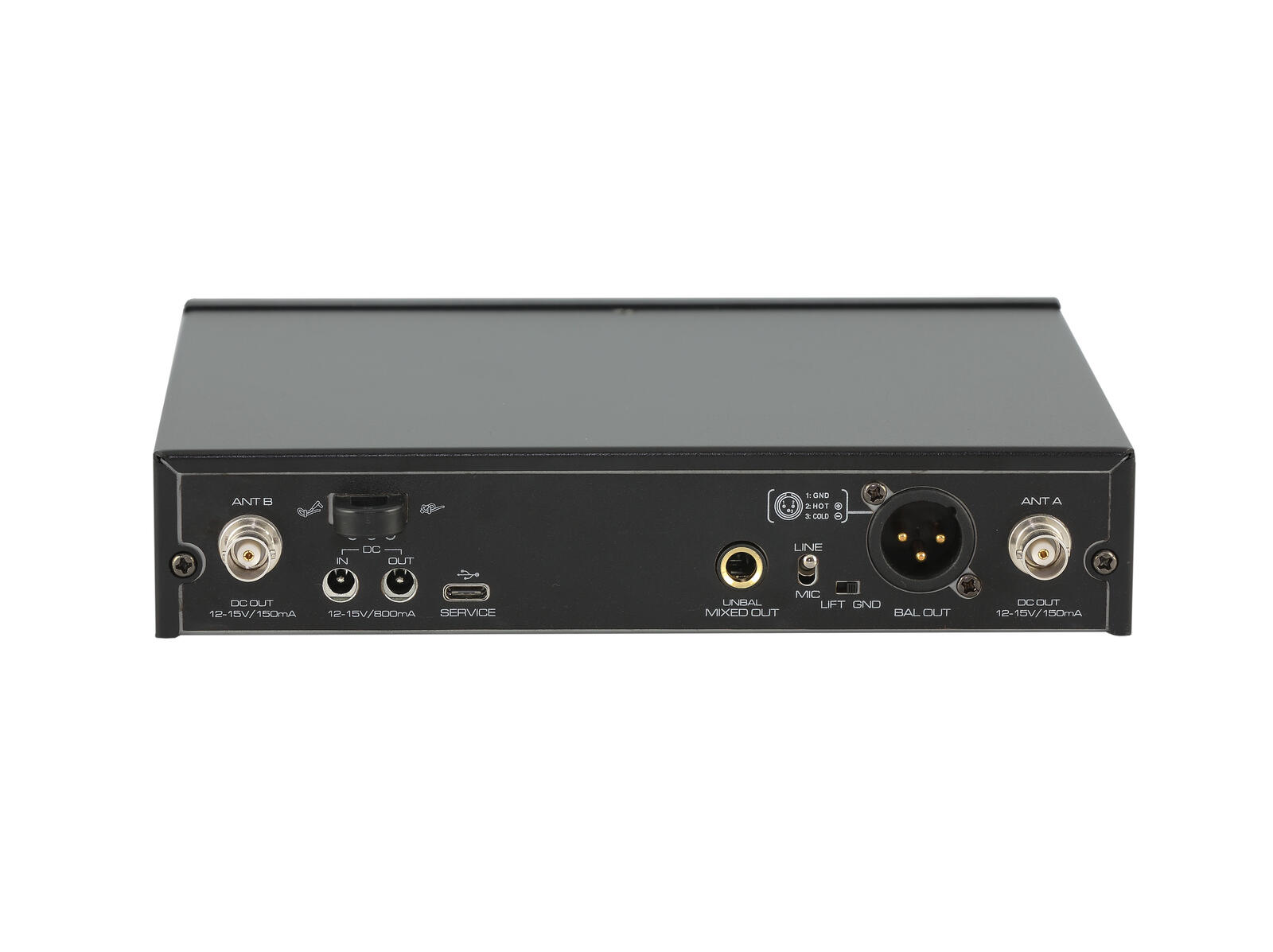

Connections:
Antenna via 2 x BNC (F) 12-15 V Antenna via 1 x SMA (F) mounting version. Output: microphone/line via 1 x 3-pin XLR Output: microphone/line via mounting version with 1 x 6.3 mm jack (mono).
Channels:
Microphone channel: 1 x mono with Mic-line switch via XLR or jack
Frequency band:
UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection:
45 switchable frequencies In 5 groups Frequencies scanned automatically
Modulation:
FM
Range:
Operating range of up to 60 m with line of sight
Switch:
Low-cut switch
Diversity:
True diversity
Material:
Metal
Colour:
Black
Housing design:
Desktop console housing (19") 48.3 cm installation possible 1 U
