Move freely on stage while the perfect monitor mix is delivered directly to your ears. U500® In-Ear Monitoring Systems feature 96 selectable channels and 2, 10 or 30 mW switchable RF output power for a transmission range greater than 100 m. Convenient infrared synchronisation of transmitter and receiver permits quick and trouble-free setup. The systems come with high-contrast OLED information displays and allow for individual user name assignment. In addition, you can save 10 custom presets. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500® In-Ear Systems' noise floor is exceptionally low.

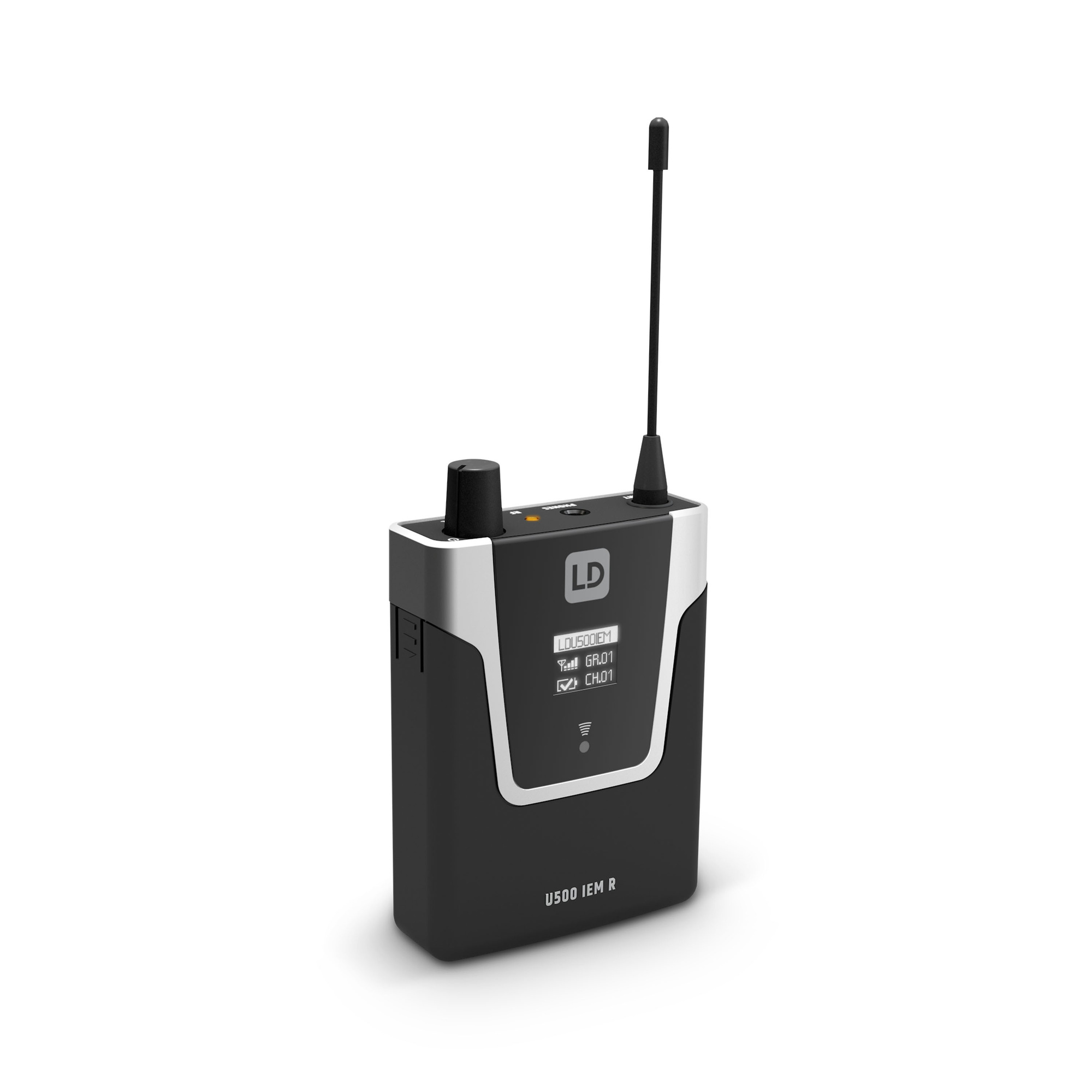

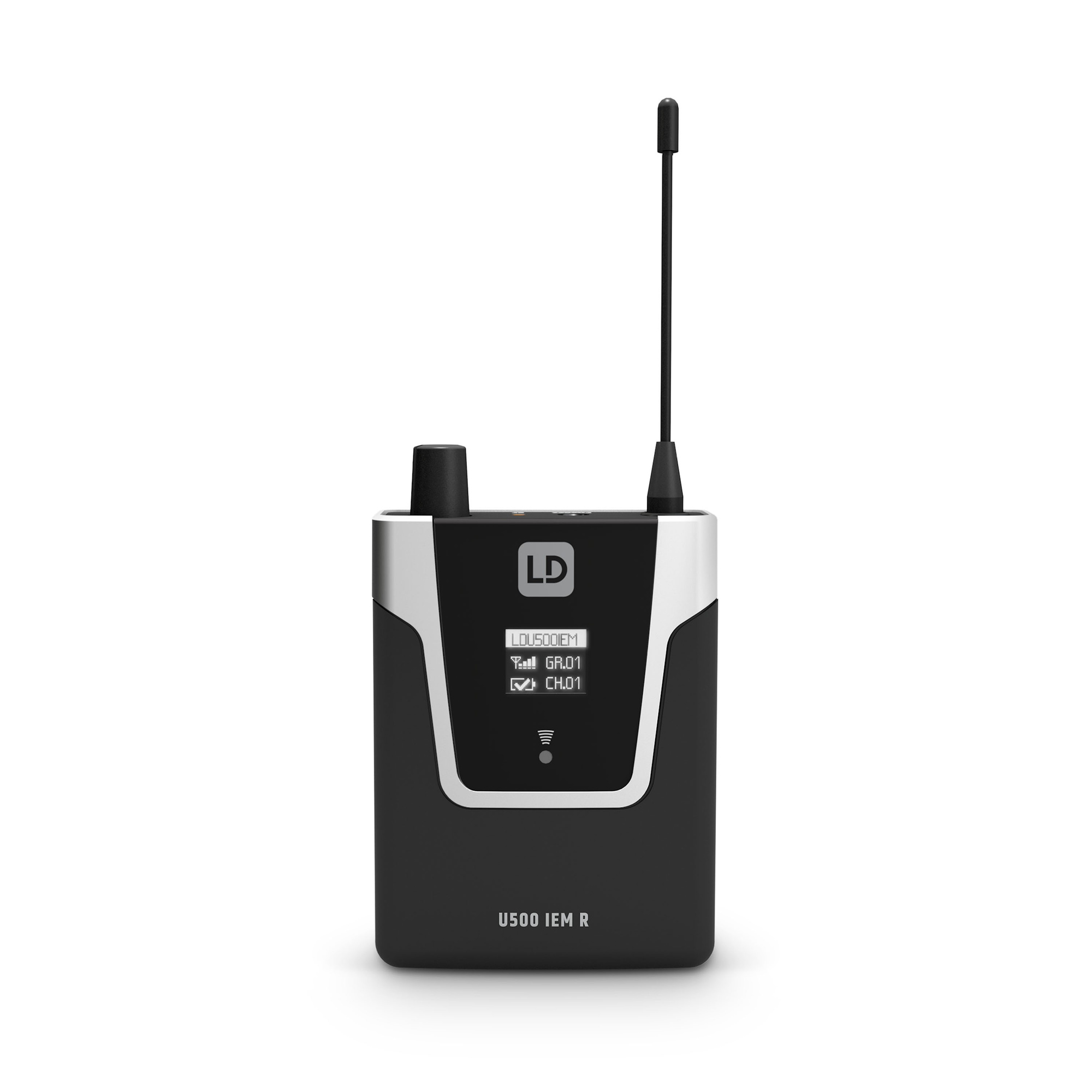

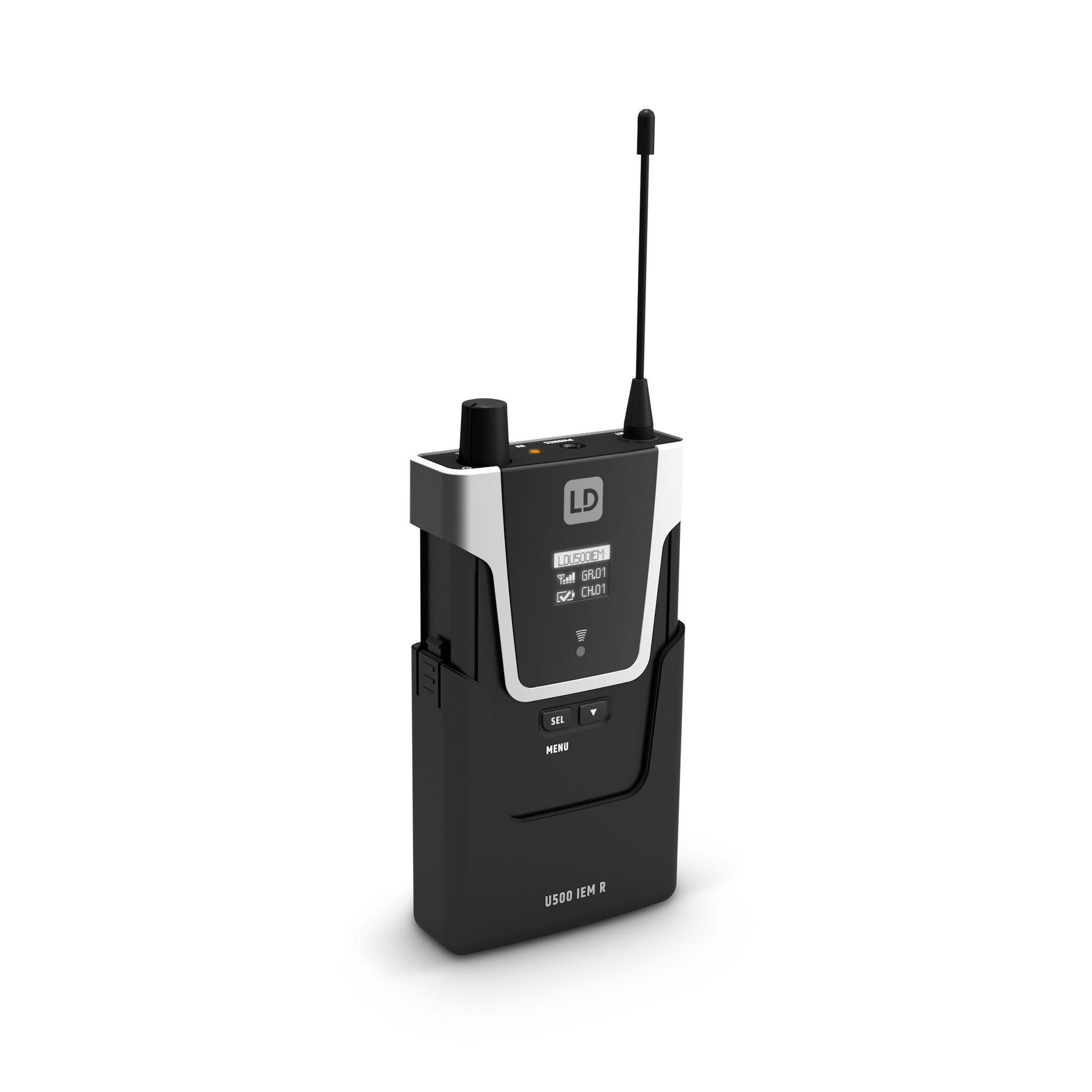

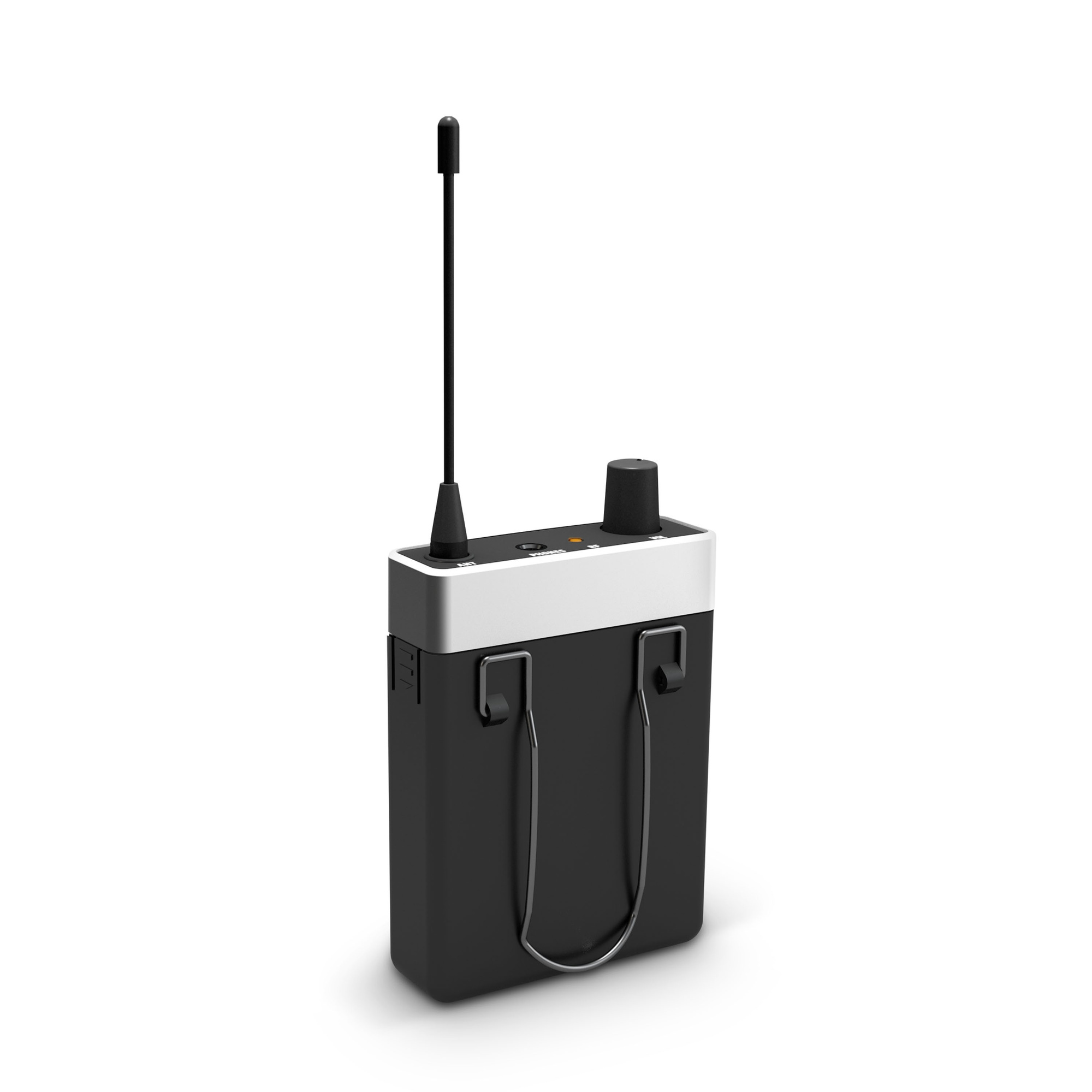

Drawing little current only, the U500® IEM Bodypack Receiver operates up to 10 hours on two AA batteries. A volume control allows convenient in-performance monitoring level adjustment. Three selectable squelch levels ensure interference-free operation at all times.
Specifications:
Product type: In-ear Monitoring Accessories
Type: Receivers
Transmission frequency range: 823 - 832 MHz, 863 - 865 MHz
Channels: 96 (8 groups of 12 channels)
Transmission method: FM, mono/stereo
Frequency response: 40 - 16000

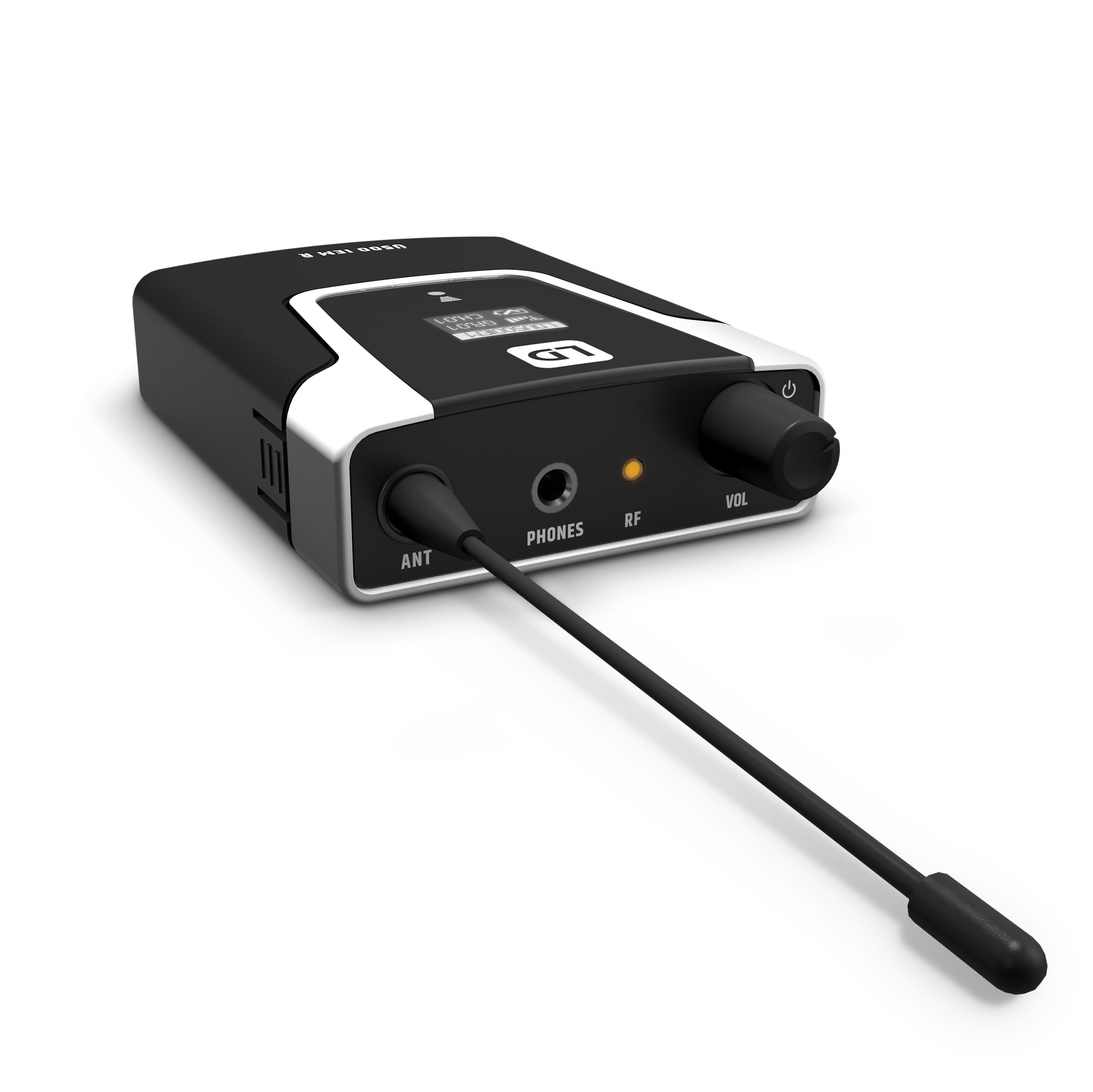

Audio output: 3.5 mm TRS
Max. audio output level: 33 mW @ 16 Ohm mW, 80 mW @ 33 Ohm mW
Controls: Down, On / Off, Up, volume
Indicators: Multifunctional OLED-Display, RF (LED)

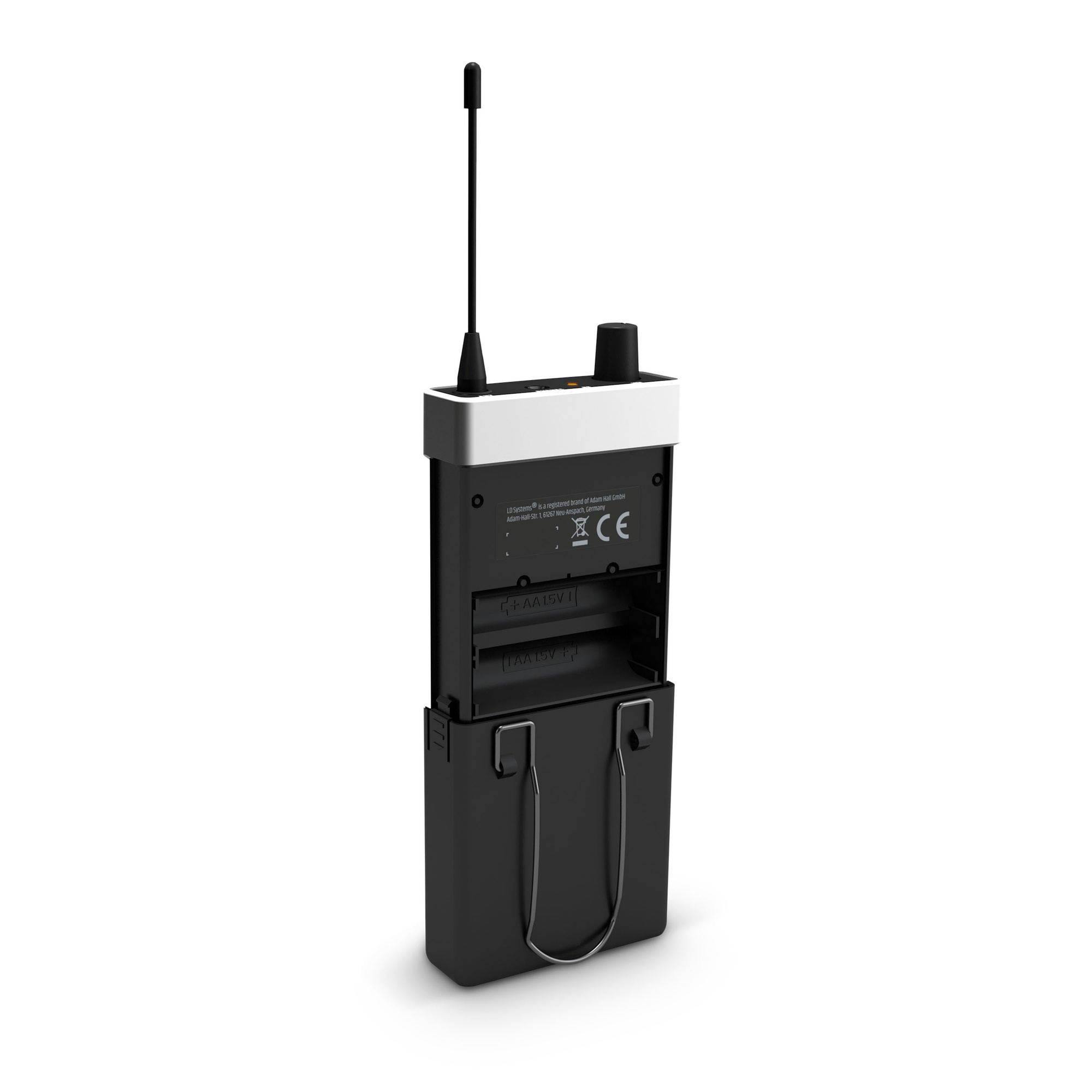

Power supply: 2 x 1.5 V AA
Operating time: < 10 hours
Width: 64 mm
Height: 100 mm
Depth: 24 mm
Weight: 0,095 kg
Accessories (included): 2 x AA batteries, Antenna
Features: battery status LED
