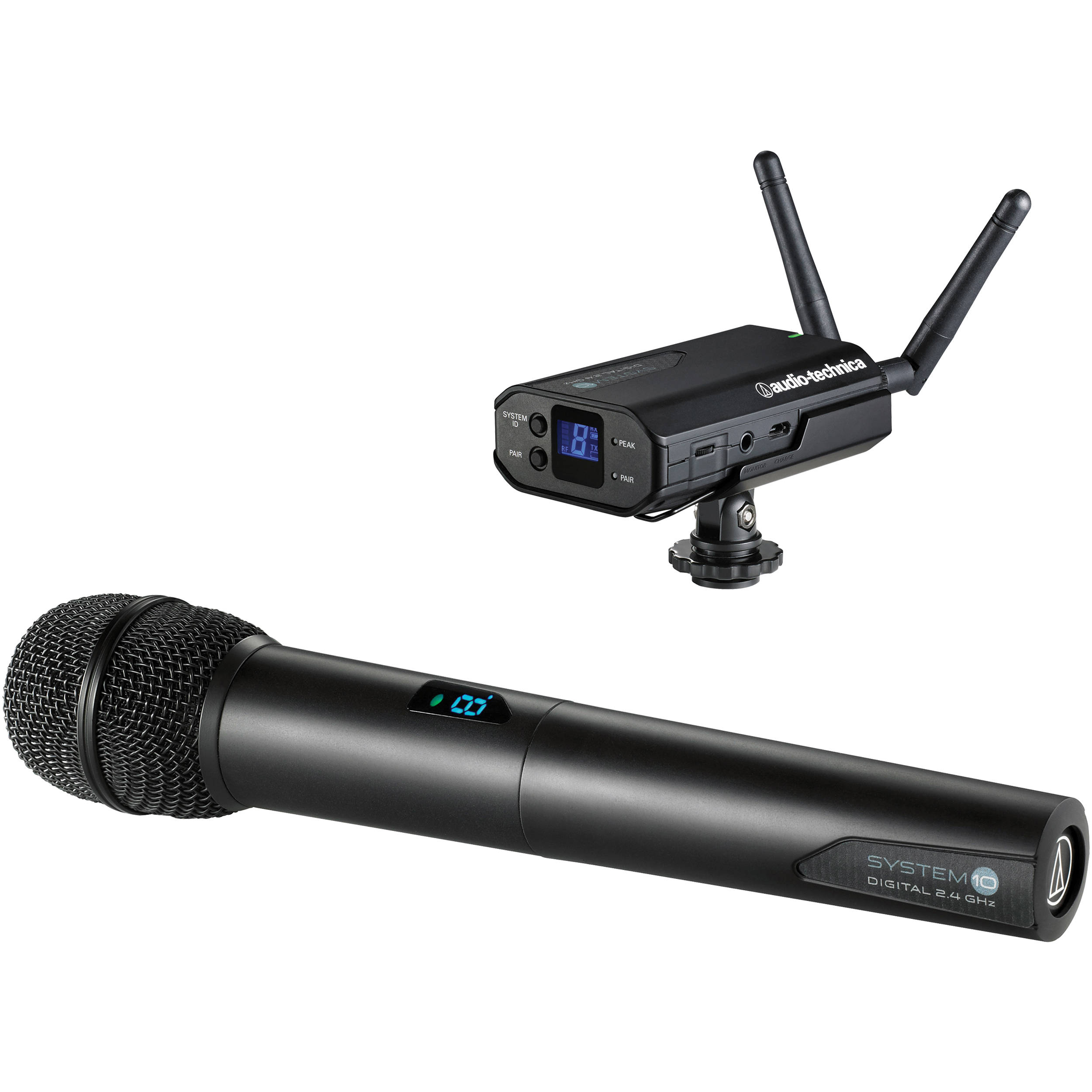

Audio-Technica ATW-1702 System 10, digital wireless system for photo/video cameras, includes a camera-mountable receiver and a handheld transmitter with a dynamic microphone capsule. The System 10 wireless systems operate in the 2.4 GHz frequency band, being immune to TV or DTV interference.
Specifically designed to be mounted on camcorders, easy to use for cameramen and film crews, the ATW-R1700 receiver is lightweight and features an independent channel for headphone monitoring, with the option to select the output signal mode, balanced/unbalanced, via the 3.5 mm mini jack socket. It is powered by a rechargeable internal Li-Ion battery. The system has LED battery power indicators for both the receiver and transmitter, and can be used with pocket transmitters or dynamic wireless microphones from the System 10 series. It is available in 3 variants. The system also includes an adapter for mounting on the camcorder.
System specifications
Operating frequency: 2.4 GHz ISM
Rejection: >109 dB
Total harmonic distortion: <0.05%
Operating range: 30 m (100'), 60 m (200') in open operating environment without signal interference
Operating temperature: 0 to +40 degrees Celsius (battery usage time may be reduced at low temperatures)
Sampling rate: 20 Hz to 20 kHz
Receiver specifications
Reception type: Diversity (frequency/time/space)
Maximum output level: mini jack 3.5 mm, TRS balanced: +6dBV Dual mono, unbalanced: 0 dBV
Power supply: 100-240V AC (50/60 Hz), 5V DC 0.5A via external power supply, with USB type connector.
Battery: Internal rechargeable Li-Ion 3.7V
Battery life: 12 hours, depending on environmental conditions. Battery recharge time of 4 hours and 30 minutes.
Dimensions: 56.0 mm W / 91.4 mm H / 127.8 mm D.
Weight 105 g
Included accessories: 2 antennas, camera mount adapter, AC power supply (USB type), USB cable, stereo cable with 3.5 mm mini jack plug.
Handheld microphone transmitter specifications
Dynamic microphone capsule
RF output power: 10 mW
Batteries (not included): 2x 1.5V AA
Battery life: >7 hours (alkaline)
Dimensions: 254.8 mm length / 50.00 mm diameter
Weight: 280 g without batteries
Included accessories: AT8456a Quiet-Flex stand clamp
