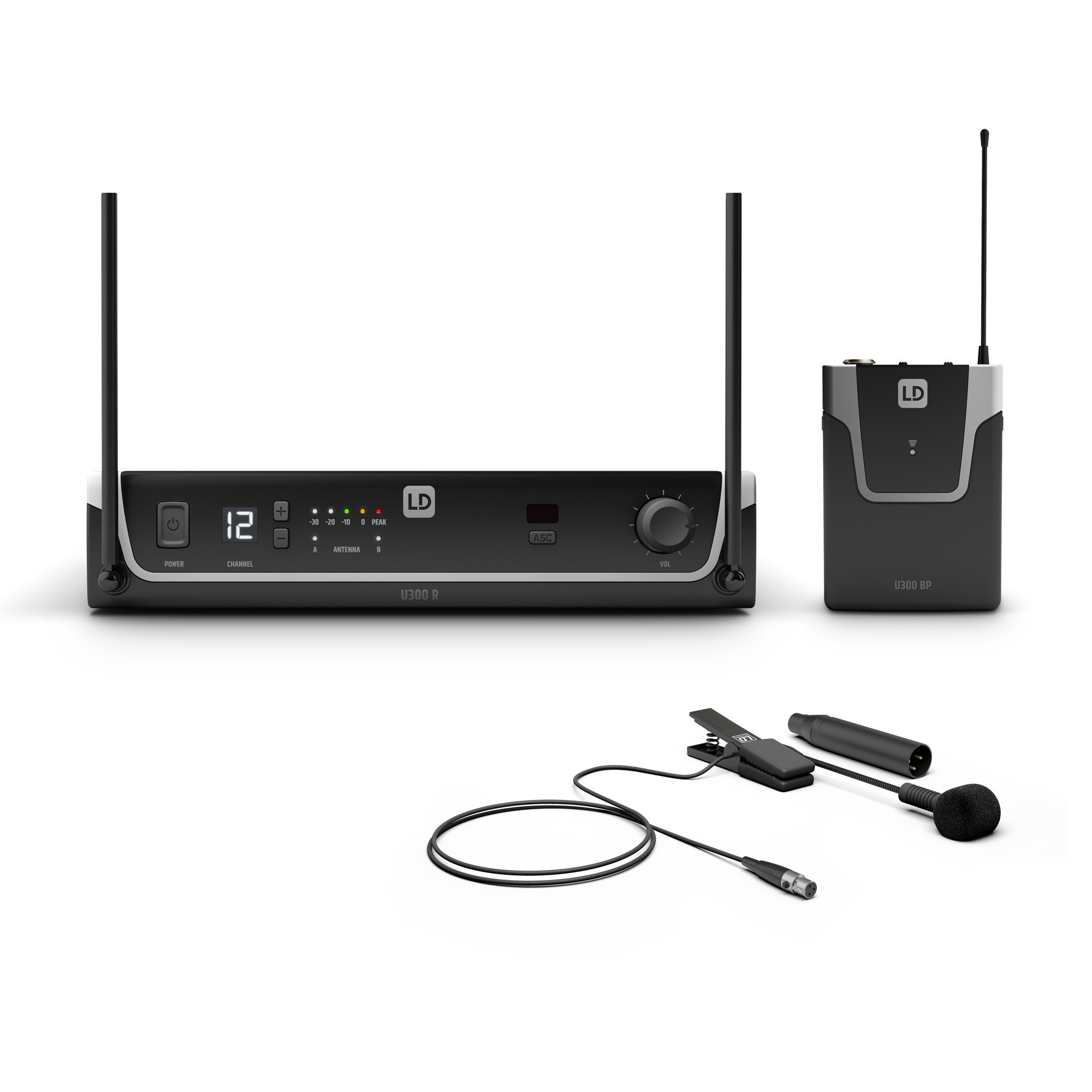

LD Systems U306 BPW - Wireless set with belt transmitter and microphone for brass/string instruments, UHF Diversity system with FM technology and 12 channels, recommended for semi-professional applications.

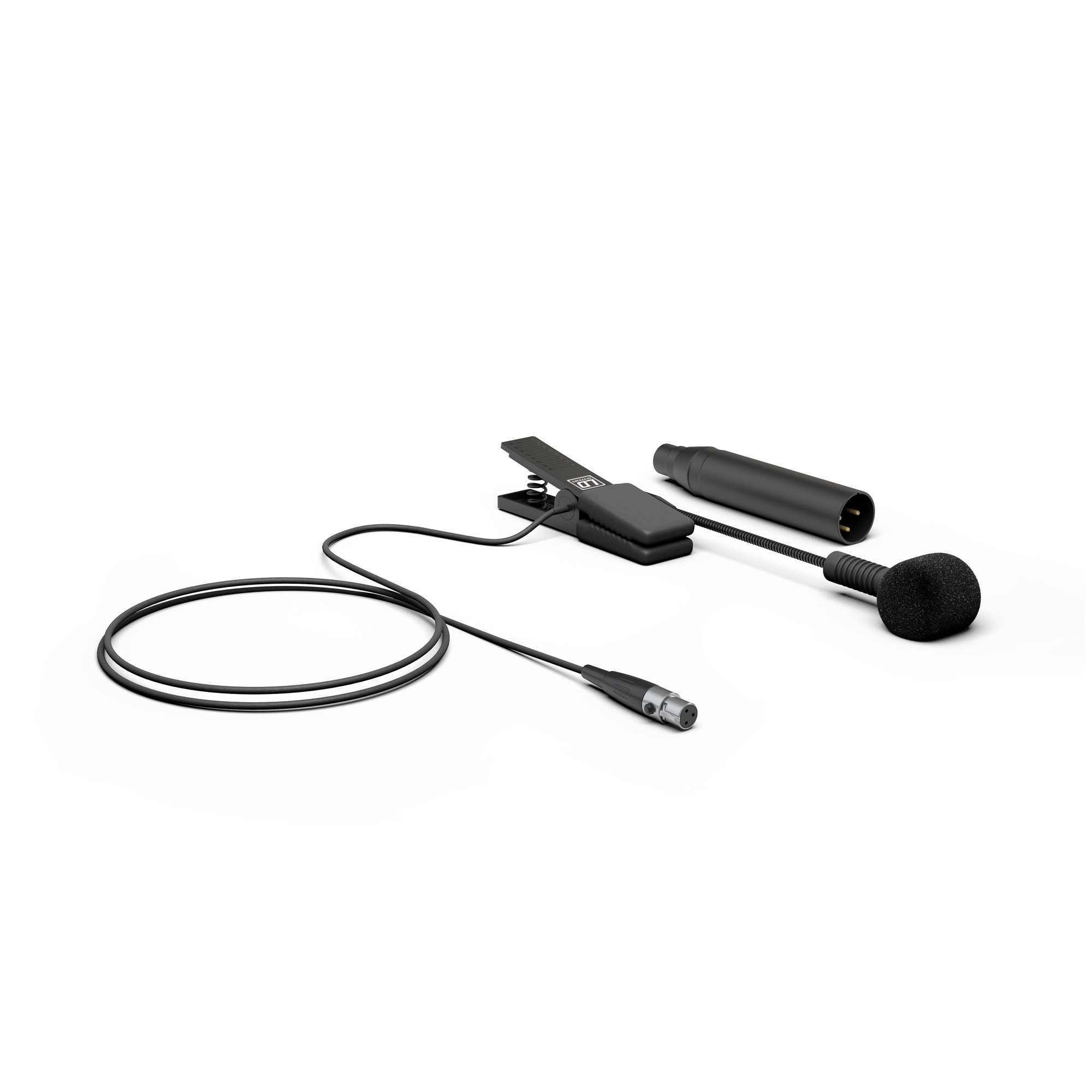

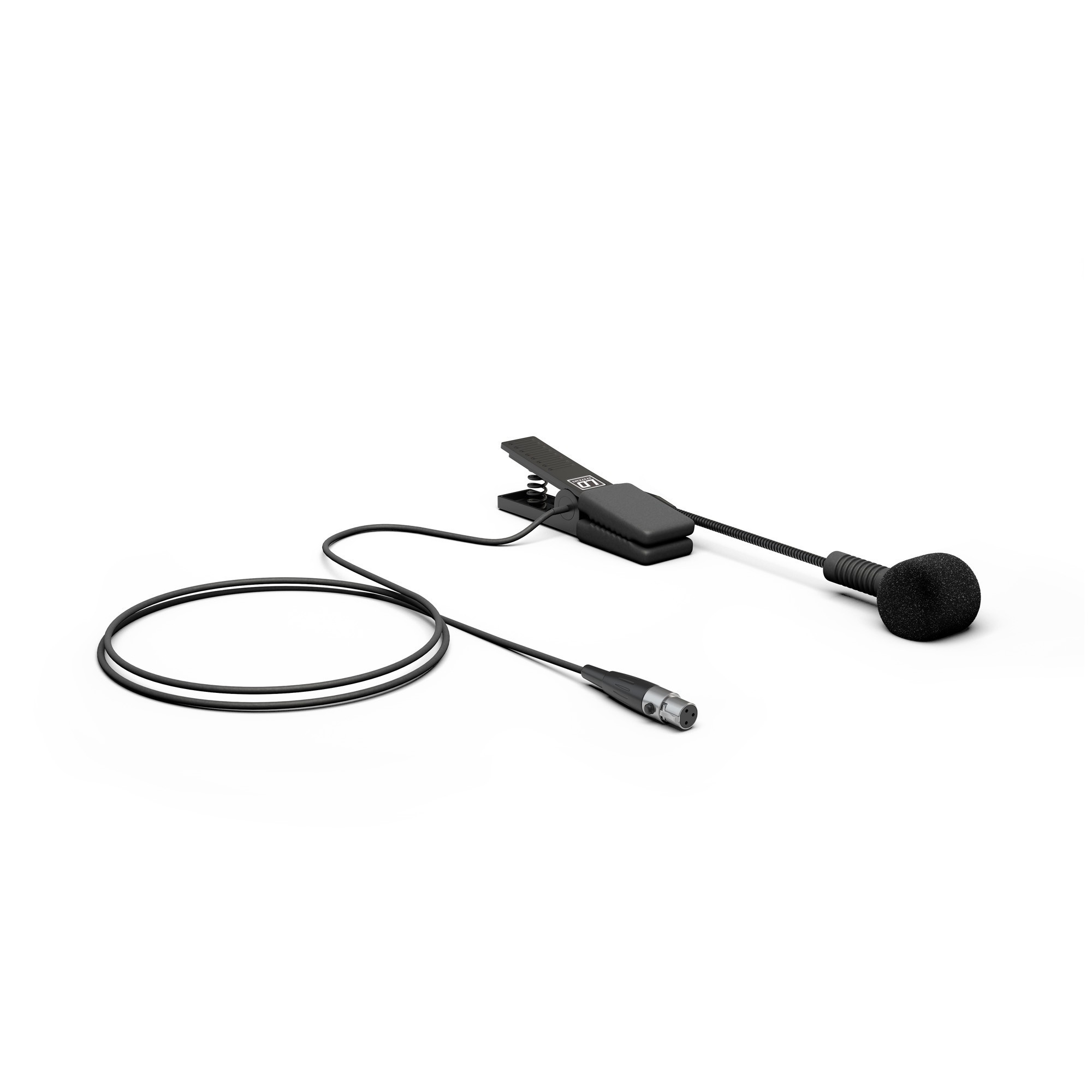

LD Systems WS 1000 MW Clip Microphone for Brass Instruments:
- Type: Gooseneck microphone (70 mm)
- Frequency response: 50 - 18,000 Hz
- Directivity: Cardioid
- Sensitivity (rest voltage at 1 kHz): - 45 dB +/- 3 dB
- Nominal impedance: 250 Ohms
- Max. SPL (1% THD @ 1kHz): 133 dB
- Phantom power requirement: 5 V
- Microphone input: Mini-XLR (3 pins, female)
- Cable length: 1.5 m

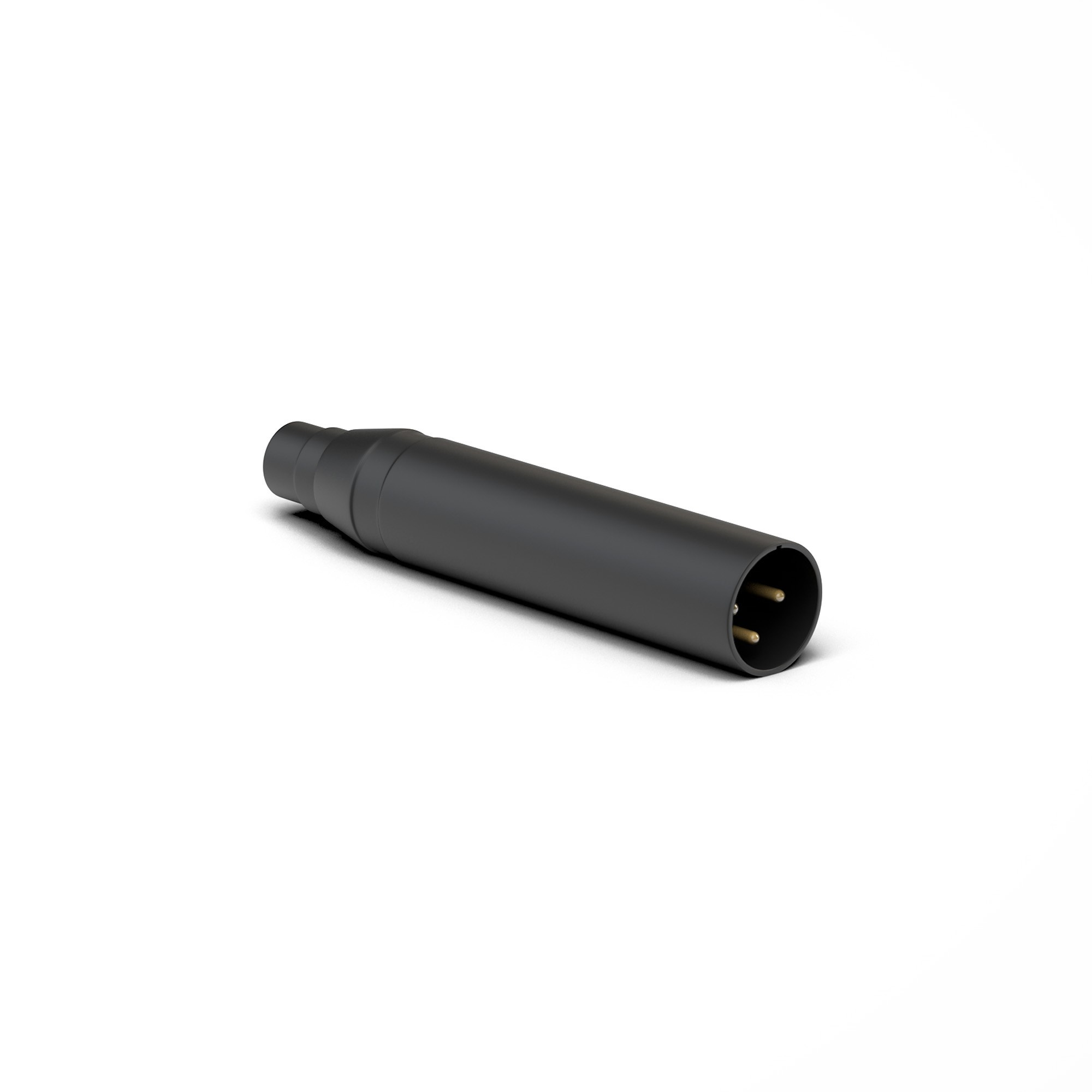

- Accessories (included): Foam windshield, Phantom power adapter LDPHA
- Weight: 0.05 kg

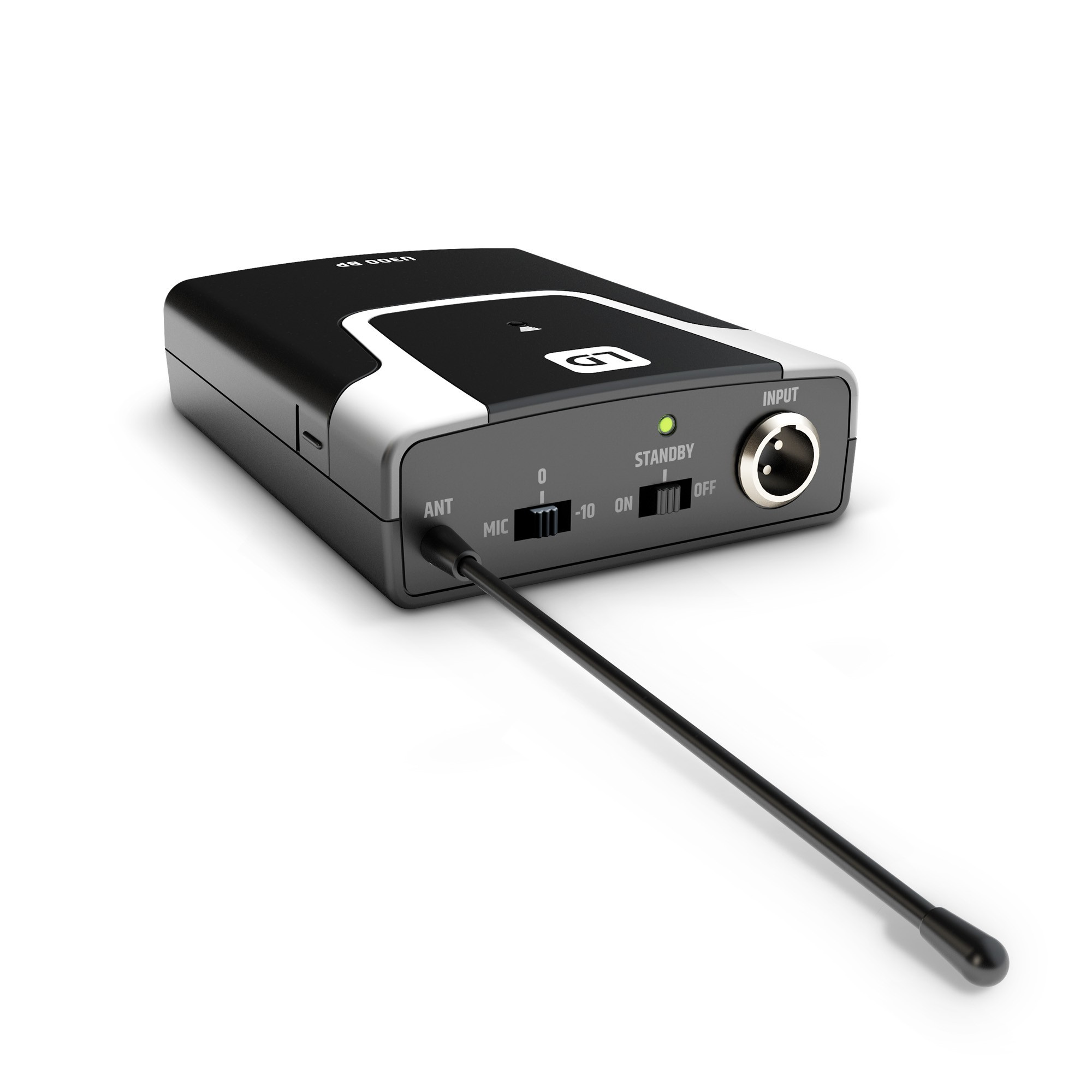

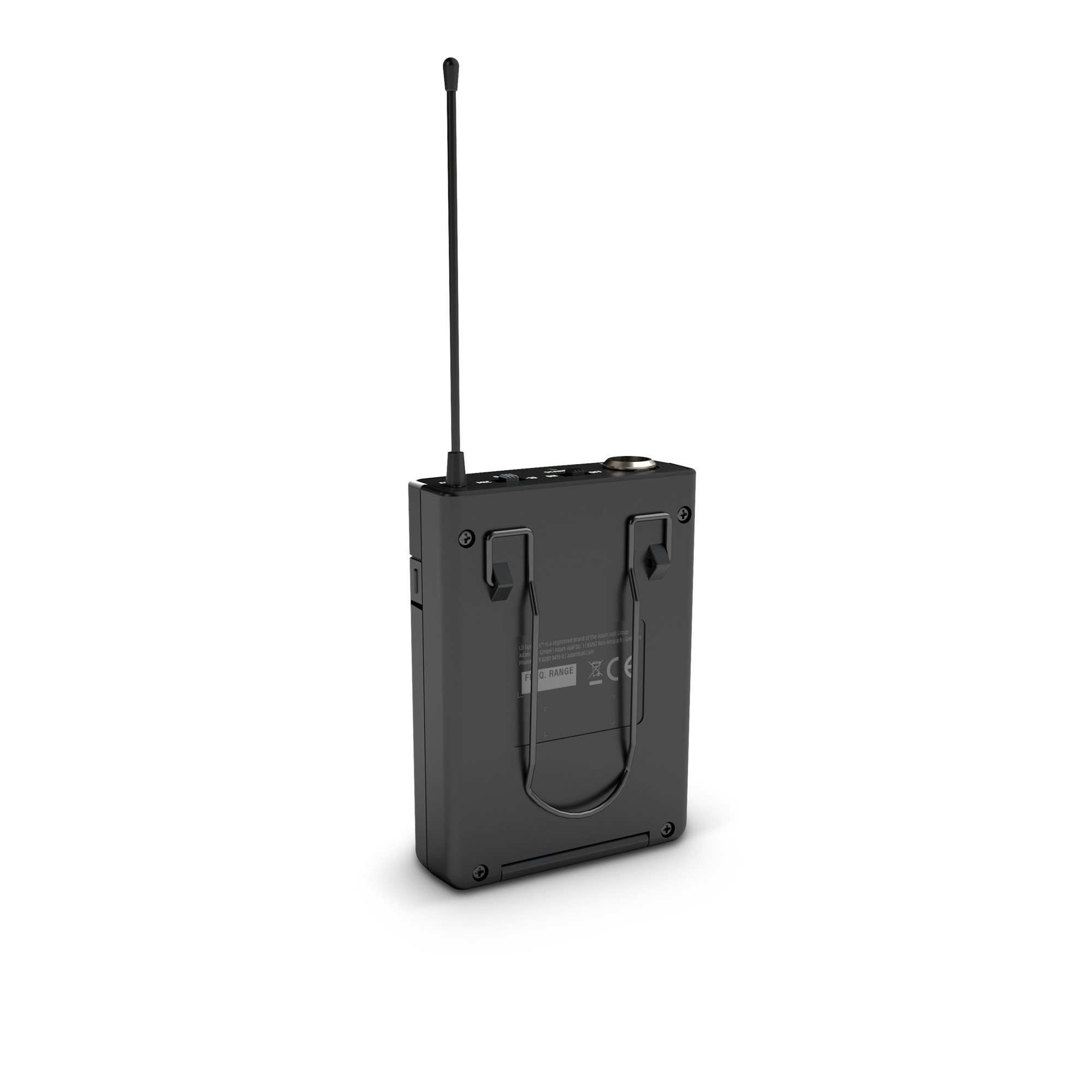

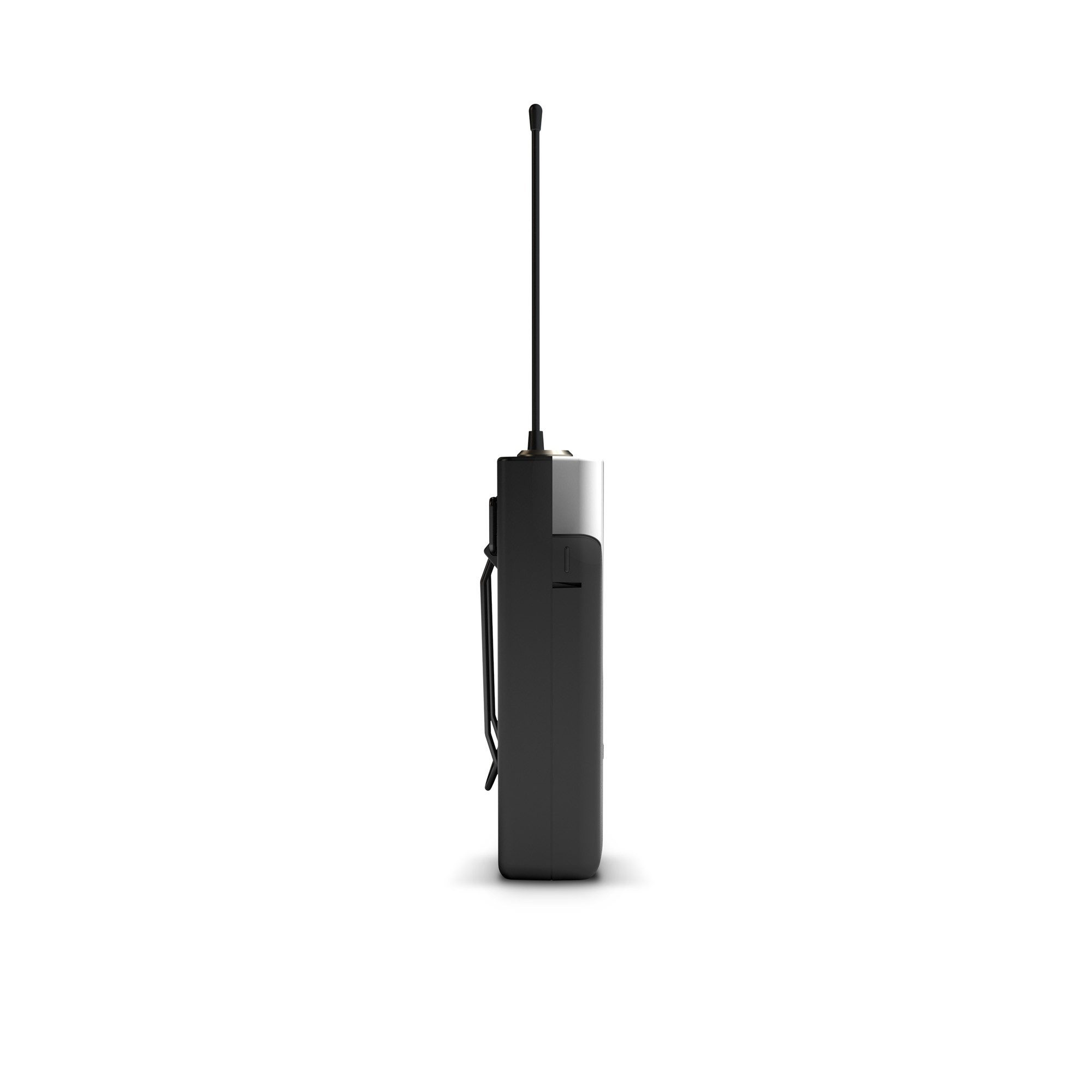

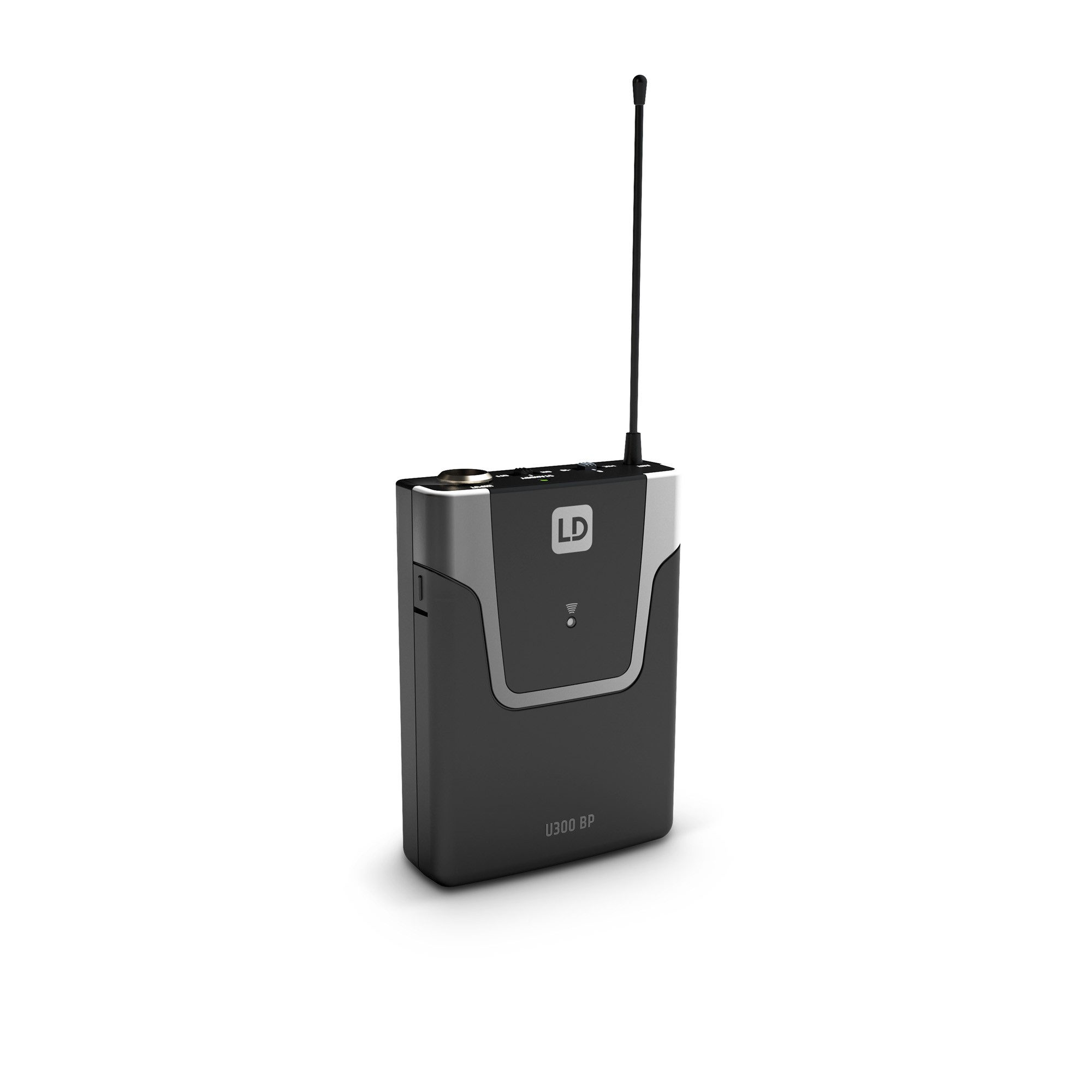

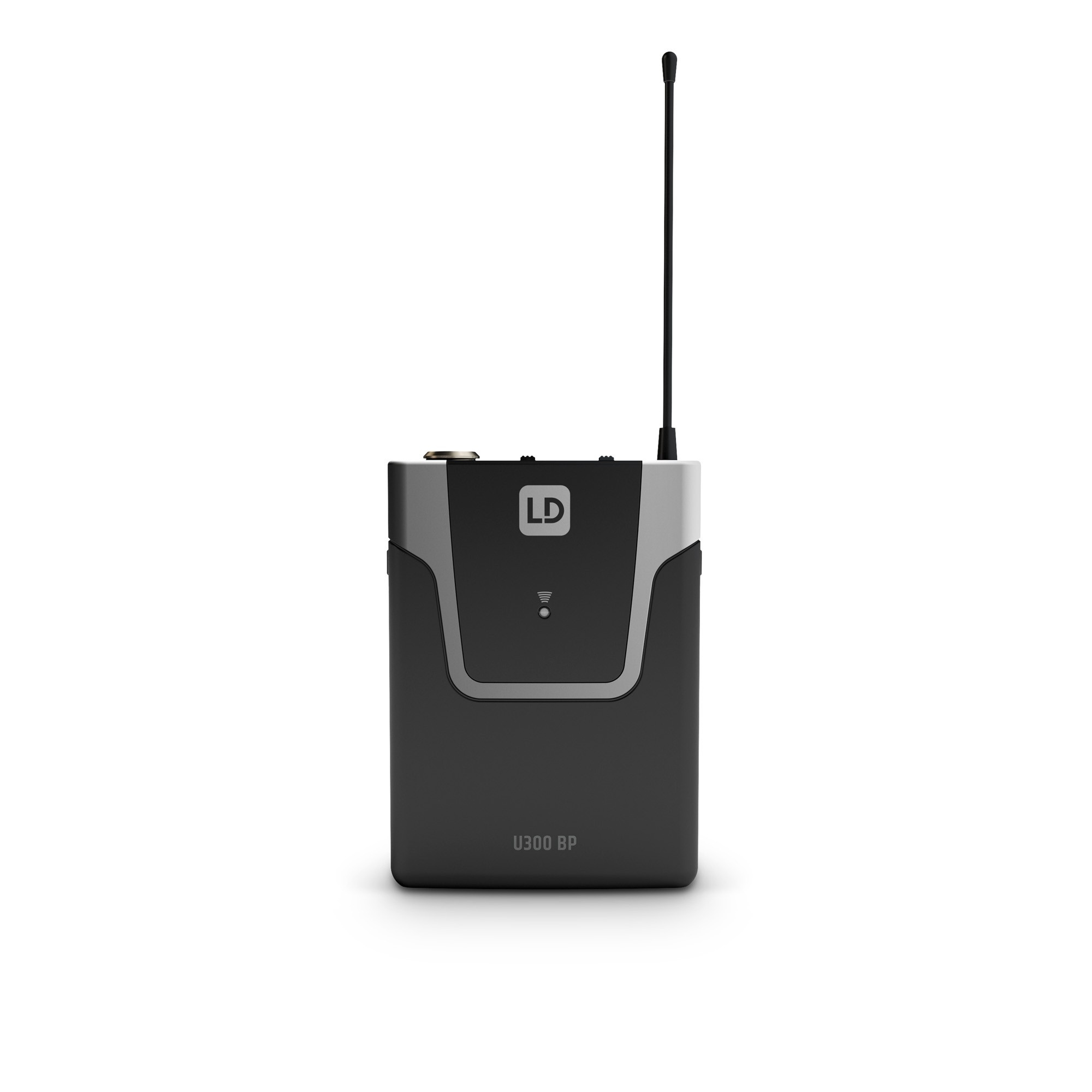

LD Systems U306 BP Bodypack Transmitter:
- Type: Bodypack
- Transmission frequency range: 655 - 679 MHz
- Channels: 12
- Groups: 1
- Weight: 0.085 kg
- Inputs: Mini-XLR (3 pins)
- Frequency response: 25 - 16,000 Hz
- Signal-to-noise ratio: >104 dB
- Nominal HF output power: 10mW
- Controls: Gain, On/Off
- Indicators: IR sync ASC (flashing green/amber LED), battery (low battery: red), Power LED (On: green)

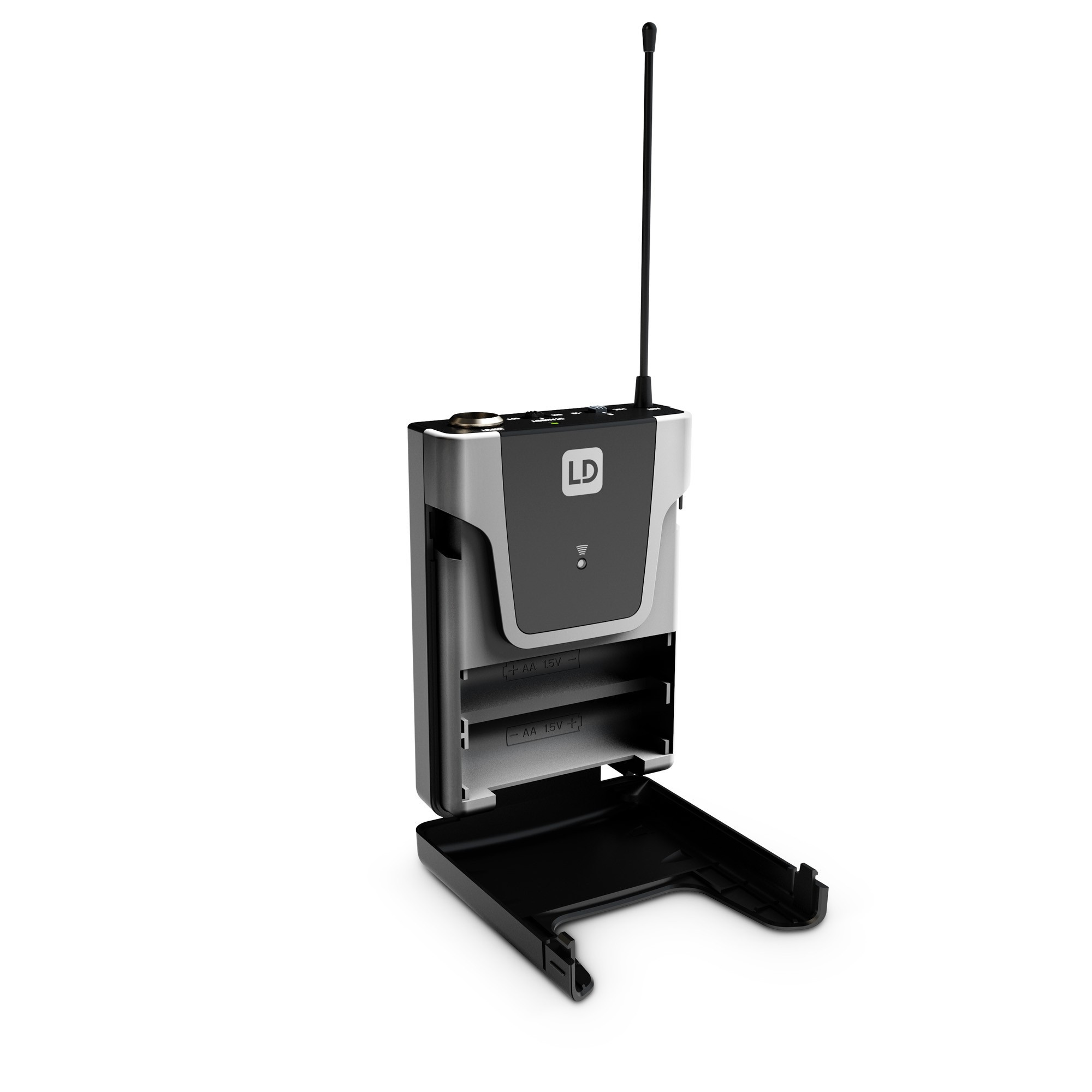

- Operating voltage: 2 x AA battery
- Operating time: >10 h (with alkaline batteries)
- Dimensions: 65 x 91 x 25 mm

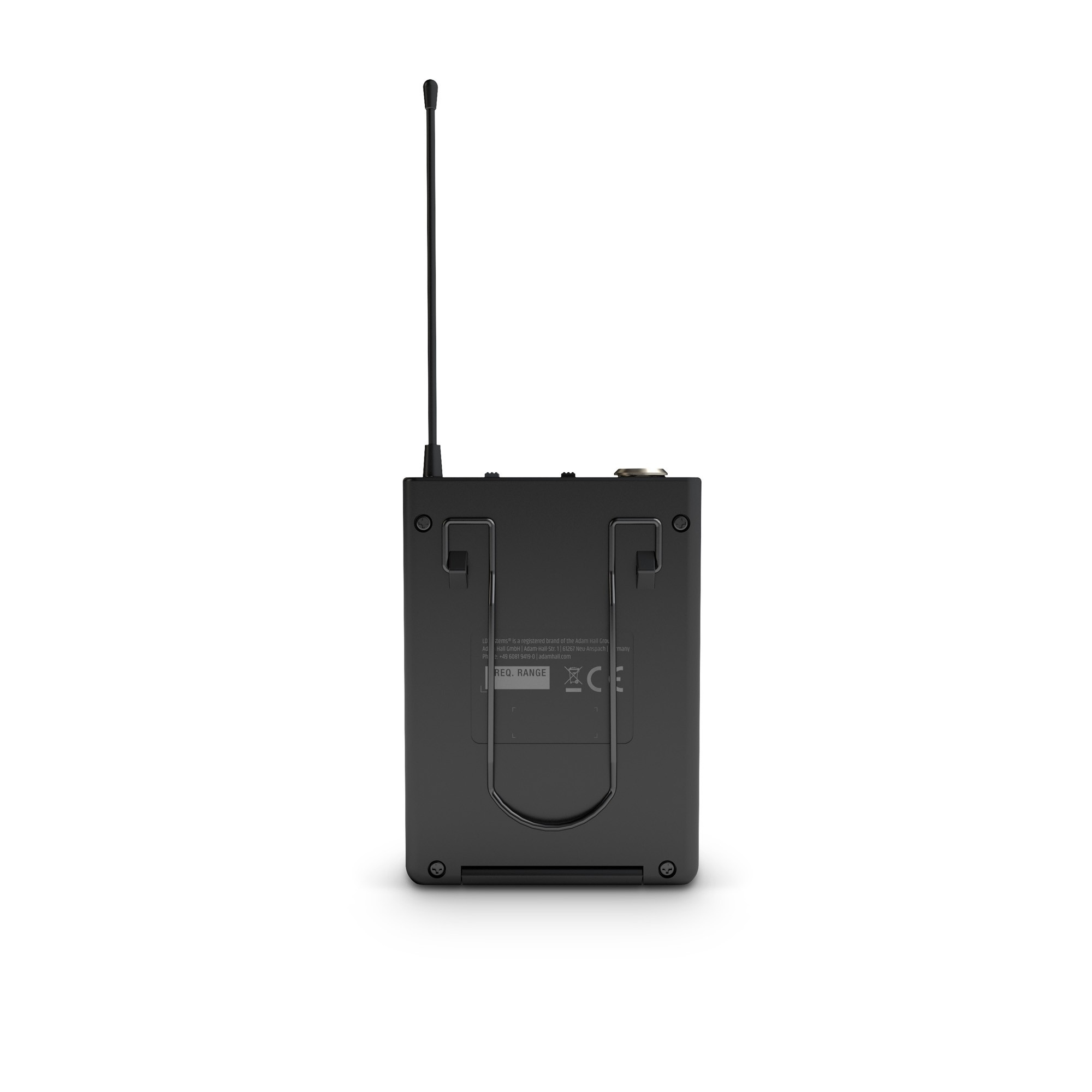

- Other features: Belt clip, IR frequency sync, Pilot tone

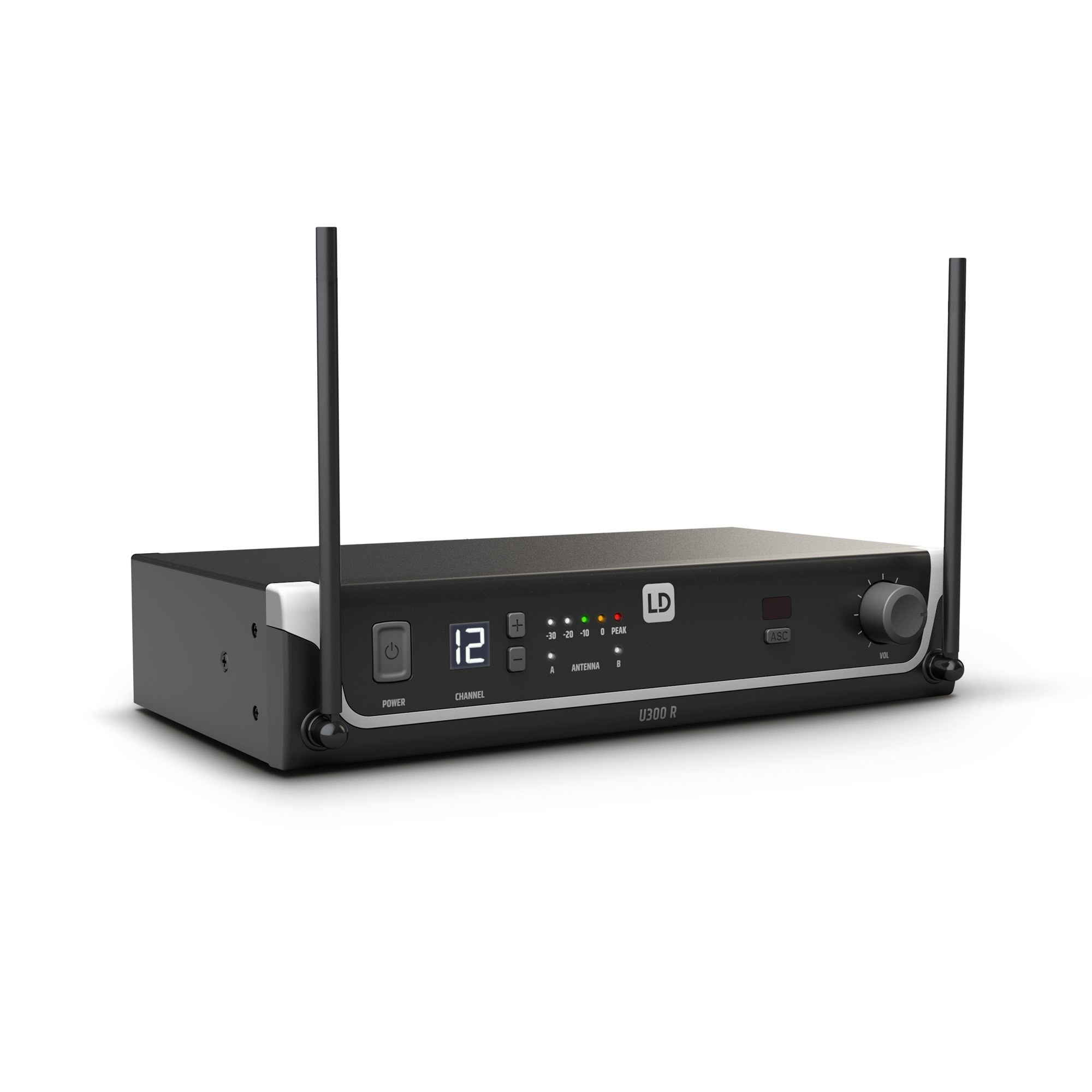

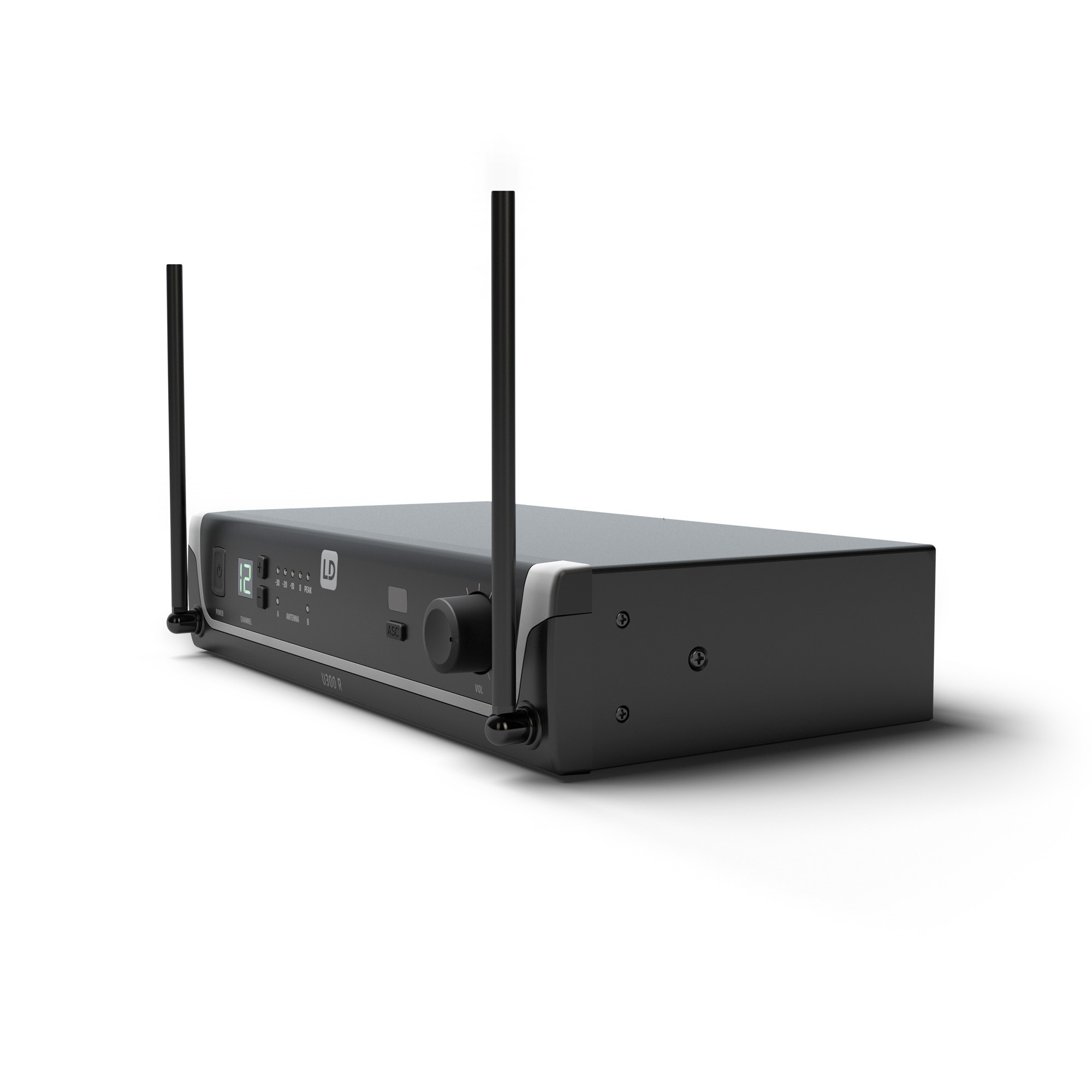

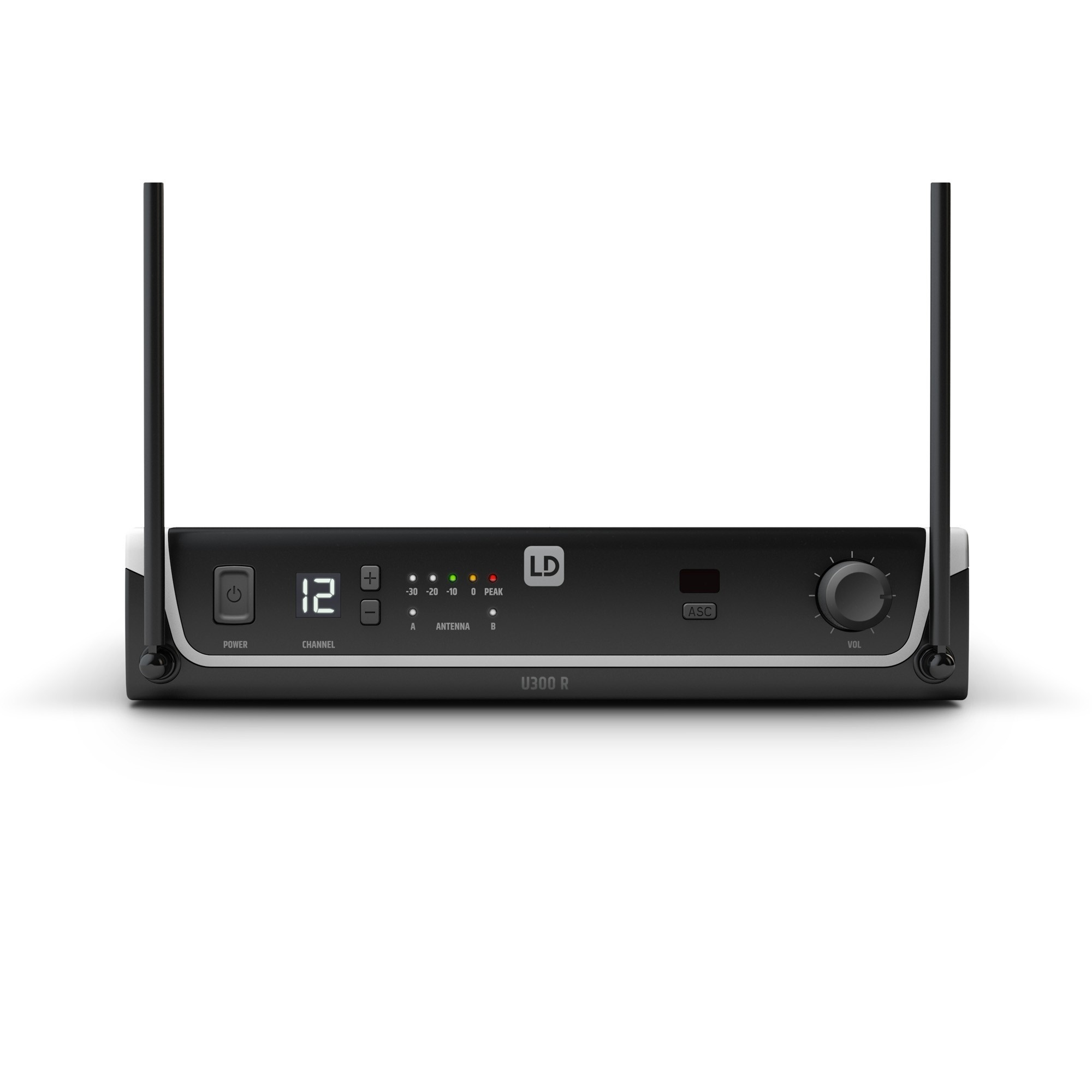

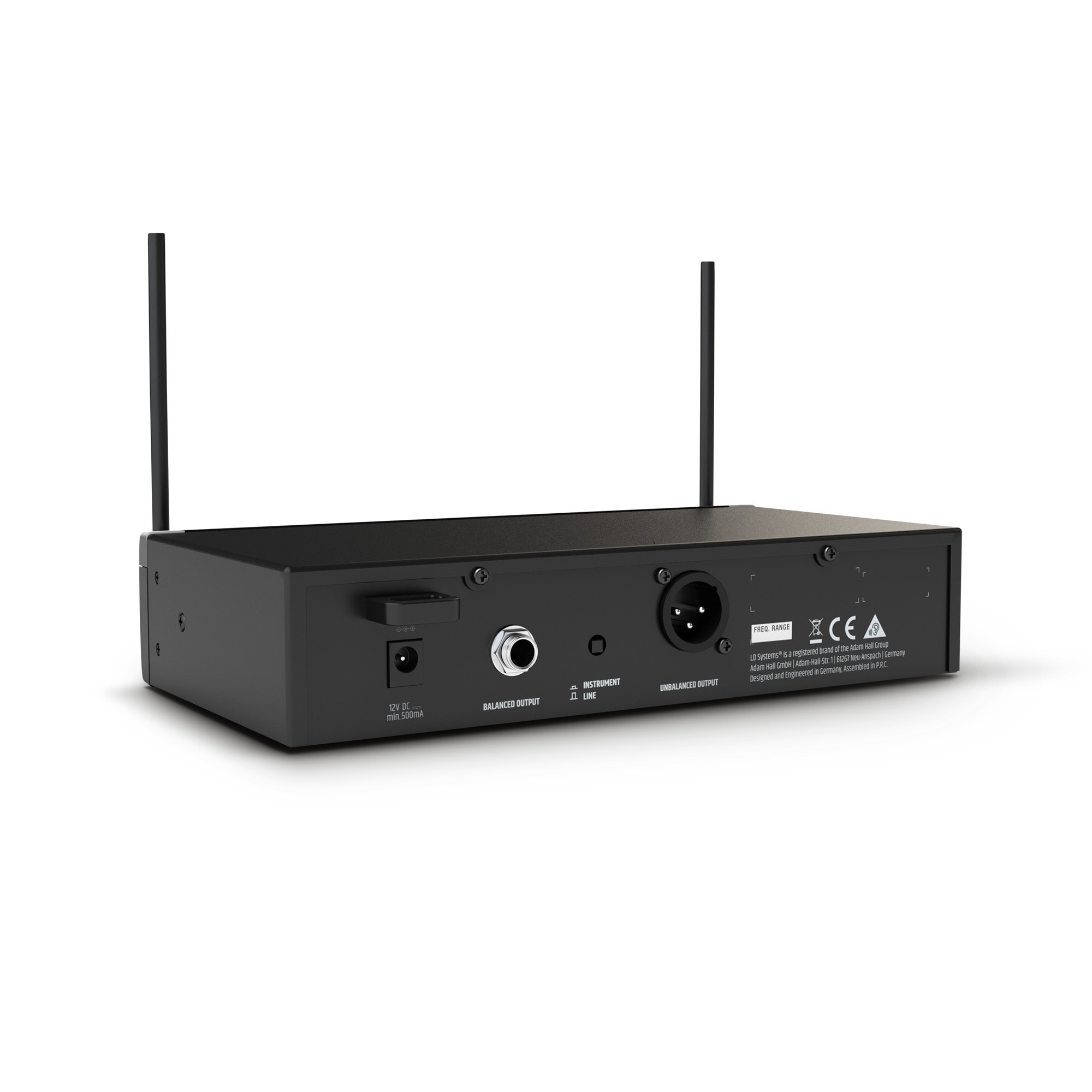

LD Systems U306 R Receiver:
- Type: Receiver
- Transmission frequency range: 655 - 679 MHz
- Modulation type: FM
- Channels: 12
- Groups: 1
- Weight: 0.7 kg
- Antenna inputs: 2
- Frequency response: 25 - 16,000 Hz
- Signal-to-noise ratio: > 104 dB
- Noise reduction: Squelch
- Total harmonic distortion (THD): < 0.3 %
- Controls: ASC sync, Channel down, Channel up, Line/instrument level, Power, volume
- Indicators: 5 LED VU-meters, antenna A/B, LC display

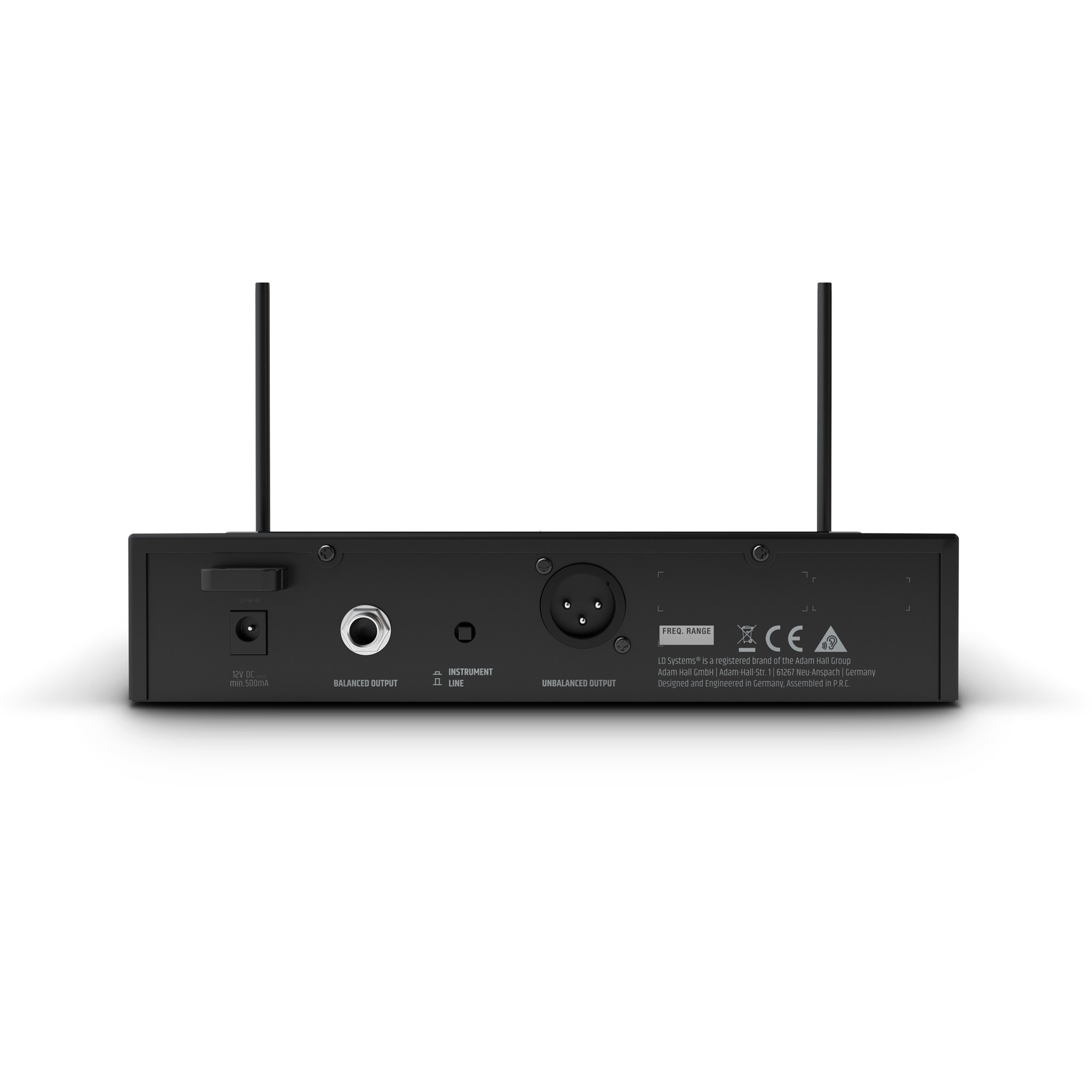

- Audio output, balanced: XLR
- Operating voltage: 12 - 18 V DC
- Audio output, unbalanced: 6.3 mm jack
- Dimensions: 211 x 43 x 120 mm
- Max. output level: +10 dBu (Bal), +7 dBV (Unbal, Line), +2.5 dBV (Unbal, Instr) dBu
- Other features: IR frequency sync
- Accessories (included): 2 x batteries, audio cable, power adapter
