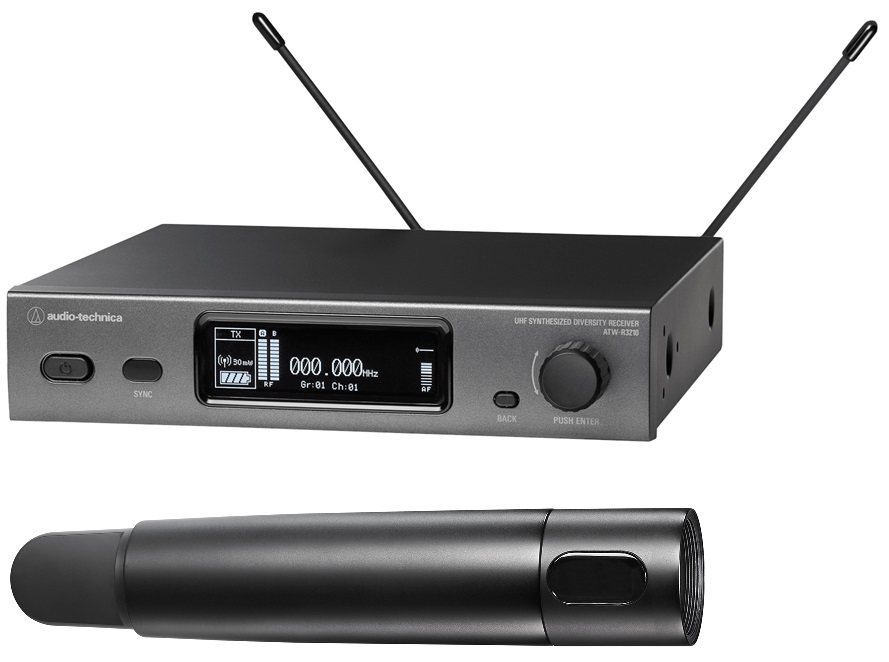

Audio-Technica ATW-3212 Wireless System

Audio-Technica ATW-3212 Wireless System, a wireless set consisting of a receiver și handheld transmitter, without capsule, series 3000 generation 4, True Diversity system with Auto Squelch and a bandwidth of 60 MHz.

ATW-R3210

• automatic frequency scanning
• IR synchronization with transmitters
• backup frequency functionality: in case of interference, by pressing the Func button on the transmitter, both the receiver and the transmitter will switch to this backup frequency
• 60 MHz bandwidth in 25 kHz steps, up to 2400 frequencies per band
• depending on location, up to 40 parallel systems can operate simultaneously
• outputs: balanced XLR, unbalanced 1/4” jack
• antenna power: 12 V DC, 160 mA (combined)
• RF sensitivity: 20 dBuV at 60 dBA S/N ratio
• antenna outputs: BNC 50 Ohm
• available on the following UHF frequencies:
  • DE2: 470.125 - 529.975 MHz (2395 frequencies)
  • EE1: 530.000 - 589.975 MHz (2400 frequencies)
  • EF1: 590.000 - 649.975 MHz (2400 frequencies)
  • FG1: 650.000 - 699.875 MHz (1996 frequencies)
• the package includes:
  • the receiver
  • 2 x flexible antennas
  • power supply
  • rackmount adapters

ATW-T3202, wireless transmitter for the 3000 series, generation 4 from Audio-Technica:

• without microphone capsule - microphone capsules are interchangeable - the thread is standard and allows the use of the transmitter with capsules from other manufacturers such as Shure Beta 58, Beta 87
• IR synchronizable with the receiver
• dedicated button for preset functions (e.g. backup frequency)
• switchable RF power 30/10mW (Hi/Low)
• operating range: 100 in open field
• audio frequency range: 31 Hz - 15.5 kHz
• dynamic range: 115 dB (A-weighted)
• external contacts for ATW-CHG3 and ATW-CHG3N chargers
• powered by 2 x AA batteries (not included)
• operating time:
  • alkaline batteries: 8 hours Hi - 9 hours Low
  • Ni-MH 1900mAh batteries: 9 hours Hi - 9.5 hours Low
• available on the following UHF frequencies:
  • DE2: 470.125 - 529.975 MHz (2395 frequencies)
  • EE1: 530.000 - 589.975 MHz (2400 frequencies)
  • EF1: 590.000 - 649.975 MHz (2400 frequencies)
  • FG1: 650.000 - 699.875 MHz (1996 frequencies)
• includes AT8456a microphone mount
