LD Systems U508 BPHH Beige

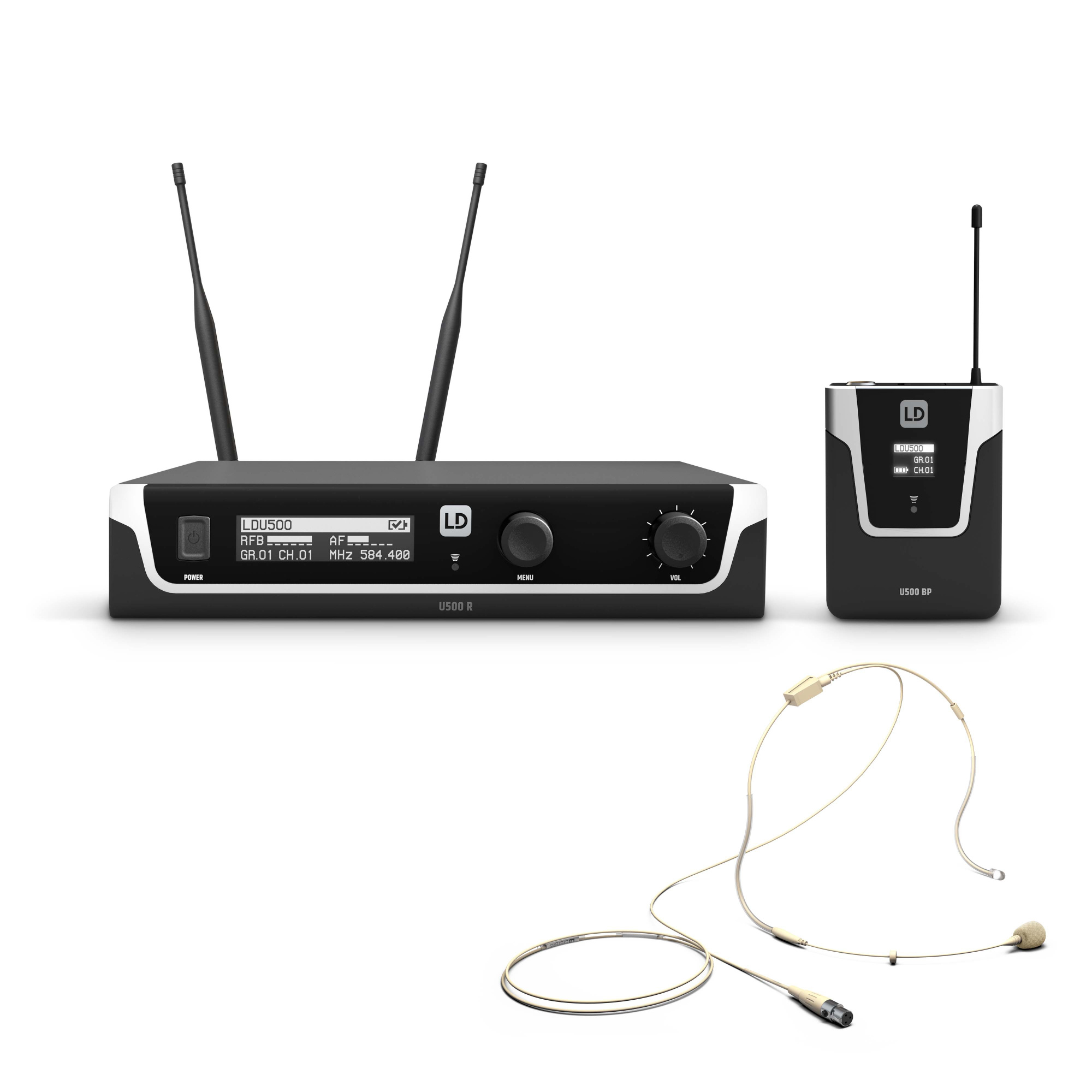

LD Systems U508 BPH - a wireless system composed of a wireless receiver, belt transmitter, and headset microphone. The transmission power is selectable up to 30 mW and allows a transmission distance in free field of over 100 m. The system features automatic scanning to find the best available frequency and convenient infrared synchronization between the receiver and transmitter. The high-contrast OLED display provides an excellent overview of functions, with indicators for group, channel, radio frequency, signal strength, and battery status.

In addition to the squelch function, the silent pilot tone of the transmitter ensures safe operation, while interference protection interrupts the receiver if signals without this tone are present. The efficient U500 technology and high-quality components provide clear transmission, free from distortion and latency. The low power consumption allows the transmitter to operate for up to 10 hours powered by 2 AA batteries.

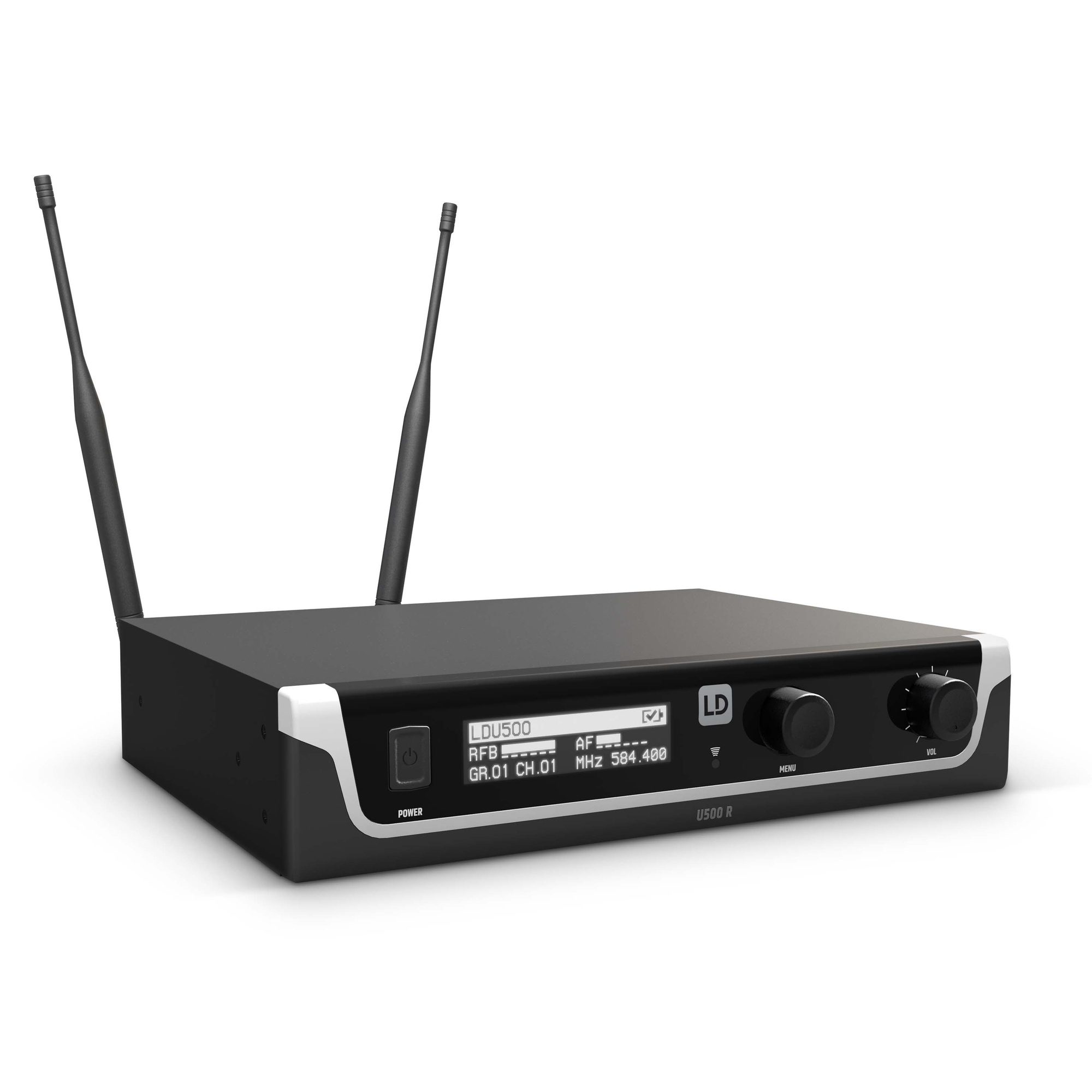

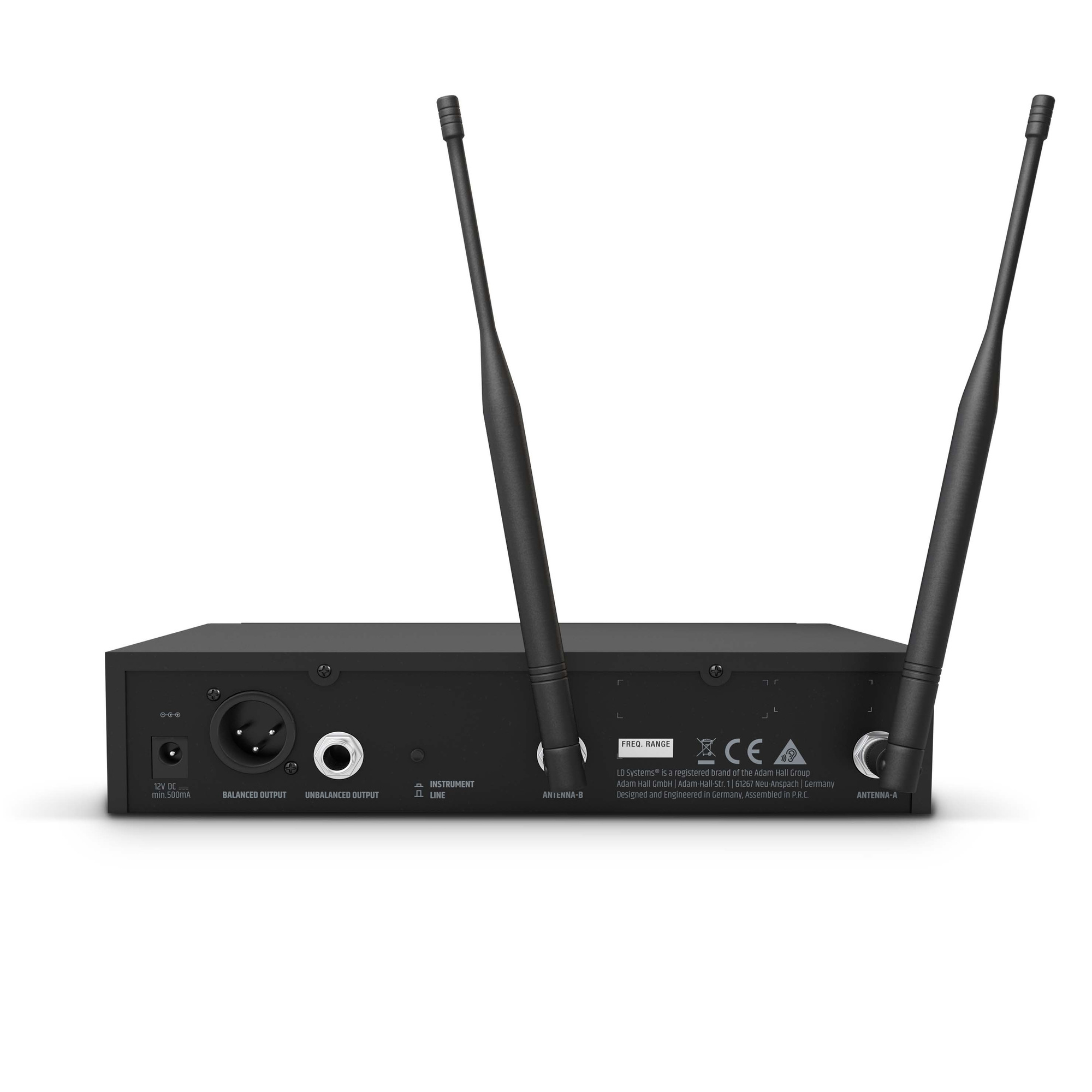

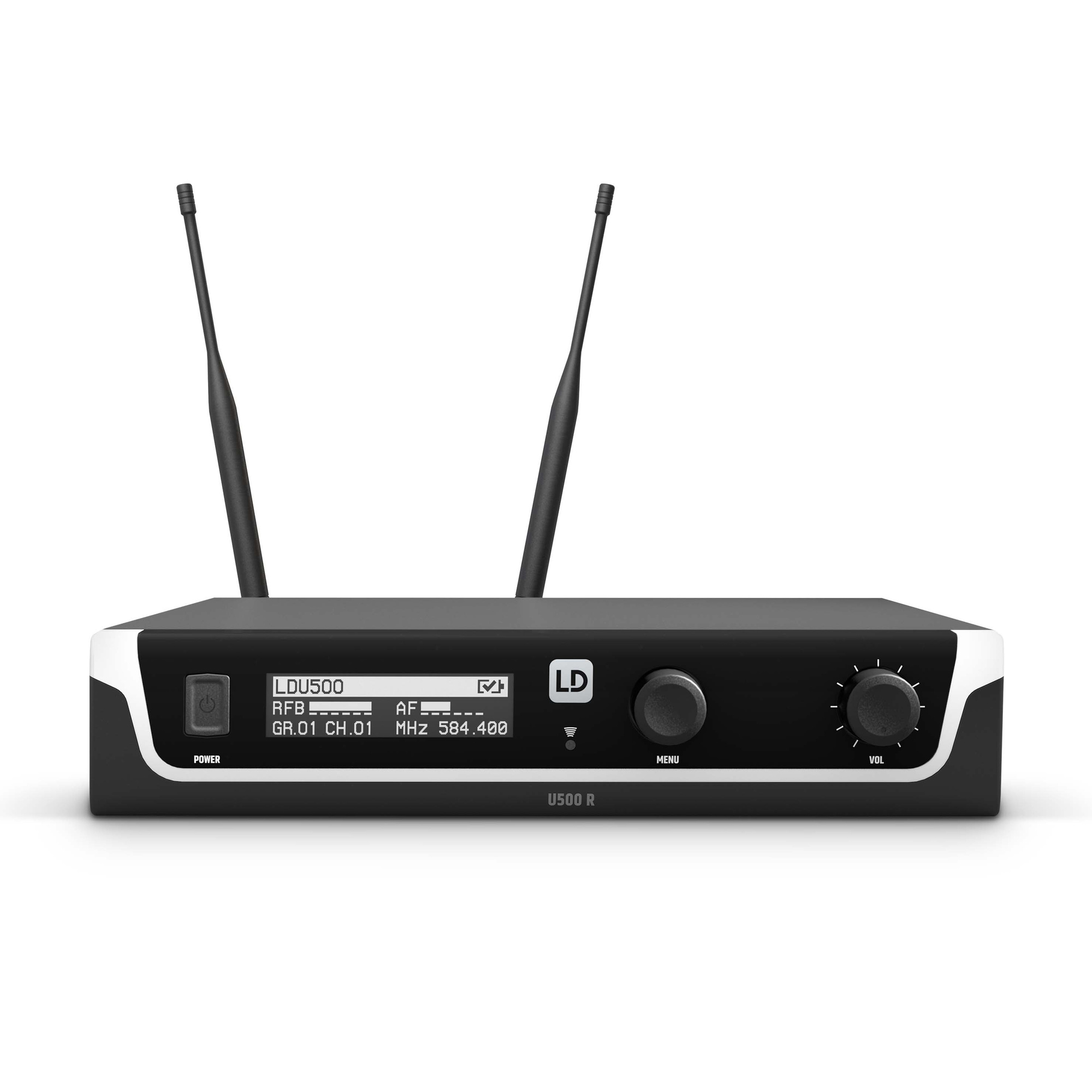

Dual Receiver - LD Systems U508 R

• UHF frequency range: 863 - 865 MHz + 823 - 832 MHz, 6 systems usable in parallel
• Type: true diversity
• Modulation type: FM
• Channels: 96 (8 groups of 12 channels)
• Groups: 2 x 10
• Antenna inputs: 2
• Antenna connector: BNC
• Frequency response: 60 - 16,000 Hz
• Noise reduction: squelch
• Signal-to-noise ratio: > 100 dB
• THD: < 0.3 %
• Controls: volume

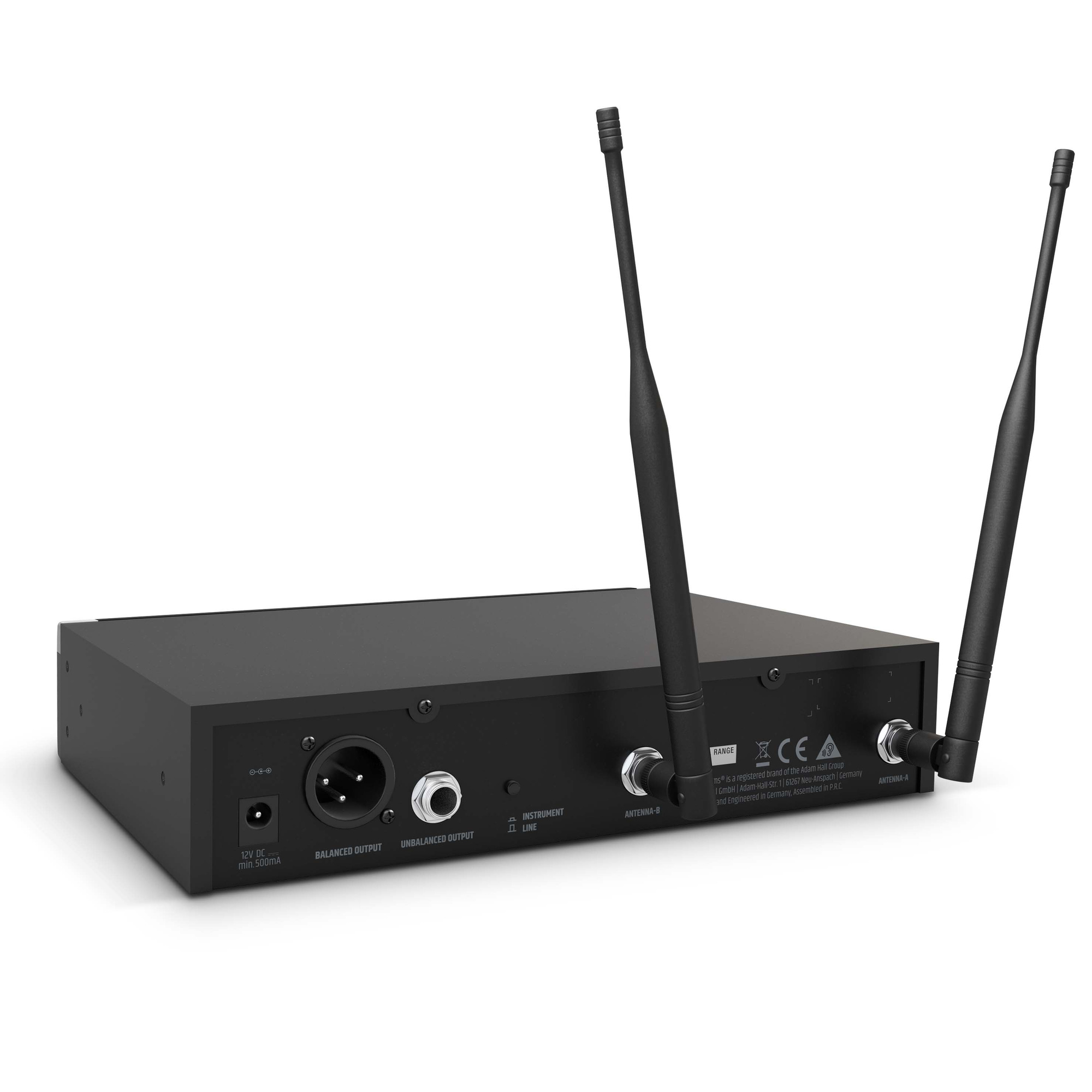

• Audio outputs:
  • 1 x balanced XLR
  • 1 x unbalanced 6.3 mm Jack
• Frequency synchronization via IR
• Dimensions (W x H x D): 212 x 44 x 159 mm
• Weight: 0.85 kg
• Included accessories: power supply

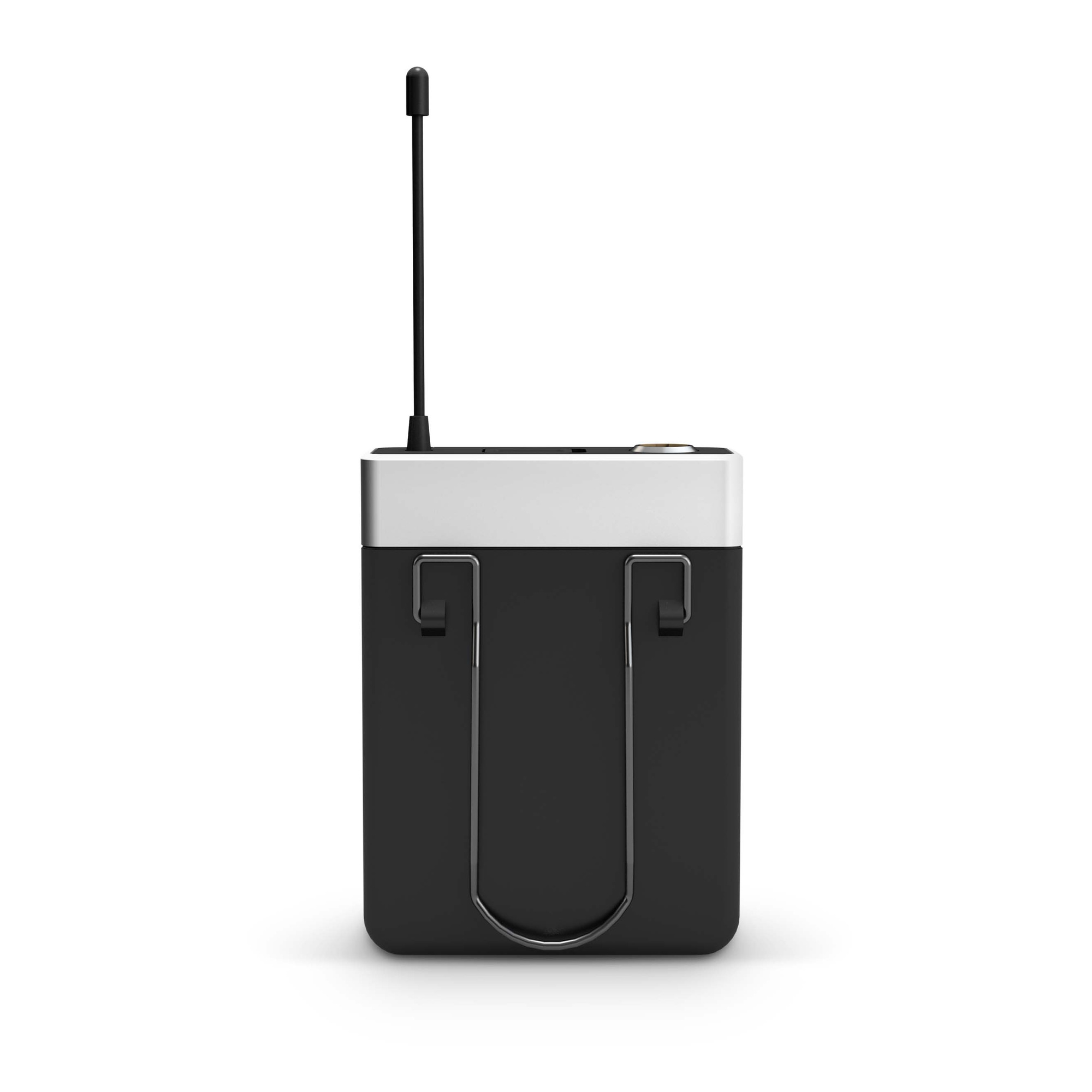

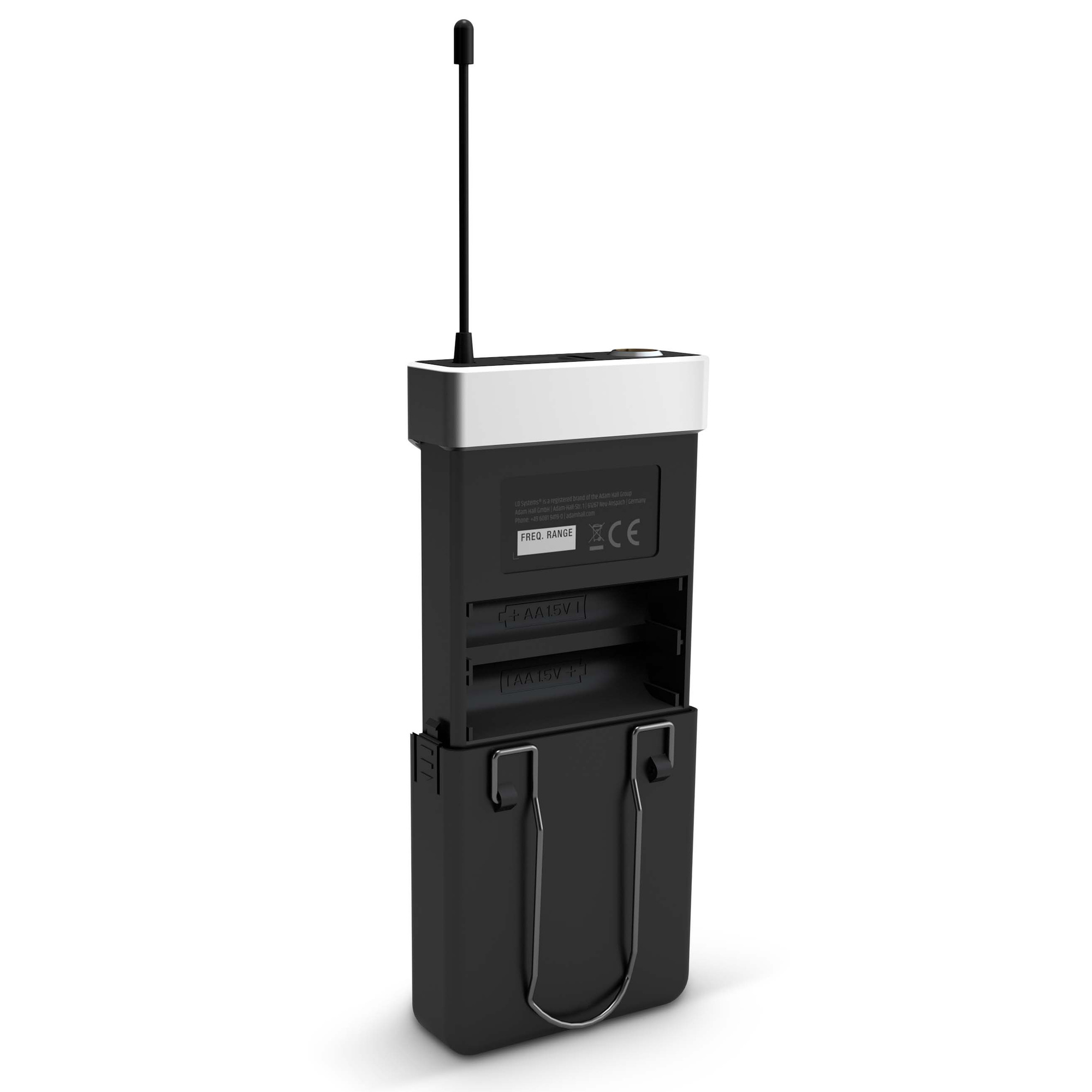

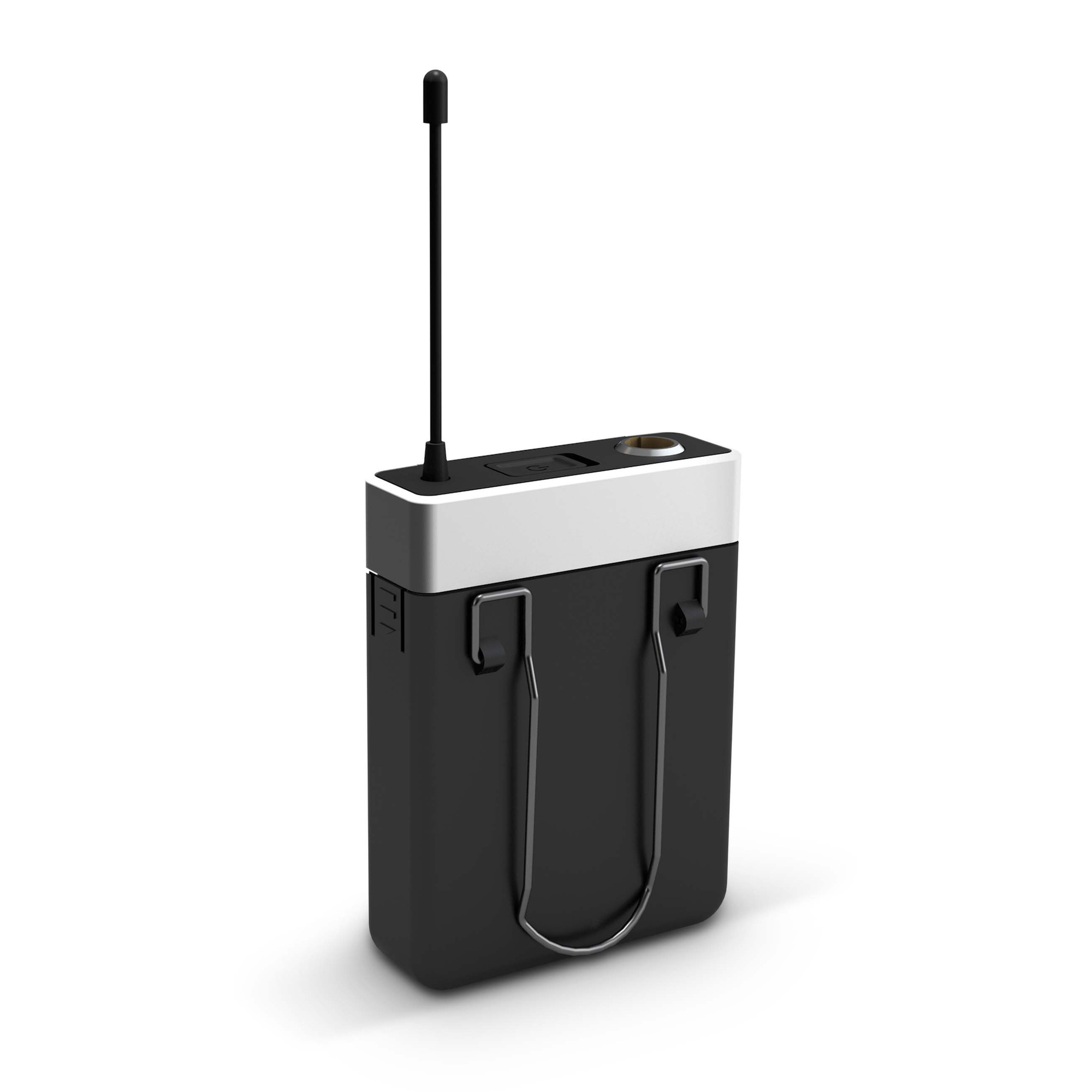

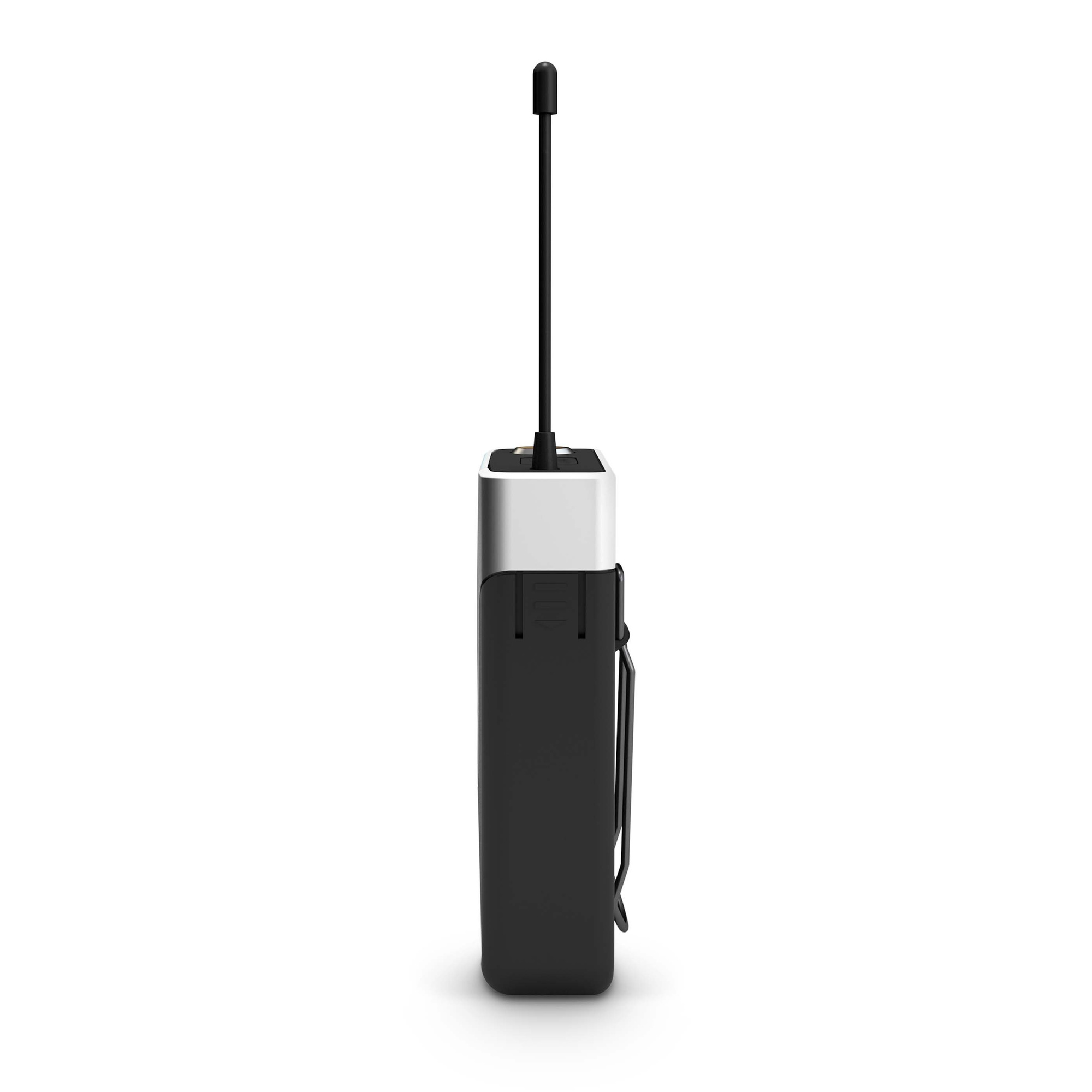

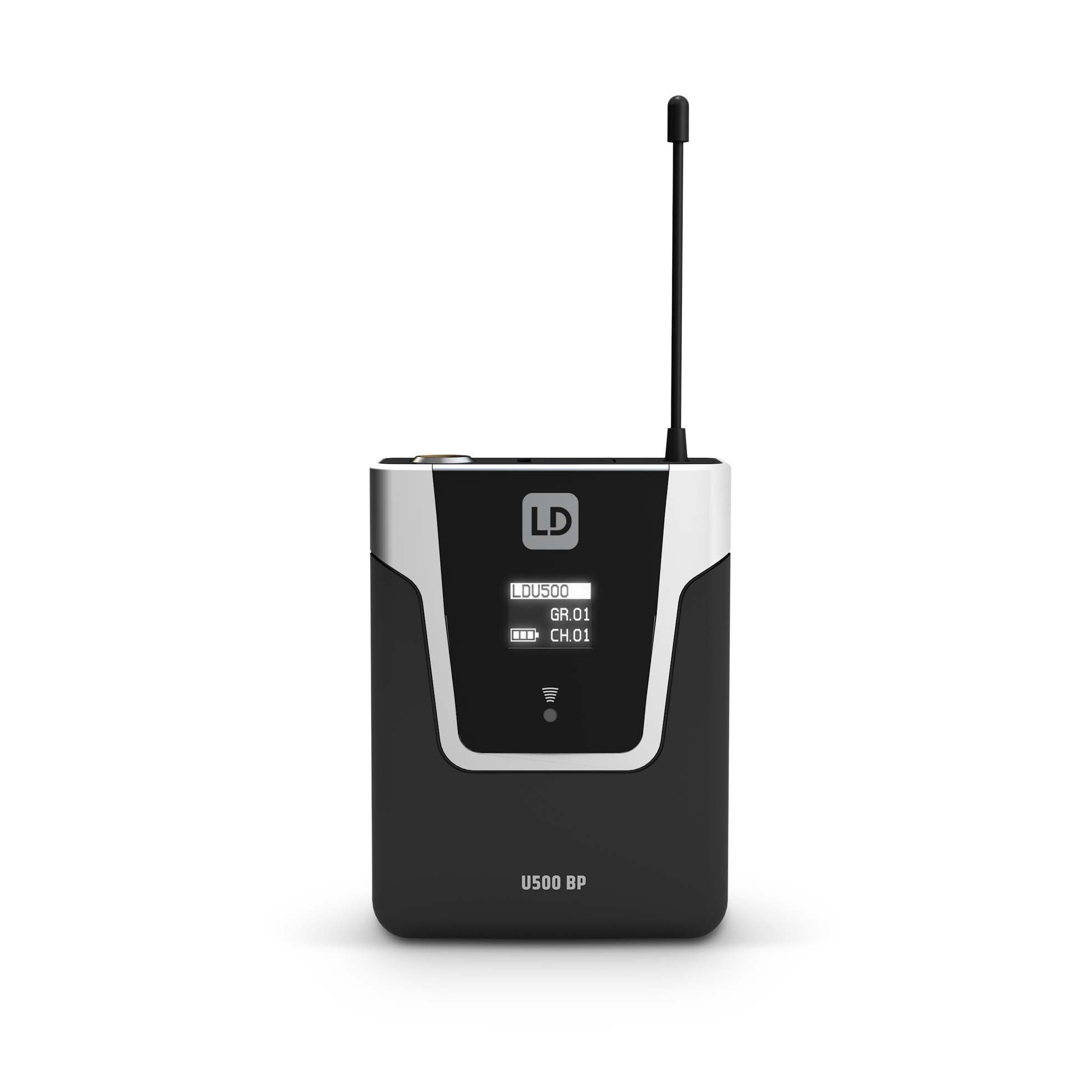

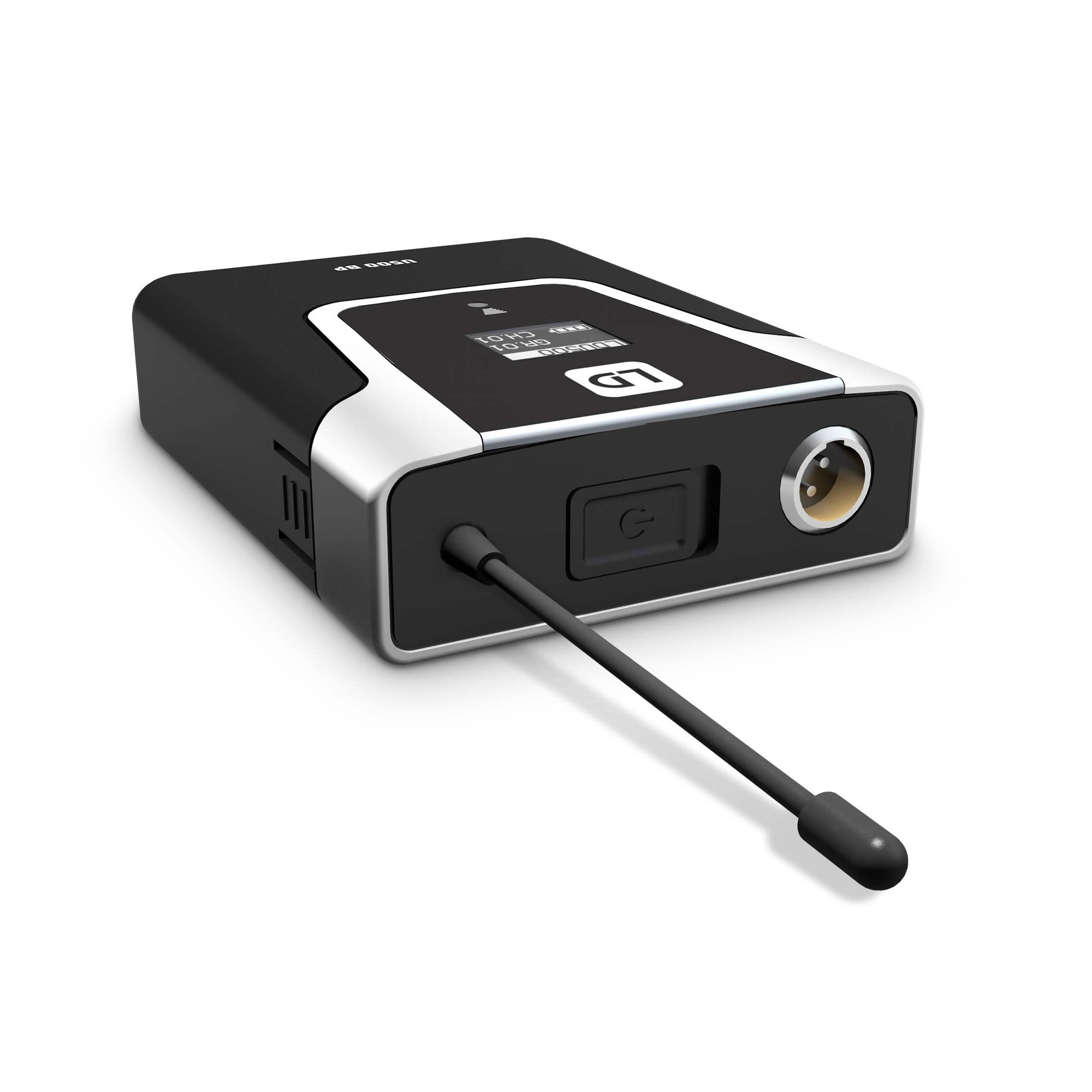

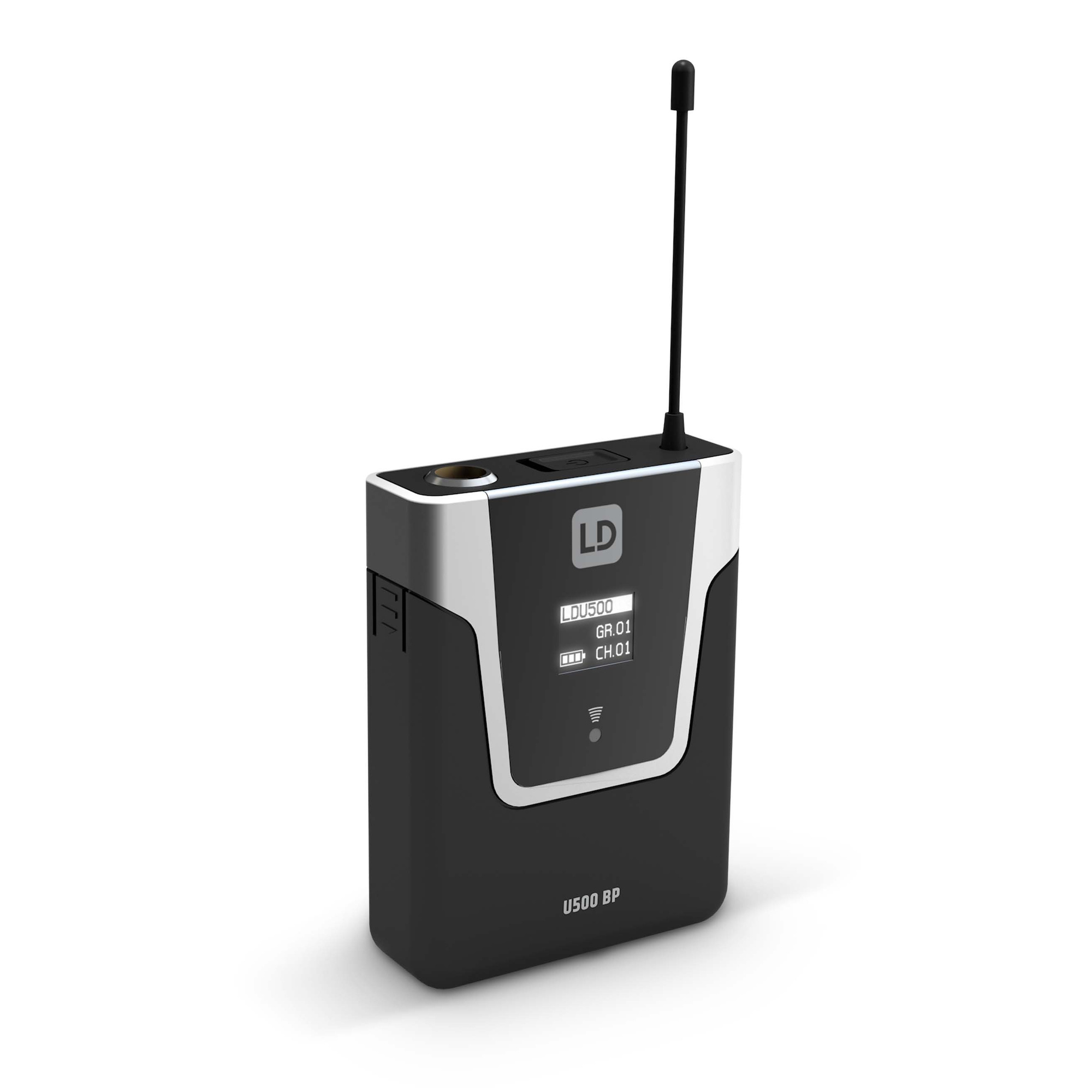

U508 BP Pocket/Belt Transmitter:

• 3-pin mini XLR connection
• Signal-to-noise ratio: over 90 dB
• Variable RF signal power: 2 mW, 10 mW, 30 mW
• Audio frequency range: 30 Hz - 16 kHz
• Power supply: 2 x AA batteries, autonomy of over 10 hours
• Detachable antenna, pilot tone squelch, switchable gain

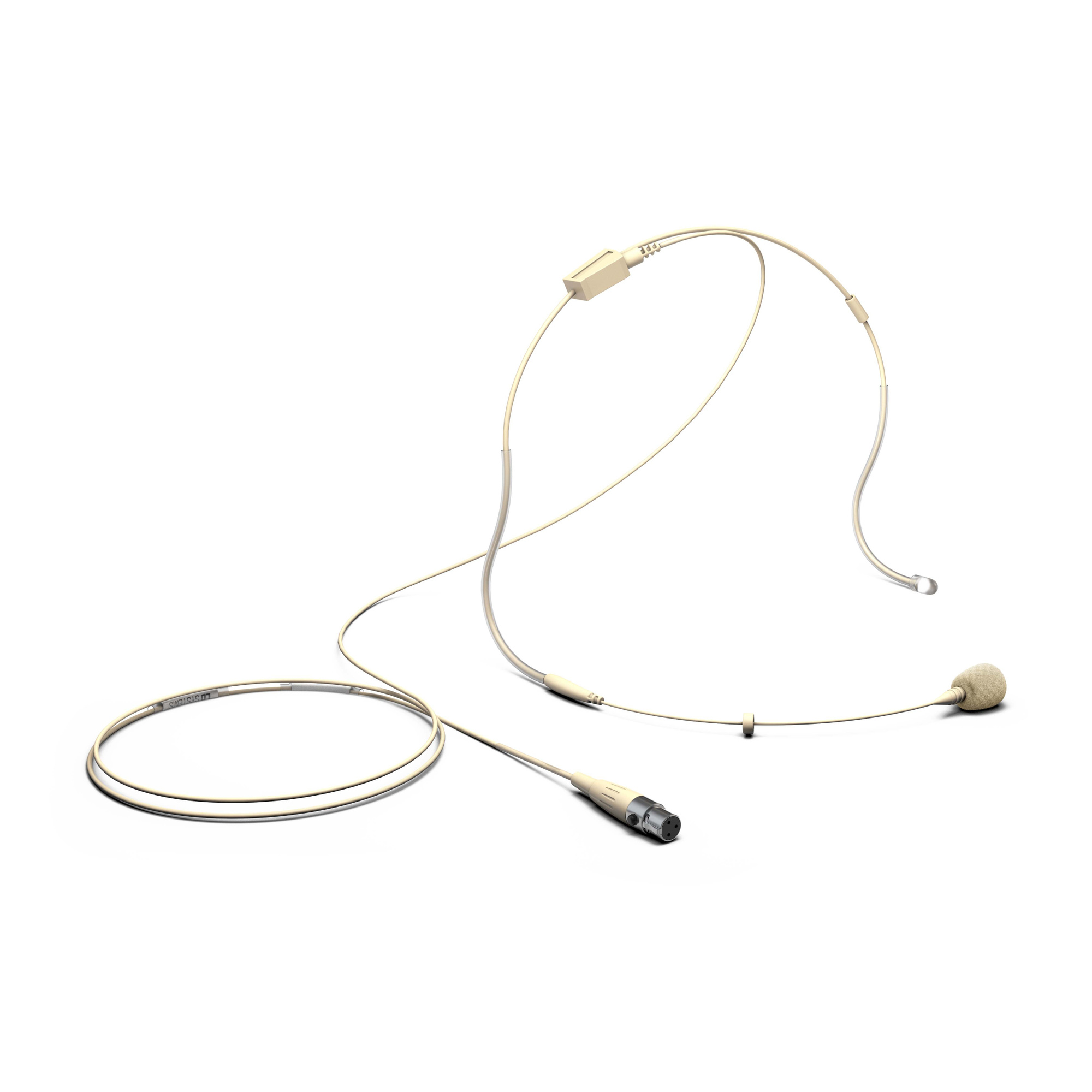

WS 100 Beige Headset Microphone:

• Condenser type
• Cardioid characteristic
• Frequency range: 70 - 16,000 Hz
• Impedance 680 Ohms
• Mini XLR connector compatible with LD Systems transmitters
• Beige colour
