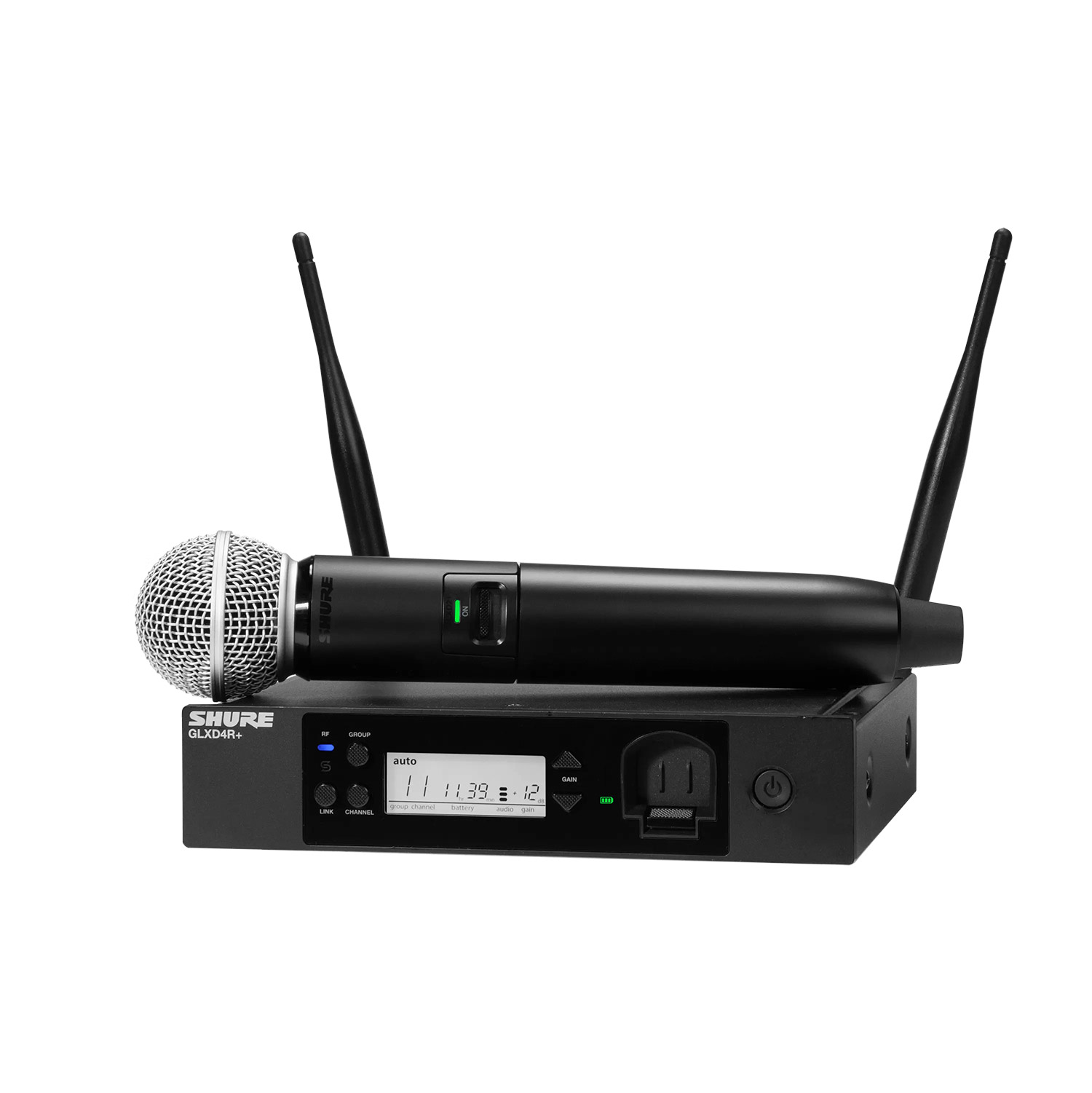

Shure GLXD24R+/SM58, digital wireless set, dual band with rack-mountable receiver and transmitter with SM58 microphone capsule.GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to use wireless systems with confidence and ease. Every aspect of its operation is managed automatically and with total reliability, allowing you to focus on your performance. With the new Dual Band wireless technology, GLX-D+ can operate at both 2.4 and 5.8 GHz, doubling the available bandwidth while intelligently avoiding interference for reliable sound without interruptions.
exceptional audio quality with an automatic wireless interference avoidance system, continuously monitoring the frequency spectrum and seamlessly switching to a clean channel in case of any wireless interference
Dual Band wireless technology offers a reliable and consistent signal by automatically scanning both 2.4 and 5.8 GHz bands and selecting the cleanest channel
easy setup and management, worry-free: transmitters and receivers pair automatically, simplifying configuration
smart recharging: the new SB904 lithium-ion batteries allow up to 12 hours of operation and can be recharged directly from the receiver via the charging port or via USB-C connection on the transmitter, the fast charging function provides 1.5 hours of operation from just a 15-minute charge
system specifications:
frequency range: 2400 - 2483.5 MHz and 5725 - 5875 MHz
audio frequency range: 20 Hz - 20 kHz
dynamic range: 122 dB, A-weighted
RF sensitivity: -88 dBm, typical
transmission range: 30 metres
simultaneous systems usable with the additional GLXD+ Frequency Manager:
11 systems in typical conditions
16 systems in optimal conditions
simultaneous systems usable without GLXD+ Frequency Manager:
4 systems in typical conditions
8 systems in optimal conditions

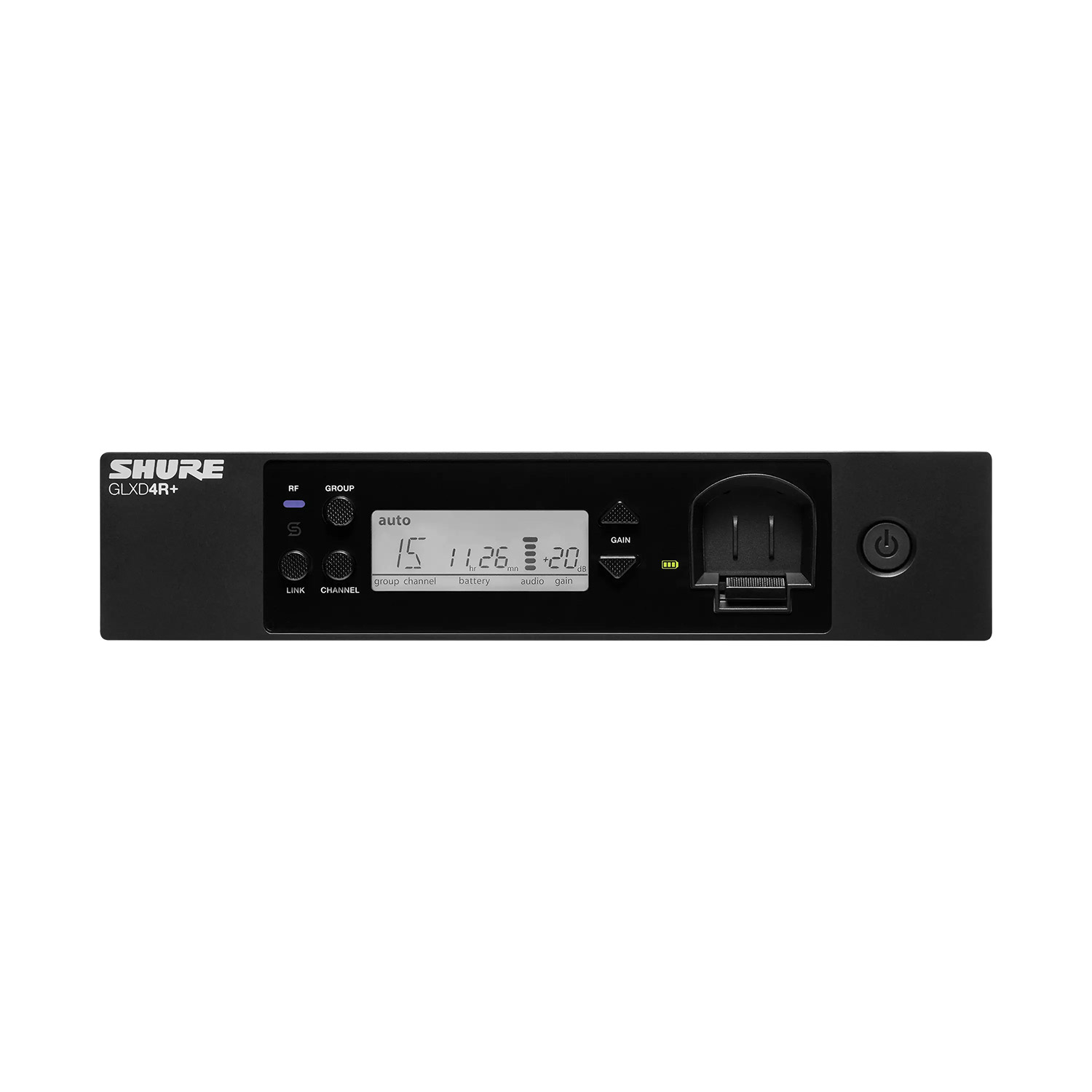

wireless receiver GLXD4R+:
gain adjustment: -20 to 40 dB, steps of 1 dB
antennas: Dual-band ½ Wave Sleeve Dipole, detachable

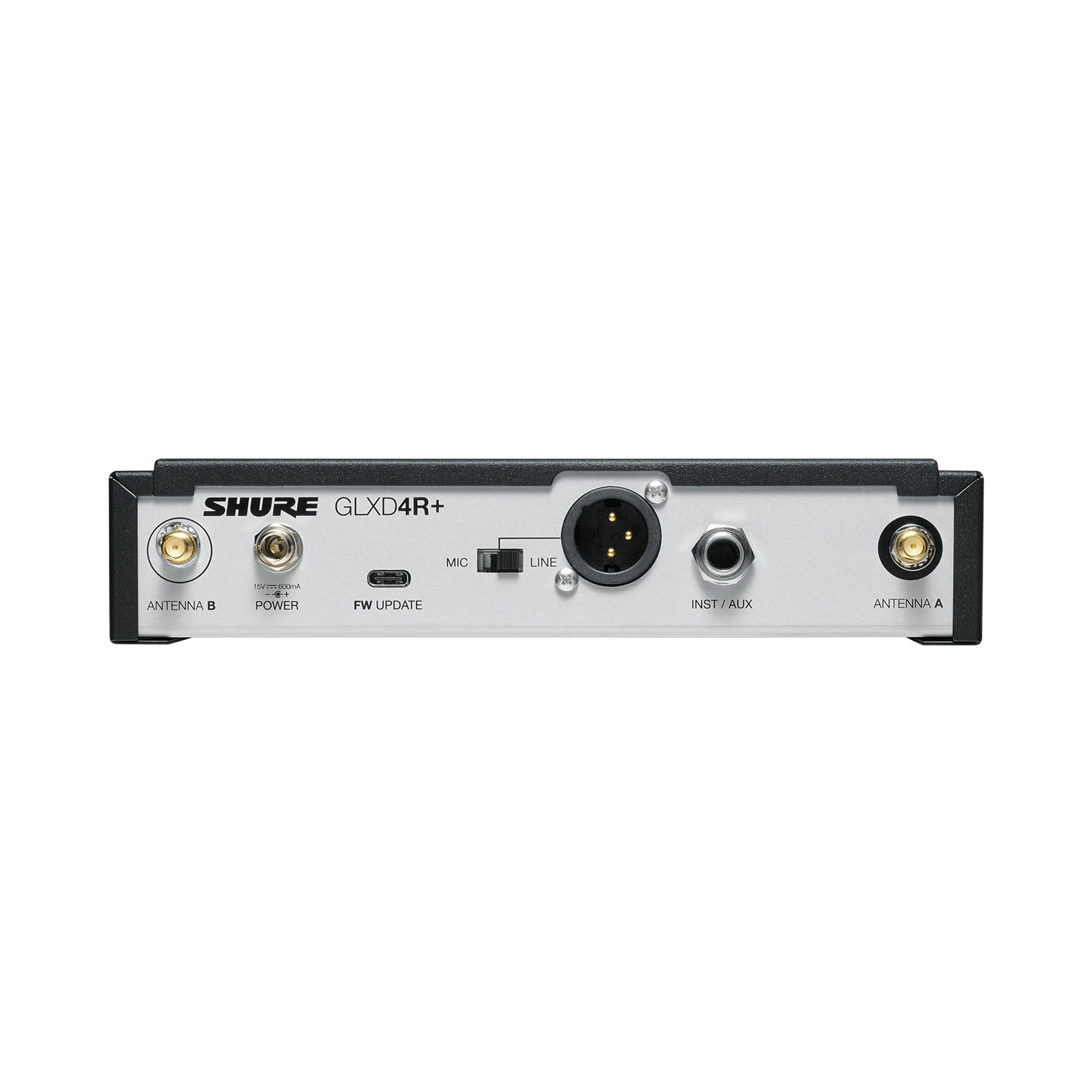

audio outputs: balanced XLR, 6.35 mm (1/4") balanced Jack
can use more RF channels through GLXD+ Frequency Manager than the non-rackable version
