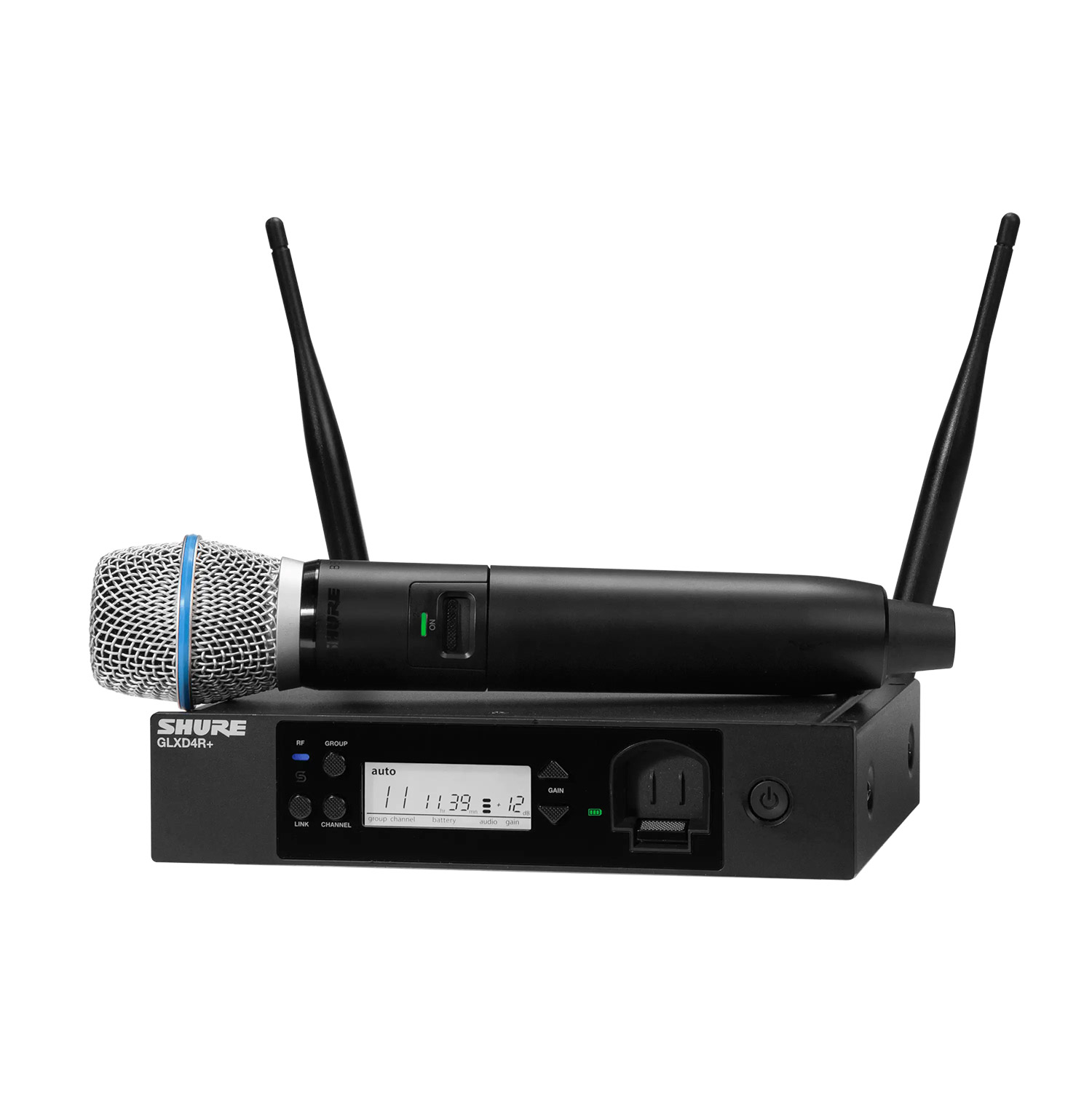

Shure GLXD24R+/B87A, digital wireless set, dual band with rackmount receiver and transmitter with Beta 87A microphone capsule.GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to use wireless systems with confidence and without complexity. Every aspect of its operation is managed automatically and with total reliability, allowing you to focus on your performance. With the new Dual Band wireless technology, GLX-D+ can operate at both 2.4 and 5.8 GHz, doubling the available bandwidth while intelligently avoiding interference for reliable sound without interruptions.
exceptional audio quality with an automatic wireless interference avoidance system, continuously monitoring the frequency spectrum and seamlessly switching to a clean channel in case of any wireless interference
Dual Band wireless technology provides a reliable and consistent signal by automatically scanning both 2.4 and 5.8 GHz bands and selecting the cleanest channel
easy setup and management, worry-free: transmitters and receivers pair automatically, simplifying configuration
smart recharging: the new SB904 lithium-ion batteries allow up to 12 hours of runtime, and can be recharged directly from the receiver via the charging port or through the USB-C connection on the transmitter, the fast charging function provides 1.5 hours of runtime with just a 15-minute charge
system specifications:
frequency range: 2400 - 2483.5 MHz and 5725 - 5875 MHz
audio frequency range: 20 Hz - 20 kHz
dynamic range: 122 dB, A-weighted
RF sensitivity: -88 dBm, typical
transmission range: 30 meters
simultaneous systems usable with the additional GLXD+ Frequency Manager:
11 systems under typical conditions
16 systems under optimal conditions
simultaneous systems usable without GLXD+ Frequency Manager:
4 systems under typical conditions
8 systems under optimal conditions
wireless receiver GLXD4R+:
gain adjustment: -20 to 40 dB, in 1 dB steps
antennas: Dual-band ½ Wave Sleeve Dipole, detachable
audio outputs: balanced XLR, 6.35 mm (1/4") balanced Jack
can use more RF channels through GLXD+ Frequency Manager than the non-rackmount version
