HR-31S is a premium true diversity system in the UHF spectrum, which can fully exploit its strengths, especially in connection with the RWW software. Transmission occurs either in the professional switchable band 731-790 MHz or in the unlicensed range 823-832 MHz. Other features are also convenient: quick setup via infrared and an exceptionally long transmitter life of up to 15 hours with a single set of batteries.

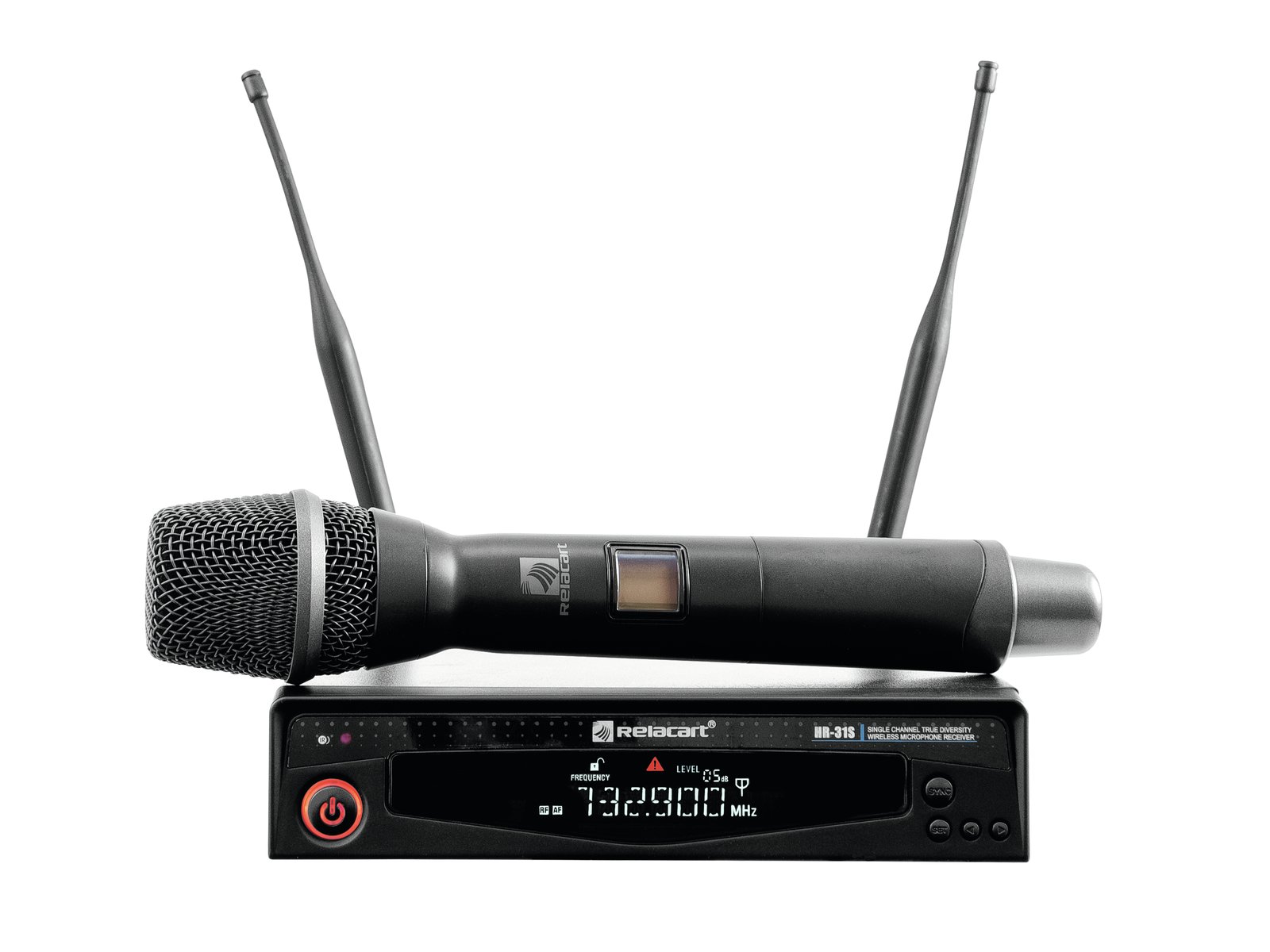

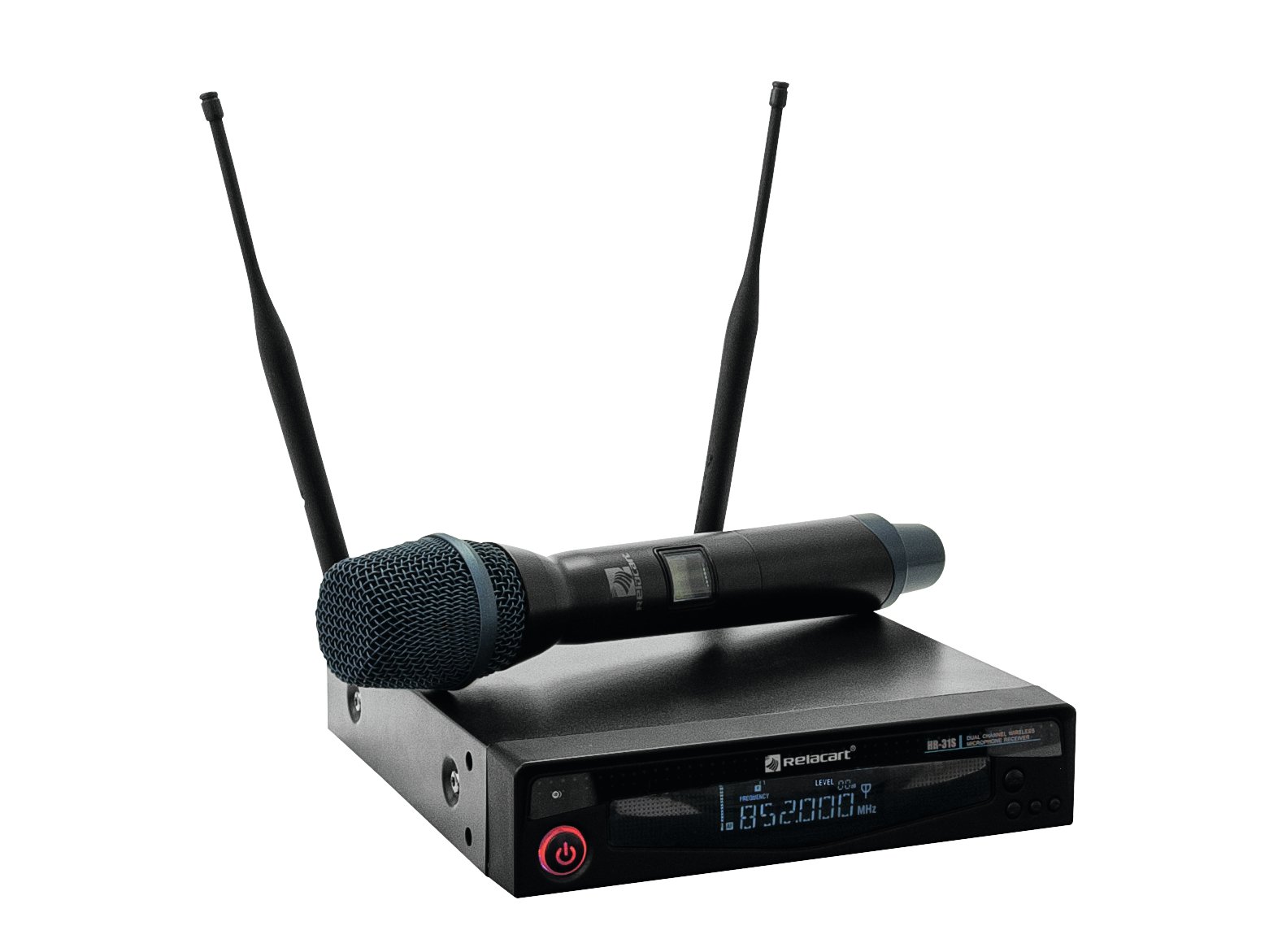

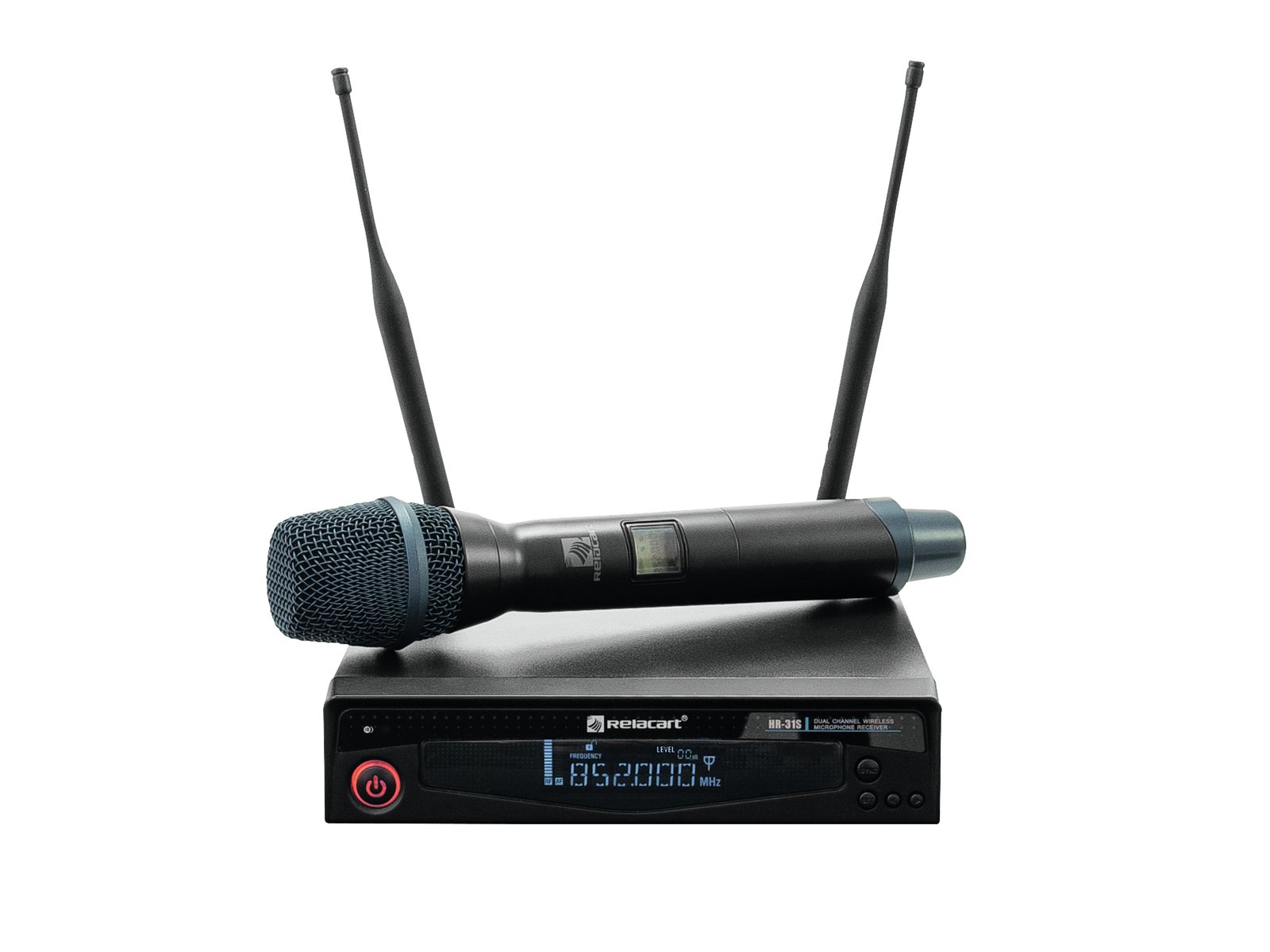

Wireless microphone system with PC control, 731-790 + 823-832 MHz
- The receiver and microphone are also available separately
True Diversity Receiver with 1 channel RELACART HR-31S
Wireless True Diversity Receiver with PC control
- High-quality true diversity reception multi-frequency wireless receiver
- Real-time monitoring and data management using RWW PC software
- 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
- 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
- 292 manually adjustable frequencies in 25 kHz steps within a switching bandwidth of 68 MHz
- Parallel operation of up to 16 systems is possible without interference
- Pilot frequency squelch technology eliminates wireless RF interference
- Automatic frequency scanning (AFS) finds interference-free channels
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- RS-485 serial interface for connecting a computer with the optional USB/RS-485 U485 converter
- Up to 32 units can be connected with network cables
- Lock function to prevent unwanted changes to settings
- 2 detachable BNC antennas allow use with the R-14D antenna splitter
- Monochrome LCD display
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 731 - 790 MHz License-free and approved in large parts of Europe
- Operating range of up to 80 m with line of sight
- The device can be connected via the RJ14 (F) mounting version to a PC in conjunction with RELACART RWW software and Dongle (optional)
- Desktop console housing
- (19") 48.3 cm installation possible 1 U
Package contents

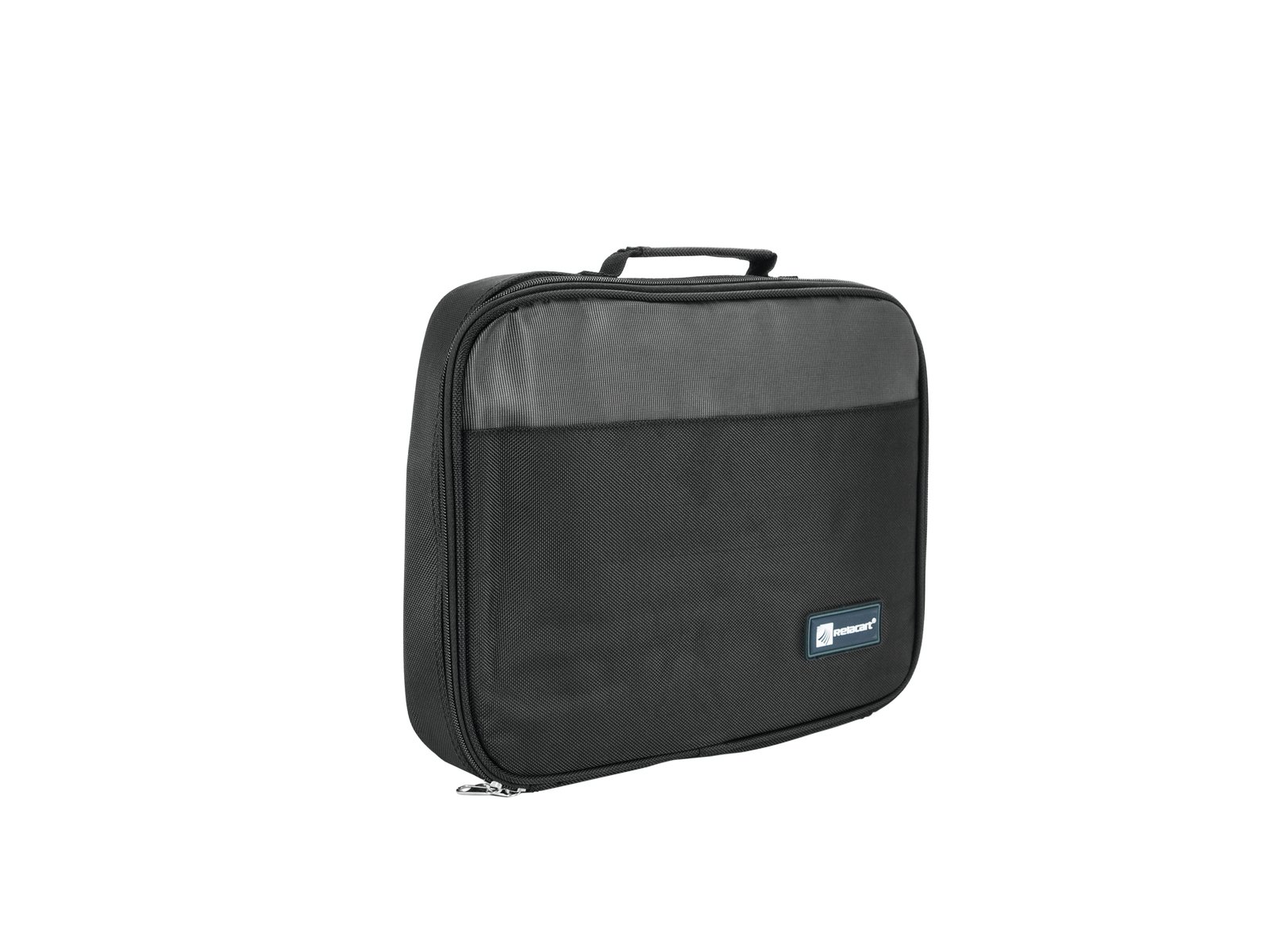

- 1 x device, 2 x antenna, 1 x external power adapter, 1 x jack cable, 1 x user manual, 1 x declaration of conformity, 1 x bag, 3 x mounting bracket, 10 x screws
RELACART H-31 microphone for HR-31S system
Handheld microphone with PLL multi-frequency transmitter
- Dynamic handheld microphone with UHF pilot tone technology (PLL)
- Ergonomic aluminum alloy housing, suitable for touring
- 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
- 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
- 292 manually adjustable frequencies in 25 kHz steps within a switching bandwidth of 68 MHz
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Mute function
- Adjustable RF output power Hi/Low
- Adjustable gain level Hi/Mid/Low
- Directly compatible with Shure SM58 capsule
- Polar pattern: cardioid
- OLED display
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 731 - 790 MHz License-free and approved in large parts of Europe
- Operating range of up to 80 m with line of sight
Package contents
- 1 x microphone, 1 x user manual, 1 x declaration of conformity
| Type: | Wireless set |
| Display: | Battery level, antenna A/B, RF signal level, audio AF level; frequency |
| Weight: | 2.19 kg |
| True Diversity Receiver with 1 channel RELACART HR-31S |
| Type: | Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz
12 V DC |
| Power consumption: | 3.5 W |
| Power connection: | Mains input via coaxial power connector (M) power cable mounting version with AC adapter (supplied) |
| Number of channels: | 1 |
| Frequency range: | 45 - 18000 Hz |
| S/N ratio: | >108 dB |
| THD: | <0.6 % at 1 kHz |
| Display type: | Monochrome LCD display |
| Display: | Battery level, antenna A/B, RF signal level, audio AF level; frequency |
| Control elements: | Menu, navigation buttons |

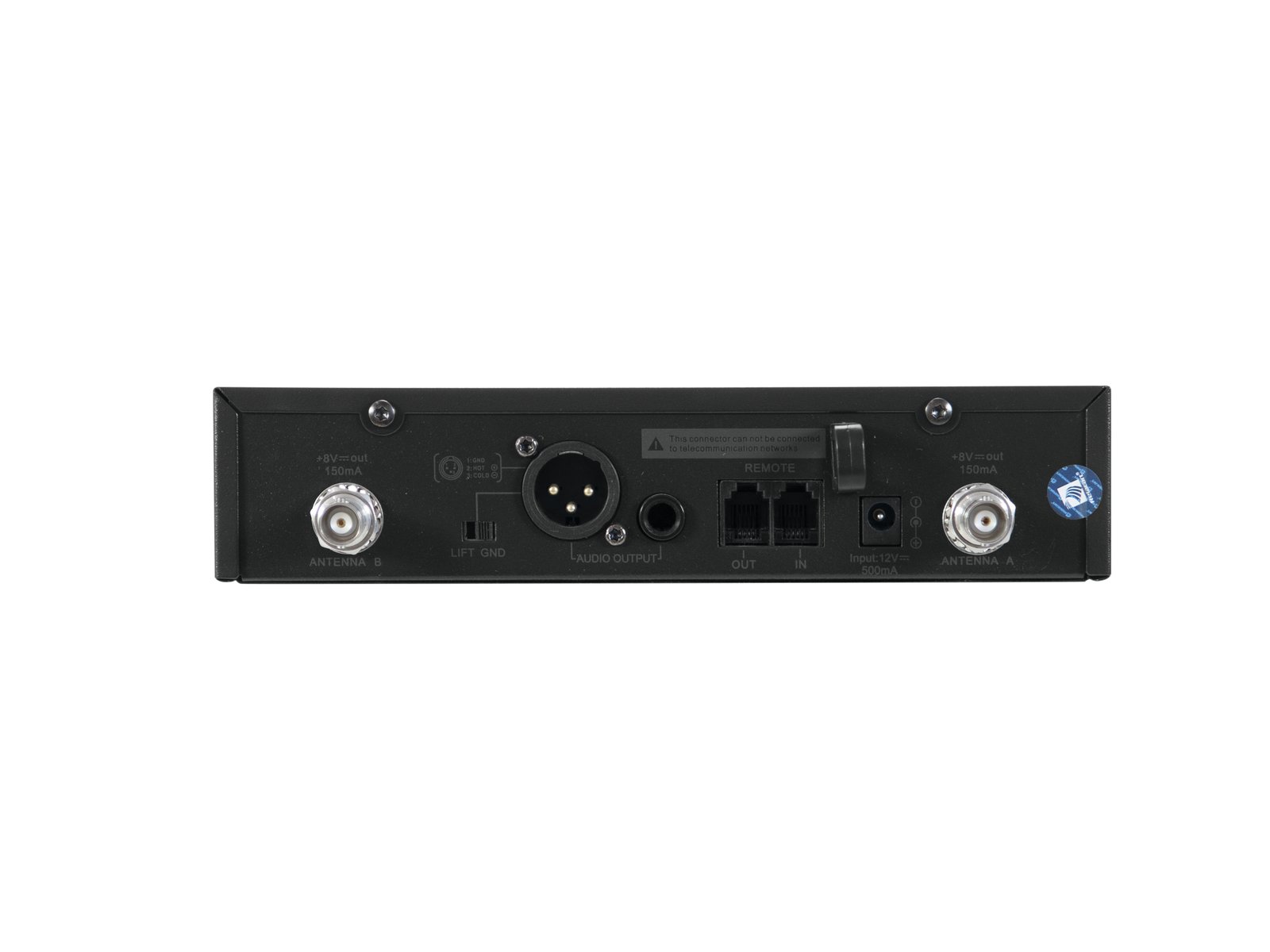

| Connections: | Antenna via 2 x BNC (F) 8 V
Output: line via XLR (M) mounting version with 1 x 3 pin
Output: line via 1 x 6.3 mm jack mounting version (stereo).
Link: 2 x RJ14 (F) mounting version |
| Frequency band: | UHF 823 - 832 MHz; UHF 731 - 790 MHz |
| Frequency selection: | 292 switchable frequencies
In 10 groups with up to 25 preset frequencies each and
In 8 groups with up to 7 preset frequencies each |
| Modulation: | FM |
| Frequency stability: | ± 0.0005 % |
| Range: | Operating range of up to 80 m with line of sight |
| Bandwidth switching: | 68 MHz |
| Switch: | On/off switch |
| Diversity: | True diversity |
| Material: | Metal |
| Colour: | Black |
| PC connection: | RELACART RWW software with Dongle (optional) via RJ14 (F) mounting version. |
| Housing design: | Desktop console housing
(19") 48.3 cm installation possible 1 U |
| Dimensions: | Width: 20 cm
Depth: 26 cm
Height: 4.3 cm |
| Weight: | 1.89 kg |
| RELACART H-31 Microphone for HR-31S system |
| Type: | Handheld transmitter |
| Power supply: | 3 V DC |
| Power connection: | Battery/rechargeable battery pack |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 100 - 18000 Hz |
| Max. SPL: | 145 dB |
| Display type: | OLED display |
| Frequency band: | UHF 823 - 832 MHz; UHF 731 - 790 MHz |
| Frequency selection: | 292 switchable frequencies
In 10 groups with up to 25 preset frequencies each and
In 8 groups with up to 7 preset frequencies each |
| Modulation: | FM |
| RF output power: | 10 mW (LO); 40 mW (HI) |
| Range: | Operating range of up to 80 m with line of sight |
| Bandwidth switching: | 68 MHz |
| Switch: | On/off/mute switch |
| Material: | Aluminium |
| Colour: | Black |
| Dimensions: | Length: 26.5 cm
Diameter: Ø 5.4 cm |
| Weight: | 290 g |
