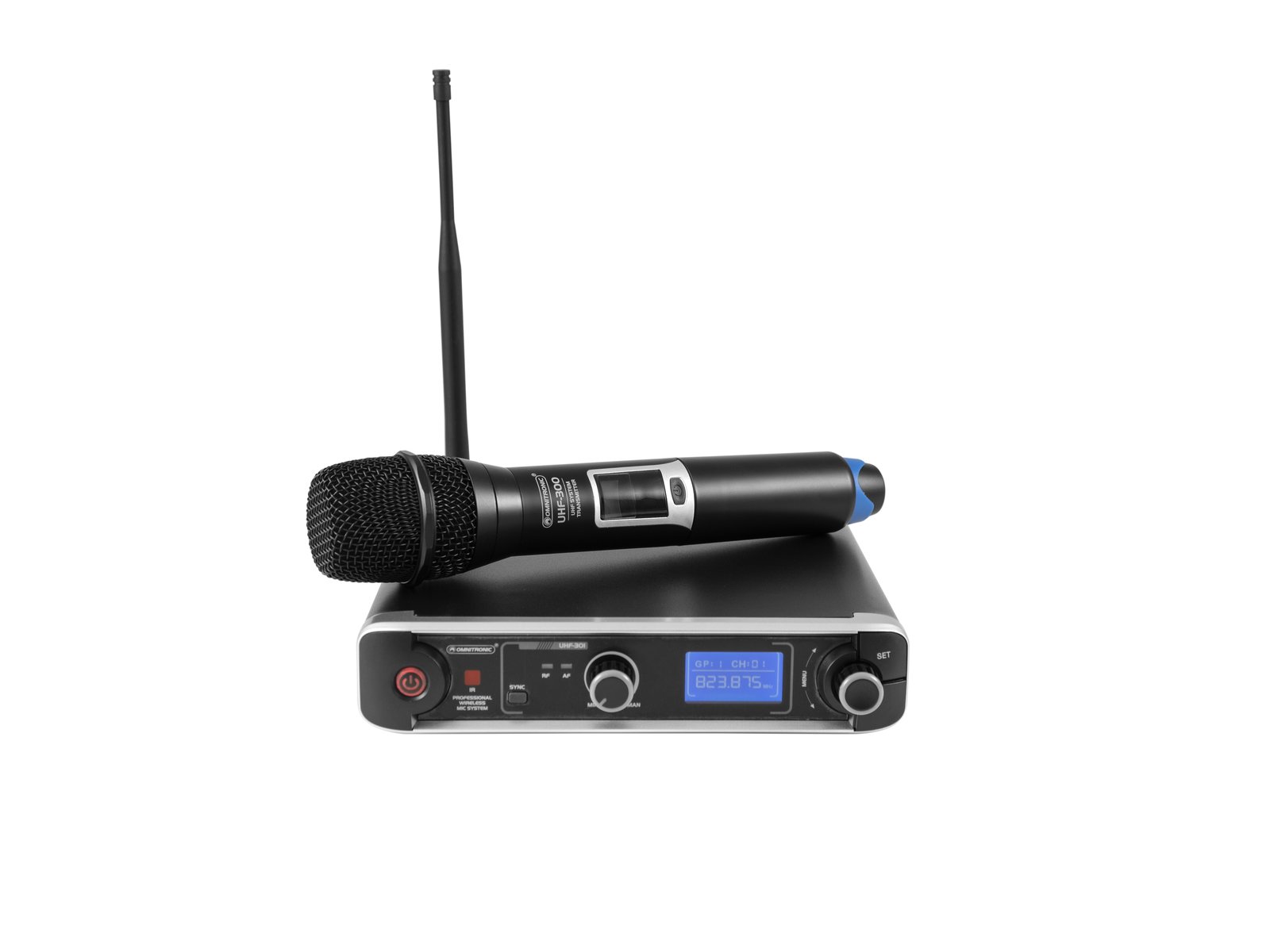

Omnitronic UHF-301 1-Channel Wireless Mic System 823-832/863-865MHz

Wireless System

uHF PLL microphone system with 1 channel and handheld microphone.
93 preset channels in 10 groups for versatile use.
easy synchronization between receiver and transmitter via infrared.
operating range of up to 60 m with line of sight.
includes receiver, antenna, microphone, and necessary accessories.

129²⁰ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

665 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Omnitronic UHF-301 1-Channel Wireless Mic System 823-832/863-865MHz Add to cart: 129²⁰ €

UHF PLL microphone system with 1 channel

Multi-frequency receiver unit with 1 channel and handheld microphone using UHF PLL technology
93 preset channels in 10 channel groups
Easy and error-free synchronization between receiver and transmitter via infrared signal
LEDs for carrier and audio signal
Detachable BNC antenna
1 dynamic microphone with cardioid polar pattern and LCD for battery capacity and frequency
LCD display
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 863 - 865 MHz License-free and approved in Europe
Operating range of up to 60 m with line of sight

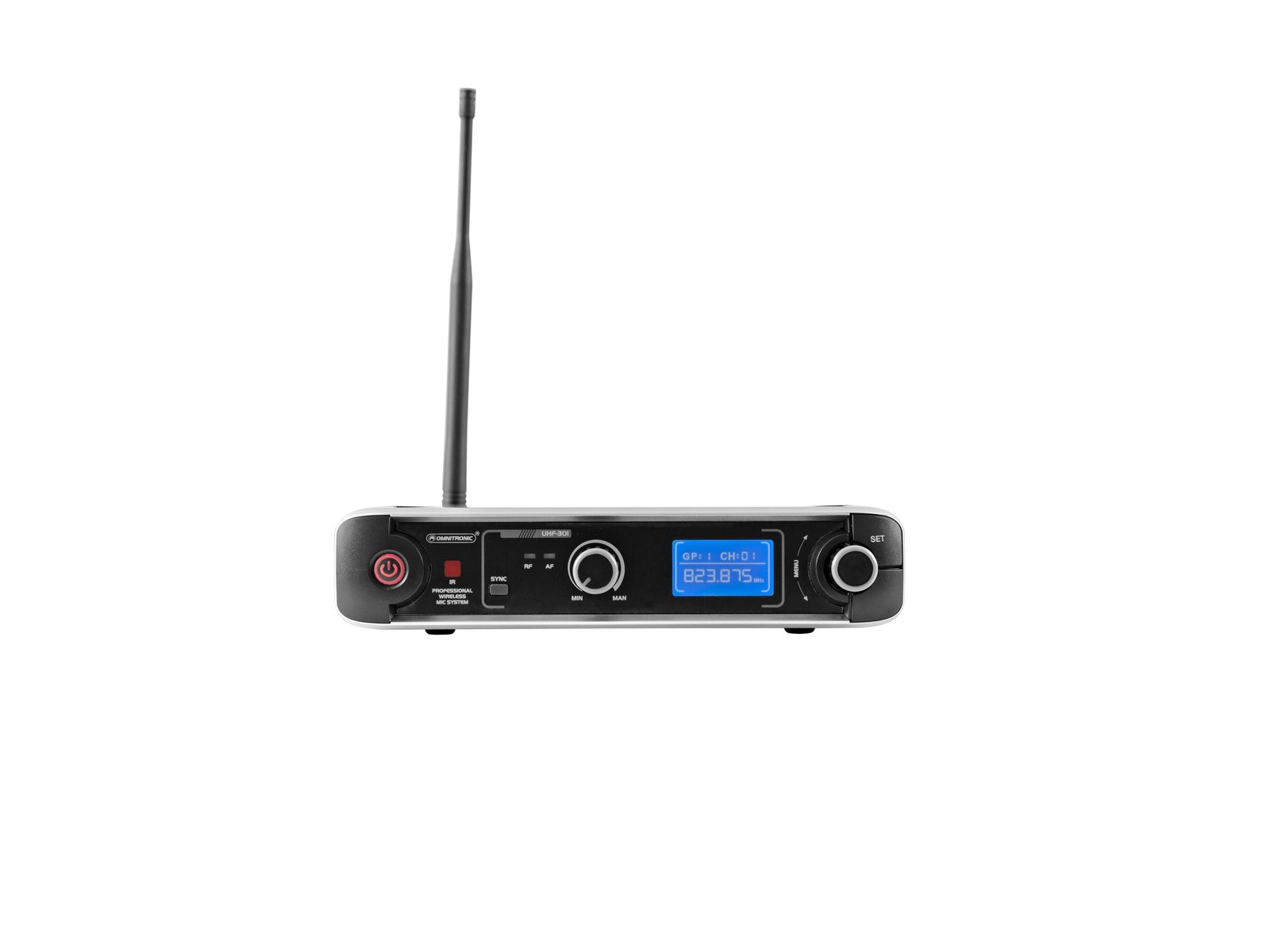

Receiver

Desktop console housing
(19") 48.3 cm installation possible 1 U

Microphone

Polar pattern: cardioid
LCD display

Package contents

1 x receiver, 1 x antenna, 1 x external power adapter, 1 x microphone, 1 x jack cable, 1 x stand, 3 x mounting brackets, 4 x screws, 1 x user manual, 1 x declaration of conformity

Type:	Wireless set
Display type:	LCD display
Display:	Channel, frequency, group
Frequency band:	UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection:	93 switchable frequencies
Modulation:	FM; PLL technology
Frequency stability:	± 0.001 %
Range:	Operating range of up to 60 m with line of sight
Weight:	1.51 kg
Receiver
Power supply:	100-240 V AC, 50/60 Hz 12 V DC 350 mA
Power consumption:	4 W
Power connection:	Mains input via coaxial power connector (M) power cable mounting version with AC adapter (supplied)
Number of channels:	1
Frequency range:	50 - 18,000 Hz
S/N ratio:	>80 dB
THD:	<0.5 % at 1 kHz
Control elements:	Power switch, level control, encoder

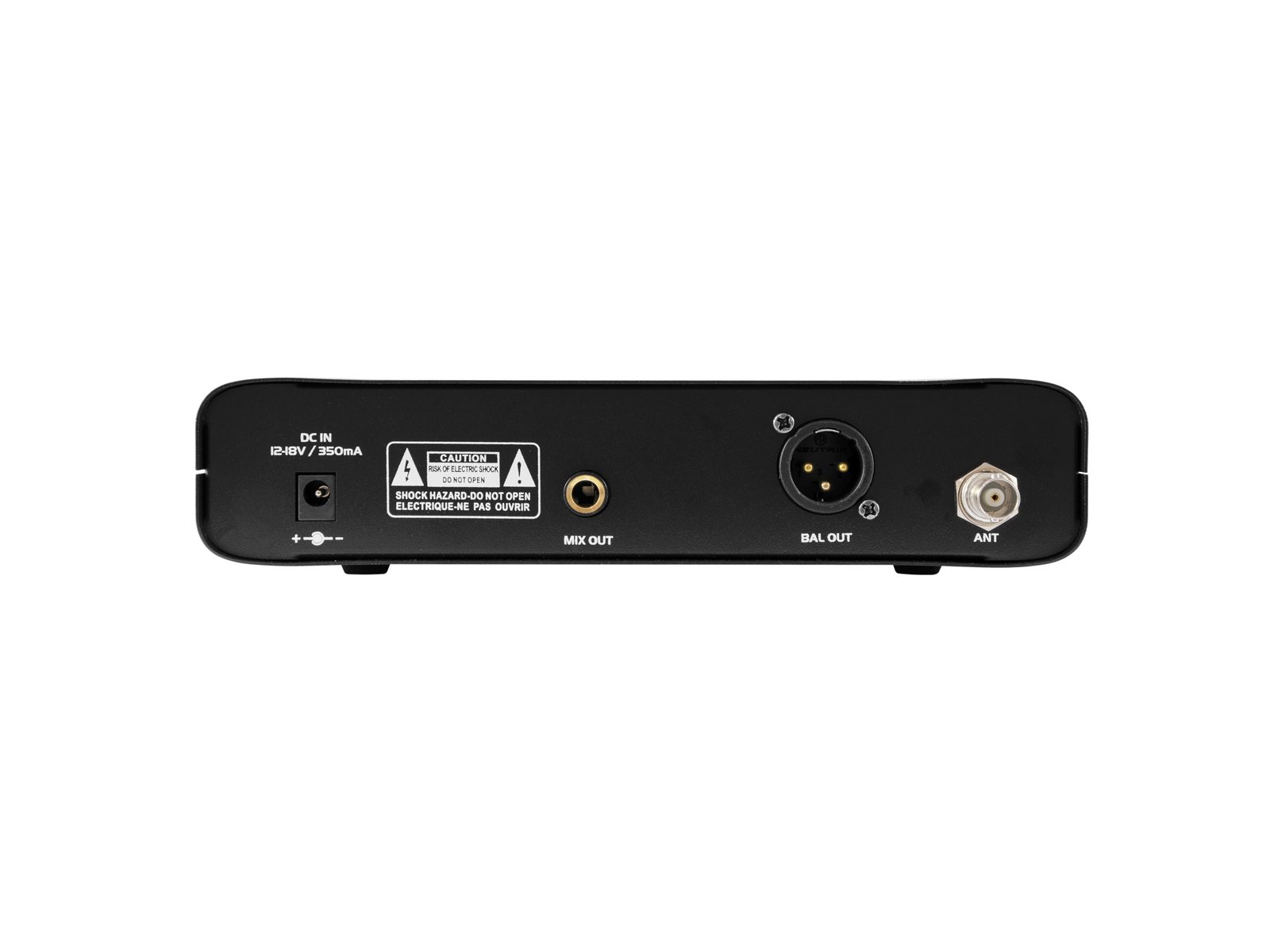

Connections:	Input: antenna via 1 x BNC (F) Output: microphone via 1 jack socket 6.3 mm (unbalanced) Output: microphone via 1 x 3-pin XLR
Material:	Metal
Housing design:	Desktop console housing (19") 48.3 cm installation possible 1 U
Dimensions:	Width: 20.5 cm Depth: 24.5 cm Height: 4.8 cm
Microphone
Type:	Handheld transmitter
Power supply:	3 V DC
Power connection:	Battery/rechargeable battery pack
Capsule type:	Dynamic
Polar pattern:	Cardioid
Battery:	2 x Mignon (AA) (not included)
Display type:	LCD display
Display:	Frequency, charge level
RF output power:	10 mW
Switch:	On/off switch
Material:	Plastic
Dimensions:	Length: 25 cm Diameter: Ø 5.2 cm
Weight:	230 g

Product code: 13063300

Unit of sale: set

Specifications:

Number of transmission/reception channels:	1
System type:	digital
Capsule type:	dynamic
Polar pattern:	cardioid
Receiver type:	Stationary
Communication frequency, global classification:	800 - 900 MHz
