UR-260D is a true diversity UHF system with two channels, featuring a range of innovative characteristics. In addition to automatic frequency scanning for interference-free transmission, it also includes an intelligent feedback suppression system. With MagicEQ, various sound characteristics of world-renowned microphone capsules can be emulated or created independently. Presets can be modified from a computer via software - even during live operation.
DSP system for microphone modelling and PC software, 823-832 + 863-865 MHz
Package contents
- 1 x receiver, 2 x antenna, 1 x external power adapter, 2 x microphone, 1 x jack cable, 1 x mounting bracket, 1 x bag, 1 x user manual, 1 x declaration of conformity

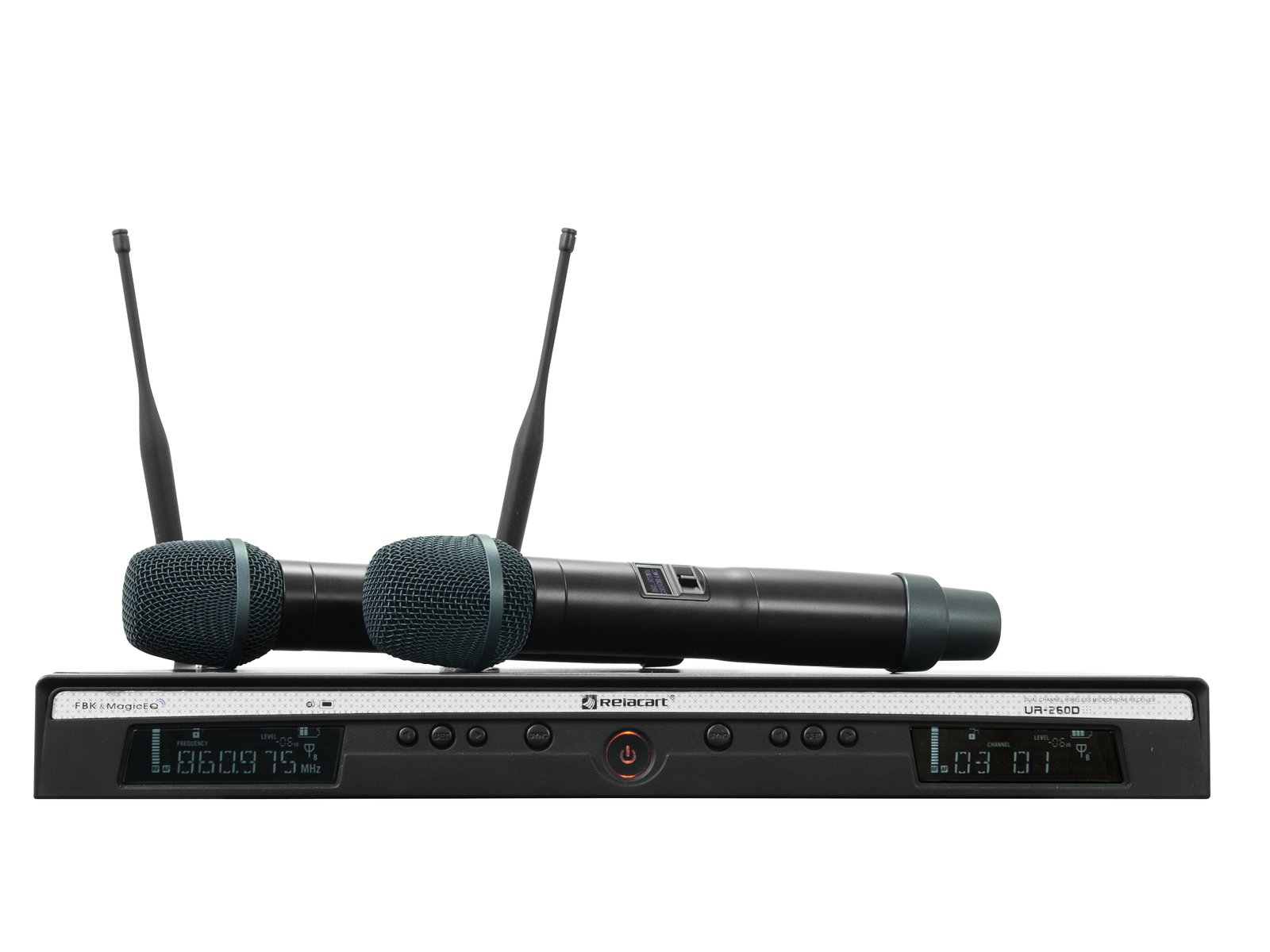

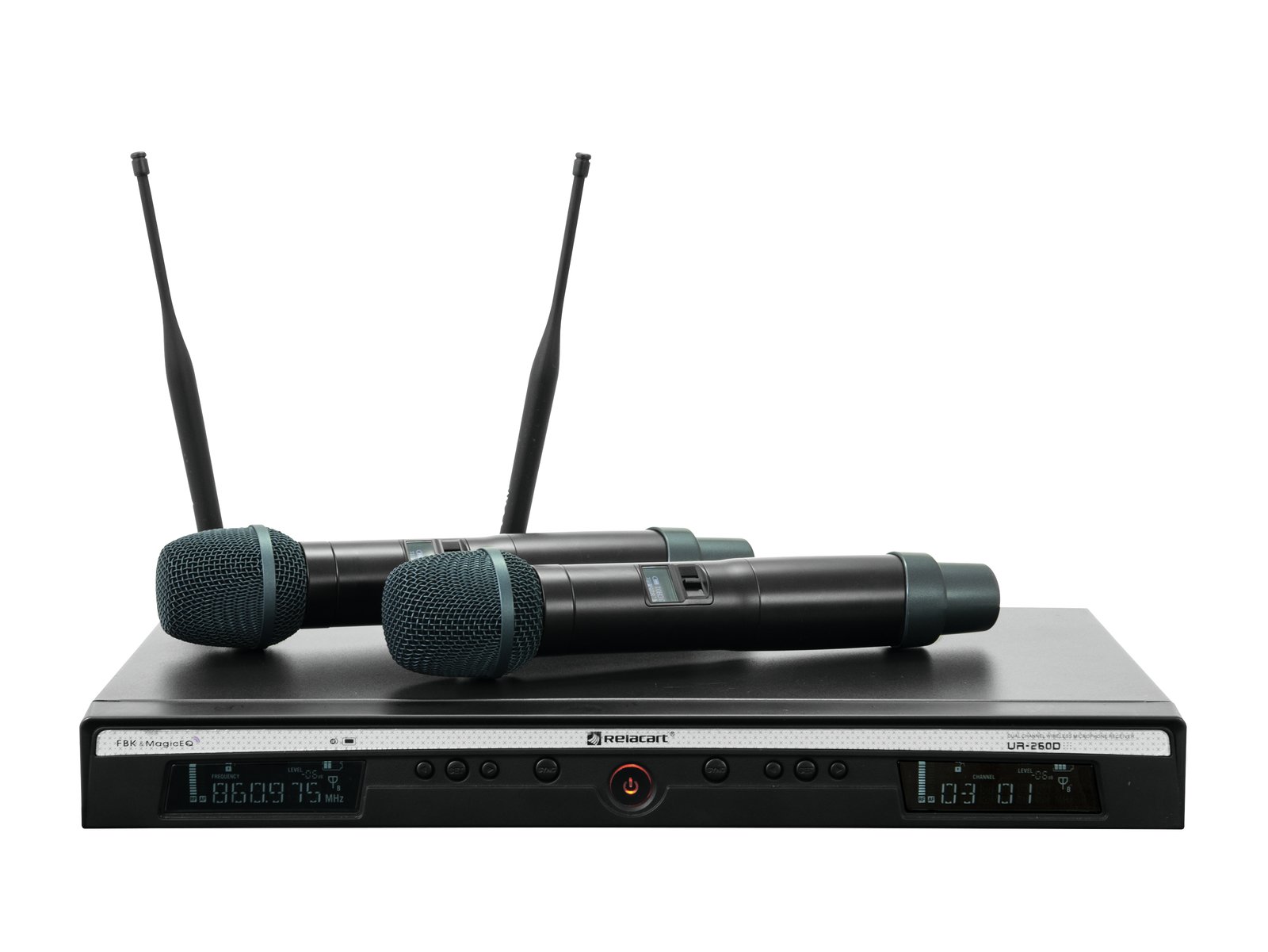

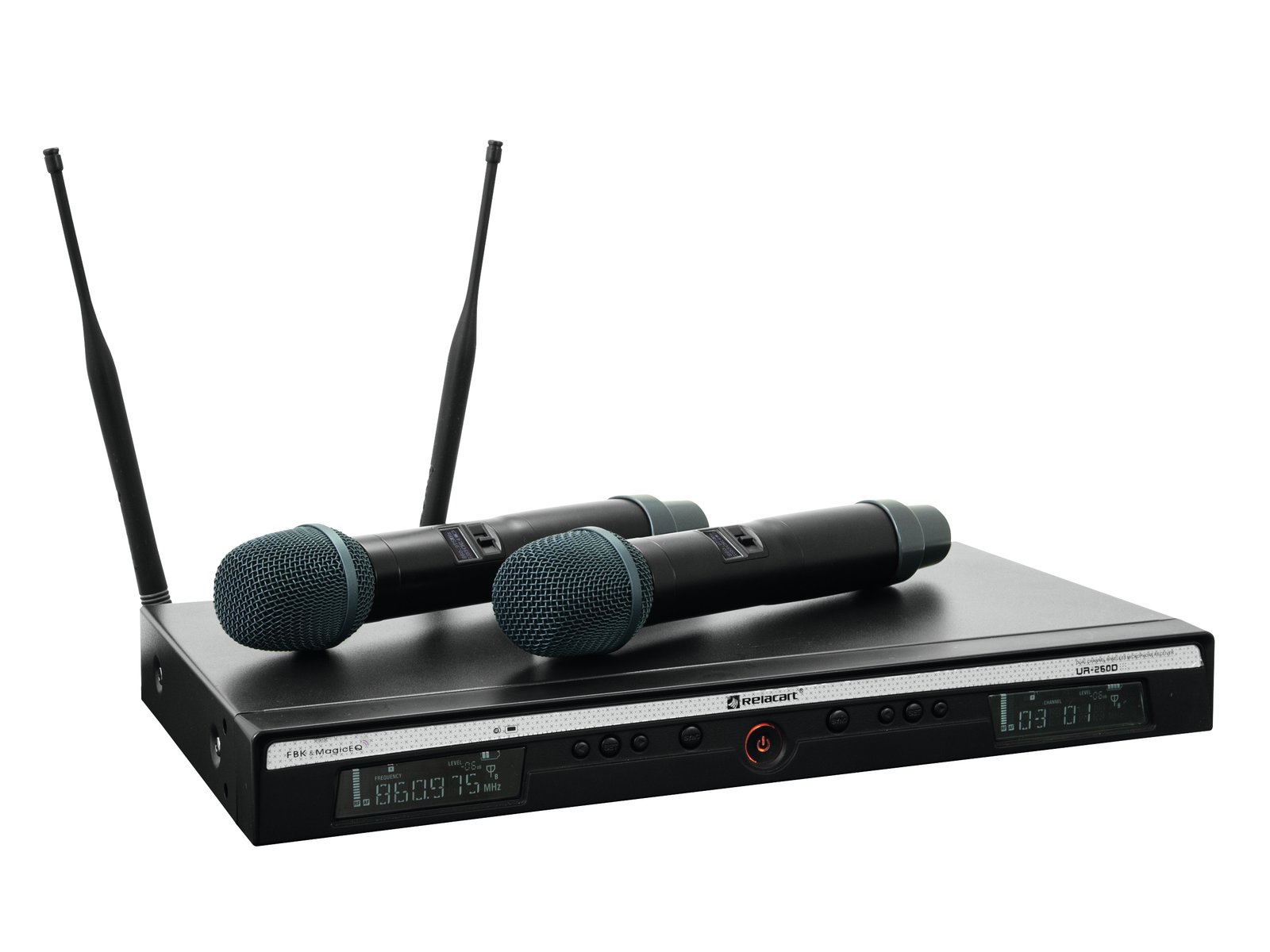

UHF RELACART UR-260D receiver with 2 channels
Wireless Diversity Receiver with DSP for microphone modelling and computer software
- Multi-frequency wireless receiver with 2 channels and 24-bit processor for high-quality audio
- Integrated MagicEQ allows for stunning modelling of handheld microphones
- Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets
- Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and enhanced clarity for each microphone
- Programming and DSP management via Ethernet port and intuitively operated PC software
- Diversity reception with high-quality antennas
- 10 groups with 90 fixed frequencies on a switching bandwidth of 11 MHz
- Parallel operation of up to 9 wireless channels is possible without interference
- Frequency pilot squelch technology eliminates RF interference
- Automatic frequency scanning (AFS) finds interference-free channels
- Easy and error-free synchronisation between receiver and transmitter via infrared signal

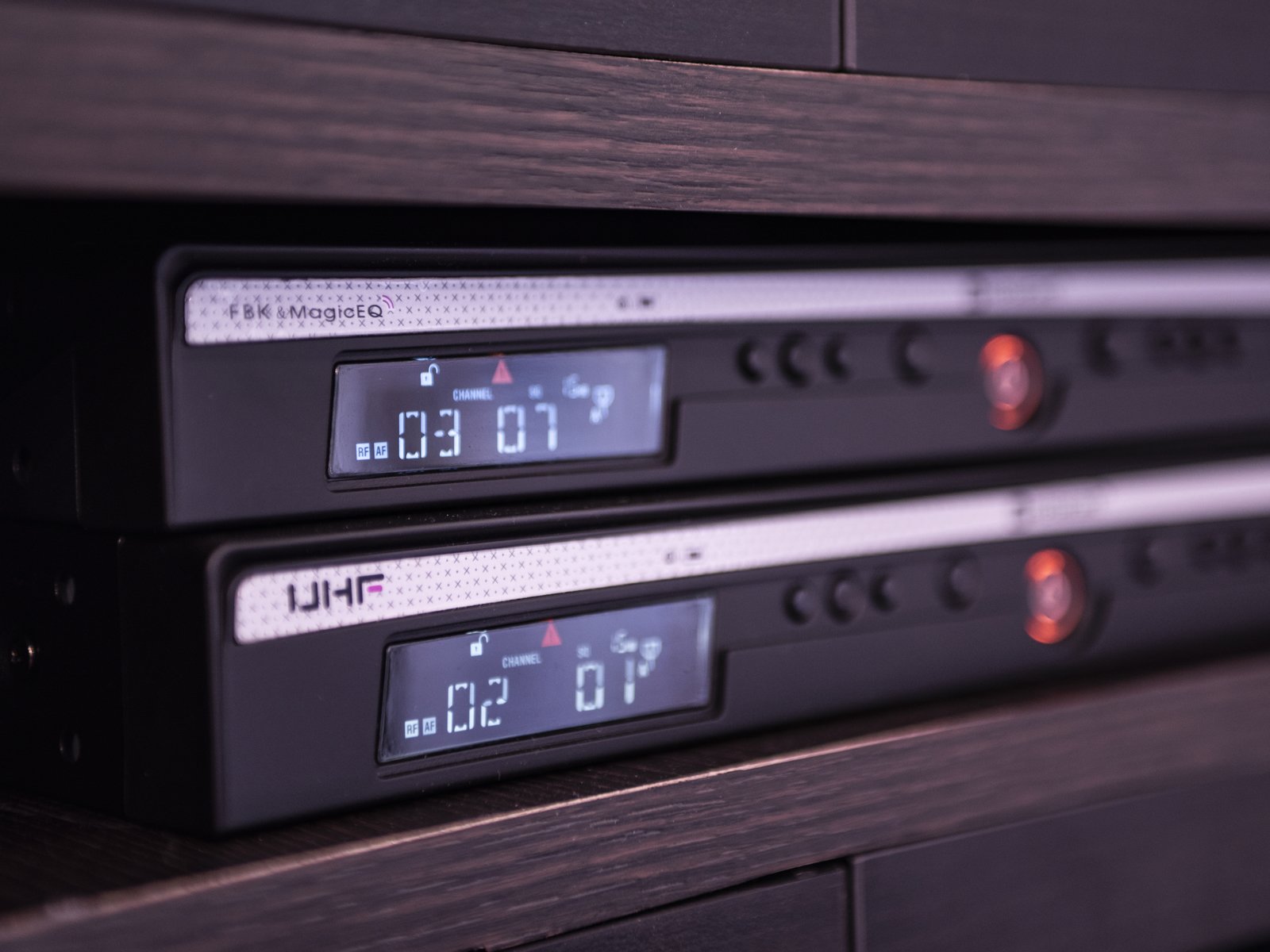

- Multiple units can be connected via network cables
- Lock function to prevent unwanted changes to settings
- 2 detachable BNC antennas allow use with the R-14D antenna splitter
- Robust metal housing
- 96 kHz, 24-bit digital signal processor
- Multi-colour LCD display
- UHF 863 - 865 MHz License-free and approved in Europe
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- Operating range up to 80 m
- The device can be connected via the RJ-45 (F) mounting version to a computer in connection with RELACART Magic EQ software
- Desktop console housing
- (19") 48.3 cm installation possible 1 U
Package contents
- 1 x receiver, 2 x antenna, 1 x external power adapter, 1 x jack cable, 2 x mounting brackets, 6 x screws, 1 x user manual, 1 x declaration of conformity
RELACART UH-222D Microphone
Handheld microphone with multi-frequency PLL transmitter
- Dynamic handheld microphone with UHF pilot tone technology (PLL)
- Ergonomic aluminium alloy housing, suitable for touring
- 10 groups with 90 fixed frequencies on a switching bandwidth of 11 MHz
- Easy and error-free synchronisation between receiver and transmitter via infrared signal
- Adjustable RF output power Hi/Low
- Adjustable gain level Hi/Mid/Low
- M-022 capsule
- Directly compatible with Shure SM58 capsule
- Polar pattern: Super cardioid
- OLED display
- UHF 863 - 865 MHz License-free and approved in Europe
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- Operating range up to 80 m
Package contents
- 1 x microphone, 1 x user manual, 1 x declaration of conformity
| Type: | Wireless set |
| Weight: | 2.97 kg |
| UHF RELACART UR-260D Receiver with 2 channels |
| Type: | Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz
12 V DC 1 A |
| Power consumption: | Max. 9 W |
| Power connection: | Network input via coaxial power connector (M) power cable mounting version with AC adapter (supplied) |
| Number of channels: | 2 |
| Frequency range: | 45 - 18000 Hz |
| S/N ratio: | >100 dB |
| THD: | <0.5 % at 1 kHz |
| Network connection: | Protocol: Ethernet TCP/IP via 1x RJ-45 (F) mounting version. |
| DSP: | 96 kHz, 24-bit digital signal processor |
| Display type: | Multi-colour LCD display |
| Control elements: | Power switch, surface selector, menu, navigation buttons |

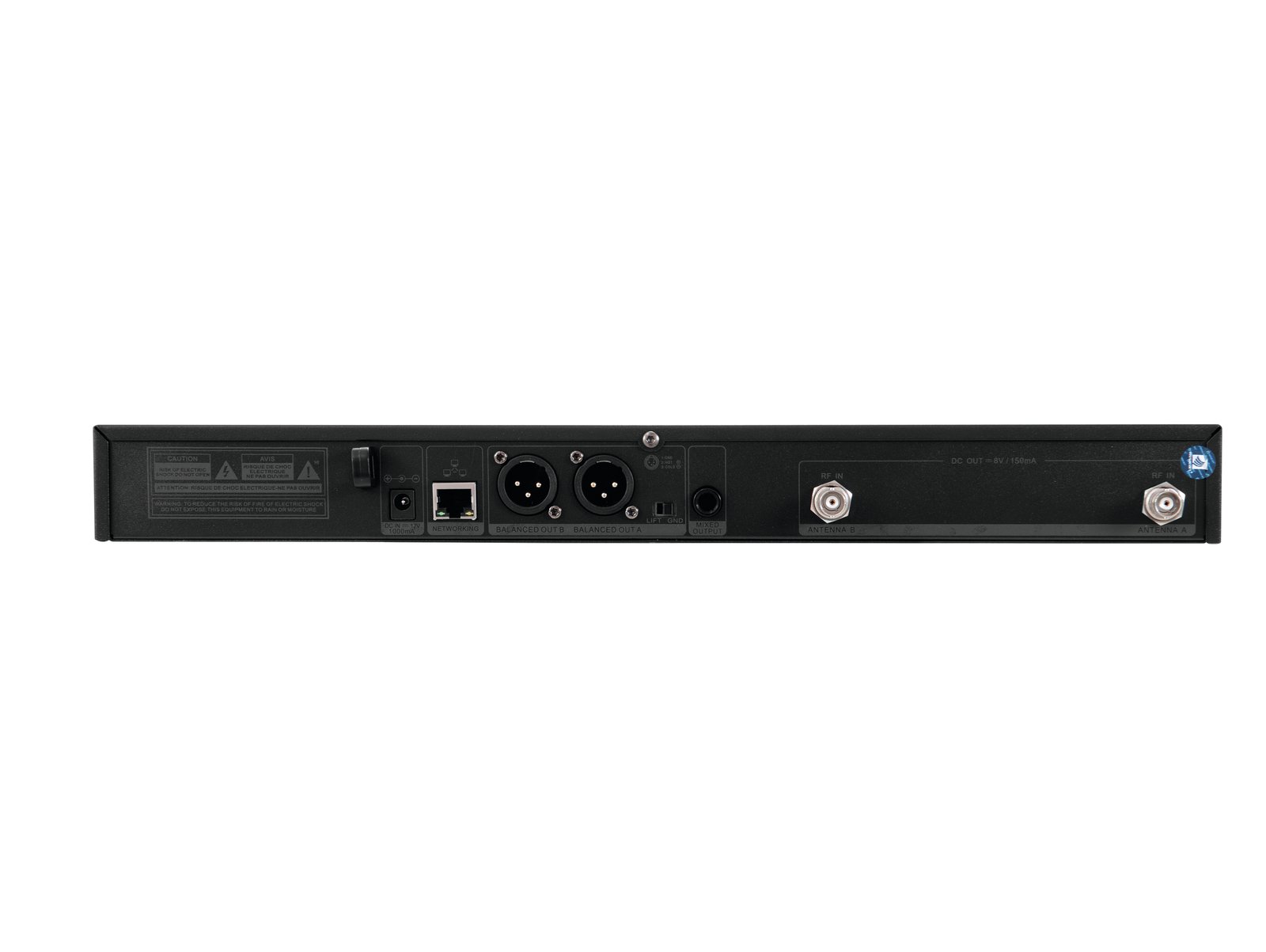

| Connections: | Antenna via 2 x BNC (F) 8 V
Output: Microphone via XLR (M) 2 x 3 pin mounting version
Output: line via 1 x 6.3 mm (unbalanced) |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Frequency selection: | 90 switchable frequencies
In 10 groups with up to 10 preset frequencies each |
| Modulation: | FM |
| Frequency stability: | ± 0.0005 % |
| Range: | Operating range up to 80 m |
| Bandwidth switching: | 11 MHz |
| Diversity: | Antenna diversity |
| Material: | Metal |
| Colour: | Black |
| PC connection: | RELACART Magic EQ software via RJ-45 (F) mounting version. |
| Housing design: | Desktop console housing
(19") 48.3 cm installation possible 1 U |
| Dimensions: | Width: 41 cm
Depth: 26 cm
Height: 4.3 cm |
| Weight: | 2.40 kg |
| RELACART UH-222D Microphone |
| Type: | Handheld transmitter |
| Power supply: | 3 V DC |
| Capsule type: | Dynamic |
| Polar pattern: | Super cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 120 - 16000 Hz |
| Sensitivity: | -53 dB |
| Max. SPL: | 145 dB |
| Display type: | OLED display |
| Display: | Battery level, frequency, channel |
| Control elements: | Gain switch (high-mid-low), transmitter power switch (high-low) |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Frequency selection: | 90 switchable frequencies
In 10 groups with up to 10 preset frequencies each |
| Modulation: | FM |
| RF output power: | 10 mW |
| Range: | Operating range up to 80 m |
| Bandwidth switching: | 11 MHz |
| Switch: | On/off/mute switch |
| Material: | Aluminium |
| Dimensions: | Length: 26 cm
Diameter: Ø 5.4 cm |
| Weight: | 280 g |
