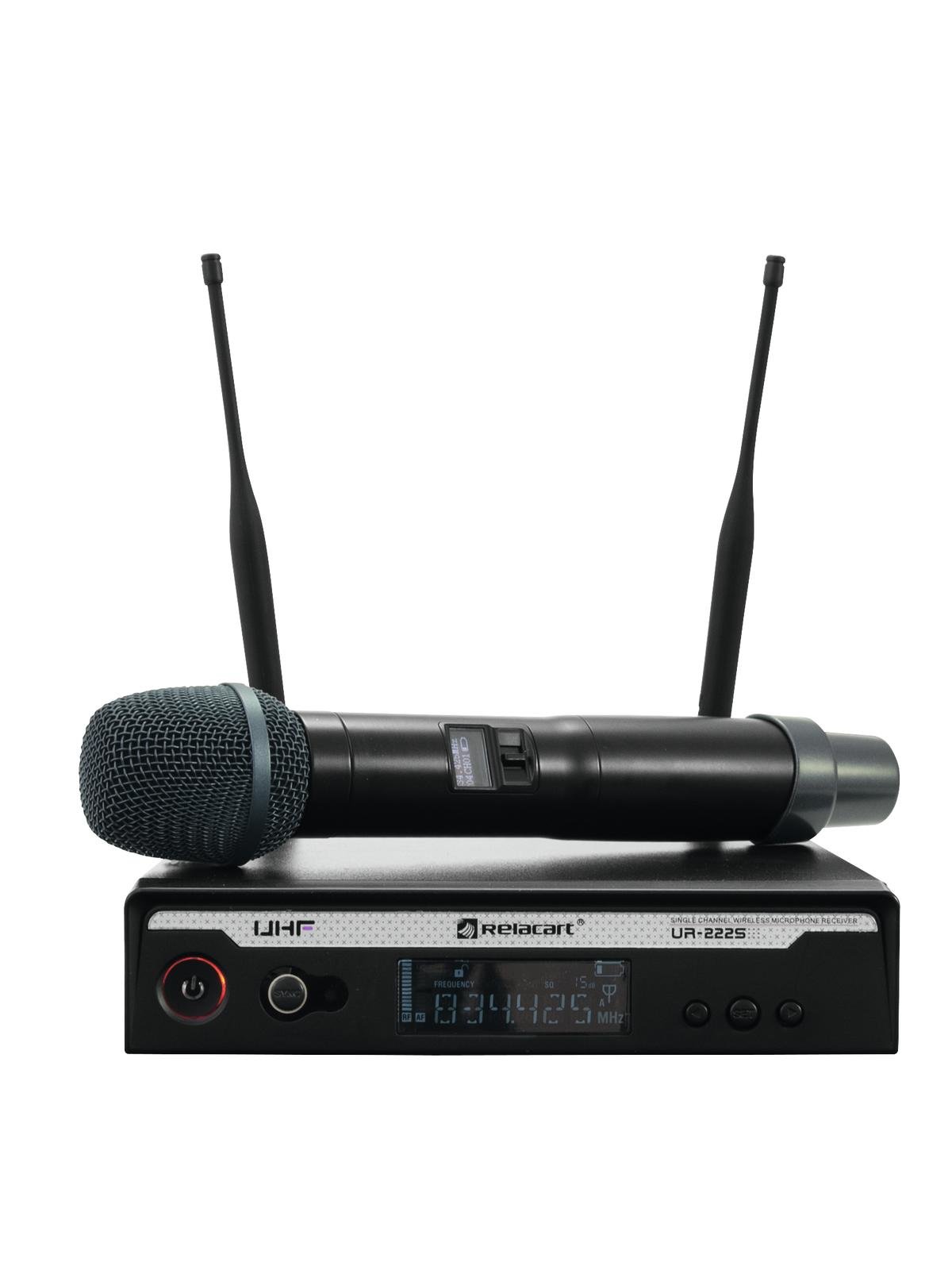

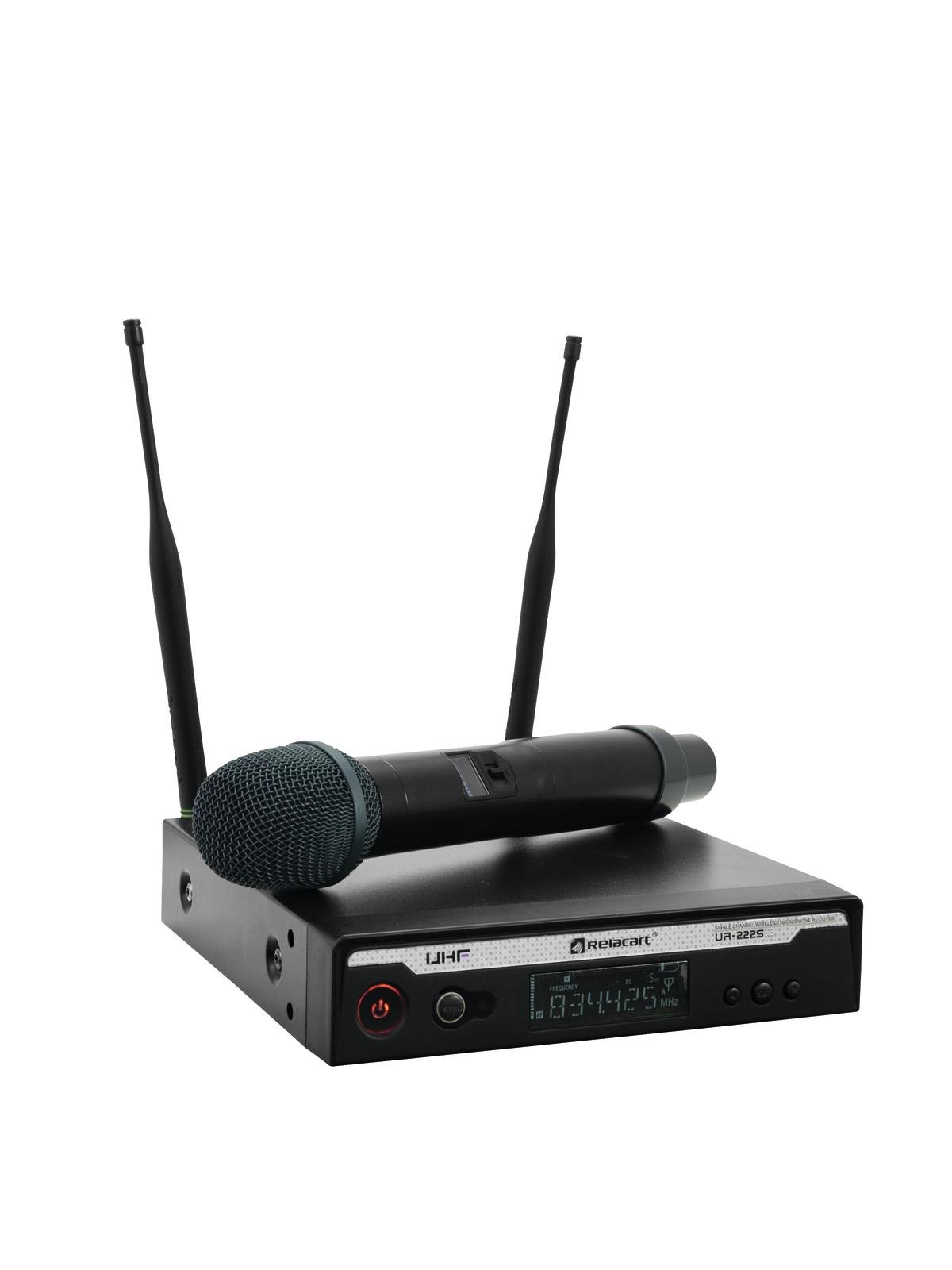

Relacart UR-222S is a wireless system with a handheld microphone, accessible and reliable for everyday use. The True Diversity receiver technology, pilot tone, and adjustable noise squelch ensure a reliable transmission. Setup is quick and easy using automatic scanning and infrared synchronization.
- 10 groups with 90 fixed frequencies over a switching bandwidth of 11 MHz
- Parallel operation of up to 9 systems is possible without interference
- The squelch technology with pilot frequency eliminates RF interference without wires
- Automatic frequency scanning (AFS) finds interference-free channels
- Easy and error-free synchronization between receiver and transmitter via infrared signal

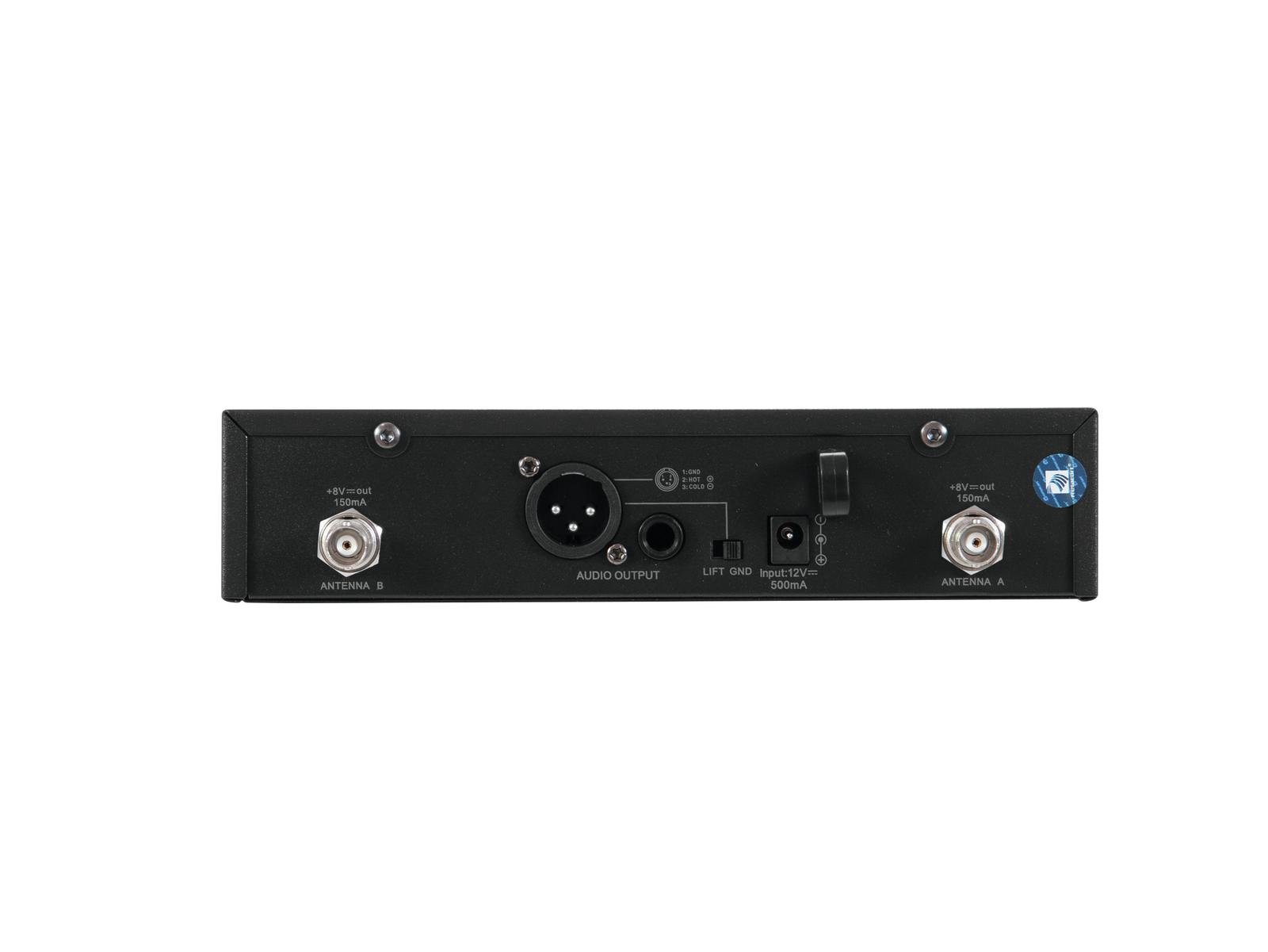

- 2 detachable BNC antennas allow use with the R-14D antenna splitter
- Multicolour LCD display
- UHF 863 - 865 MHz No license required and approved in Europe
- UHF 823 - 832 MHz No license required and approved in large parts of Europe
- Operating range up to 80 m
- (19") 48.3 cm installation possible 1 U
- RELACART UH-222D Microphone:
- Dynamic handheld microphone with UHF pilot tone technology (PLL)
- Aluminium housing
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Adjustable RF output power Hi/Low: 5mW or 10 mW
- Adjustable Gain Hi/Mid/Low
- Directly compatible with Shure SM58 capsule
- Polar pattern: Super cardioid
- Audio frequency range: 45 - 18000 Hz
