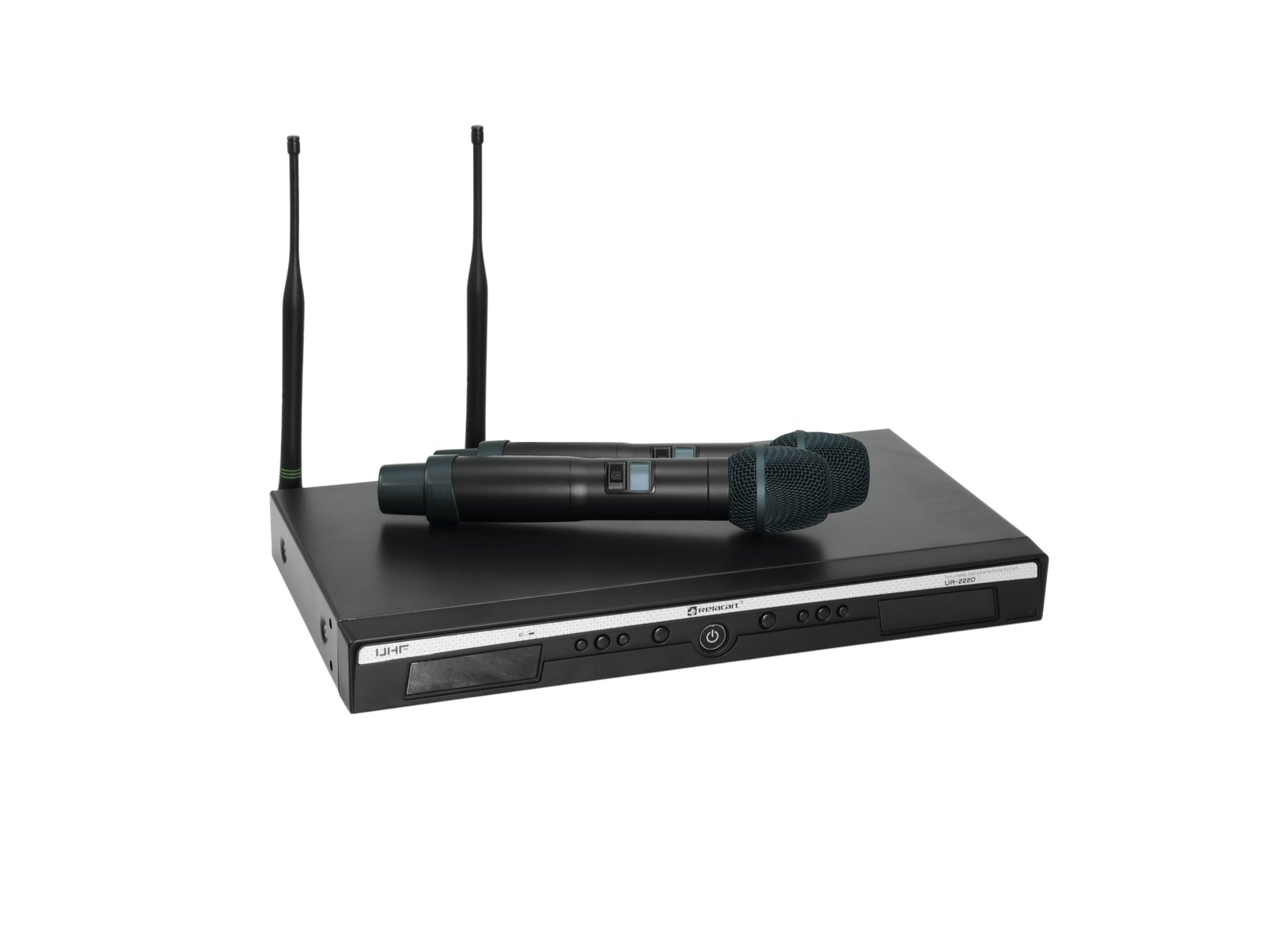

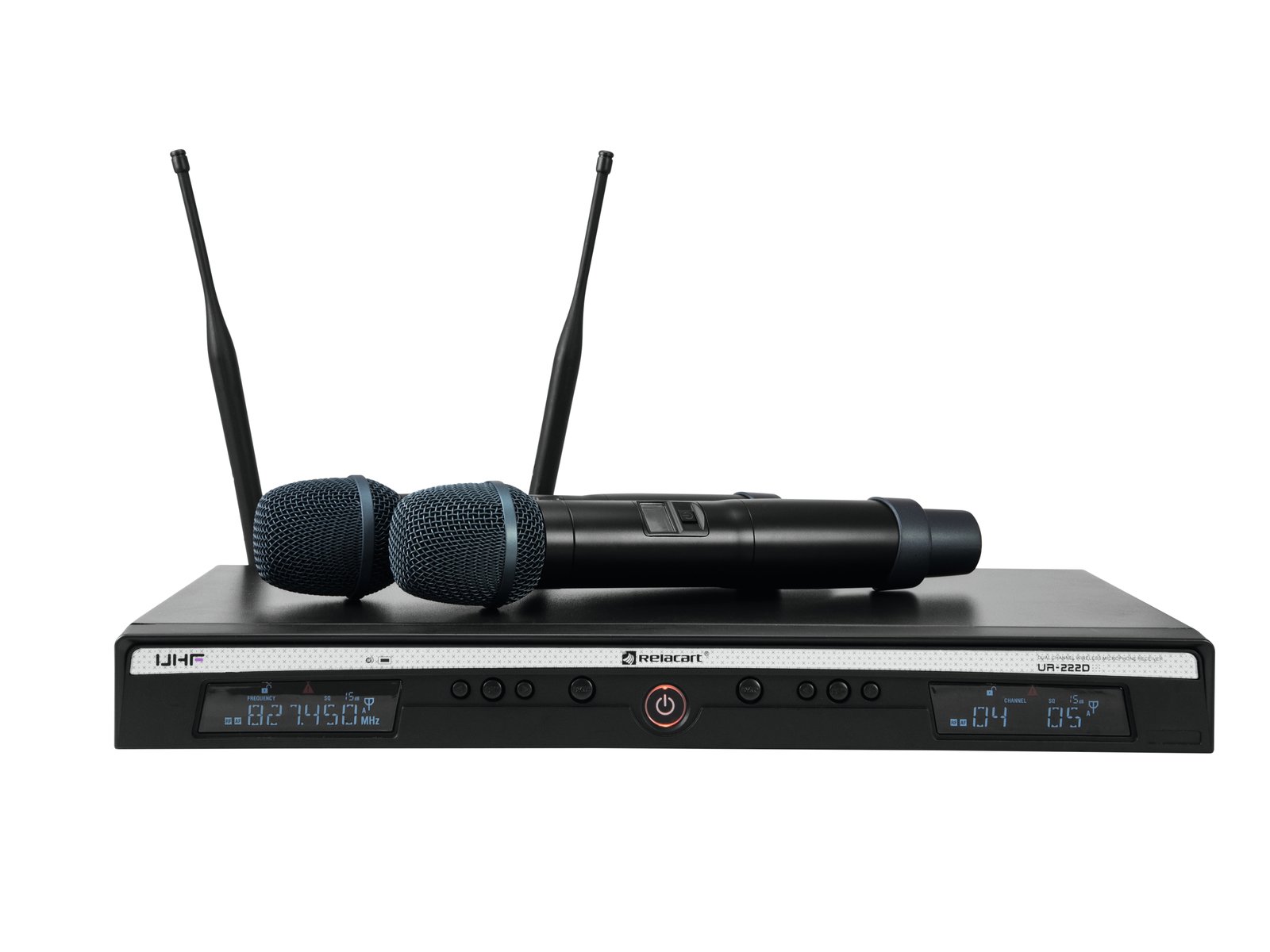

True Diversity wireless microphone system with two channels, 823-832 MHz + 863-865 MHz

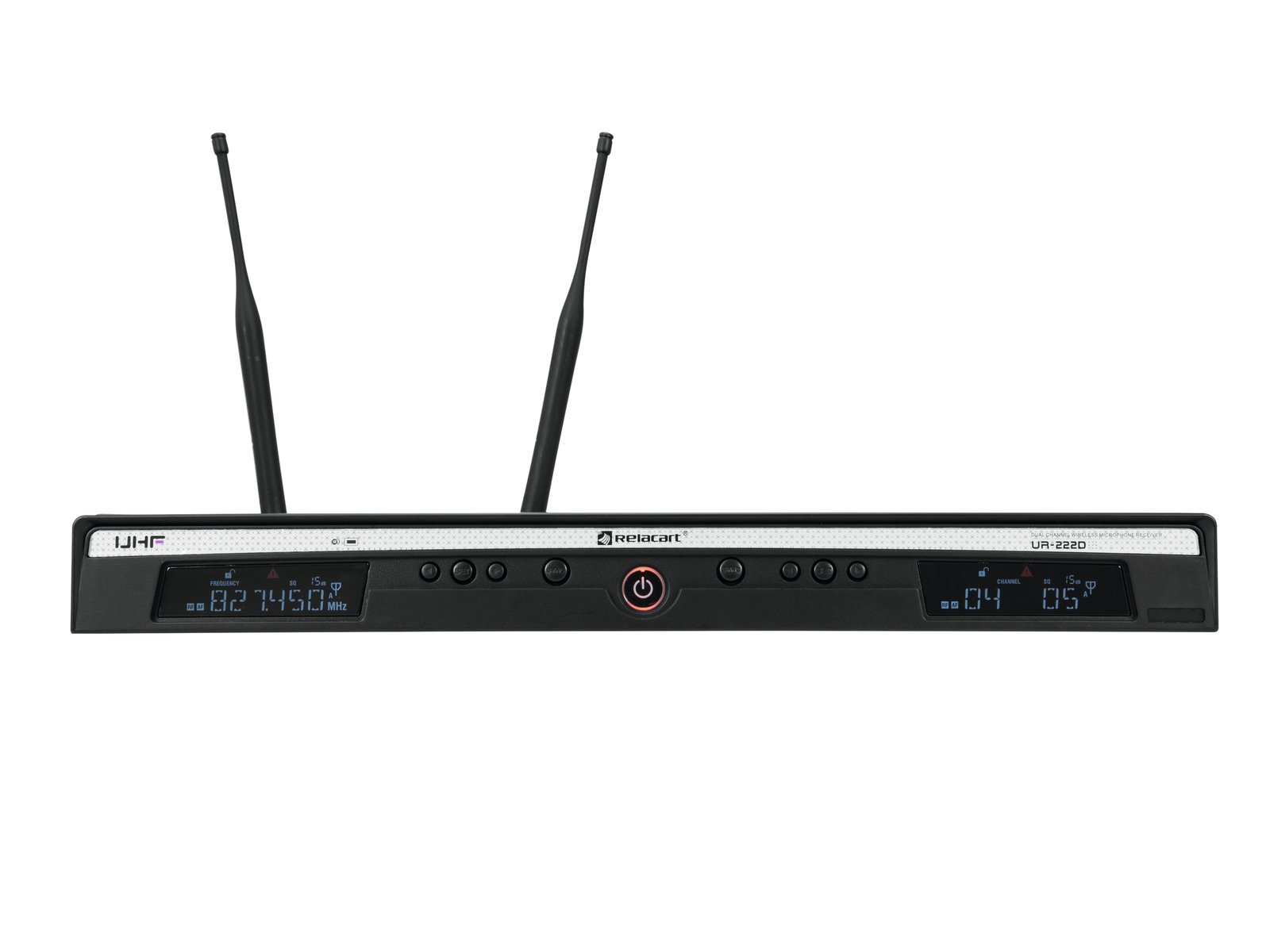

UHF RELACART UR-222D receiver with 2 channels
Multi-frequency wireless receiver with 2 channels and high-quality diversity reception
- 10 groups with 90 fixed frequencies across a switching bandwidth of 11 MHz
- Parallel operation of up to 9 systems is possible without interference
- The squelch technology with pilot frequency eliminates RF interference wirelessly
- Automatic frequency scanning (AFS) finds interference-free channels
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- 2 detachable BNC antennas allow use with the R-14D antenna splitter
- Robust metal housing
- Multicolour LCD display
- UHF 863 - 865 MHz No license required and approved in Europe
- UHF 823 - 832 MHz No license required and approved in large parts of Europe
- Operating range of up to 80 m with line of sight
- Desktop console housing
- (19") 48.3 cm installation possible 1 U
Package contents
- 1 x receiver, 1 x external power adapter, 2 x antennas, 2 x mounting brackets, 6 x screws, 2 x jack cables, 1 x user manual, 1 x declaration of conformity
RELACART UH-222D microphone
Handheld microphone with multi-frequency PLL transmitter
- Dynamic handheld microphone with UHF pilot tone technology (PLL)
- Ergonomic housing made of aluminium alloy, suitable for touring
- 10 groups with 90 fixed frequencies across a switching bandwidth of 11 MHz
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Adjustable RF output power Hi/Low
- Adjustable gain level Hi/Mid/Low
- M-022 capsule
- Directly compatible with Shure SM58 capsule
- Polar pattern: Super cardioid
- OLED display
- UHF 863 - 865 MHz No license required and approved in Europe
- UHF 823 - 832 MHz No license required and approved in large parts of Europe
- Operating range up to 80 m
Package contents
- 1 x microphone, 1 x user manual, 1 x declaration of conformity
| Type: | Wireless set |
| Weight: | 2.89 kg |
| UHF RELACART UR-222D receiver with 2 channels |
| Type: | Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz
12 V DC 1 A |
| Power consumption: | 5 W |
| Power connection: | Network input via coaxial power connector (M) power cable mounting version with AC adapter (supplied) |
| Number of channels: | 2 |
| Frequency range: | 45 - 18000 Hz |
| S/N ratio: | >105 dB |
| Display type: | Multicolour LCD display |
| Display: | Battery level, antenna A/B, RF signal level, audio AF level; frequency |
| Control elements: | Navigation buttons, menu, groundlift selector |

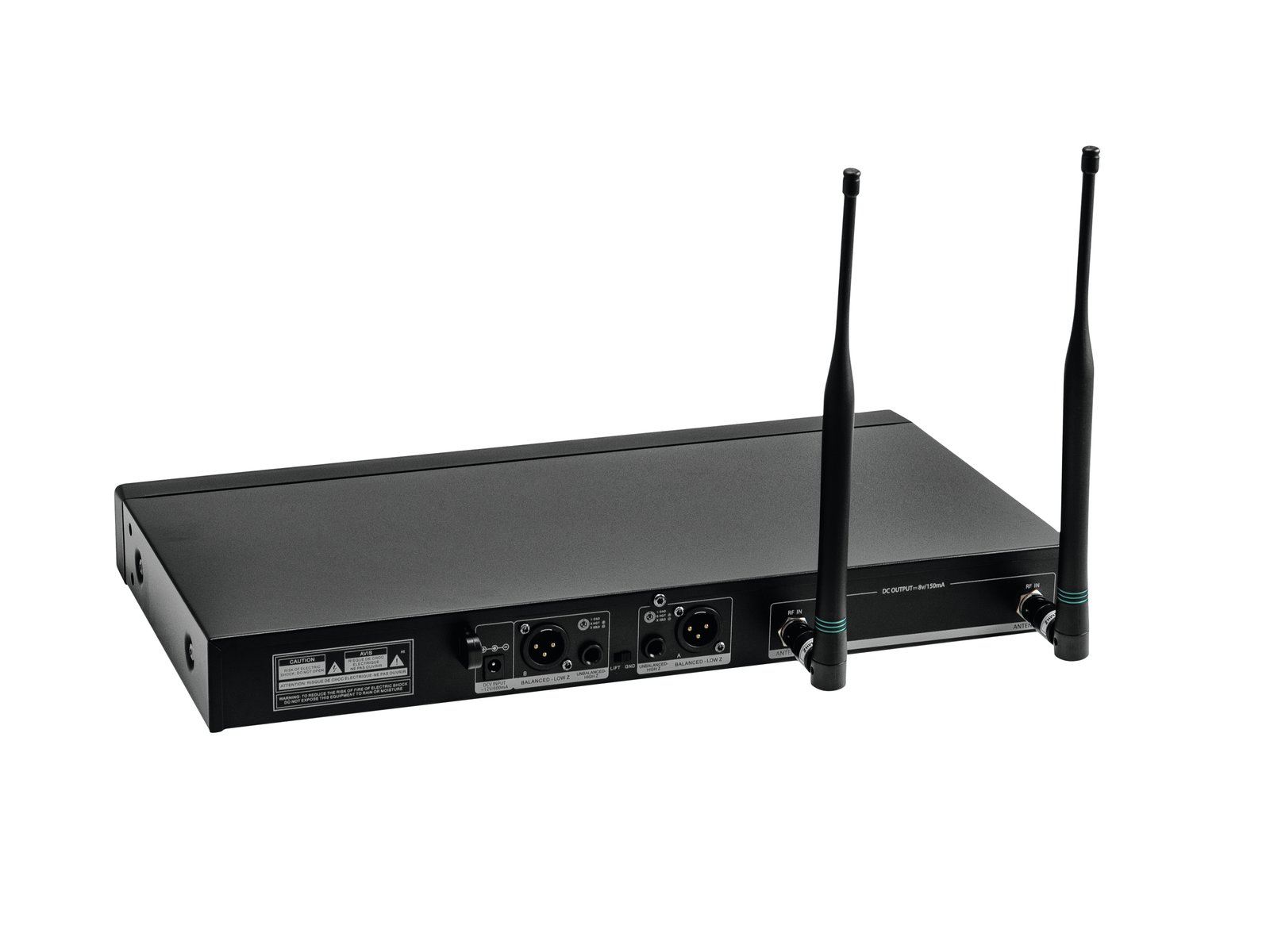

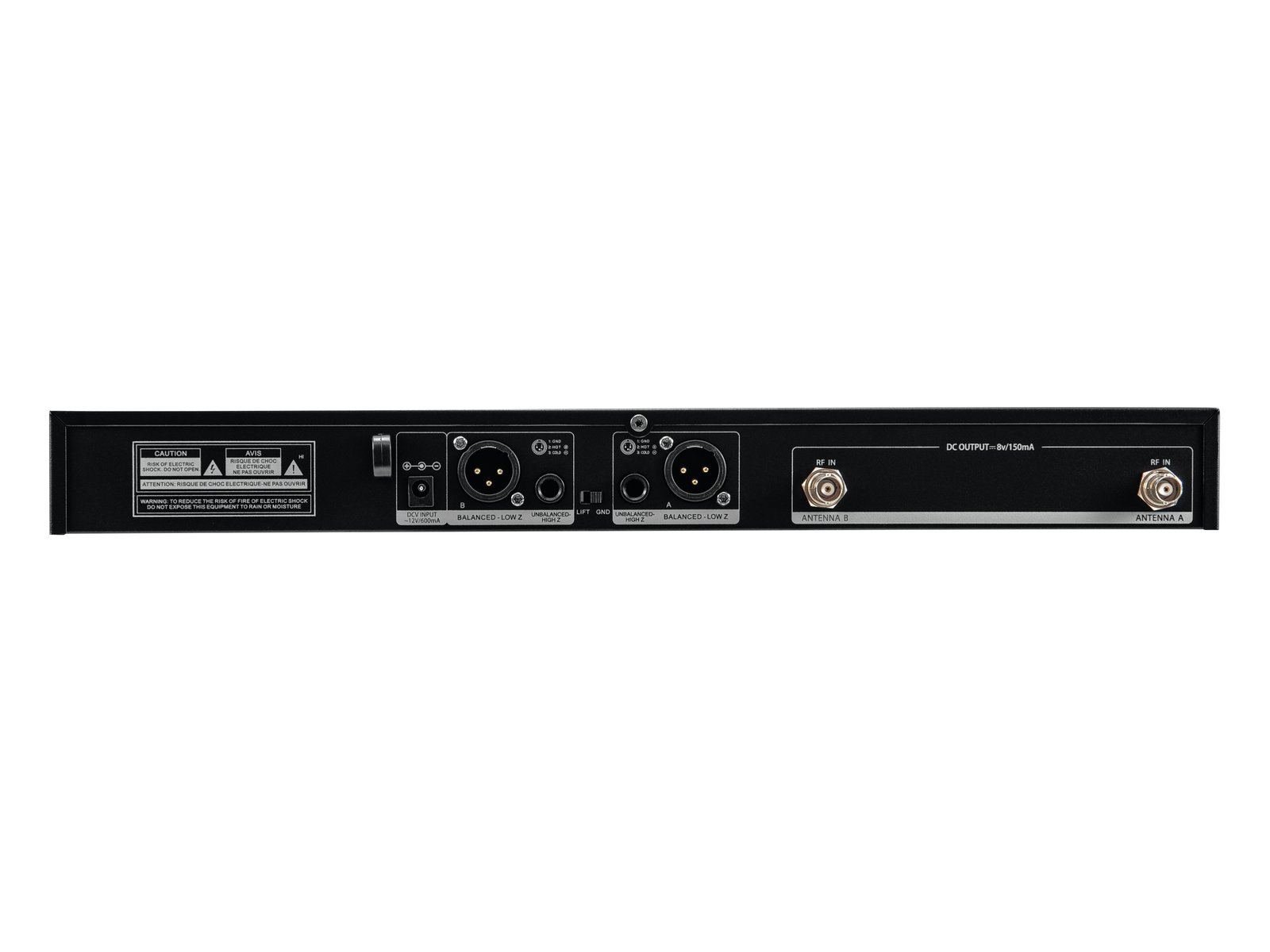

| Connections: | Output: line via 2 x XLR with 3 pins
Output: line via 2 x 6.3 mm jack (unbalanced)
Antenna via 2 x BNC (F) 8 V |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Frequency selection: | 90 switchable frequencies
In 10 groups with up to 10 preset frequencies each |
| Modulation: | FM |
| Frequency stability: | ± 0.0005 % |
| Range: | Operating range of up to 80 m with line of sight |
| Bandwidth switching: | 11 MHz |
| Diversity: | Antenna diversity |
| Material: | Metal |
| Housing design: | Desktop console housing
(19") 48.3 cm installation possible 1 U |
| Dimensions: | Width: 41 cm
Depth: 26 cm
Height: 4.6 cm |
| Weight: | 2.32 kg |
| RELACART UH-222D microphone |
| Type: | Handheld transmitter |
| Power supply: | 3 V DC |
| Capsule type: | Dynamic |
| Polar pattern: | Super cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 120 - 16000 Hz |
| Sensitivity: | -53 dB |
| Max. SPL: | 145 dB |
| Display type: | OLED display |
| Display: | Battery level, frequency, channel |
| Control elements: | Gain switch (high-mid-low), transmitter power switch (high-low) |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Frequency selection: | 90 switchable frequencies
In 10 groups with up to 10 preset frequencies each |
| Modulation: | FM |
| RF output power: | 10 mW |
| Range: | Operating range up to 80 m |
| Bandwidth switching: | 11 MHz |
| Switch: | On/off/mute switch |
| Material: | Aluminium |
| Dimensions: | Length: 26 cm
Diameter: Ø 5.4 cm |
| Weight: | 280 g |
