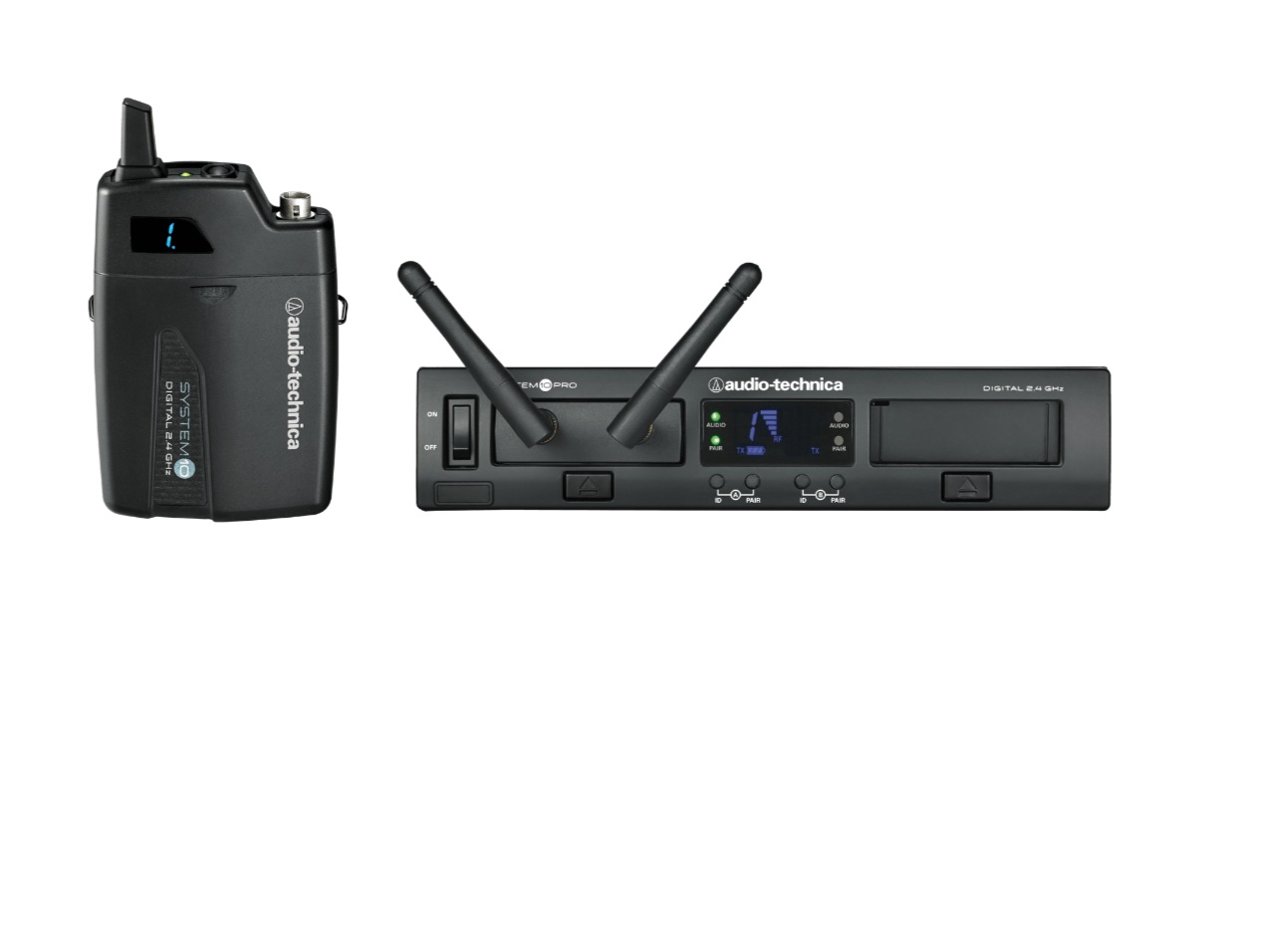

Audio-Technica ATW-1301 System 10 Pro

Audio-Technica ATW-1301 System 10 Pro - is a digital wireless system with a pocket transmitter that offers interference-free operation with other existing wireless systems in the 2.4 GHz band (outside TV transmission bands). The receiver can contain two receiver units, which can be operated locally or up to 100m away via Ethernet cable.

Up to 10 receiver units can be used simultaneously, using the included RJ12 cable in each system. It operates at 24-bit/48 kHz, easy installation, natural quality sound, ensuring diversity across 3 levels: frequency, time, and space.

• ATW-RC13 rack chassis, receiver ATW-RU13 and pocket transmitter ATW-T1001
• Operating frequency: 2.4 GHz ISM
• Rejection: >109 dB
• Total harmonic distortion: <0.05%
• Operating range: 60 m in open operating environment without signal interference
• Operating temperature: 0 to +40 degrees Celsius (battery usage time may be reduced at low temperatures)
• Frequency response: 20Hz to 20 kHz depending on the type of microphone.
• Sampling rate: 24 bit / 48 kHz
• Latency: 3.8 ms

Receiver specifications

• Reception type: Diversity (frequency/time/space)
• Output connectors (microphone): remote receiver connector - RJ45 / link connector RJ12
• Maximum output level: XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
• Power supply: 100-240V AC (50/60 Hz), 12V DC 0.5A via power supply.
• Dimensions: 209.8 mm W / 44 mm H / 169.3 mm D.
• Weight 940 g
• Included accessories: AC power adapter, link cable, rack mounting adapters, rubber feet.

Pocket transmitter specifications

• RF output power: 10 mW
• Input connector: 4-pin locking connector (Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V)
• Batteries (not included): 2x 1.5V AA
• Battery life: >7 hours (alkaline)
• Dimensions: 70.2 mm W / 107.0 mm H / 24.09 mm D
• Weight: 100 g
