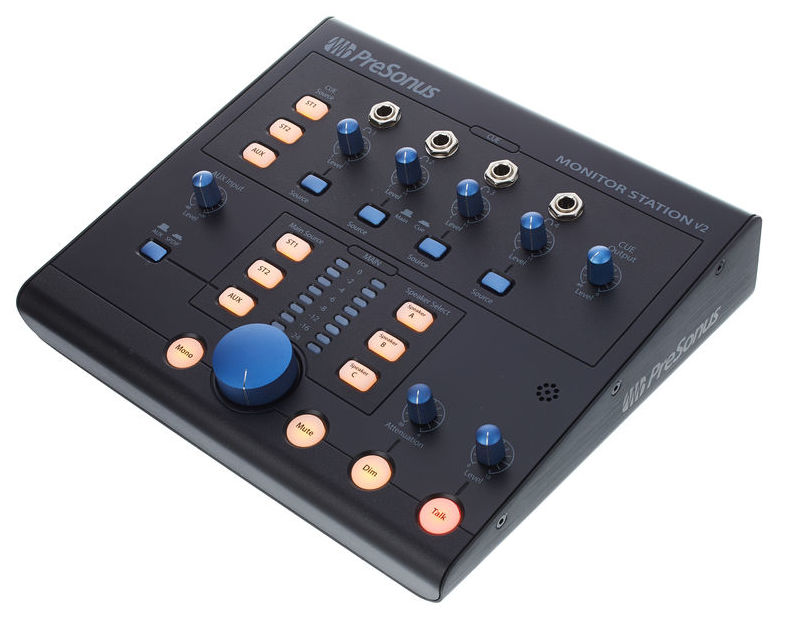

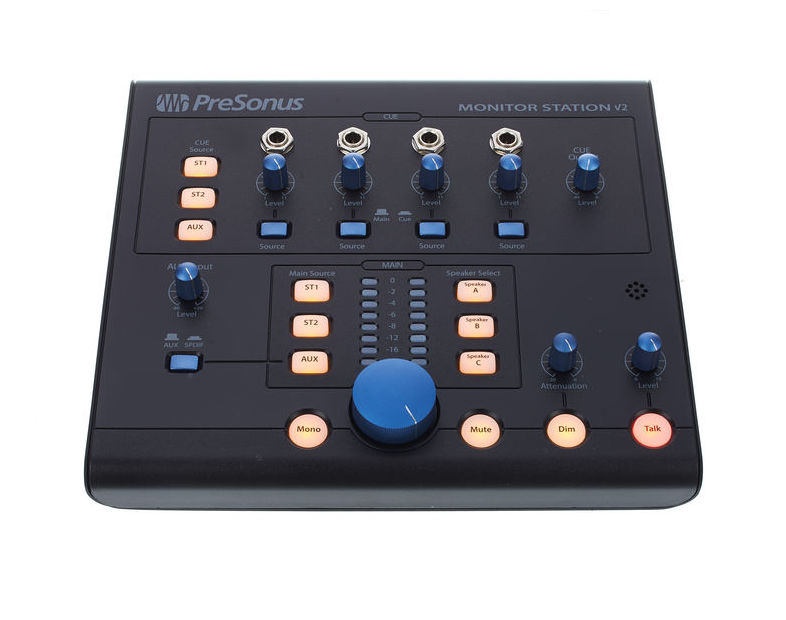

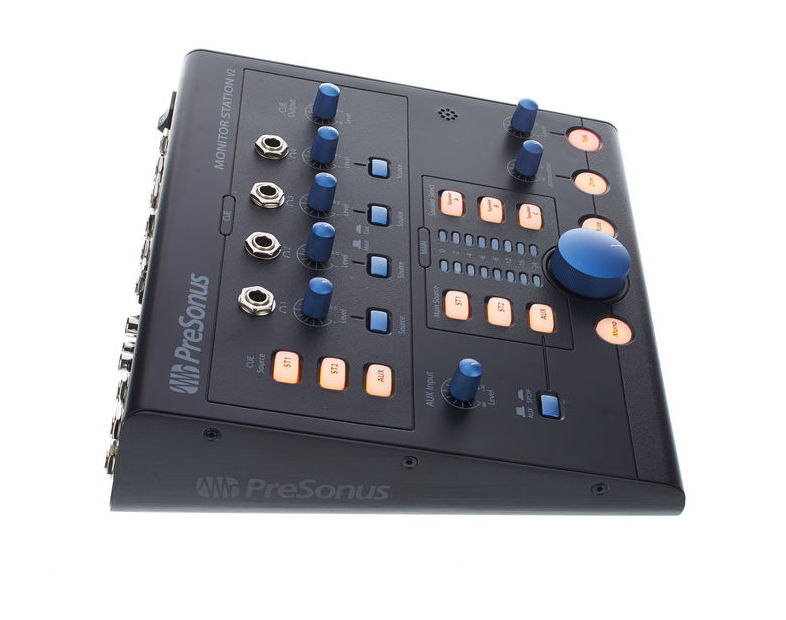

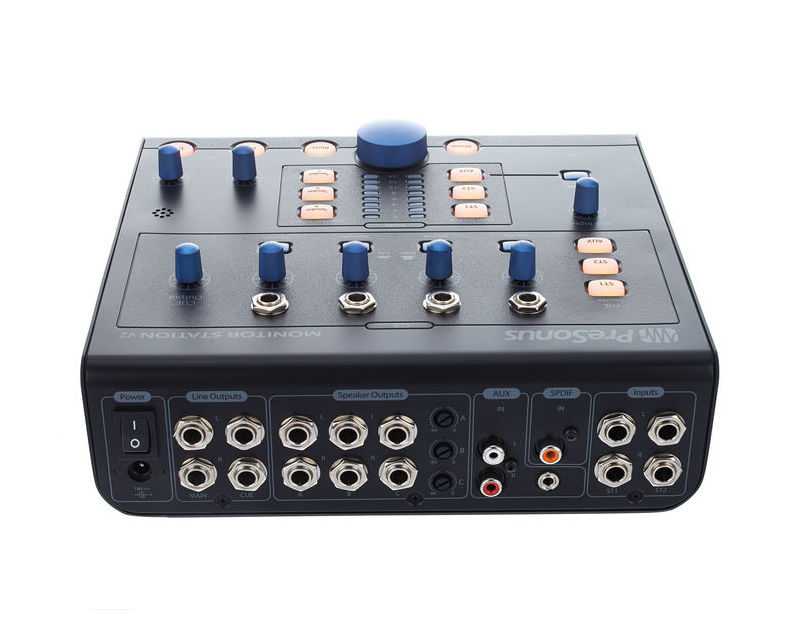

Presonus Monitor Station V2, studio controller for monitors, headphone amplifier with 4 channels and integrated talkback microphone. Allows routing of 2 stereo sources + aux or S/PDIF to 3 stereo outputs.
inputs:
2 x pairs of large Jack stereo
1 x aux stereo RCA
1 x digital S/PDIF coaxial (RCA), 44.1/48/88.2/96 kHz

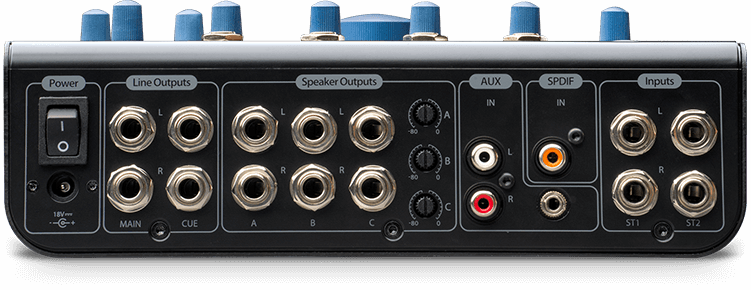

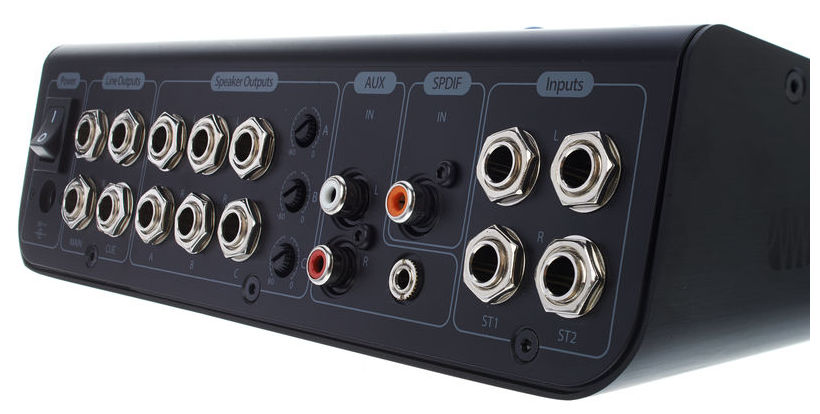

outputs:
3 x pairs of large Jack stereo, each with level control
1 x pair of large Jack line outputs
1 x pair of Cue Jack outputs
4 x stereo headphone outputs

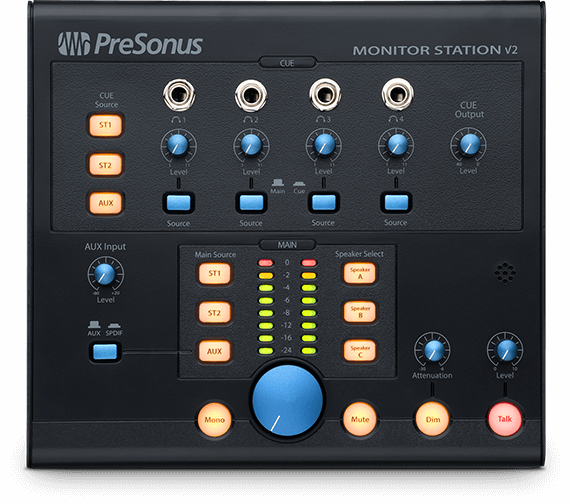

controls:
large Main level knob
3 source selection buttons
3 monitor output selection buttons
Cue section with source selector and output level control
aux and S/PDIF selector button
main mute, mono, dim buttons with variable attenuation
integrated condenser microphone for talk-back, controllable gain, Talkback button
headphone amplifier with power of 150 mW / channel
