Boss GA-FC EX

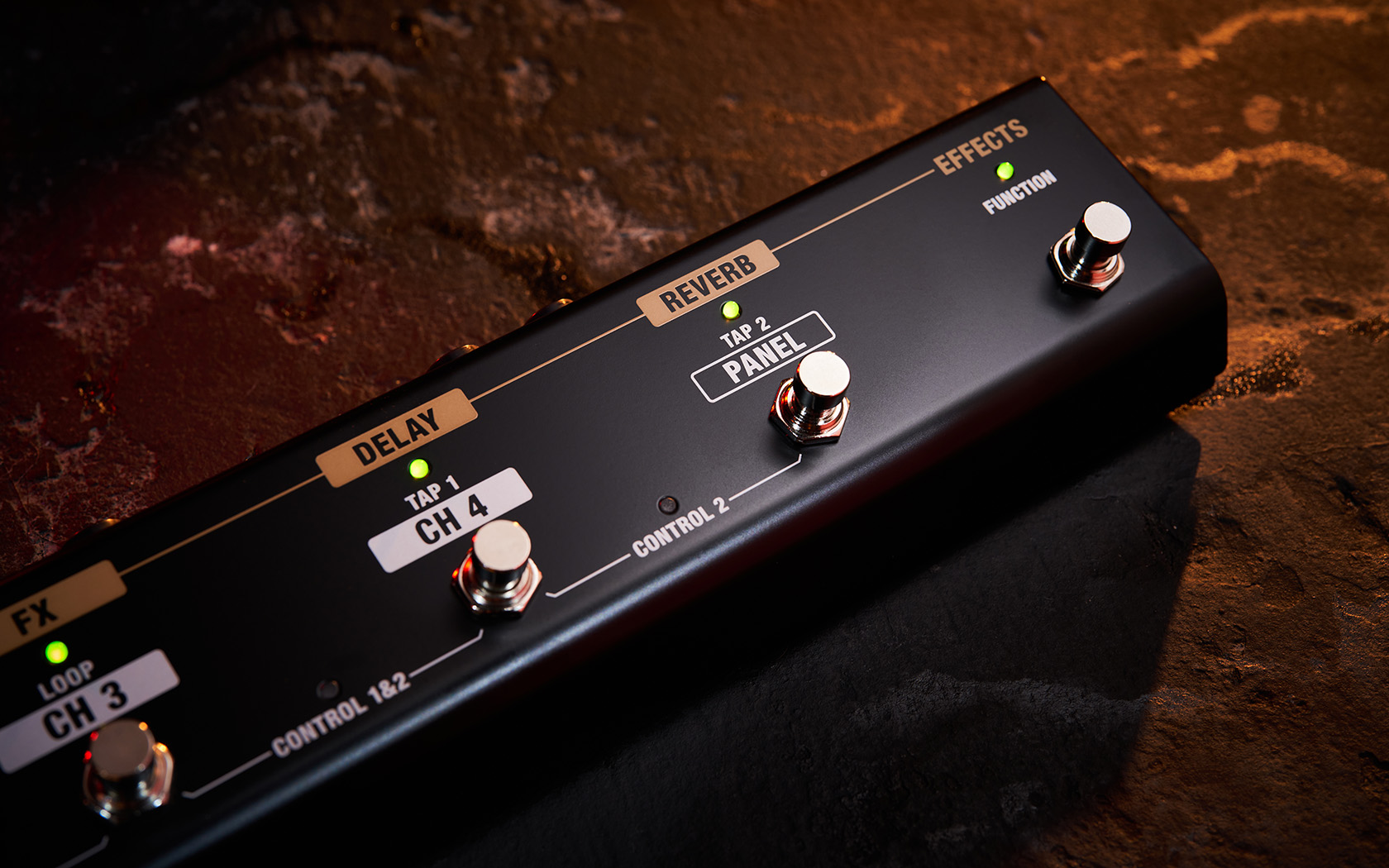

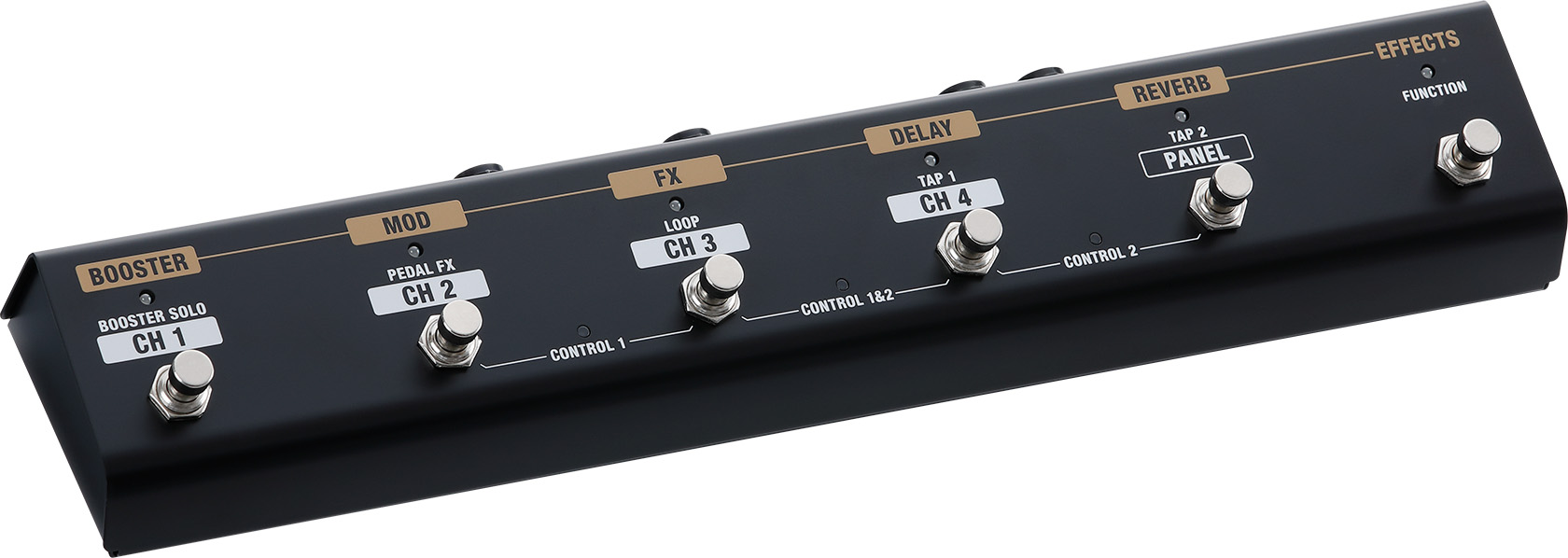

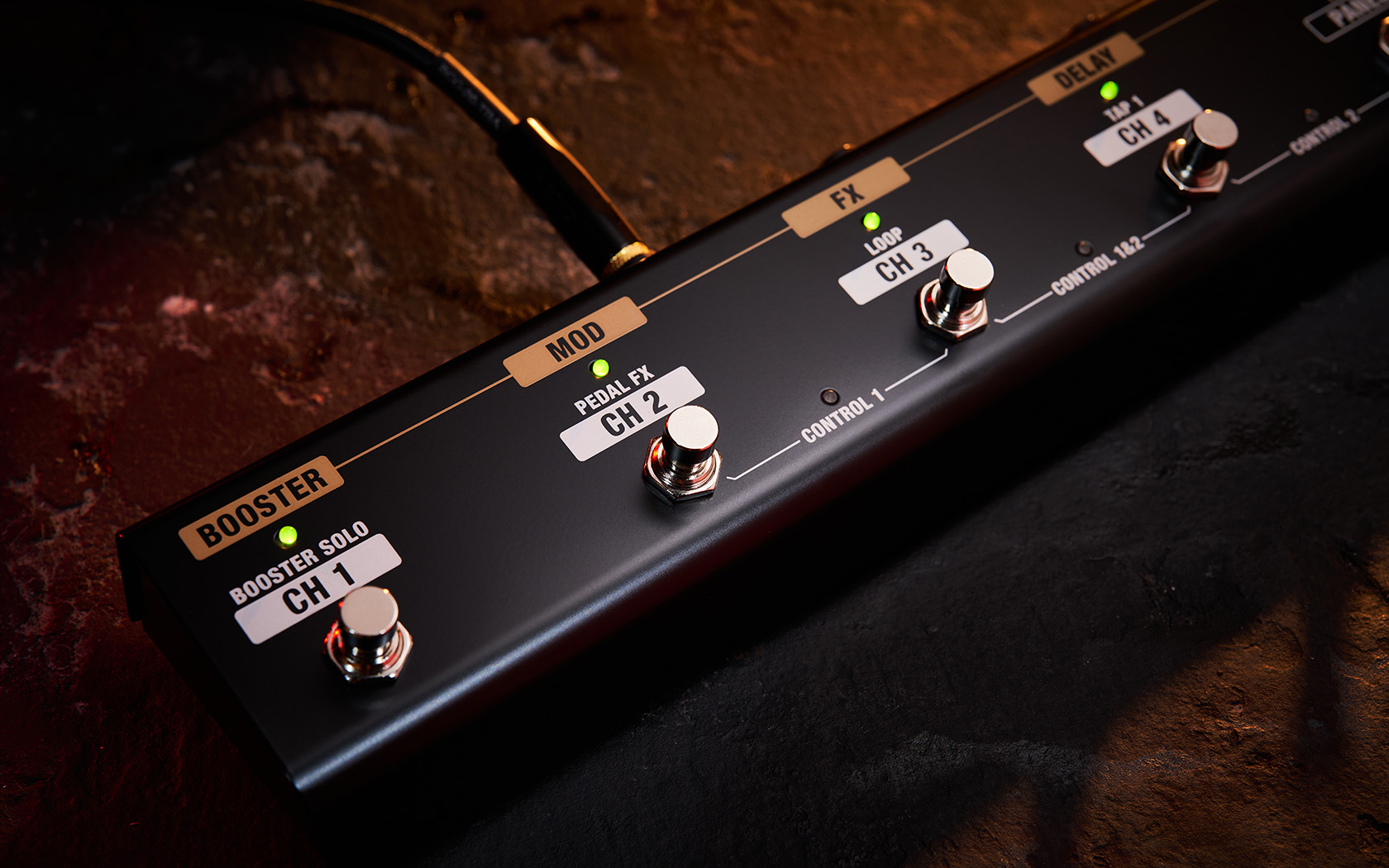

BOSS GA-FC EX - GA-FC EX offers extended foot control functionality for select BOSS amplifier models. It maintains the simple setup and intuitive workflow of the GA-FC standard while providing additional functions for greater performance flexibility.
General Features:
- Extended GA-FC with enhanced functionality for select BOSS amplifiers
- Robust metal chassis and six durable footswitches
- Control channel selection, effect activation/deactivation, and more
- Two-colour LEDs for easy visibility of control status
- Two jacks for dedicated expression pedals
- Additional control jack with three-way mode selector
- EXPAND mode for adding another GA-FC EX or GA-FC
- FOOT CONTROL 2 mode for operating two amps simultaneously
- EXP PEDAL 3 mode for a third expression pedal
- Functions as a standard GA-FC controller with other amplifier models
- Connects with a single 1/4 inch TRS cable (included) - no power required
More Power and Flexibility

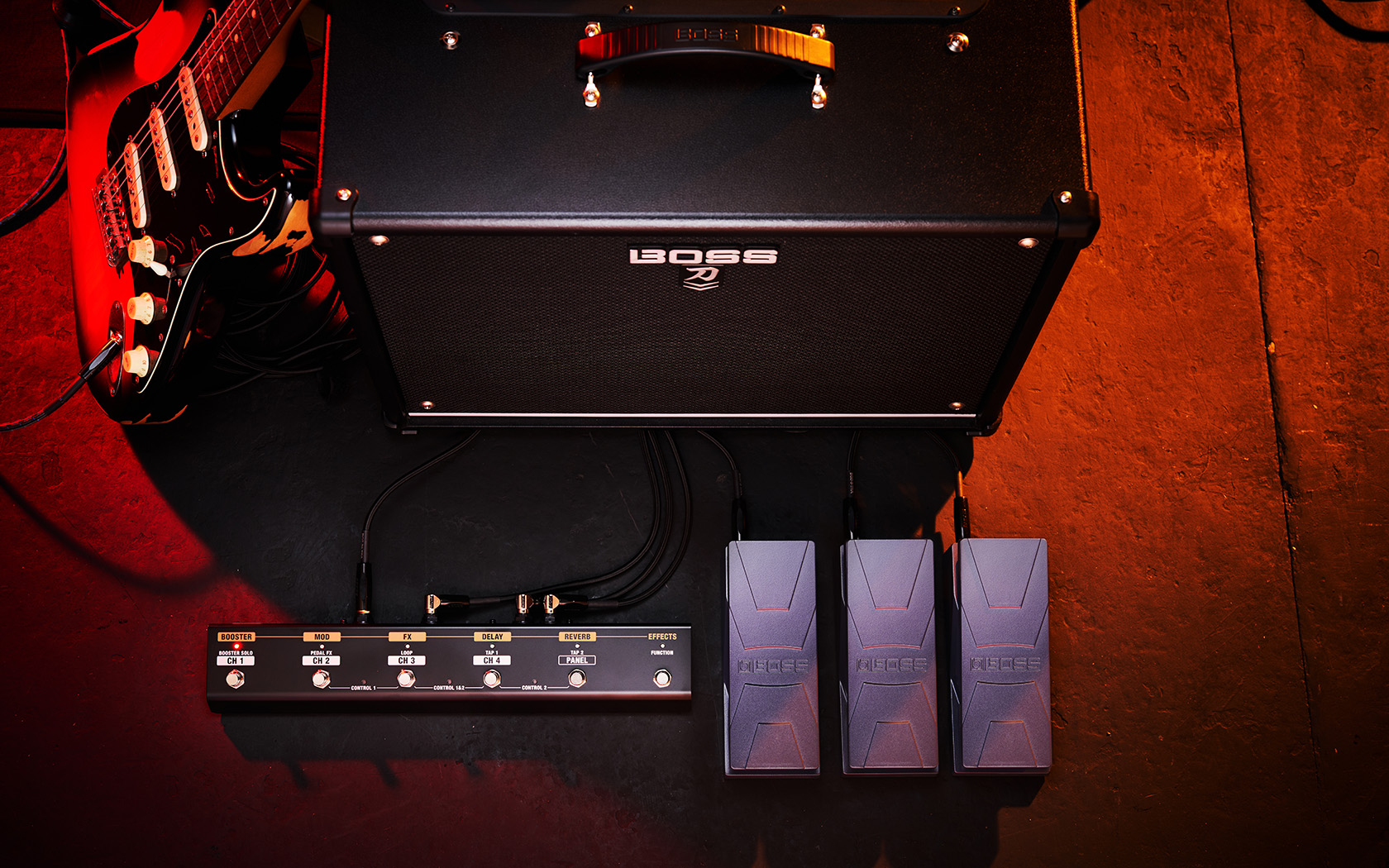

GA-FC EX builds on the GA-FC standard with many enhanced features. The two-colour status LEDs make it easy to see switching changes. And along with two jacks for dedicated expression pedals, there is an additional control jack with a three-way mode selector. This allows you to connect a third expression pedal or use GA-FC EX for expanded applications.
Improved Performance Control for Katana MkII Amplifiers
The mode selector on the GA-FC EX unlocks powerful control capabilities with the accepted Katana MkII models.
Double Your Footswitches
Set the mode switch to EXPAND and connect an additional GA-FC EX or a GA-FC standard for even more floor control. With doubled footswitches, you have instant access to all memories and effects simultaneously.

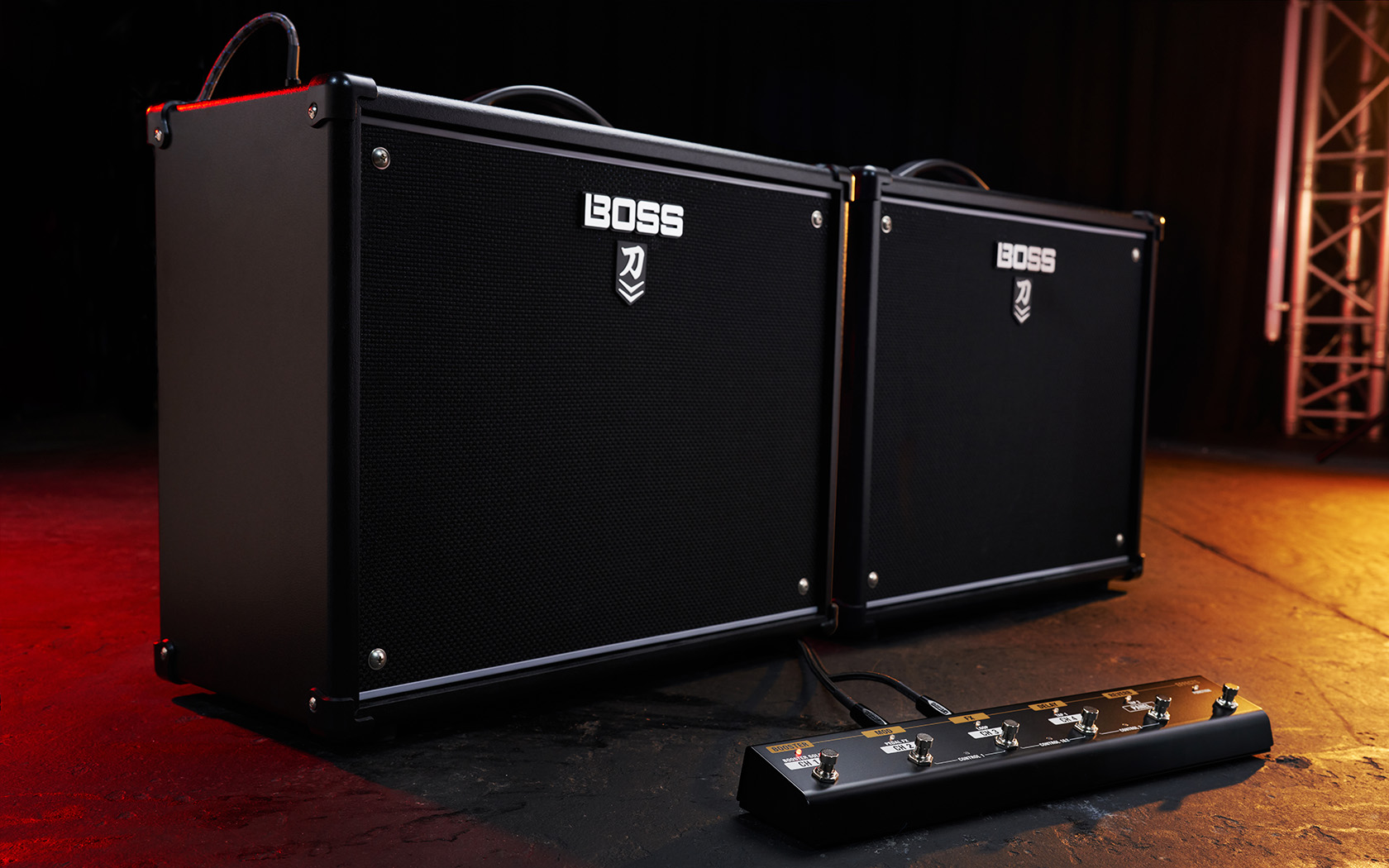

Operate Two Amplifiers
If you are using two Katana MkII amplifiers in configuration, the FOOT CONTROL 2 mode is for you. Connect a GA-FC EX via two cables to select memories and effects on both amplifiers, either together or independently.
Compatible Products
GA-FC EX can be used with the following BOSS and Roland products that support the GA-FC pedal, but only the standard GA-FC control functions are available.
- BOSS Nextone Special, Nextone Artist, and Nextone Stage
- BOSS Waza Tube Amp Expander
- BOSS Katana-210 Bass and Katana-110 Bass
- BOSS Acoustic Singer Pro and Acoustic Singer Live
- Roland Blues Cube Artist, Blues Cube Artist 212, and Blues Cube Tour
Technical Specifications:

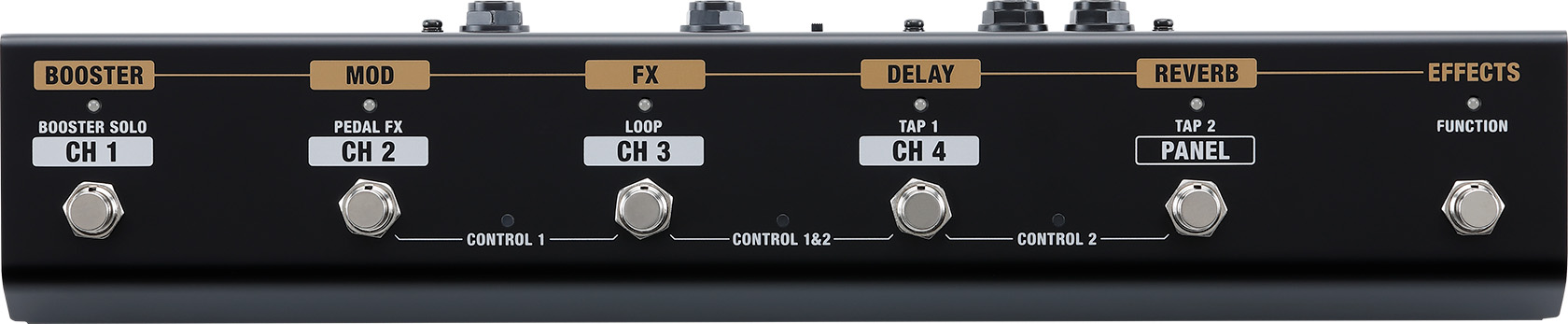

| Controls | Switch x 6 |
| Indicators | CH 1 -- CH 4 PANEL FUNCTION CONTROL 1 CONTROL 1&2 CONTROL 2 |

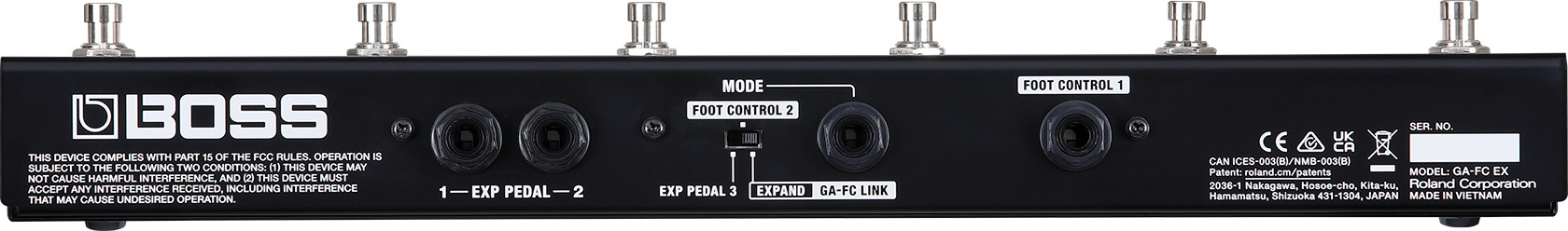

| Connectors | EXP PEDAL jack (1/4 inch TRS phone type) x 2 MODE jack (1/4 inch TRS phone type) FOOT CONTROL 1 jack (1/4 inch TRS phone type) |
| Accessories | User manual Controller cable |
| Dimensions | Width: 392 mm Depth: 81 mm Height: 49 mm |
| Weight | 1.0 kg |
Product code: 425121
Unit of sale: piece
