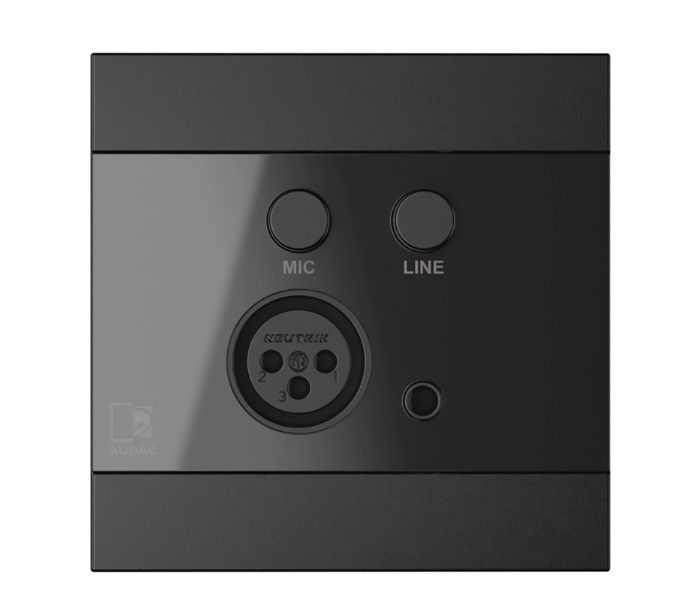

Audac WP 205 Black

Panel type mixer

wall mixer designed for remote use with ARES5A active speaker system.
converts signals from stereo audio sources or balanced microphones.
output level of +12 dB for optimal performance.
includes various input options: 3.5 mm stereo jack and female XLR.
compact dimensions of 80 x 80 mm, available in black (RAL9005).

Variants:

96⁸⁵ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

498 points of loyalty

Shipping 8.00 €

Warranty 24 months

Returns 14 days

request details

Audac WP 205 Black Add to cart: 96⁸⁵ €

WP 205 black is a wall mixer for remote use, designed to be used in combination with the ARES5A active speaker system. It converts the signal from a stereo audio source at line level (such as a tuner, mobile devices, ...) or a balanced microphone to the corresponding differential signal input on the ARES5A (RJ45).

Output level +12 dB
Inputs
- 3.5 mm stereo jack/line
- Microphone input - female XLR
- EURO TERMINAL BLOCK output connection with 8 pins (3.81 mm pitch)
Control
- Individual input level control for microphone and line
- Phantom Power (DIP switch on the back)
- Low-cut activation/deactivation (Microphone) (DIP switch on the back)
- Mono/Stereo switch (DIP switch on the back)
Dimensions 80 x 80 mm
Colours Black (RAL9005)
