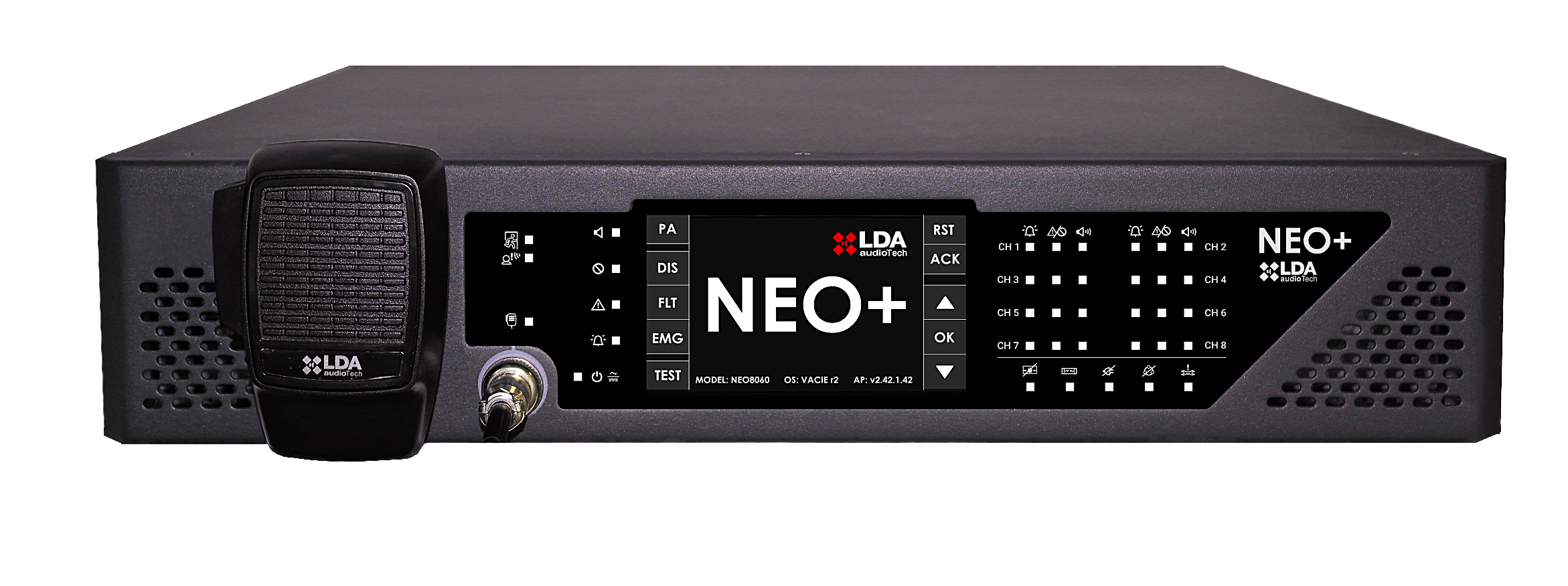

LDA audioTech NEO 8060 S03 - Main controller of the LDA NEO+ system (S03), a complete solution for public address and evacuation systems and certified EN54-16. Along with excellent audio quality, Neo also offers scalable flexibility, featuring 8 integrated Class D amplifiers, an integrated PTT microphone, a touch screen for easy control, and 22 GPIO ports.
The NEO-Configurator control software allows remote configuration and enables the creation of events triggered by various conditions: input level, date/time, UDP commands, GPIO, or buttons from MPS microphones.
Features:
- certified in accordance with EN 54-16 standard.
- Triple IP port for transmitting level 3 digital sound with AES67 protocol
- remote control/supervision,
- redundant cascading connection of NEO+ units
- Extensions or operation in multi-site environments with multiple NEO+ systems.
- Allows standalone operation or redundancy with a second NEO8060+ unit in a hot standby configuration.
- Equipped with 5 analog audio inputs and integrated amplification in 100V/70V lines:
- 8 Class D amplifiers of 120W per channel.
- Two A+B amplification outputs.
- 8 preamplification outputs for connecting to external amplifiers.
- Has 22 GPIO ports (8 monitored for integration with fire panels)
- Supports up to 8 devices on ACSI bus v1 or 32 devices on ACSI bus v2 connected directly
- MPS-8Z microphones or emergency panels VAP; and up to 64 devices on ACSI bus using the LDA NEXO converter via IP networks.
- Equipped with a 4.3'' touch screen
- Integrated PTT microphone.
- Internal memory for up to 100 pre-recorded messages
- Integrated into the LDA EVAC CONTROL software platform for operational control and LDA EVAC CLOUD for remote cloud telemanagement.
- Allows digital audio reception in DANTE protocol via the LDA DANTE16 accessory.
- NEO Configurator software for configuration, allowing event programming included.
- Dimensions: 483mm x 88mm x 455mm.
- Weight: 13.5Kg.
Specifications:
- Power supply 115 / 230V~ 50/60Hz
- Power consumption 550W max / 100W at 1/8 output power
- Frequency response 20 - 20,000Hz +/-1dB
- Signal-to-noise ratio R>98dB, A-weighted
- Distortion factor <0.05%
- Gain adjustment on each channel -100dB -0dB, steps of 1dB
- Integrated DSP. 48 kHz, 24 bits - 344 MIPS
- FlexNet/ Cobranet 2 x FlexNet Redundant (automatic switching)/ Cobranet, Ethernet10/100Mbits. RJ-45 female
- Audio inputs 5 x balanced audio 1Vp, 0.707Vrms. 10 K, 3 pins, Euroblock type Ω
- LDA ACSI Bus 1 x balanced audio 1Vp, 0.707Vrms. 10 K, RJ-45 female, Total 800m. / 2624.7ft Ω
- Preamplification audio outputs 8 x balanced audio 1Vp, 0.707Vrms. 100, 3 pins, Euroblock type Ω
- Audio / Ctrl. Outputs 1 x balanced audio, 1Vp, 0.707Vrms. 100 / 0 - 5V DC output 100, 4Pin, Euroblock type Ω Ω
- ATT control 8 x Override 24V DC, 8 x 40mA, 2 pins, Euroblock type (4-pin connector)
- Emergency control inputs 10 x 0 - 5V DC, monitored inputs, 2 pins, Euroblock type (4-pin connector)
- Emergency control outputs 2 x relay contact Isolated output, NO, Max 60V DC 130mA, 2 pins Euroblock type (4-pin connector)
- Emergency control outputs 2 x relay contact Isolated output, NO, Max 60V DC 130mA, 2 pins Euroblock type (4-pin connector)
- General control (GPIO) 14 x Control I/O, 0 - 5 V, 100, 3Pin, Euroblock type Ω
- Virtual matrix 32 x 1024
- Amplifier 8 x 120W Class D, 60Wrms x 8 @ 70 / 100V. Minimum load 166 Ω
- Speaker outputs 16 (8 managed double lines) x 70 /100V. 2 pins, Euroblock type (4-pin connector)
- Speaker loop input 16 (8 double) x no voltage contact, 3 pins, Euroblock type.
- Backup amplifier inputs 8 x 60Wrms at 70 or 100V, 2 pins, Euroblock type (4-pin connector)
- Protection Overtemperature, DC, infrasonic, short circuit, slow start, overload. Startup test.
- Emergency power input 1 x 20 - 25V DC, 20A, with fuse, 2 pins, Euroblock type.
- Emergency power state inputs 3 x NO - NC, 3 pins, Euroblock type
- TFT display 480x272 4.3'' with touch panel
- Operating conditions -5 °C to +45 °C / 23 °F to 113 °F
- 5% to 95% relative humidity (without condensation)
- Front finish: Steel, RAL 7016 grey
- Back: Steel, RAL 9005 black
- Chassis: Aluminium, RAL 9005 black
- Weight 13.5 Kg / 29.76 lb
- Dimensions (L x W x D) 483mm x 88mm x 455mm / 19“ x 3.46” x 18”
- Accessories 2 x rack mounting, male Euroblock connectors, installation screws, 4 x rubber foot, 1 x 2m / 6.56ft power cable (EU type), 1 x 2m / 6.56ft Ethernet cable.
