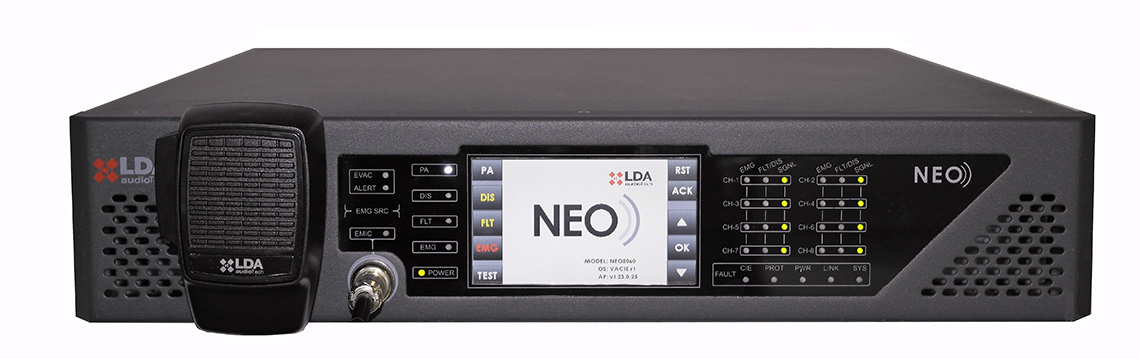

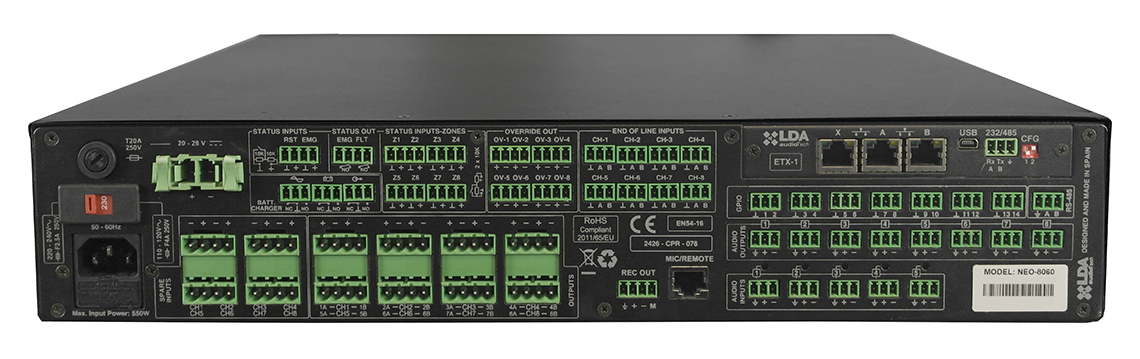

LDA Neo 8060 is a complete solution for public address and evacuation systems and is certified EN54-16. In addition to excellent audio quality, Neo also offers significant flexibility, featuring 8 integrated Class D amplifiers, 5 analog inputs, a 7 x 8 audio matrix, a touchscreen for easy control, and audio over Cobranet network.
The NEO-Configurator control software allows for remote configuration and enables the creation of events triggered by various conditions: input level, date/time, UDP commands, GPIO, or buttons from MPS microphones.
General features:
- 5 audio analog inputs
- 8 x Class D amplifiers with 2 possible configurations on 70/100V:
- 7 x 8 audio matrix, expandable up to 39 x 2014
- 8 x preamplified outputs for external amplifiers
- can connect up to 8 MPS-8Z microphones or VAP-1 modules via network cable
- 24-bit / 48 kHz DSP: parametric EQ with 7 bands on inputs/outputs, sound enhancer, individual volume control on each I/O channel
- triple Ethernet port for Cobranet control and monitoring connection and for system expansion with NEO Extension modules
- 4.3'' touchscreen with access control over configurations
- 4 GB storage capacity for pre-recorded messages
- integrated emergency microphone
- controls up to 32 AT6 attenuators
- integrated front speaker for monitoring
- 22 GPIO ports, 8 monitored for integration with fire alarm panel
- dimensions: 483 x 88 x 455 mm
- weight: 13.5 kg
Evacuation and voice alarm features:
- certified EN54-16 and EN 60849
- fault detection and indication for all evacuation functions
- integration with fire alarm panel
- pre-recorded evacuation messages
- phased evacuation
- manual control over evacuation stages with access control
- emergency log
- monitoring of amplifier lines
- A+B connections (16 lines)
- backup amplifier connection: 7 + 1 (120W channels) or 4 + 1 (250W channels)
