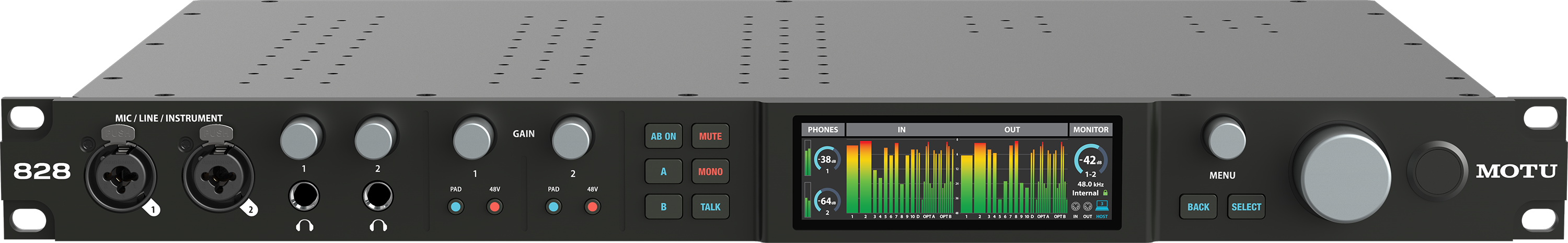

MOTU 828 (2024)

MOTU 828 (2024) - 28 x 32 USB 3.1 audio interface with USB-C connection:

• THD+N line outputs: -114 dB
• Audio resolution: 24-bit / 192 kHz
• ESS Sabre32 Ultra DAC technology
• 3.9" LCD display (480 x 128)
• Line inputs (dynamic scale): 120 dB
• THD+N line inputs: -114 dB
• Microphone preamplifier: -129 dB
• Microphone preamplifier with gain +74 dB
• Line outputs: 125 dB
• 48 V phantom power
• 60 simultaneous usable channels (28 inputs and 32 outputs)
• Dimensions (L x W x H): 482 x 311 x 44 mm
• Weight: 5 kg
• System requirements for interface: Windows 10 or later, Mac OSX 10.13 or later
• DSP-controlled digital mixer with effects such as:
  • reverb,
  • 4-band EQ
  • gate
  • compressor
• Includes: USB cable / Software

Connections:

• 2 x Send/return 6.3 mm balanced Jack
• MIDI input and output
• Word clock input and output: BNC
• 2 headphone outputs
• Pedal input: 6.3 mm Jack
• USB-C connection (also compatible with USB type A)
• 2 x microphone / instrument / line inputs: XLR / 6.3 mm combo jack
• 8 line-in inputs: 6.3 mm unbalanced Jack
• 8 line outputs: 6.3 mm unbalanced Jack
• 2 x XLR outputs
• 2 ADAT input/output
• 2 x ADAT input and output
• Coaxial S/PDIF (24-bit 96 kHz)
