M-AUDIO AIR 192-14

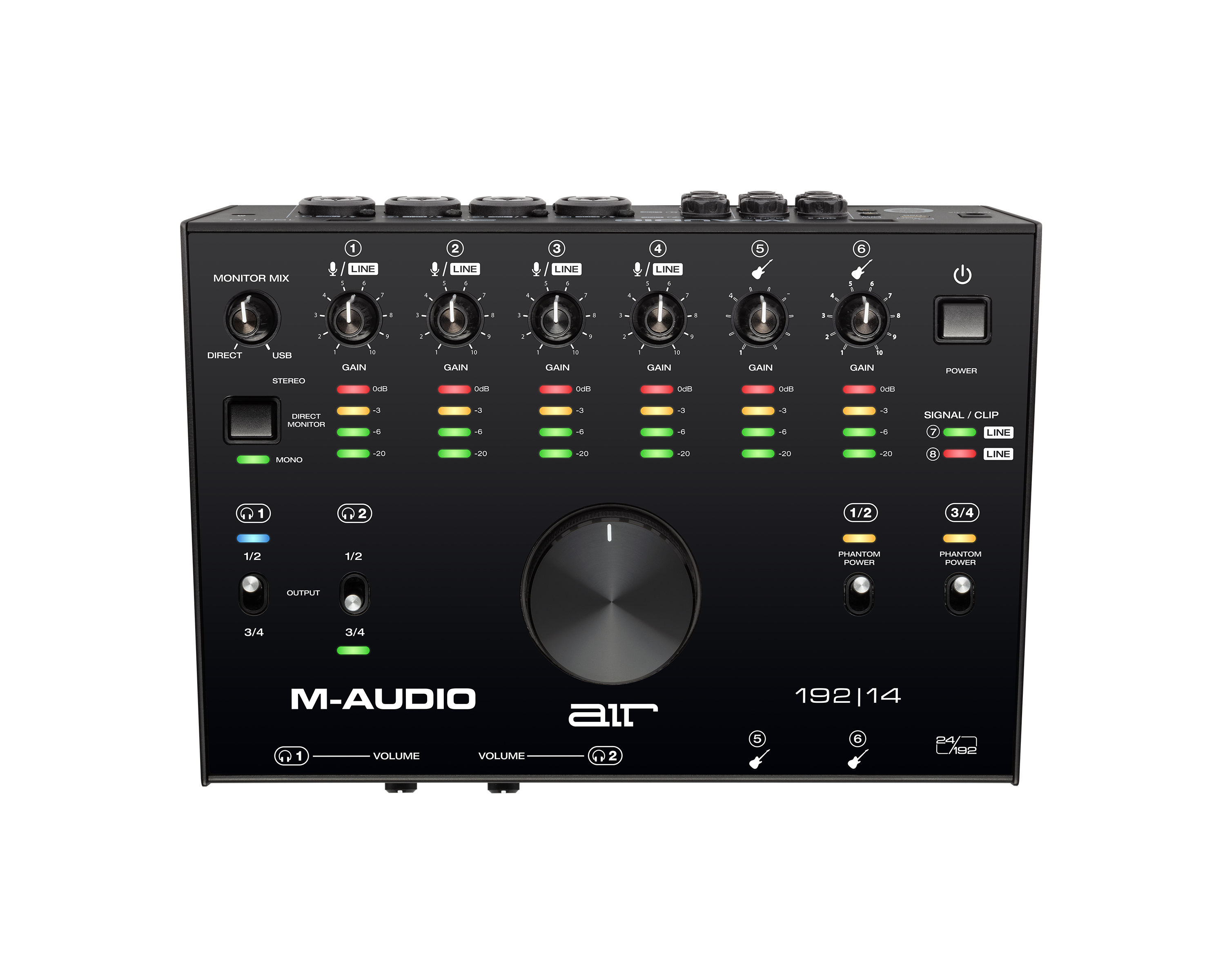

M-Audio AIR 192|14 is a USB audio/MIDI interface with 8 inputs and 4 outputs, providing all the connections and software you need to easily create professional 24-bit/192kHz studio-quality recordings. The AIR 192|14 features 4 Crystal preamplifiers, line and instrument inputs with gain and special impedance for guitar and bass.

• 24-bit / 192 kHz resolution
• Latest generation USB circuit with round-trip latency of 2.59 ms
• 4 x Crystal™ microphone preamplifiers
• Simultaneous channels: 8 inputs and 4 outputs
• Extended LED VU meters

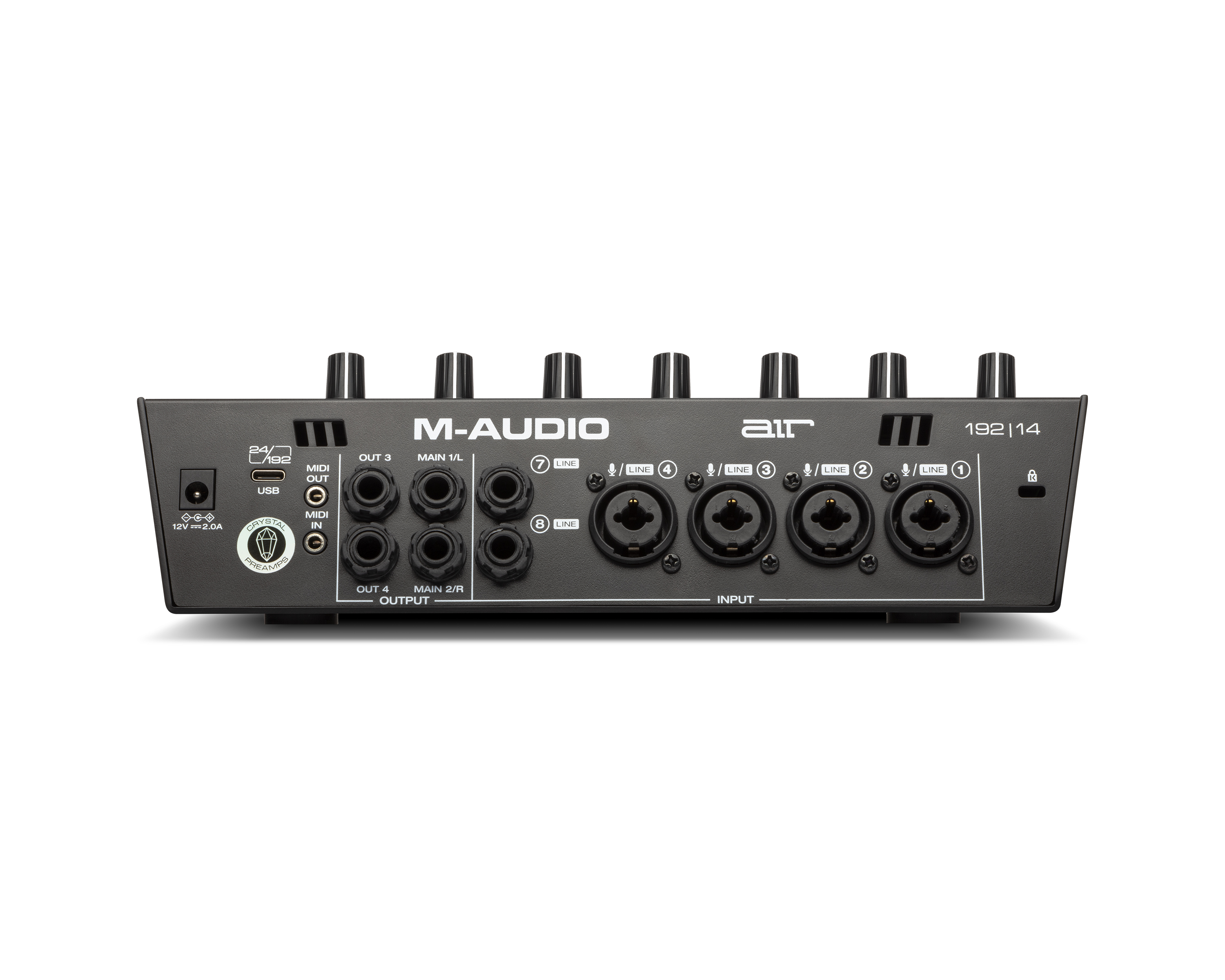

• Inputs:
  • 4 x XLR/Jack combo microphone/line
  • 2 x 1/4" line jacks
  • 2 x 1/4" Hi-Z instrument jacks
• MIDI I/O
• Outputs:
  • 2 x 1/4" main stereo jacks
  • 2 x 1/4" line jacks

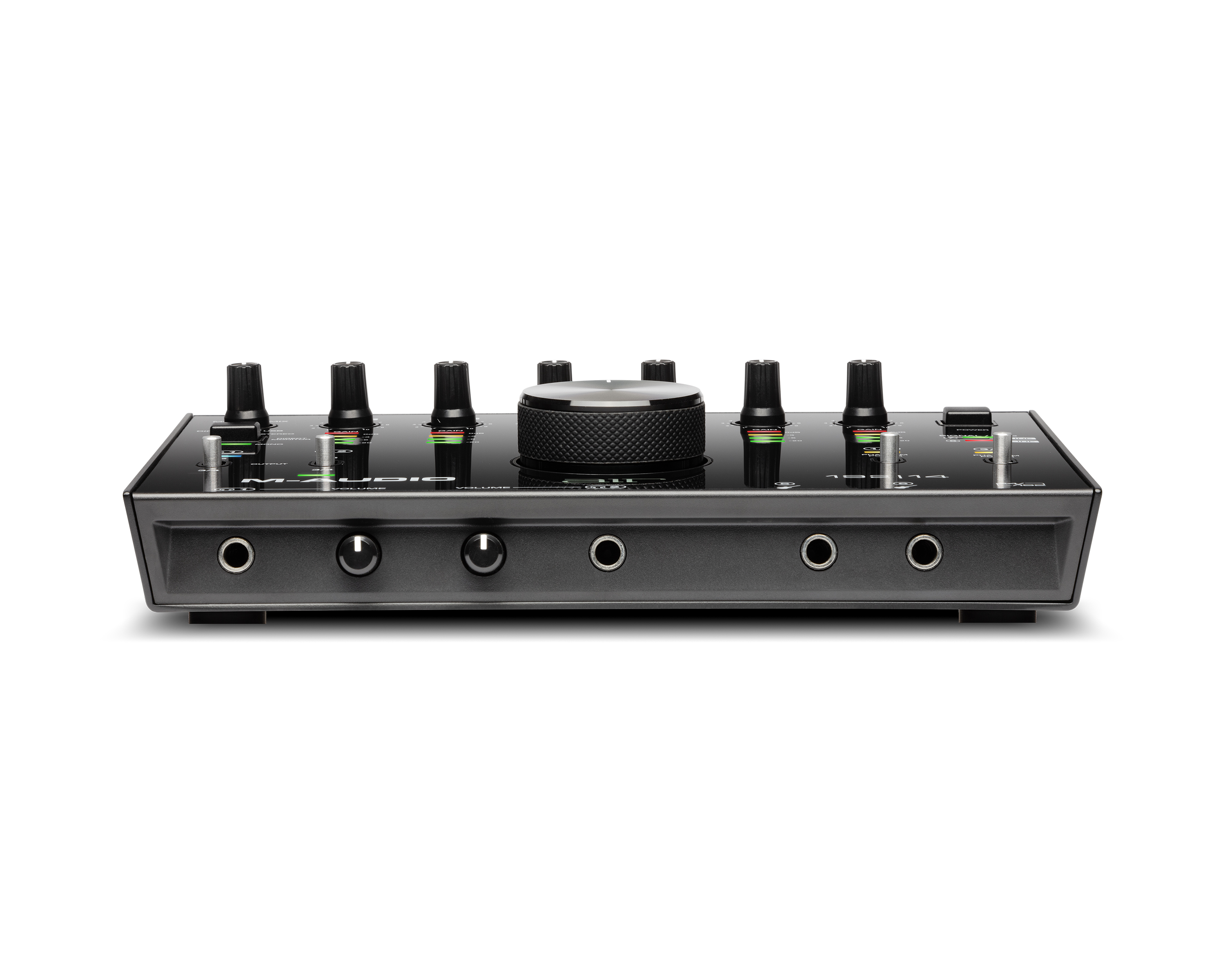

  • 2 x headphone outputs
• The headphone outputs have a source selector and separate level control
• Solid metal chassis
• Frequency range: 20 Hz – 20 kHz (+/-0.2 dB)
• Dynamic range: 113 dB (A-weighted)
• Switchable phantom power on channels 1-4
• Gain:
  • Microphone: 62 dB
  • Line: 61 dB
  • Instruments: 59 dB
• Headphone amplifiers:
  • Dynamic range: 111 dB
  • Maximum power: 160 mW (<1% THD, 32 Ω load)
  • Maximum level: +15 dBu (unloaded)
  • Impedance range: 32 Ω – 600 Ω
• The package includes:
  • AIR 192|14 audio interface
  • USB-C to USB-C cable
  • USB-C to USB-A cable
  • 2 x 1/8" (3.5 mm) MIDI adapters
  • Software download card
• Includes an extensive recording software suite (Pro Tools First), production, effects, and instruments
• Minimum system requirements:
  • USB 2.0 or USB-C port
  • Windows: 7 (32 or 64 bit)
  • OSX: 10.8
