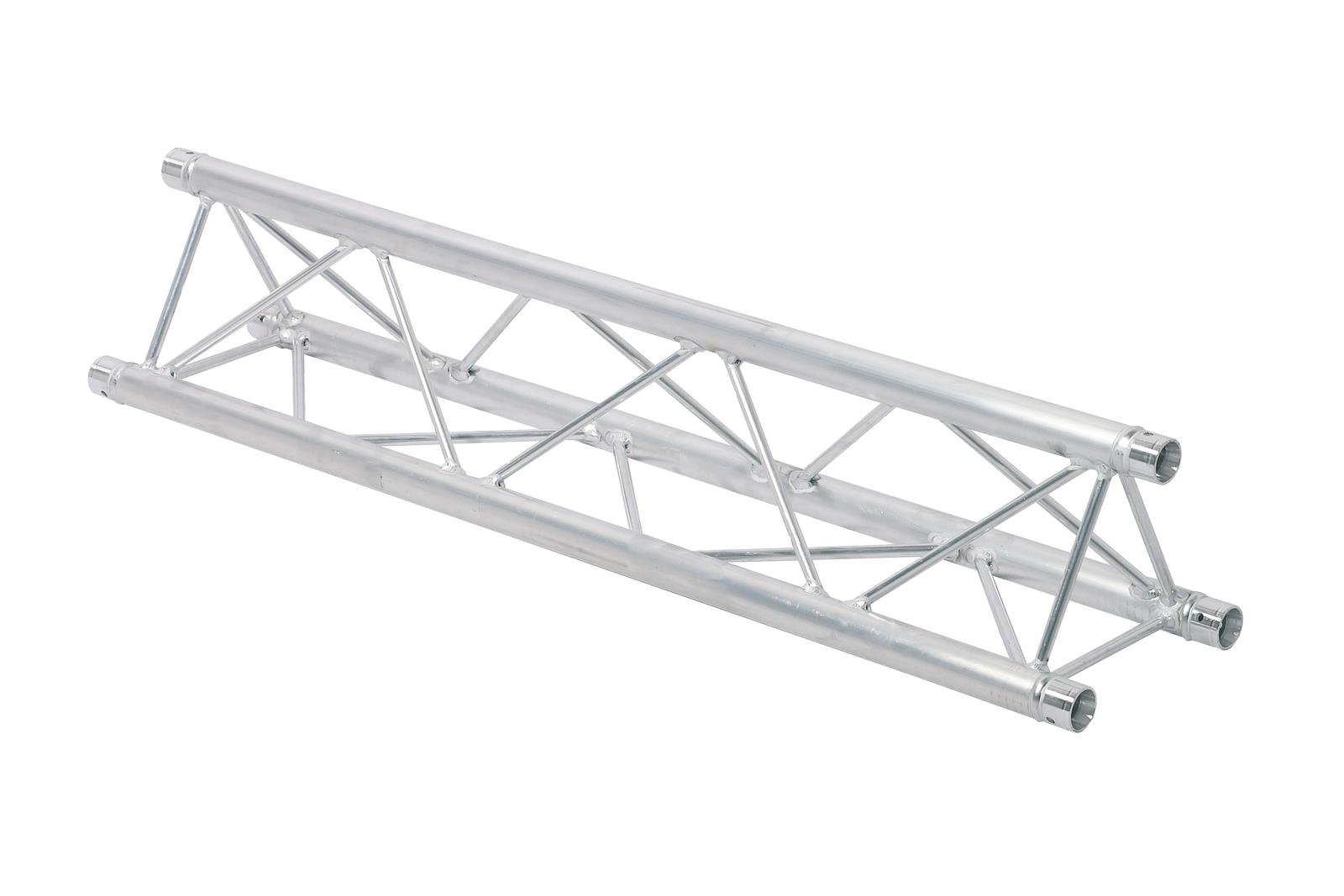

DECOLOCK DQ3 3-Point Truss System DECOLOCK DQ3 is a 3-point truss system made of aluminium. The individual elements are connected by three cones, pivots, and pins. The advantage of the conical connection system is that the cones fit completely into the main chords, ensuring the highest load capacity. The Quick-Lock system allows for quick, efficient, and highly aesthetic assembly when truss constructions are frequently assembled and disassembled. The three main chords are made of 35 mm aluminium tube with a wall thickness of 2 mm and provide sufficient strength with a low weight. The braces have a diameter of 10 mm with a wall thickness of 2 mm, giving the system a decorative appearance. With DECOLOCK, you can create compact installations with low self-weight, for example for shop exhibitions, shop decorations, exhibitions, interior design, trade fair stands, nightclubs, and theatres. DECOLOCK is primarily designed for decorative installations and can be used for permanent or temporary installations due to its extremely aesthetic appearance. The advantages of this system are the compact construction with external dimensions of 220 and 195 mm, low weight, optimal strength combined with easy and quick assembly. The documentation for this truss system is closely linked to the SQ P1 - Truss Systems Practice Codes published by VPLT/PLASA. The load table as a calculation basis can be downloaded from the Internet before purchasing the product! Please note: this truss system must never be combined with other systems!
Universal 3-Point Truss System with Lightweight Construction
- Aluminium alloy for a classic high-tech appearance
- Quick, efficient, and reliable assembly via quick-locking conical connectors
- A wide selection of lengths, circular elements, and collars offers maximum flexibility
- Special models according to customer specifications available upon request
- Trusspipe: 35 mm
- Any RAL colour available upon request
- Various versions available
- TÜV Süd certified
- For applications such as: Theatre; Trade fair and shop setups; Installation; Stage
Package Contents
| Trusspipe: | 35 mm x 2 mm |
| Welding Technique: | TIG welding |
| Welding Material: | AlMg 5 |
| Colour: | Coloured aluminium; any RAL colour available upon request |
| Bar diameter x thickness: | 10 x 2 mm |
| Dimensions: | Length: 25 cm
Width: 22 cm
Height: 19.50 cm |
| Weight: | 1.10 kg |
