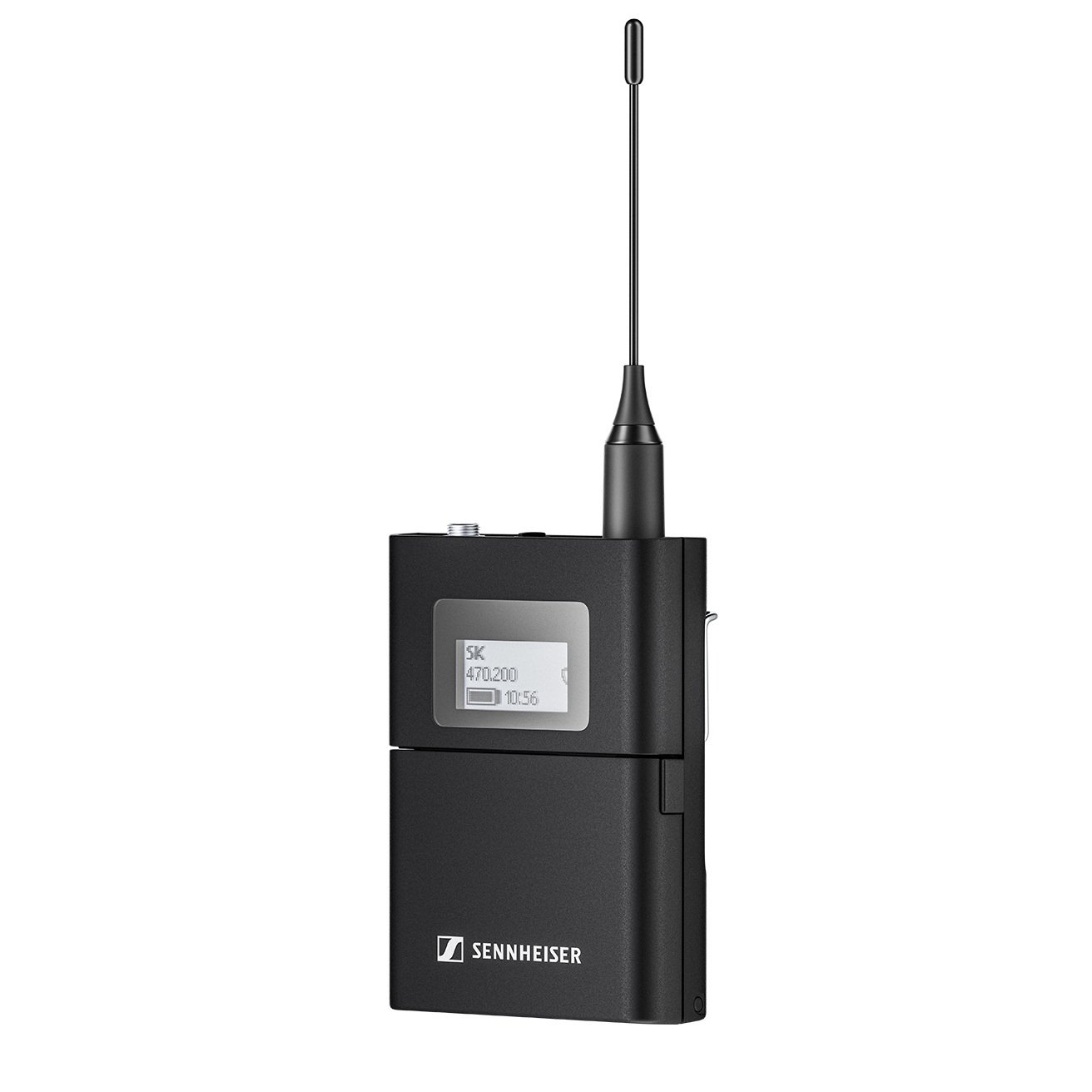

Sennheiser EW-DX SK Q1-9 - Digital wireless transmitter with a 3.5 mm jack connector compatible with Evolution Wireless Digital systems. Robust metal housing, up to 12 hours of operation, persistent E-Ink display, and charging contacts for in-device charging. Compatible with a wide range of Sennheiser lavalier microphones and headsets.
Input dynamic range of 134 dB - no need to set gain on your wireless transmitters, thanks to Sennheiser's proprietary Performance Audio Codec (SePAC)
Fixed RF power of 10 mW for a range of up to 100 m
Charging contacts for in-device charging with the CHG 70N charger (sold separately)
Persistent E-Ink display for “always on” information - parameters visible on the screen even when you remove the batteries
Up to 12 hours of operation with rechargeable lithium-ion battery BA 70 (sold separately)
Function buttons - control all transmitter settings directly from the bodypack, including button lock function
Programmable audio switch - RF mute, AF mute, or off
Digital audio trim
Microphone input gain control
Test tone generator
Configurable LED (On/Off)
Switchable low cut (Off, 30, 60, 80, 100, 120 Hz)
Instrument input with cable emulation to simulate cable characteristics
Compatible with a wide range of Sennheiser lavalier microphones and headsets with a 3.5 mm jack connection
Metal housing
Worldwide use (specific frequencies are subject to local RF regulations)
Note: All components of the Evolution Wireless Digital family are designed to interoperate. Please be aware of feature restrictions related to the respective series, such as bandwidth limitation switching and the use of Link Density mode
Technical Specifications:
UHF transmission frequency range: 470.2 - 550 MHz
Bluetooth® Low Energy (BLE) frequency range: 2405 - 2480 MHz
