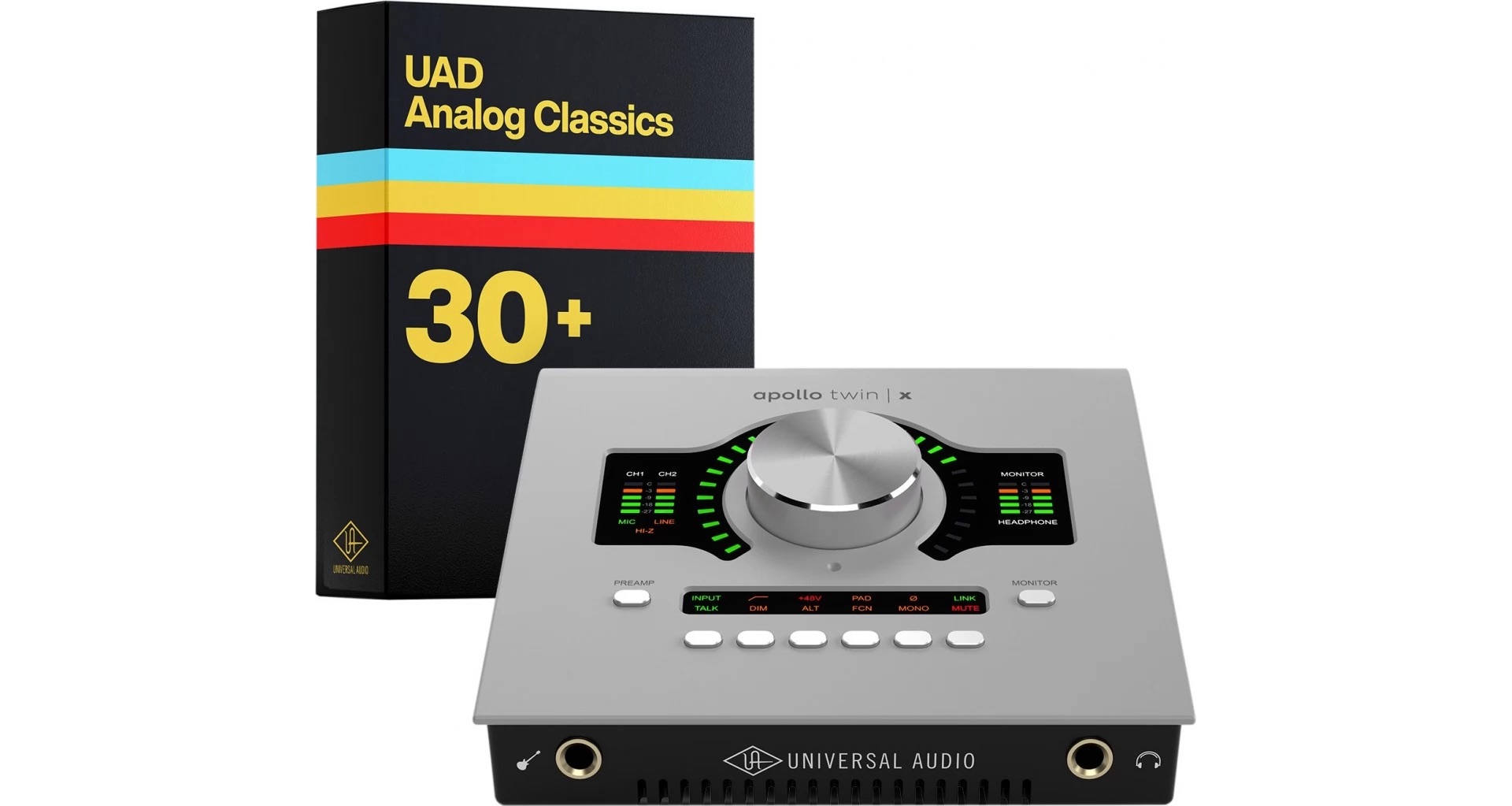

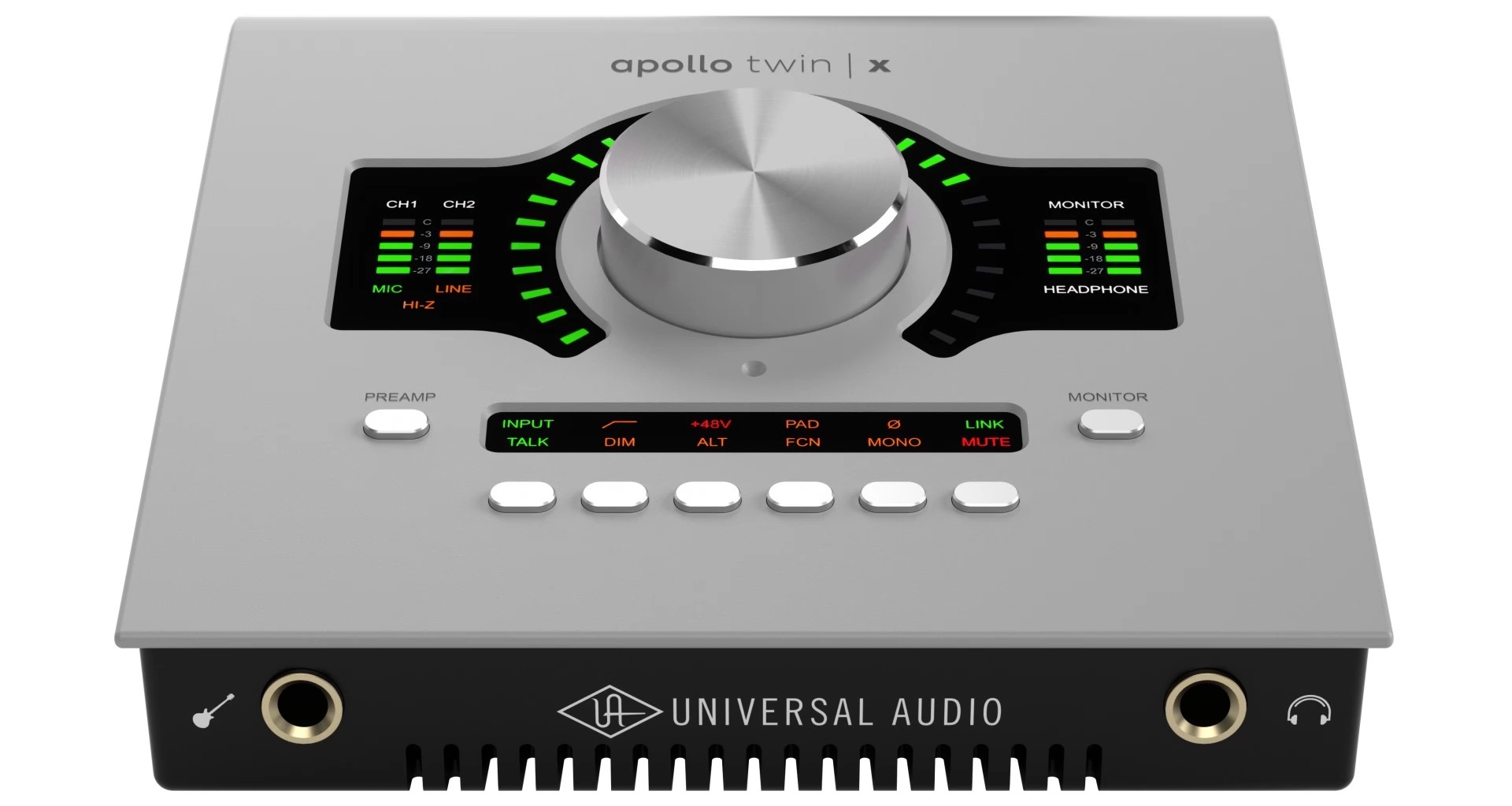

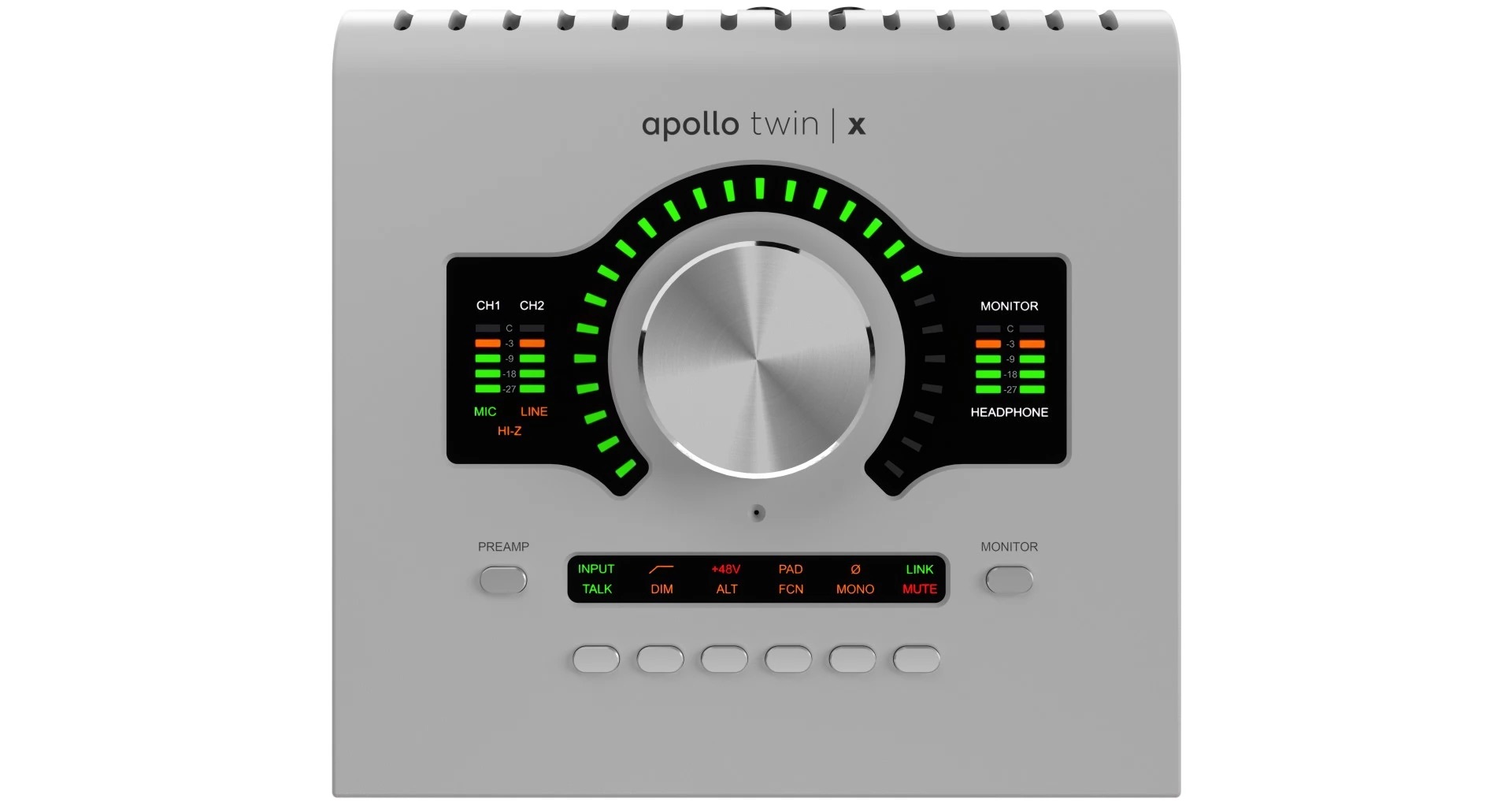

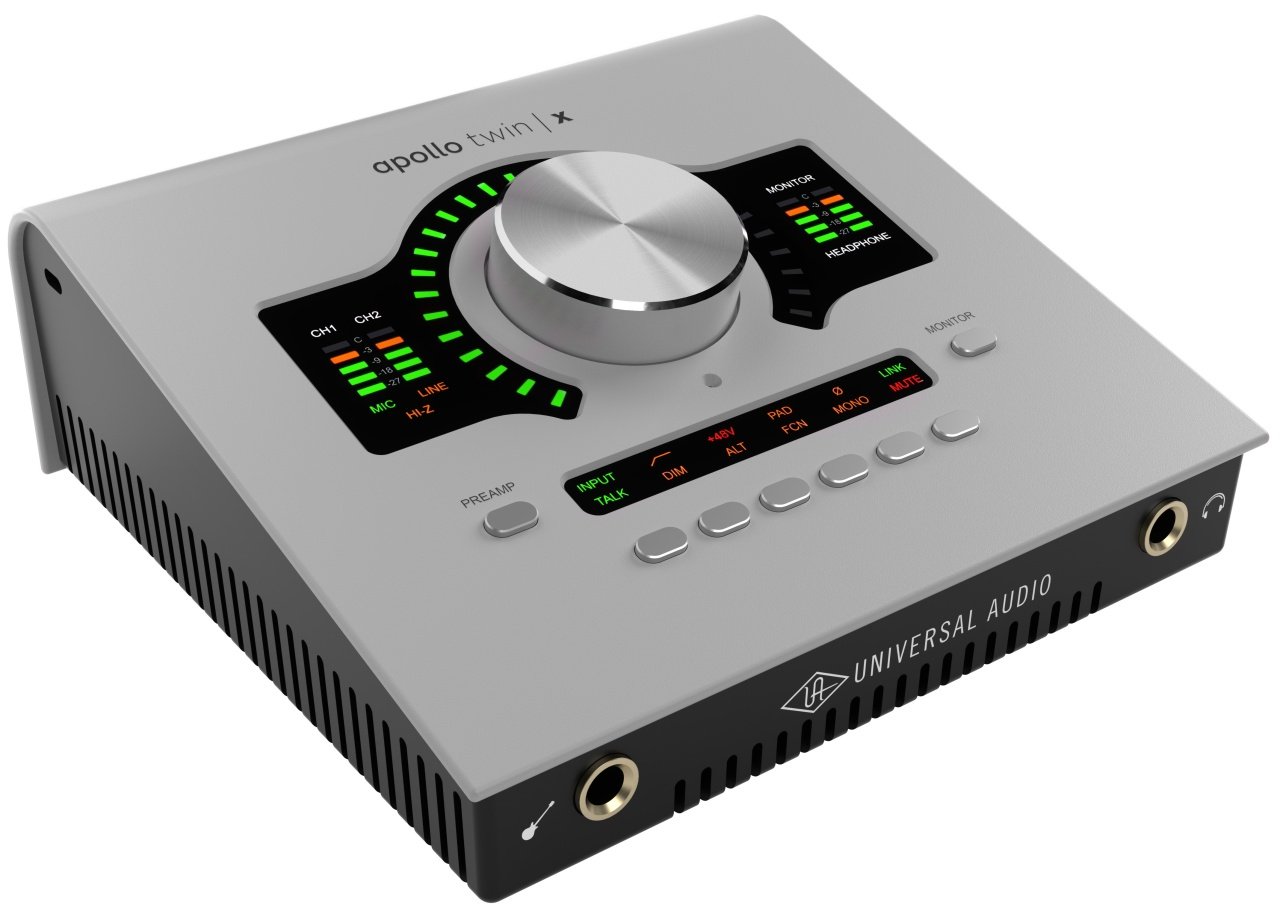

Apollo Twin X QUAD Gen 2 with UAD Analog Classics - Thunderbolt audio interface 10 x 6 for desktop, featuring two Unison preamps, Apollo X Gen 2 audio conversion, Auto-Gain, Apollo Monitor Correction, Bass Management, QUAD core DSP processing and premium software suite for Mac or Windows.
Thunderbolt cable not included. The cable must be purchased separately.
- Thunderbolt audio interface 10 x 6 with QUAD Core DSP processing for plug-ins

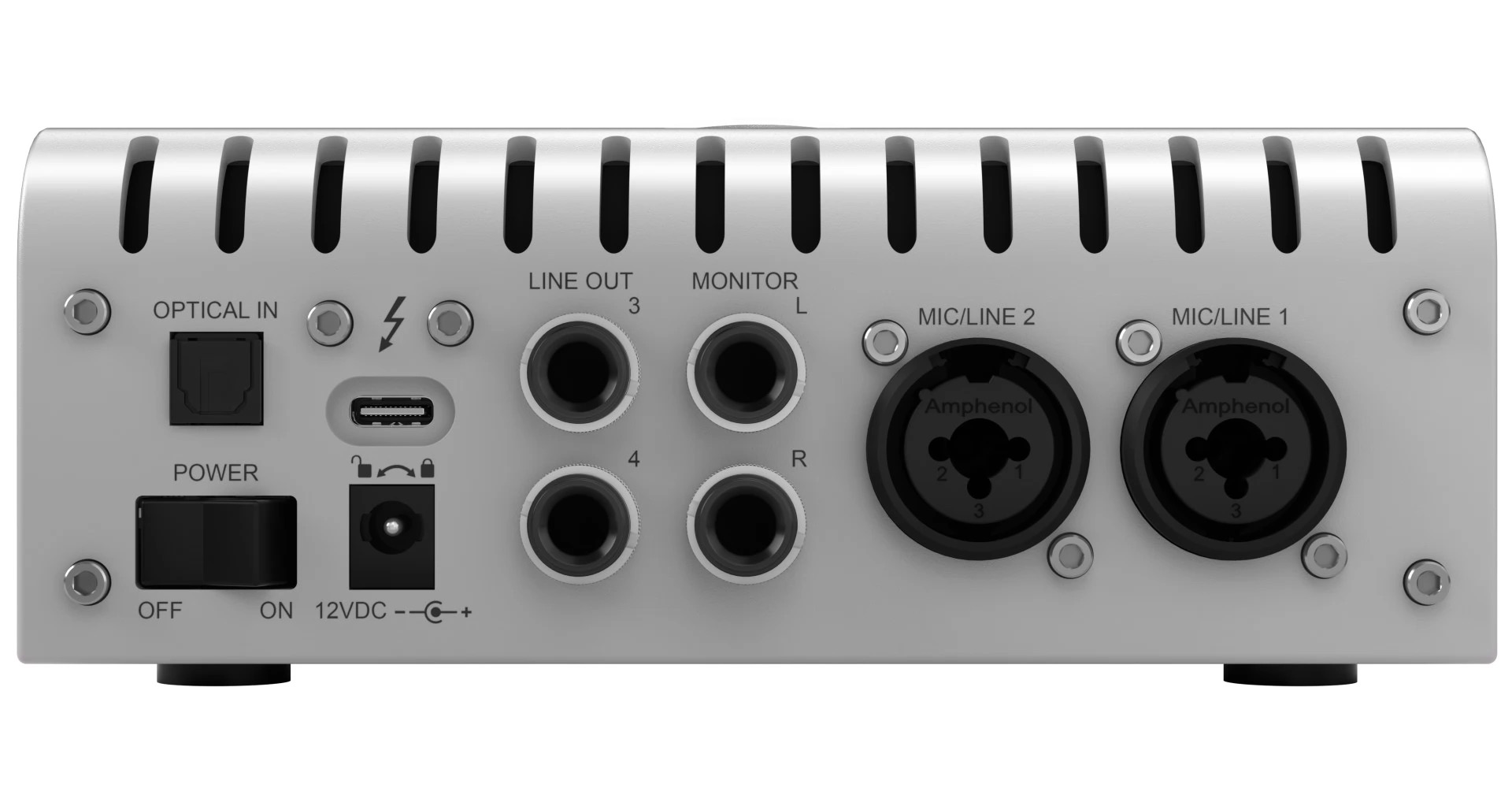

- Two UnisonTM microphone preamps, Hi-Z input for instruments, Toslink optical input (ADAT or S/PDIF)
- Two 1/4" monitor outputs, two 1/4" line outputs (ALT), one 1/4" TRS headphone output
- Apollo X Gen 2 converters with 24-bit / 192 kHz resolution
- Enhanced D/A for monitoring and playback, with a dynamic range of 129 dB
- Calibrates main monitor and headphone outputs with Apollo Monitor Correction powered by Sonarworks®.
- Updated UAD Console application, with Auto-Gain, Plug-In Scenes, subwoofer integration with Bass Management, immersive audio support and more
- Integrated DSP supporting over 200 UAD plug-ins via VST, AU and AAX 64 formats in all major DAWs
- Compatible with LUNA, Logic Pro, Pro Tools, Cubase, Ableton Live
With UAD Console version 1.2.1 and UAD Software v11.5.1, Apollo Monitor Correction from Sonarworks® is now available and compatible with Apollo X Gen 1 and Gen 2 audio interfaces.
Supported calibration modes:
- Flat Target Mode (default)
- Dolby Atmos Target Curve Mode
- Translation Check Mode: Emulates other speakers for quick mix checks.
- Custom Target Mode: Allows custom room tuning and instant application on Apollo.
Requirements for using this feature:
- At least one Apollo X interface (Gen 1 or Gen 2) configured as a monitoring unit.
- UAD Software v11.5.1 or newer.
- UAD Console v1.2.1 or newer.
- License for the Apollo Monitor Correction Add-on product.
- License for the SoundID Reference product:
- SoundID Reference for Headphones: applies profiles for headphones.
- SoundID Reference for Speakers and Headphones: applies profiles for headphones and speakers (stereo) with calibrated bass management for stereo/subwoofer setups.
- SoundID Reference for Multichannel: applies profiles for headphones and speakers (stereo/multichannel).
- A measurement microphone is required for speaker calibration.
Connectivity and operating systems:
- Internet connection: required for SoundID Reference license authentication.
- Supported operating systems:
- macOS 11 Big Sur and later.
- Windows 10 and 11.

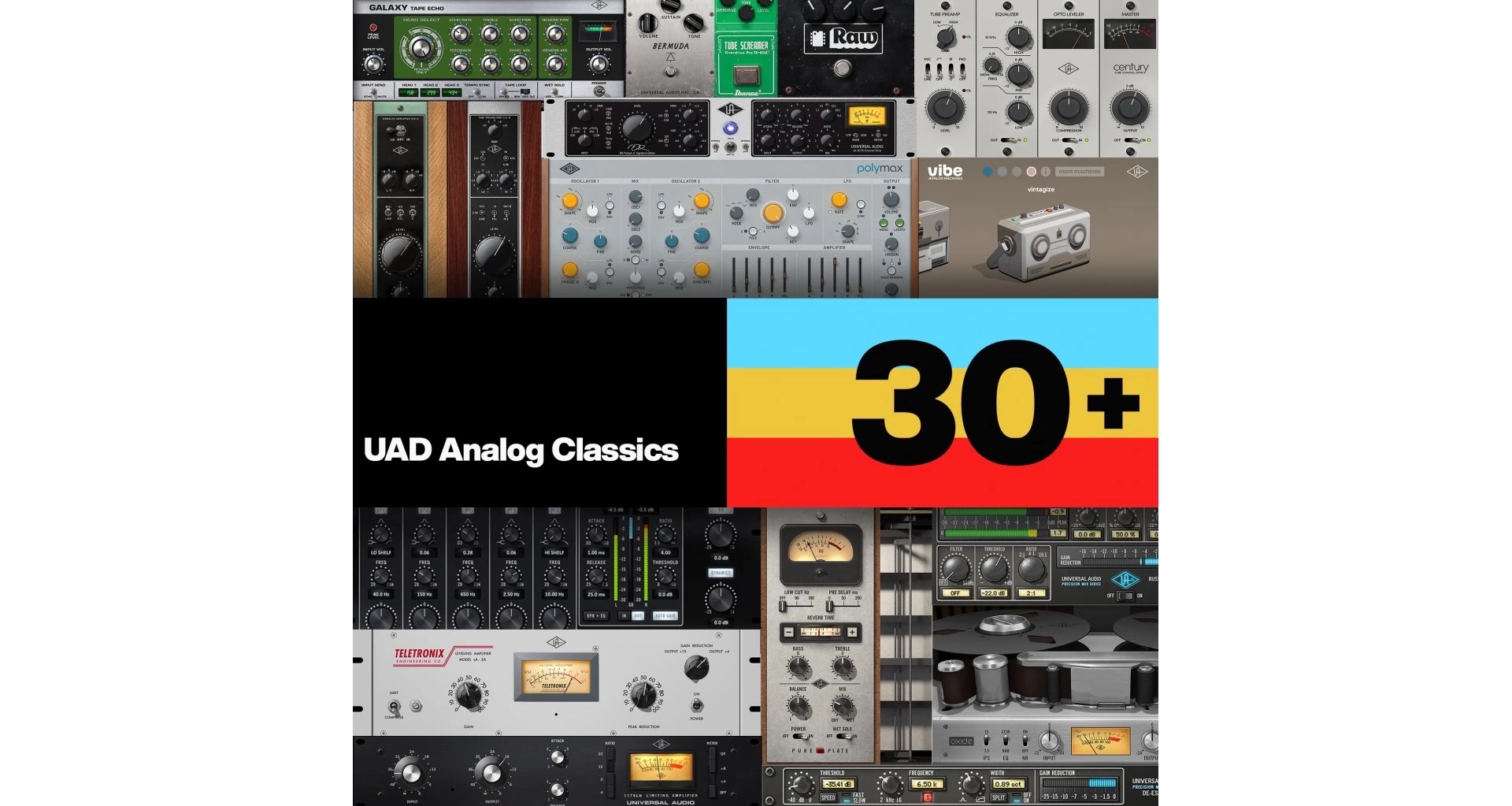

UAD Analog Classics - Over 30 plugins included
Channel Strips and Preamps (6)
- Century Tube Channel Strip
- CS-1 Channel Strip
- LA-6176 Signature Channel Strip
- Precision Channel Strip
- UA 610-A Preamp & EQ
- UA 610-B Preamp & EQ
Compressors and Limiters (7)
- Fairchild 670 Legacy Compressor
- Teletronix LA-2A Legacy Leveling Amplifier
- Teletronix LA-2A Tube Compressor
- Precision Buss Compressor
- UA 1176 FET Compressor
- UA 1176LN Legacy
- UA 1176SE Legacy
Equalizers (3)
- Precision Equalizer
- Pultec EQP-1A Legacy EQ
- Pultec Pro Legacy EQ
Special Processing (5)
- Oxide Tape Recorder
- Precision De-Esser
- Precision Enhancer Hz
- Precision Enhancer kHz
- Vibe Analog Machines Essentials
Instruments (1)
Delay and Modulation (3)
- Galaxy Tape Echo
- Precision Delay Mod
- Precision Delay Mod L
Reverb & Rooms (2)
- Precision Reflection Engine
- Pure Plate Reverb
Mastering (3)
- Precision Limiter
- Precision Maximizer
- Precision Multiband
Guitar and Bass (5)
- Bermuda Triangle
- Raw Distortion
- TS Overdrive Pedal
- UAD Lion '68 Super Lead Amp
- UAD Showtime '64 Tube Amp
Windows/Mac compatibility table
✅ - Compatible
⛔ - Incompatible
⚠️ - Limited compatibility; check details here.
| Interface model | Windows | Mac |
|---|
| Apollo Solo USB Heritage Edition | ✅ | ❌ |
| Apollo Solo Thunderbolt 3 Heritage Edition | ⚠️* | ✅ |
| Apollo Twin X USB DUO Heritage Edition | ✅ | ❌ |
| All Apollo Twin X Thunderbolt models (Gen 1 and Gen 2) | ⚠️* | ✅ |
| All Apollo x4 models | ⚠️* | ✅ |
| All Apollo x6 models | ⚠️* | ✅ |
| All Apollo x8 models | ⚠️* | ✅ |
| All Apollo x8p models | ⚠️* | ✅ |
| All Apollo x16 models | ⚠️* | ✅ |
| Apollo x16D | ⚠️* | ✅ |
