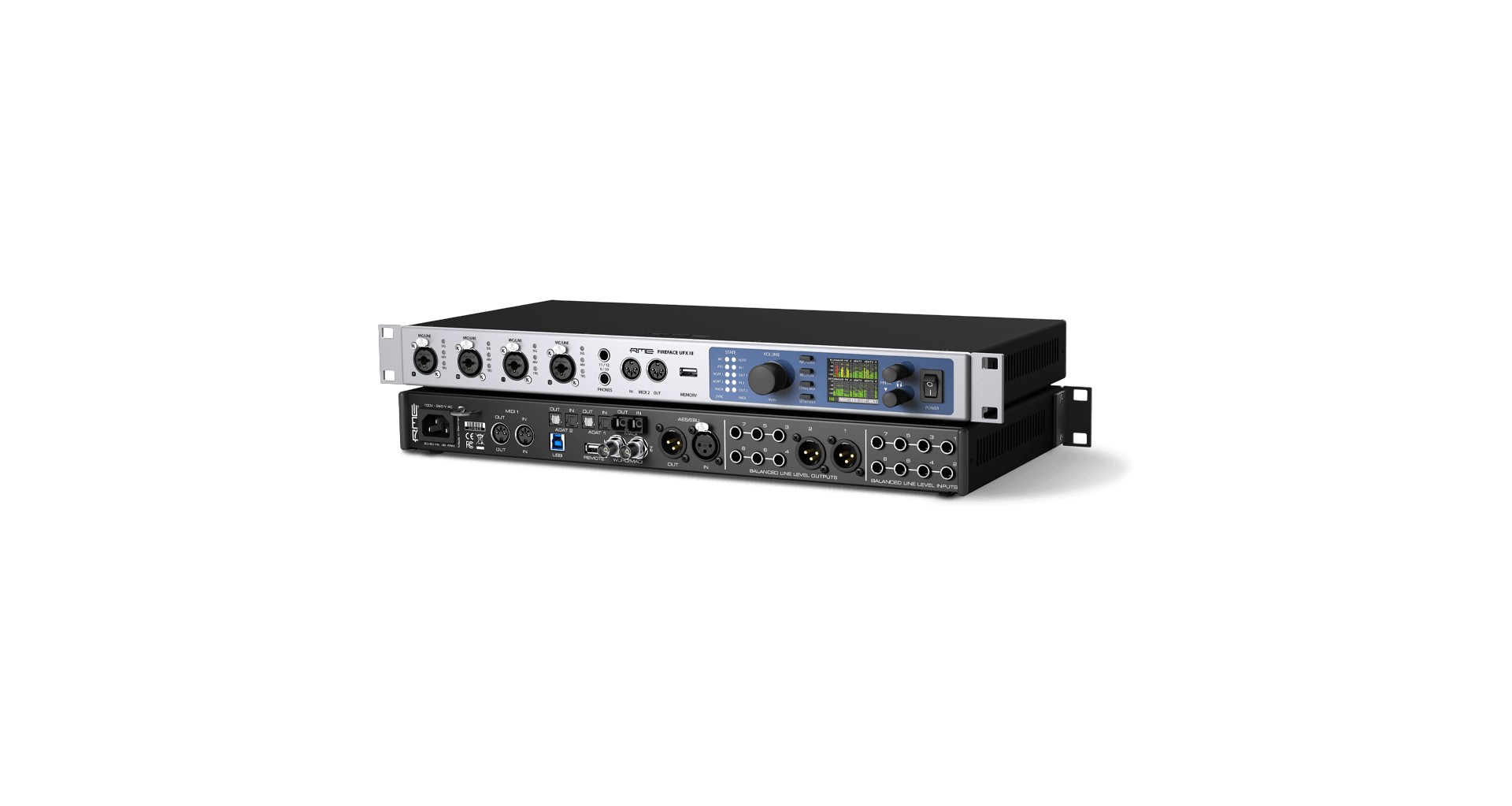

RME Fireface UFX III

RME Fireface UFX III - The Fireface UFX III is an audio interface with 188 channels, a resolution of 24 bits, and a sampling rate of up to 192 kHz. It features DURec (Direct USB Recording), allowing direct recording to a USB device. It is also equipped with AKM chips (AK5574 AD / AK4490 DA) to ensure precise and high-quality audio signal conversion.

It is equipped with SteadyClock FS technology to ensure precise synchronisation and signal stability.

It has a built-in DSP processor for using various effects and processing.

It features Phantom Power of +48V for condenser microphones.

It is equipped with a TFT display for showing information and setting menus.

Technical Specifications:

• Analog Inputs / Outputs:

  • 4 x Combo XLR-1/4" Microphone/Line Input (front panel)
  • 8 x Balanced Line Input 1/4" TRS
  • 2 x Balanced Line Output XLR 3-Pin
  • 6 x Balanced Line Output 1/4" TRS
  • 2 x Headphone Output 1/4" TRS (front panel)
  • Phantom Power 48 V, Selectable On/Off (selectable on individual inputs)
• Digital Inputs / Outputs:

  • 1 x MADI Optical Input with SC-Plug
  • 2 x ADAT Optical Input TOSLINK
  • 1 x AES3 XLR 3-Pin Input
  • 1 x MADI Optical Output with SC-Plug
  • 2 x ADAT Optical Output TOSLINK
  • 1 x AES3 XLR 3-Pin Output
  • 1 x MADI Coaxial Output BNC (Word Clock Support)
• Host / USB Connection:

  • 1 x USB-B (on Interface)
  • USB Connection Protocol 3.0 / 3.1/3.2 Gen 1
  • USB (Non-Host) 1 x USB-A (remote)
  • 1 x USB-A (External Storage, Update)
• Sync Input / Output:

  • 1 x Word Clock Input BNC
  • 1 x Word Clock Output BNC (Shared with MADI)
• MIDI Input / Output:

  • 2 x DIN 5-Pin Input
  • 2 x DIN 5-Pin Output
• Digital Audio:

  • Sampling Rates: Up to 192 kHz
  • Resolution: 24bit
  • Sync Sources: ADAT, MADI, Word Clock
• Power: AC
• Voltage: AC 100 up to 240 VAC, 50 / 60 Hz
• Power Consumption: 38 W
• Rack Size: 1RU / 19" / 48.3 cm
