Cameo F4 T


Theater spotlight

  • tungsten LED Fresnel spotlight with 29,500 lm total power output, replaces conventional 2 kW halogen Fresnel
  • lifelike colour reproduction, CRI rating of 96, TLCI of 96

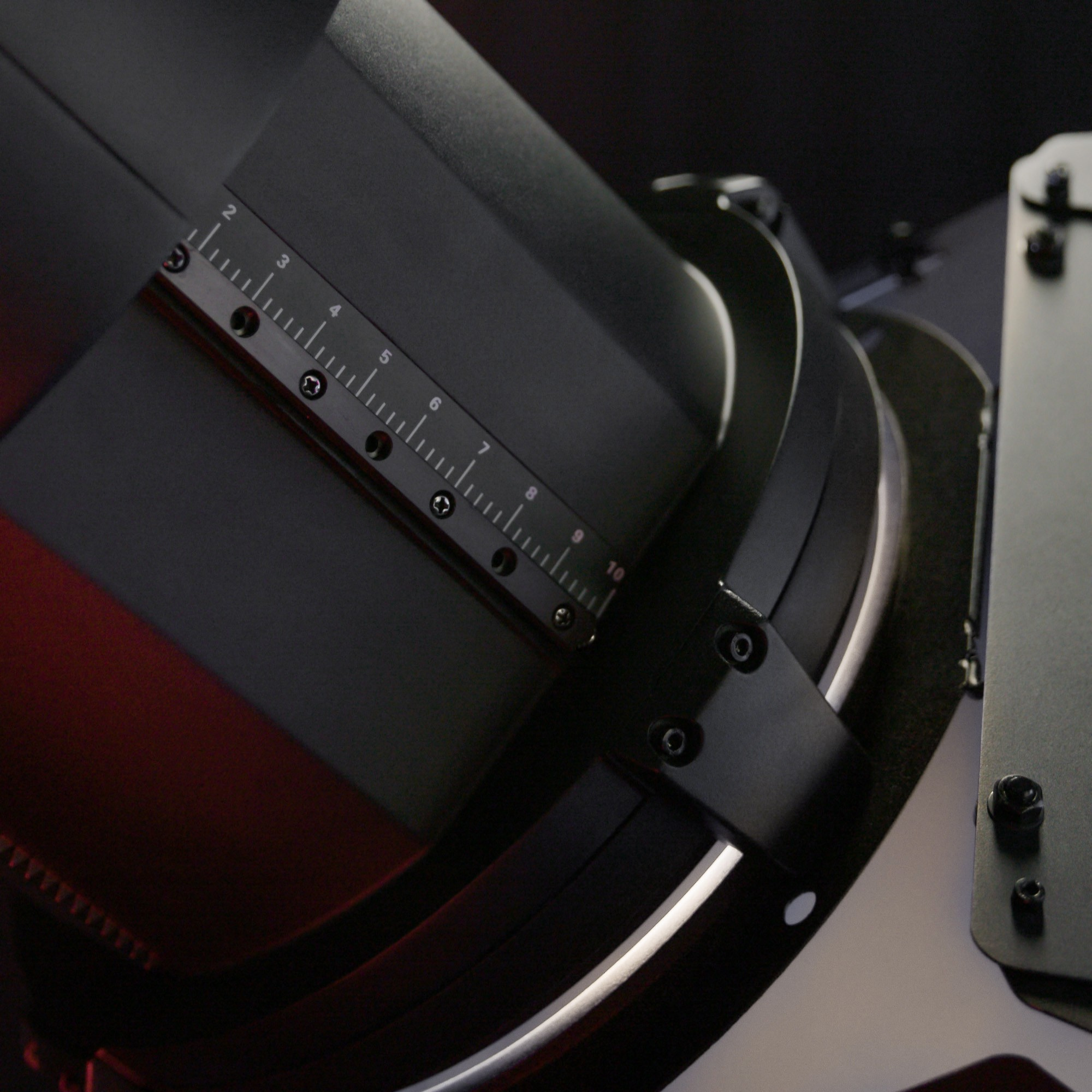

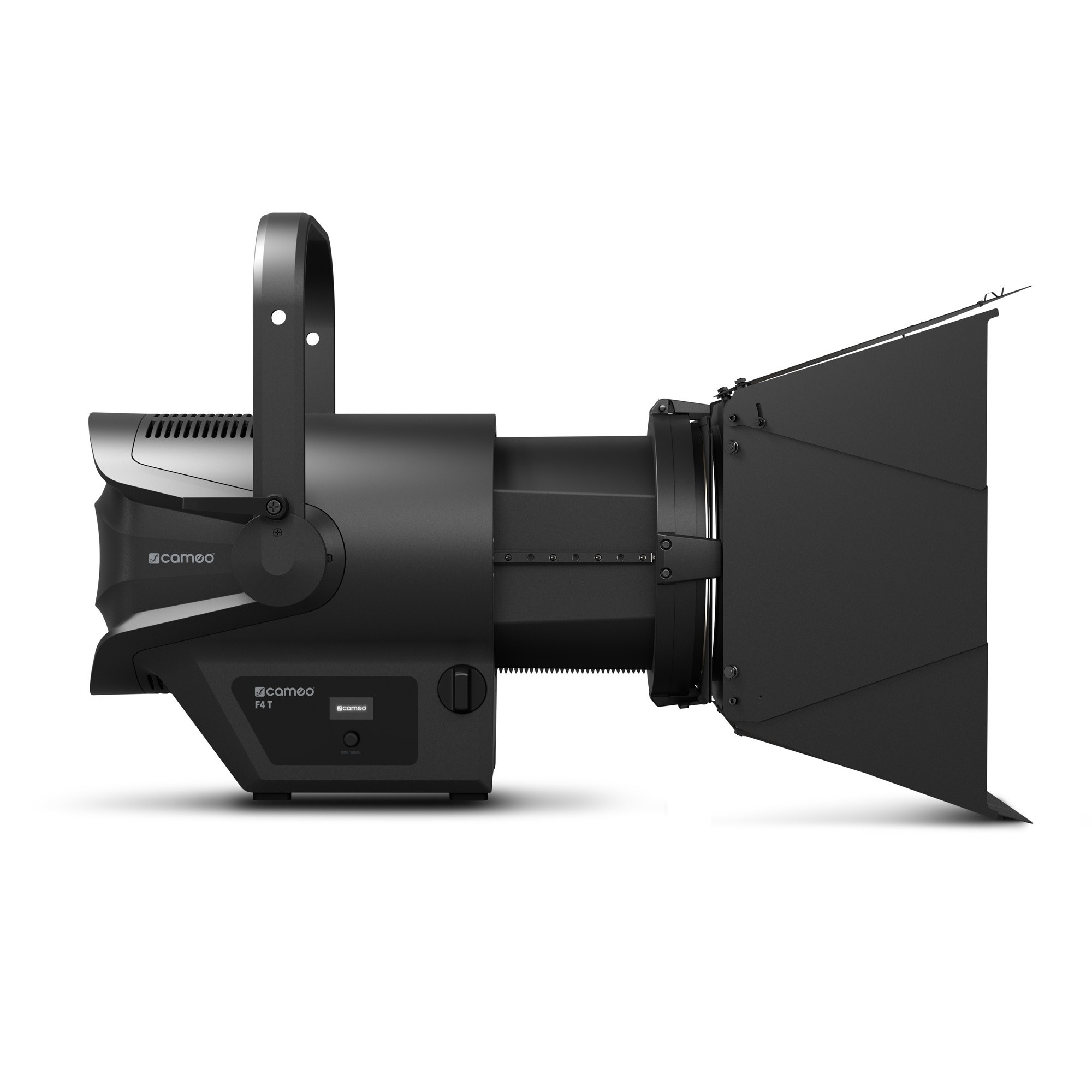

  • continuous zoom for beam angles from 12° to 40°
  • four selectable 16-bit dimmer curves with adjustable response
  • highly efficient cooling thanks to a heatpipe and temperature-controlled fan
Cameo
Variants:
F2 D IP
F2 D IP
F1 D
F1 D
F4 T PO IP
F4 T PO IP
F2 T PO
F2 T PO
F2 FC PO
F2 FC PO
F1 FC
F1 FC
F4 FC
F4 FC
F2 FC IP
F2 FC IP
F2 T IP
F2 T IP
P2 T
P2 T
2 05549
Currently unavailable. Request details
Central warehouse: 0
Add to cart
10561 points of loyalty
Shipping free
Warranty 24 months
Returns 14 days

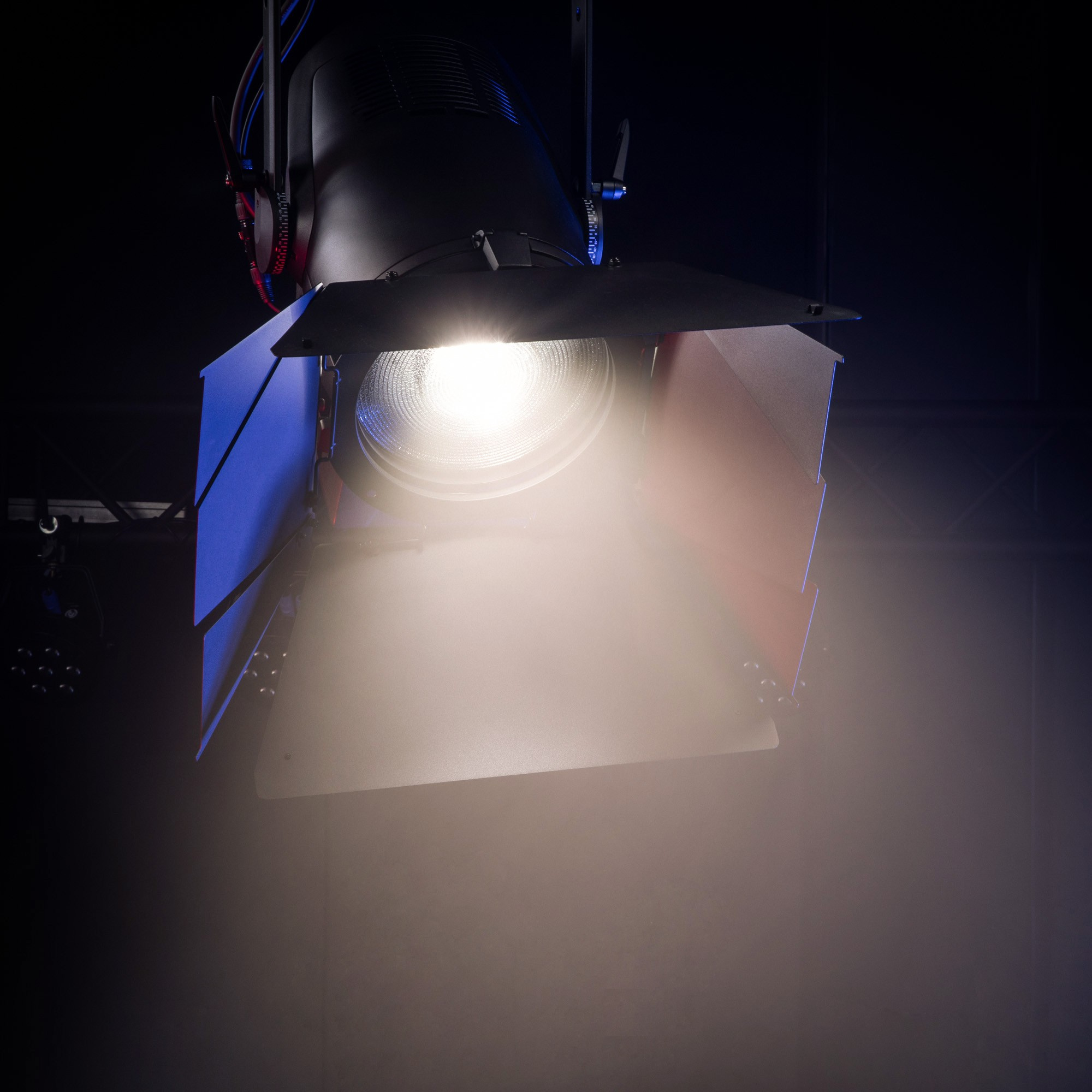

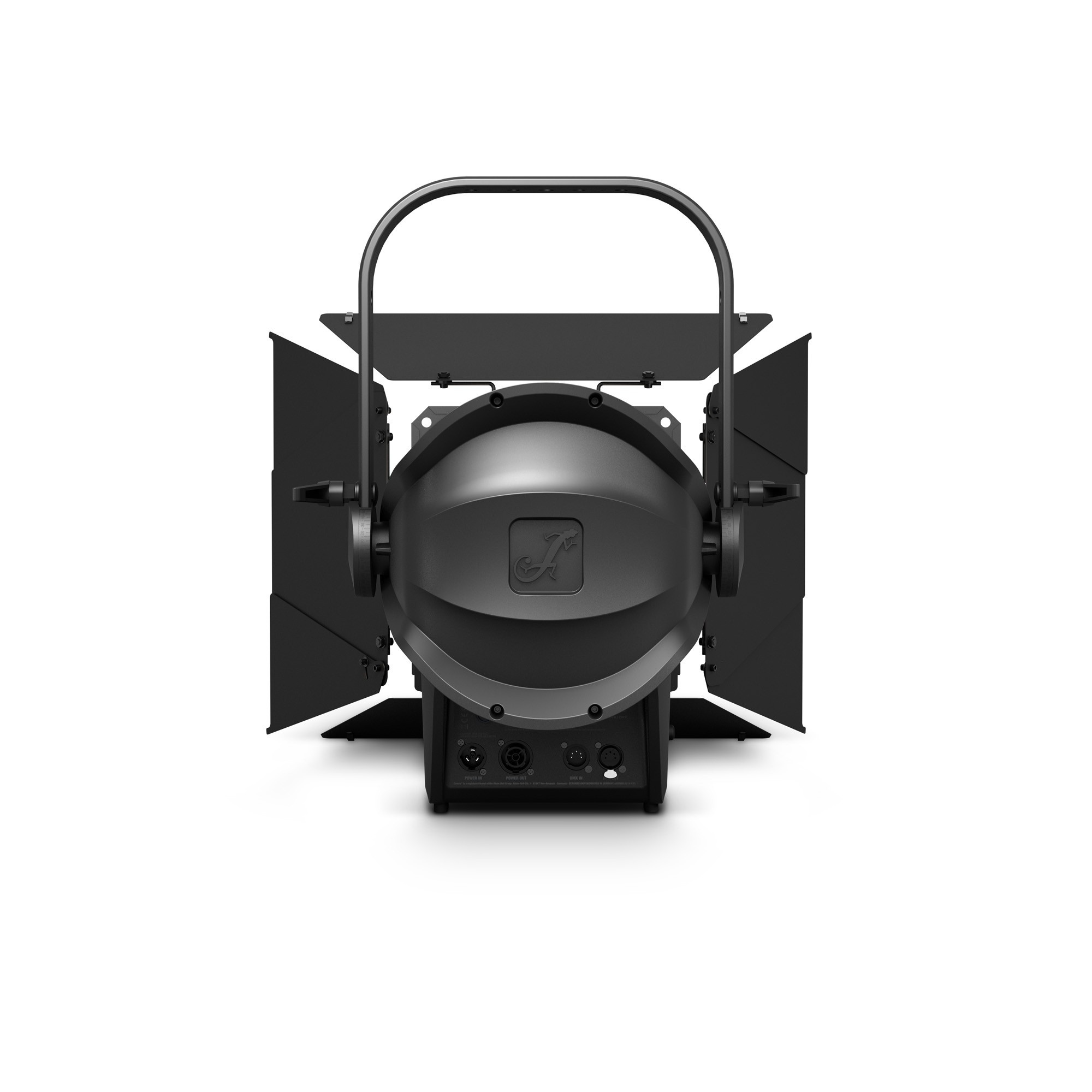

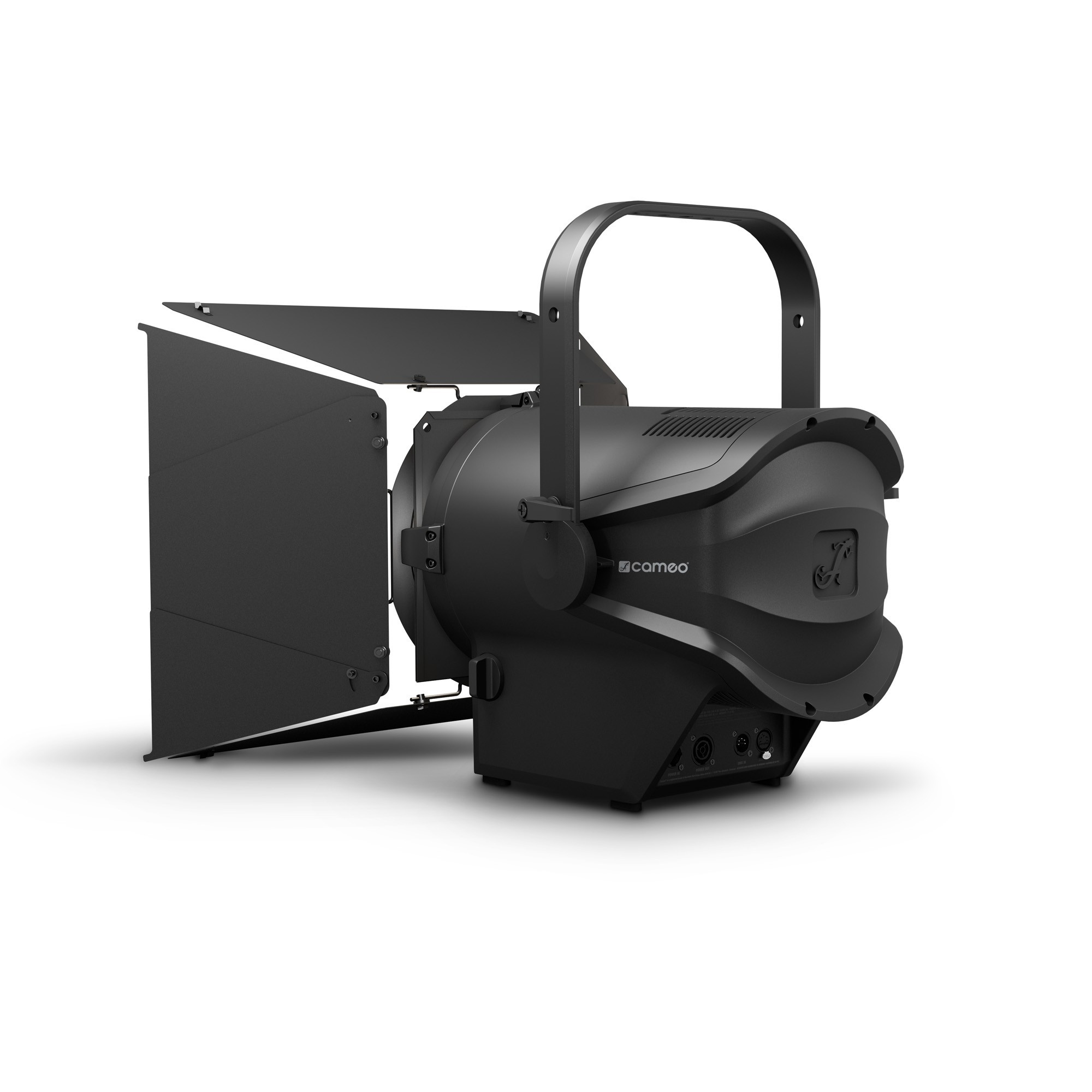

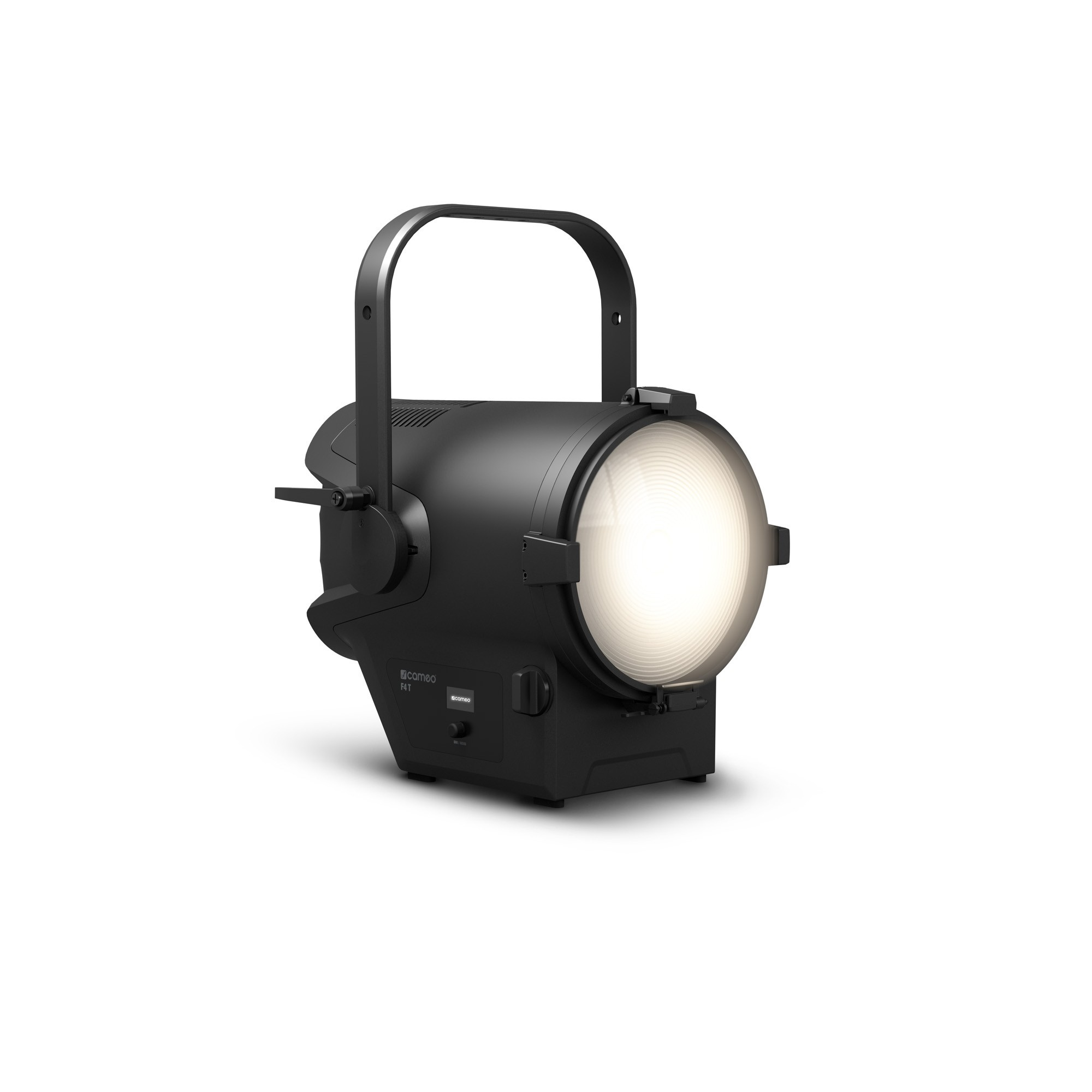

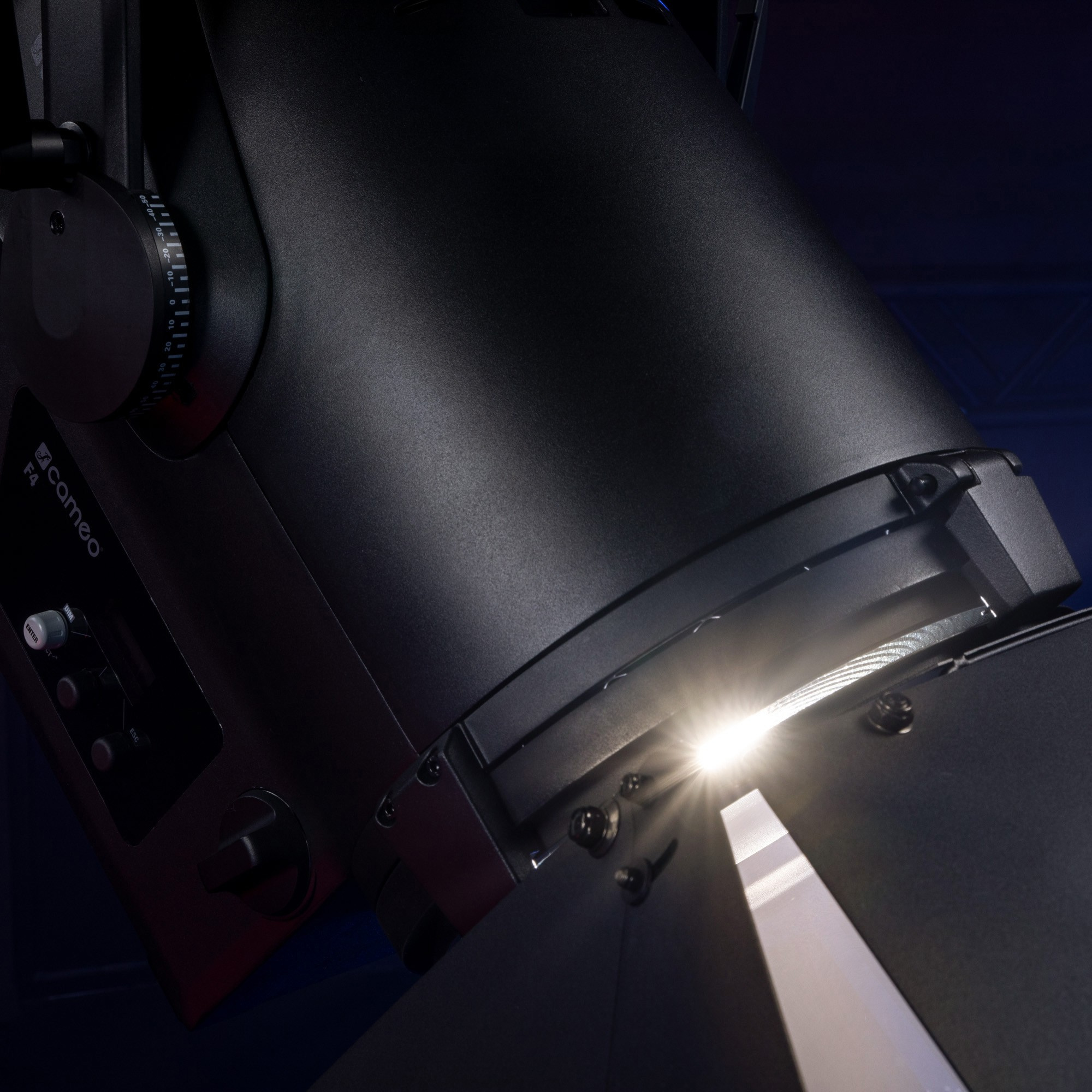

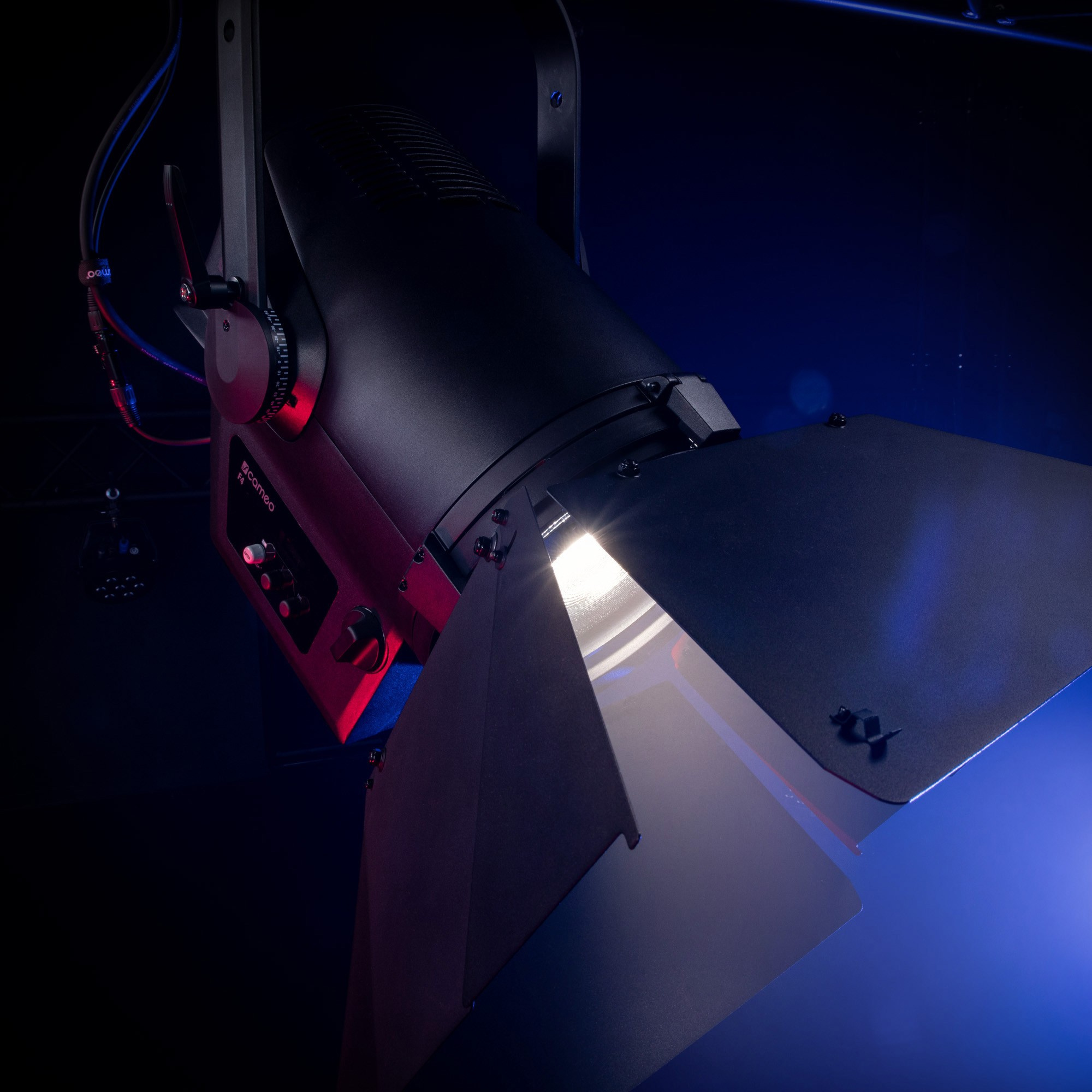

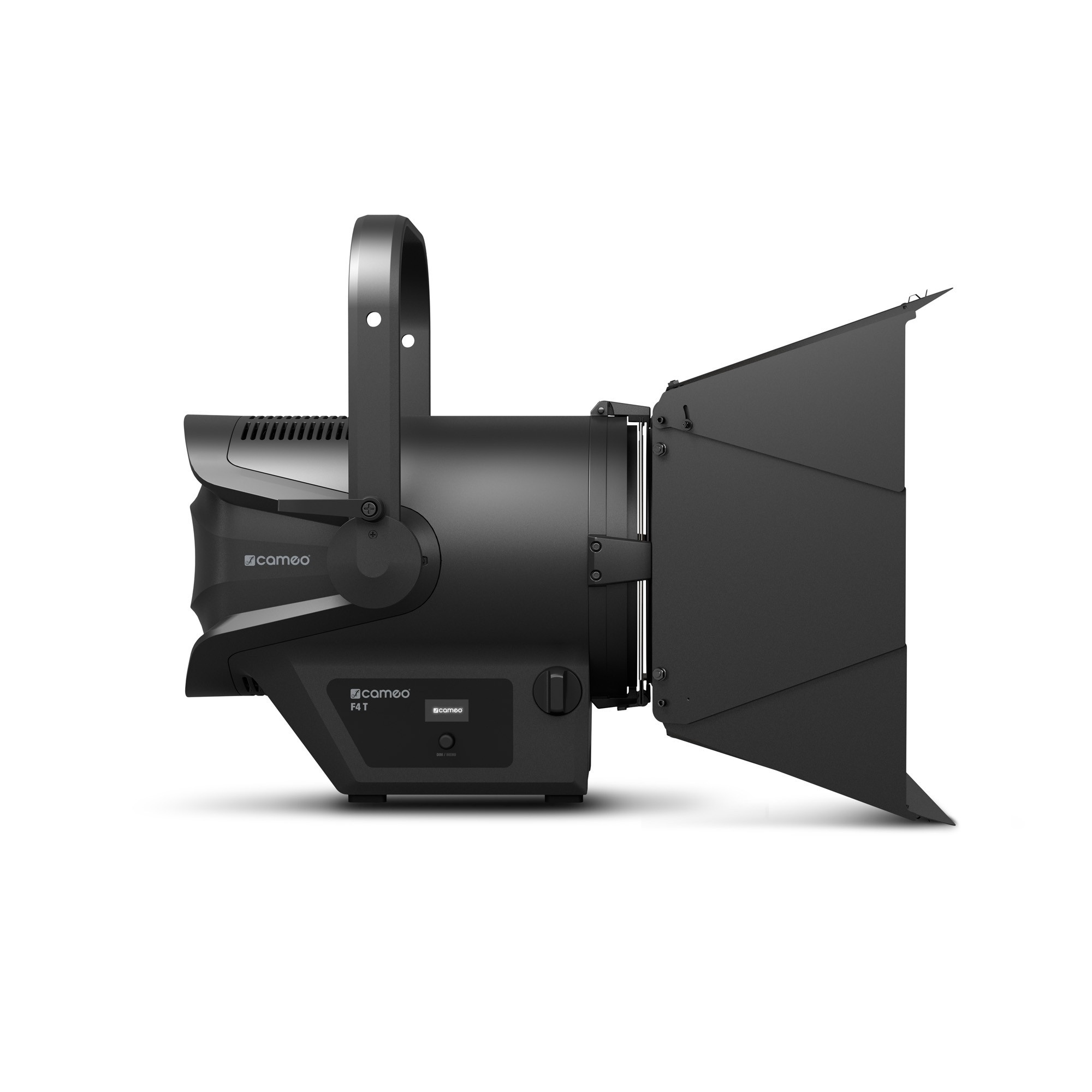

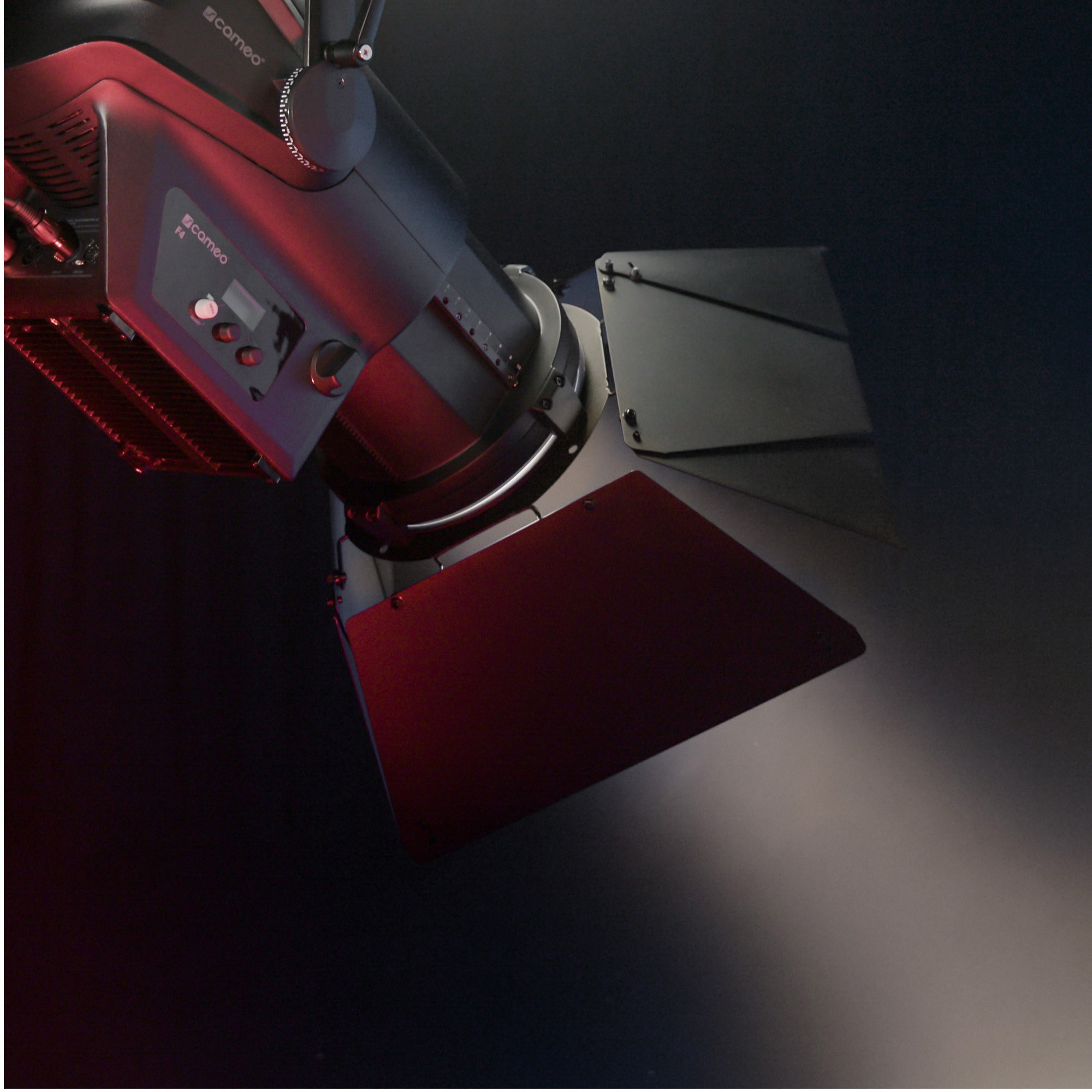

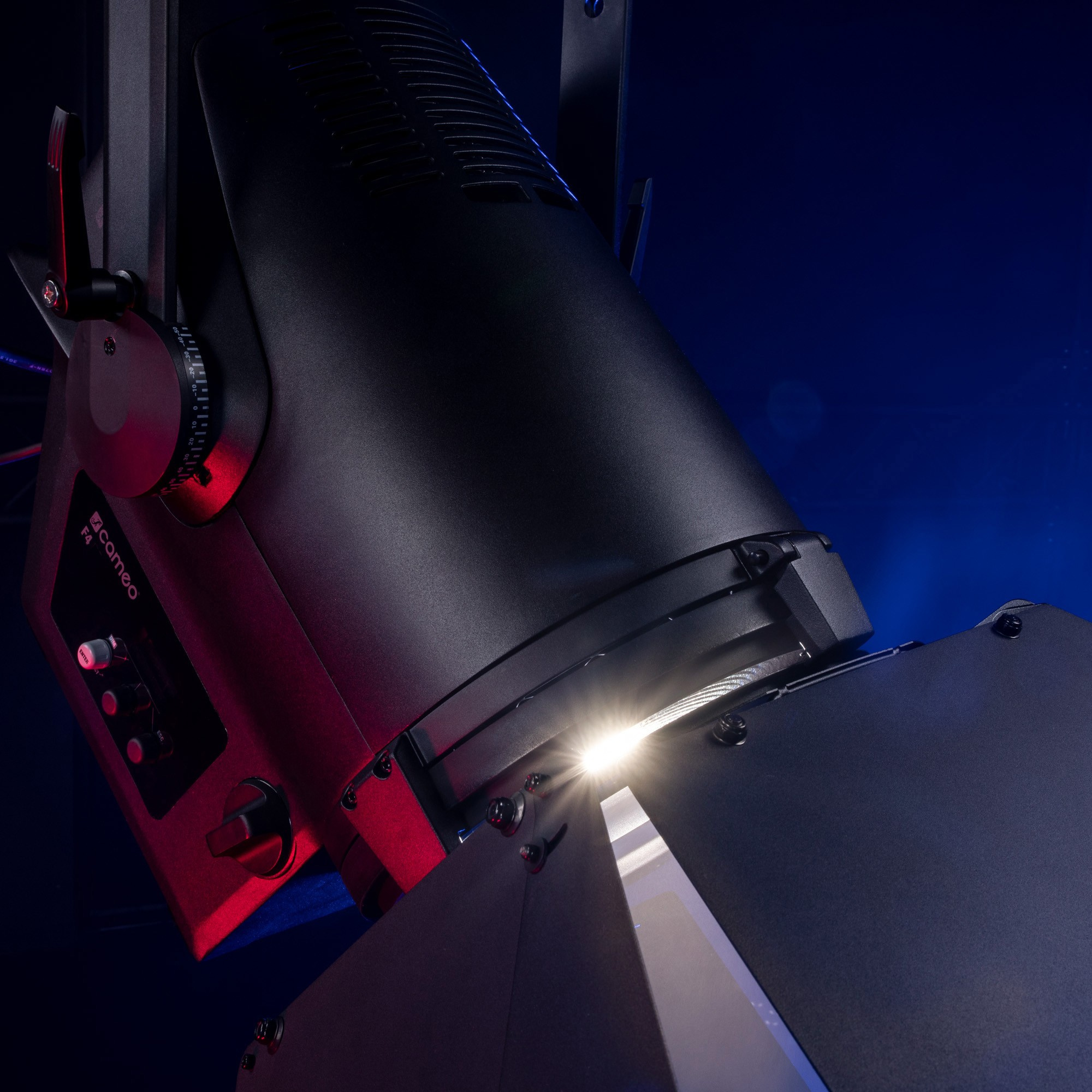

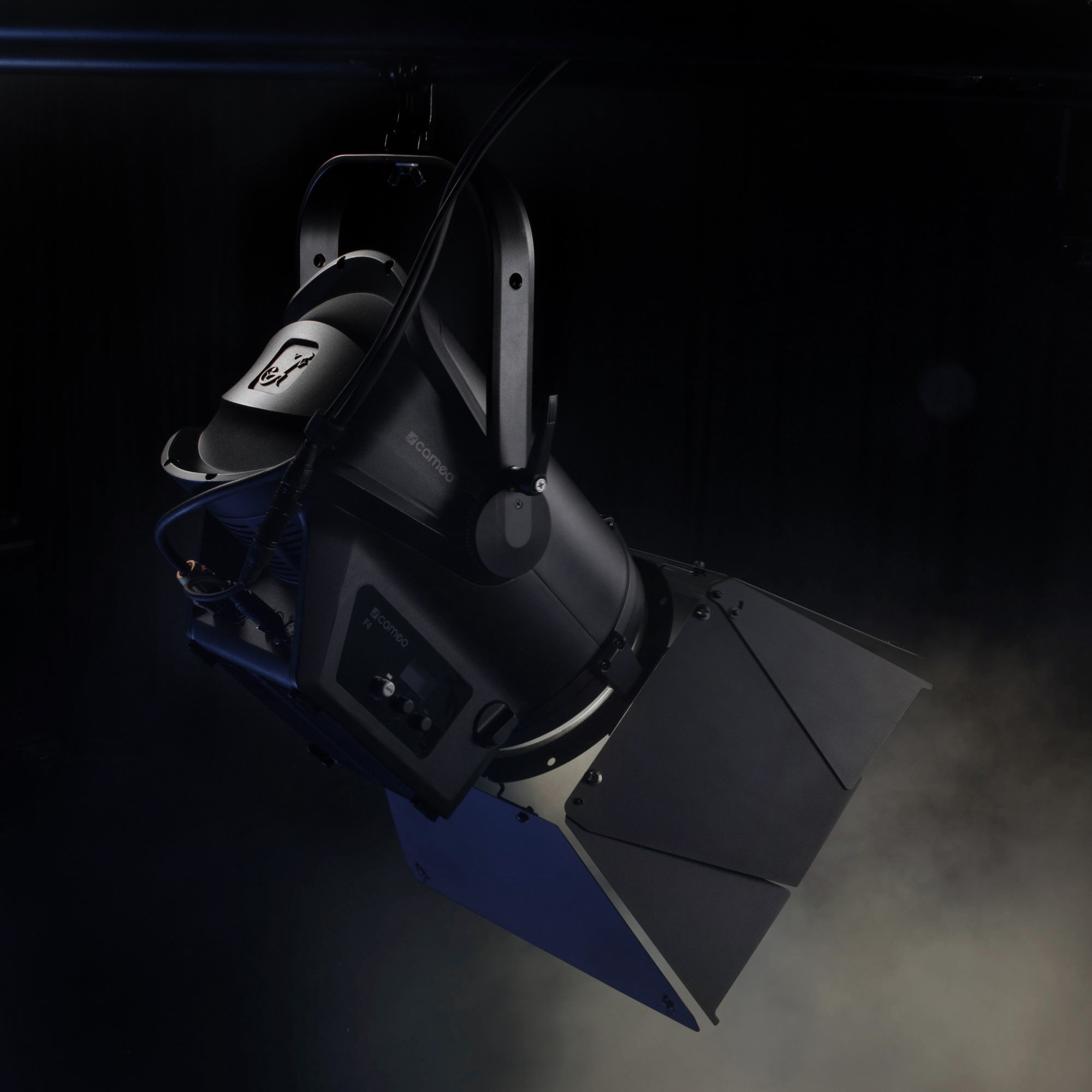

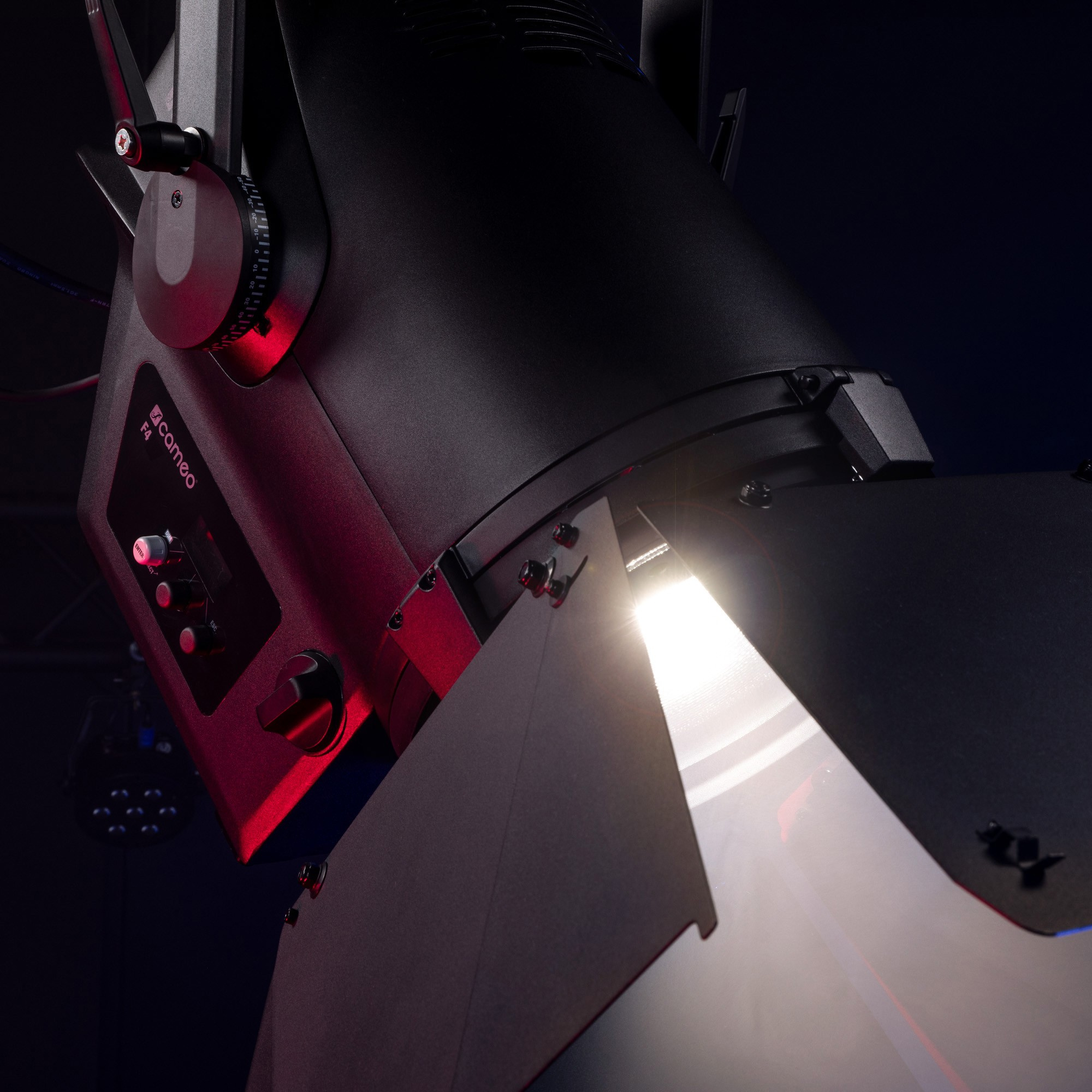

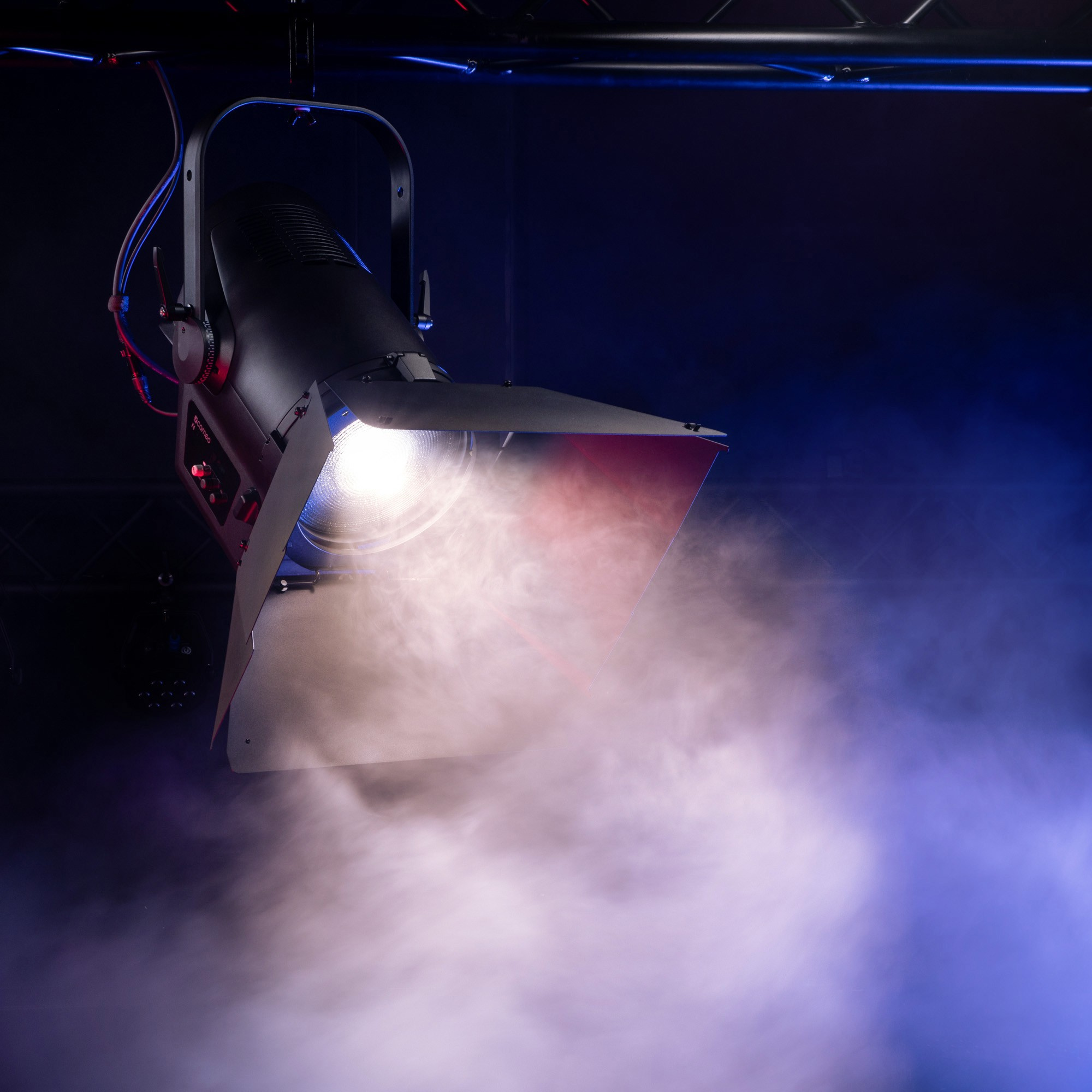

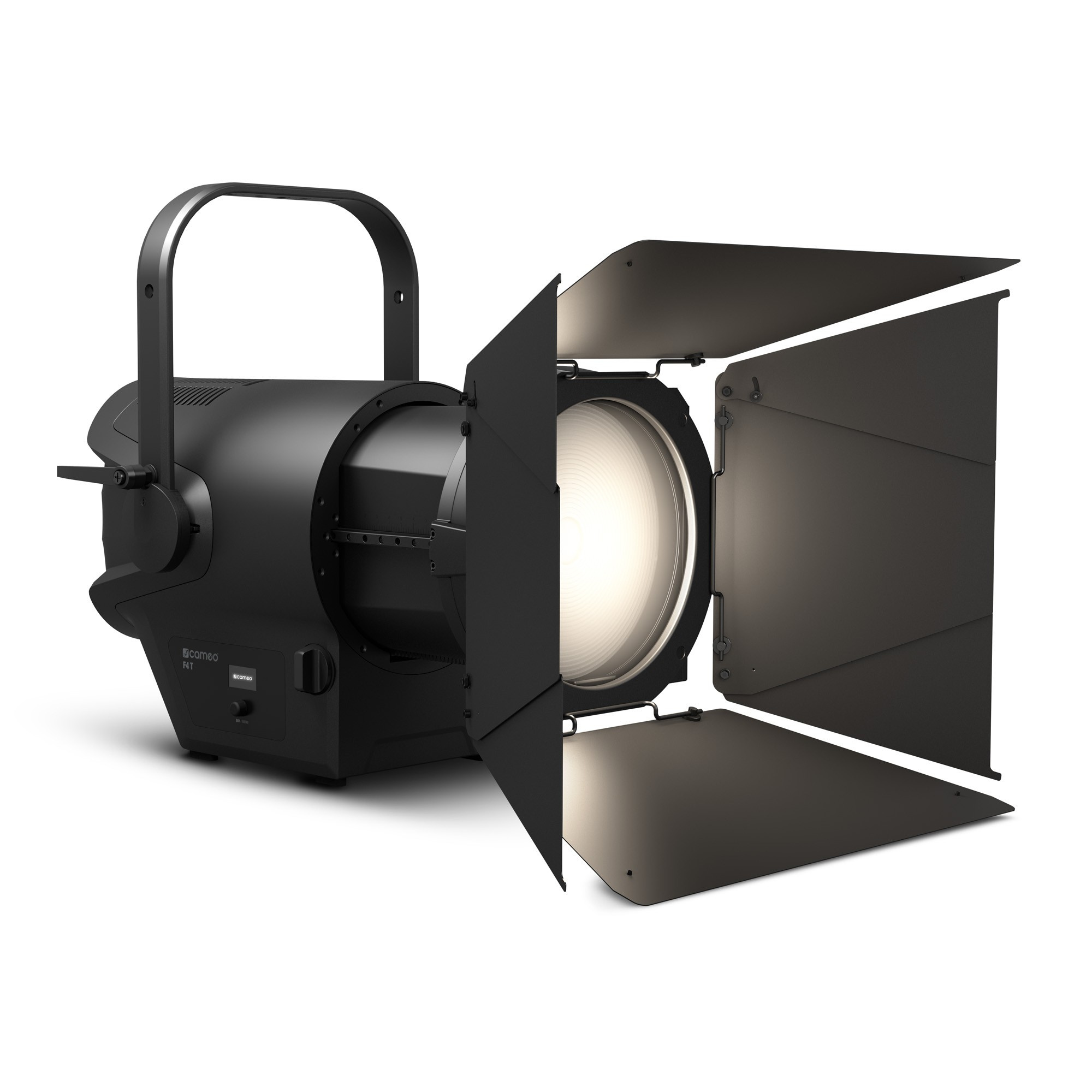

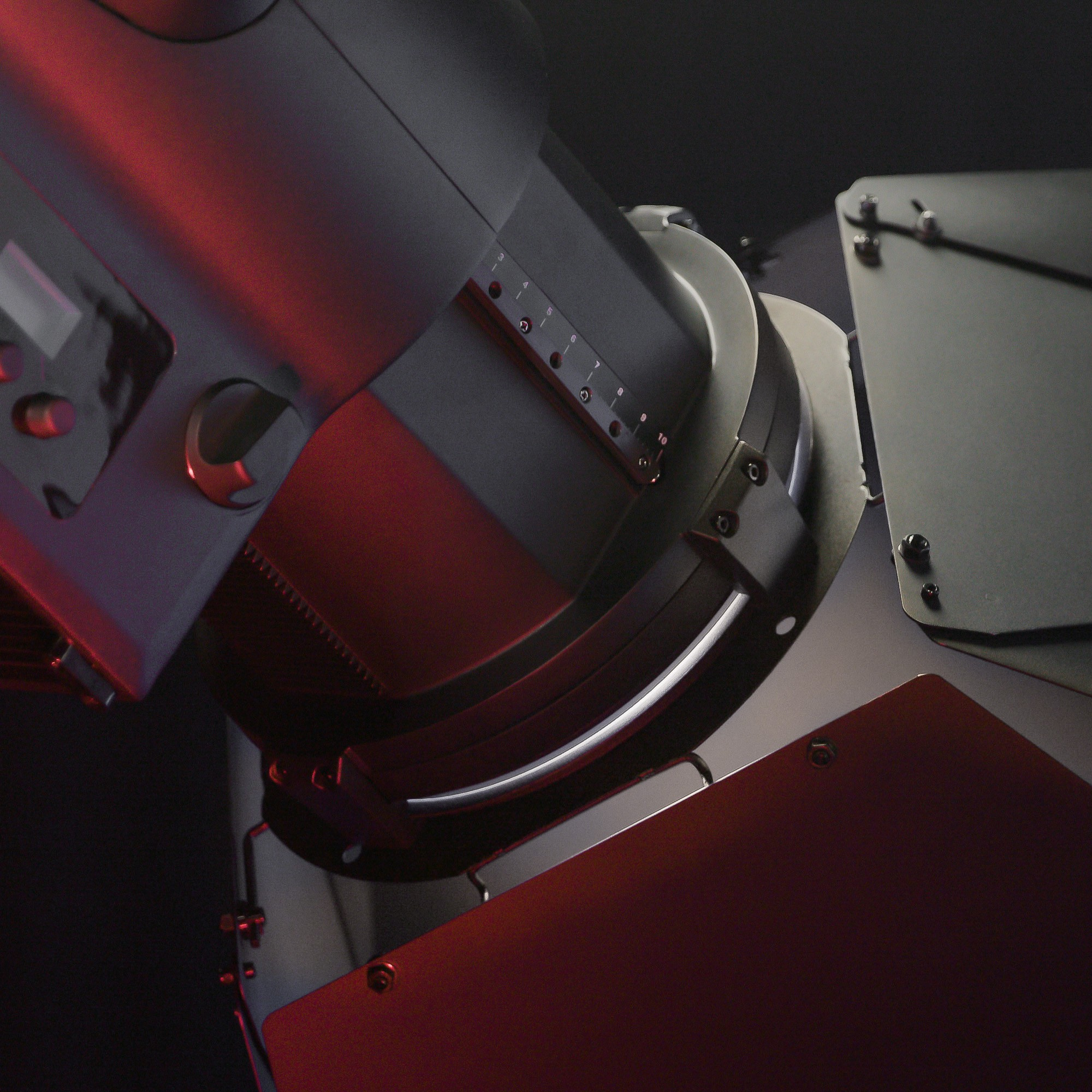

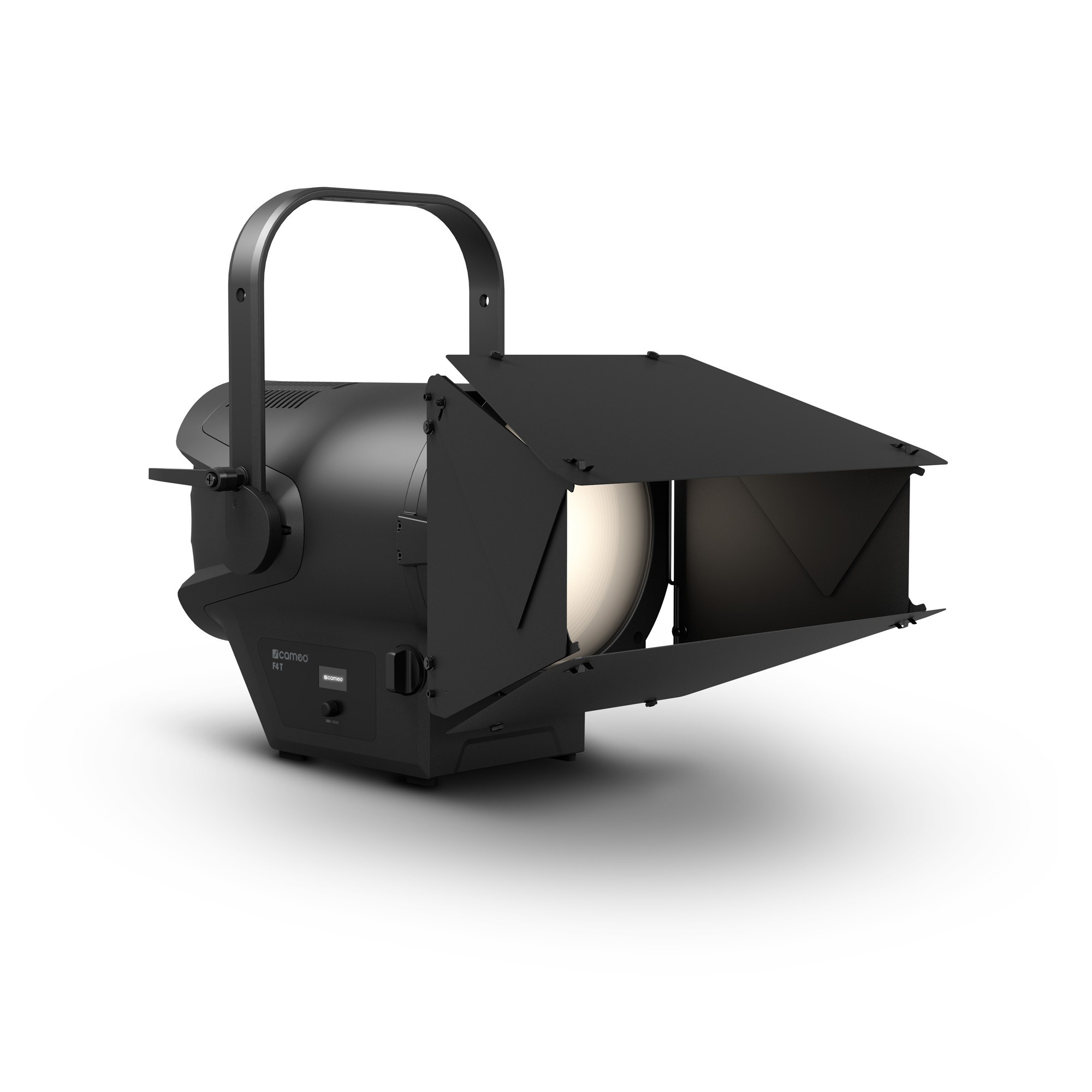

Warm-white light is essential for creating atmospheric stage experiences: The Cameo F4 T is a professional Fresnel spotlight with a high-quality 250 mm lens and high luminous flux of 29,500 lm. The RDM-capable spotlight creates a soft-edged beam of light with a continuously adjustable beam angle of 12° to 40° and is a perfect, energy-saving replacement for traditional 2-kW Fresnel models. Its 520-watt warm-white LED has a colour temperature of 3,200 K and a service life of 50,000 hours. Its extremely high colour rendering index of 96 reproduces pure and natural colours.

The F4 T has 6 DMX control modes, a fast strobe function and 4 16-bit dimmer curves with adjustable response. The unique quicklight function makes setting up the spotlight much easier. Simply remove the DMX signal for a moment, increase the lighting brightness via the push encoder and adjust the spotlight. Six selectable pulse width modulation frequencies up to 25 kHz ensure flicker-free operation. High-efficiency heatpipe cooling and a temperature-controlled fan provide optimal operation. The robust, die-cast aluminium housing is equipped with a push encoder and OLED display for easy configuration of the spotlight. 5-pin DMX connectors facilitate simple daisy-chaining. 8-way barndoor, a gel frame and mains cable are included.

Specifications:

Product type: LED Fresnel Spotlight
Type: Theater Fresnel
Colour spectrum: Tungsten, Warm white
Number of LEDs: 1
LED type: 520 W (approx. 50,000 operating hours)
LED PWM Frequency: Adjustable: 800, 1200, 2000, 3600, 12000, 25000 Hz
Dispersion: Beam Angle: 12 - 40 °, Field Angle: 24 - 47 °
Lens: 250 mm Fresnel
DMX input: 5-Pol
DMX output: 5-Pol
DMX Functions: Device Settings, Dimmer, Dimmer Curve, Dimmer Fine, Strobe
Standalone modes: Master / Slave mode, Static
Controls: Push encoder
Indicators: OLED Display
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption: 473 W

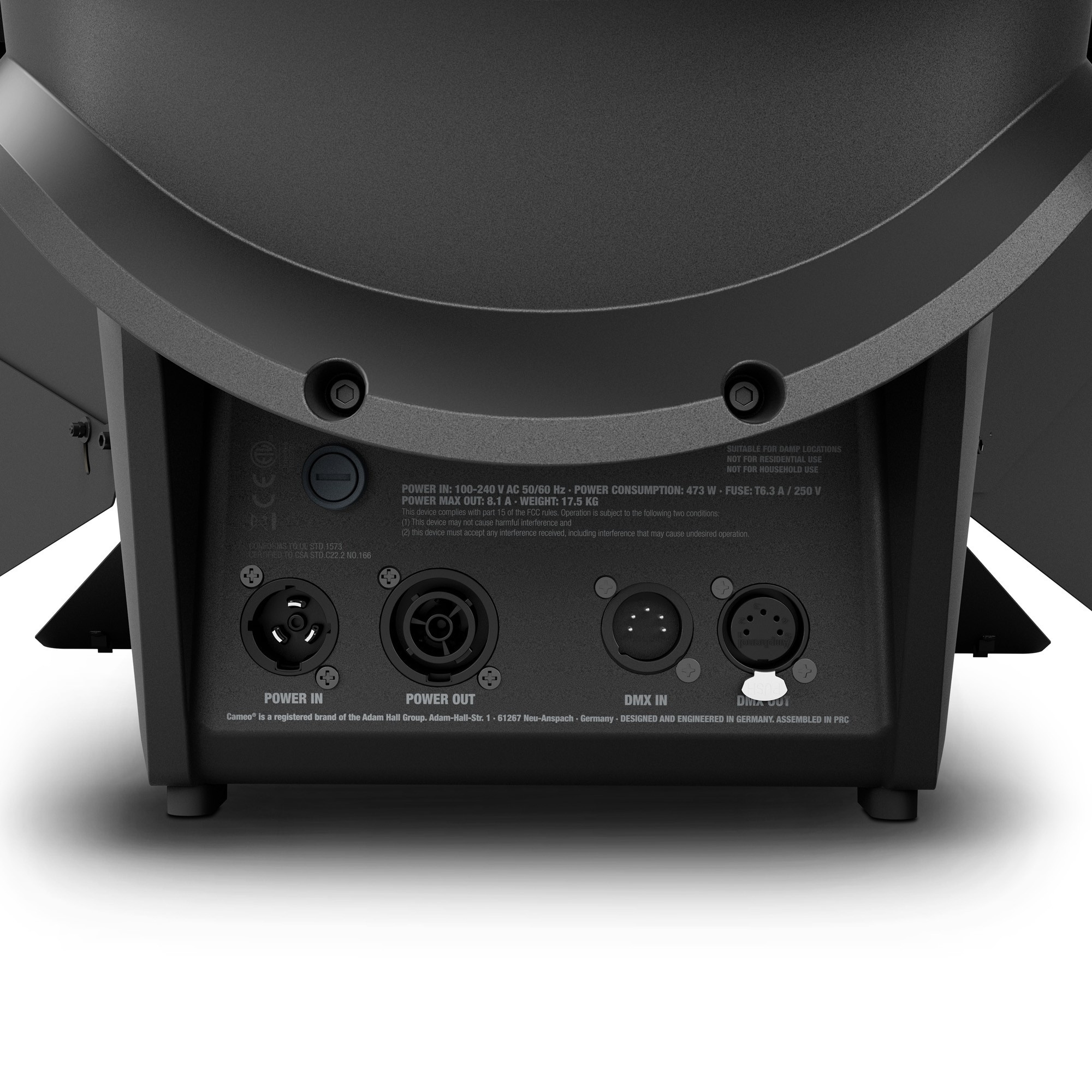

Power supply connector: TRUE1 compatible Power I/O sockets
Power supply connection: TRUE1 compatible Power I/O sockets
Housing material: Die-cast aluminium
Cabinet colour: Black
Protection class IP: IP20
Cooling: Combination of Heat Pipe and Temperature Controlled Fan
Luminous flux: 29500 lm
Efficiency: 59 lm/W
Color temperature: 3200 K
Ambient temperature (operating): -15 - 45 °C
Width: 410 mm
Height: 364 mm
Length: 433 mm
Weight: 17,8 kg

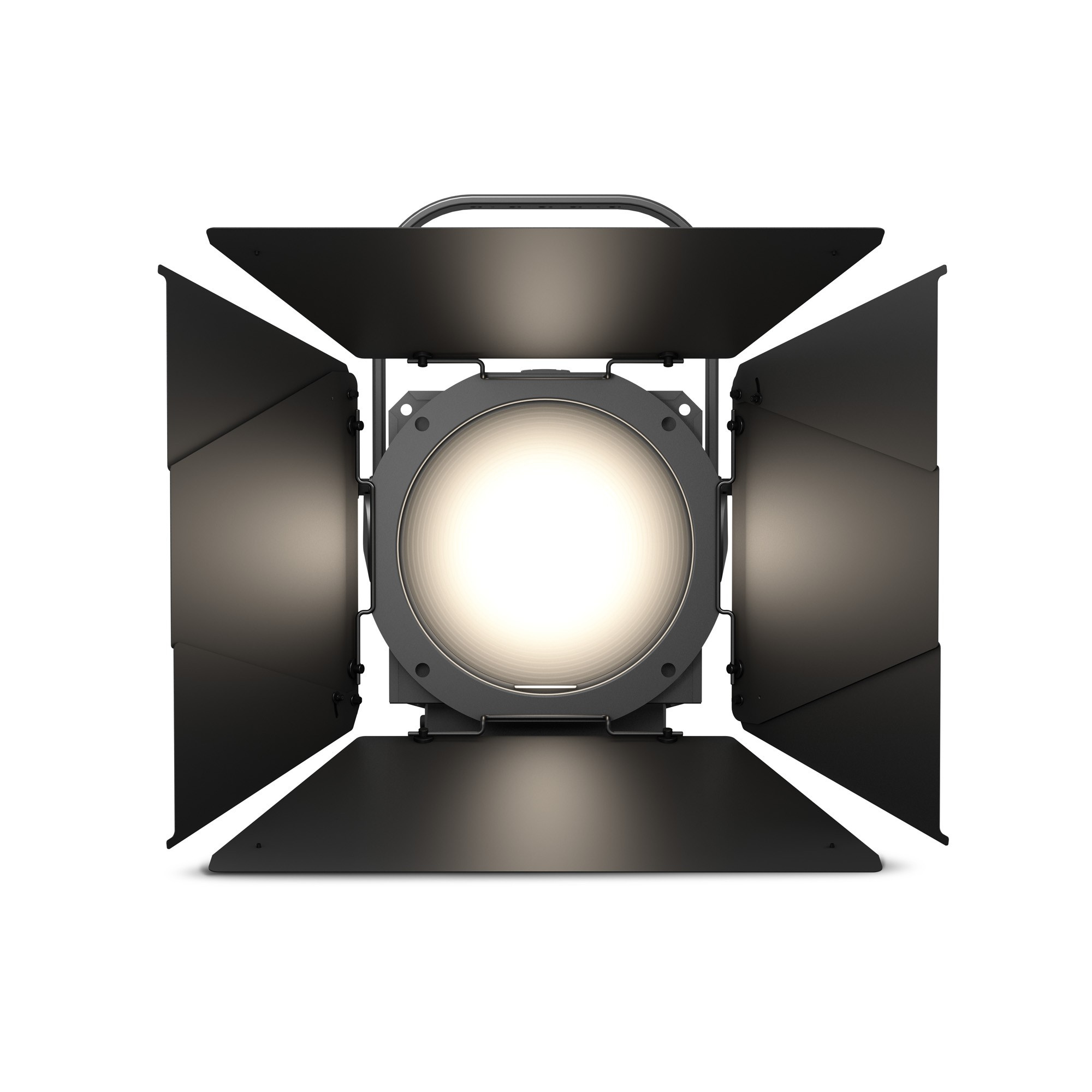

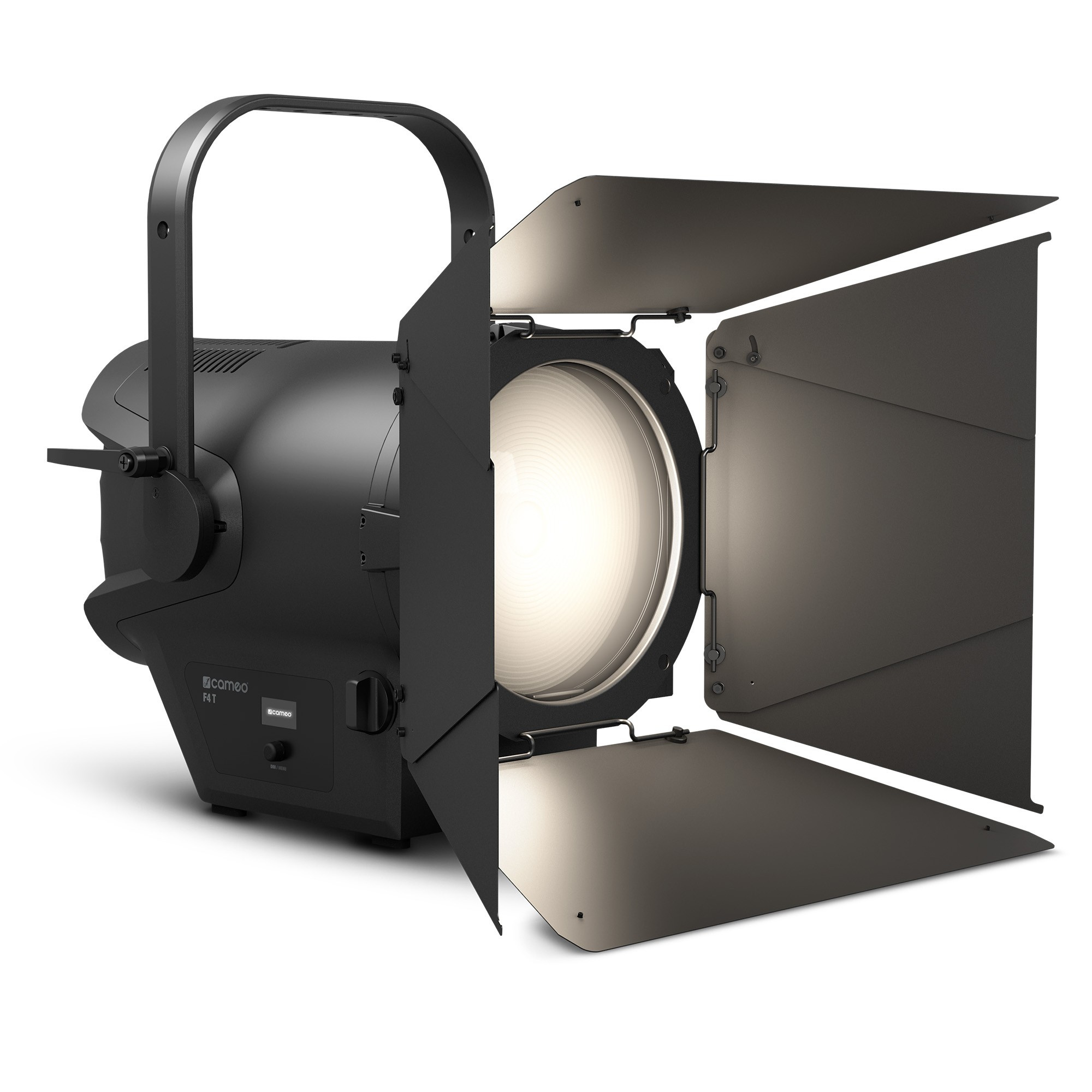

Accessories (included): 8-way barndoor, Colour Filter Frame, Power cord





Product code: CLF4T

Unit of sale: piece
