Neumann KH 750 DSP AES67

Neumann KH 750 DSP AES67 - The ideal choice for smaller rooms and smaller studio monitors. It features a unique and flexible Bass Manager (2.0 / 0.1), analog and digital inputs, four routing modes, and adaptable acoustic controls for use in multiple different configurations.

The KH 750 DSP AES67 is also the right choice for audio routing over IP in an existing AES67 studio infrastructure to speakers in a redundant manner without signal loss. Thus, it serves as a link between the studio's digital data stream ST2110 / AES67 and all KH line monitors.

The optional Neumann.Control iPad application provides access to many additional features. This includes the ability to align Neumann monitors connected to the subwoofer to the room using "Guided Alignment" and controlling the entire stereo system. It also includes analog monitors *. Detailed information can be found below.

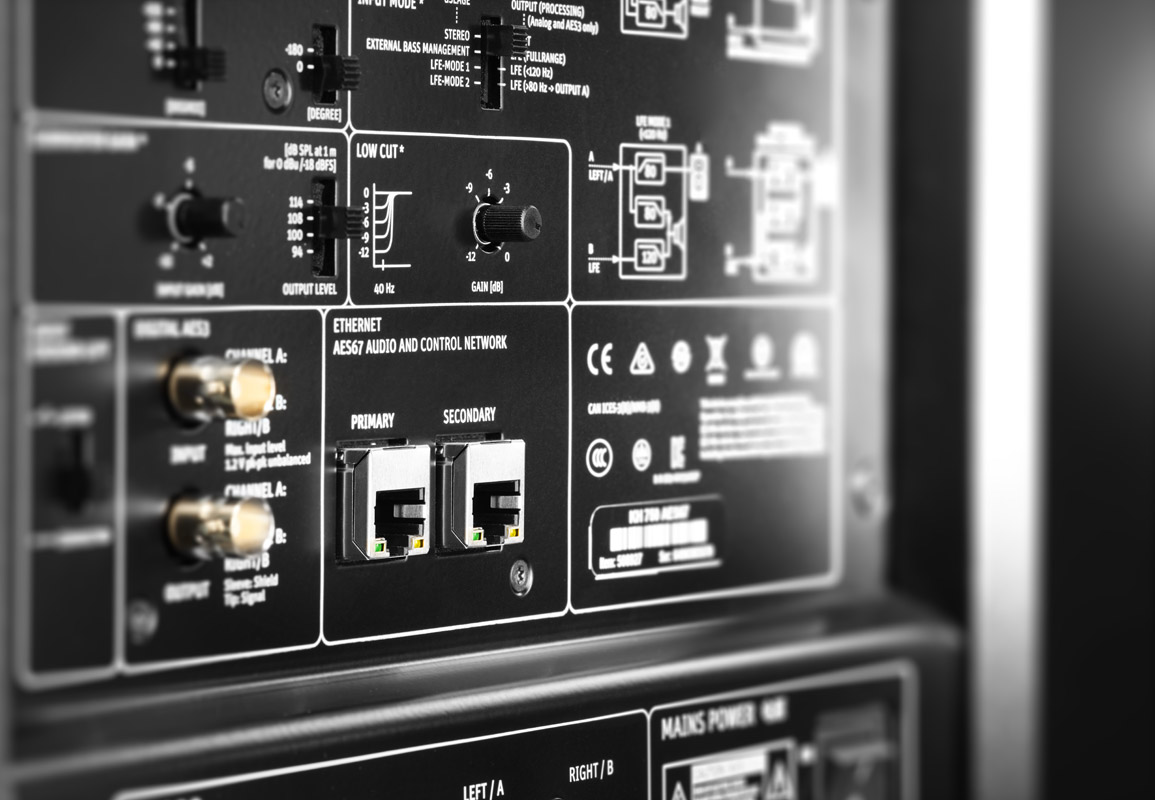

• Audio over IP AES67 interface:
  • Fully redundant AES67 ST2110 compatible audio network interface
  • 2x RJ-45 Fast Ethernet 100Base-TX connectors (IEEE 802.3)
  • Redundant physical network (ST 2022-7)
  • 24-bit interface
  • Sample rate: 44.1 / 48 / 88.2 / 96 kHz
  • Connector management: RAVENNA, NMOS IS-04 and NMOS IS-05 (Connection Management)

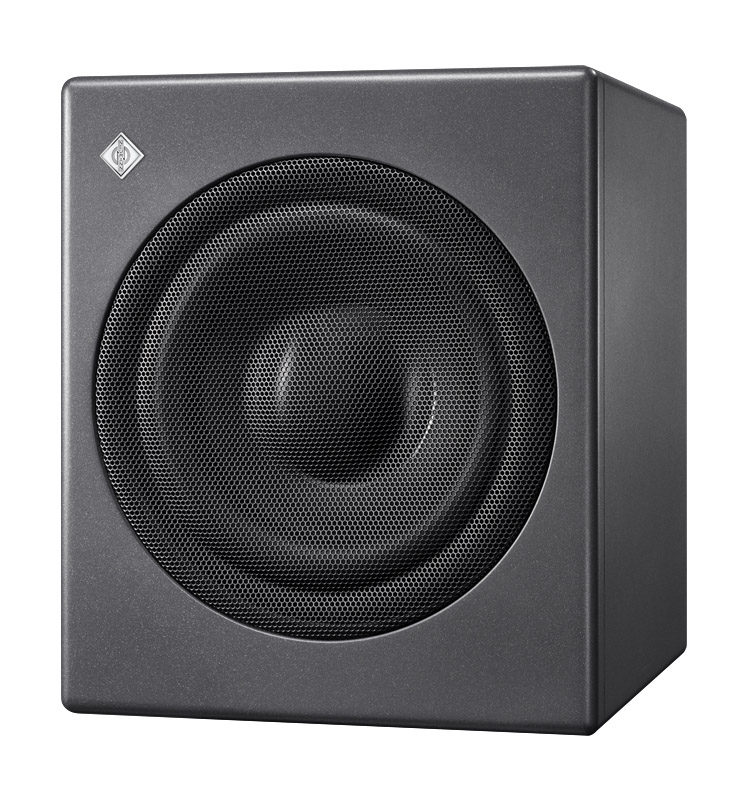

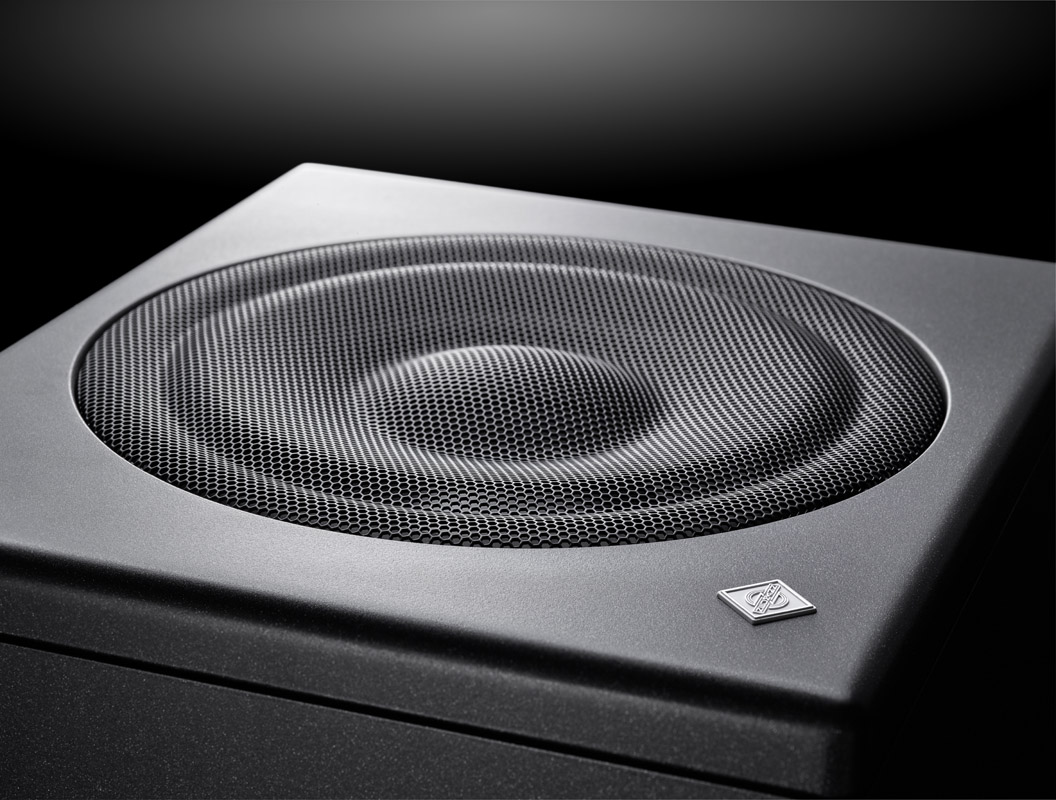

• 10" woofer
• Power: 256 W
• Maximum level: 105.0 dB
• Frequency range: 18 Hz - 750 Hz
• 4 selectable LFE modes
• Crossover frequencies: 80 Hz fixed or adjustable between 60 - 100 Hz via Neumann.Control app
• Acoustic control with 8 fully parametric filters via the Neumann.Control app
• FIR phase correction for analog outputs
• Standby mode

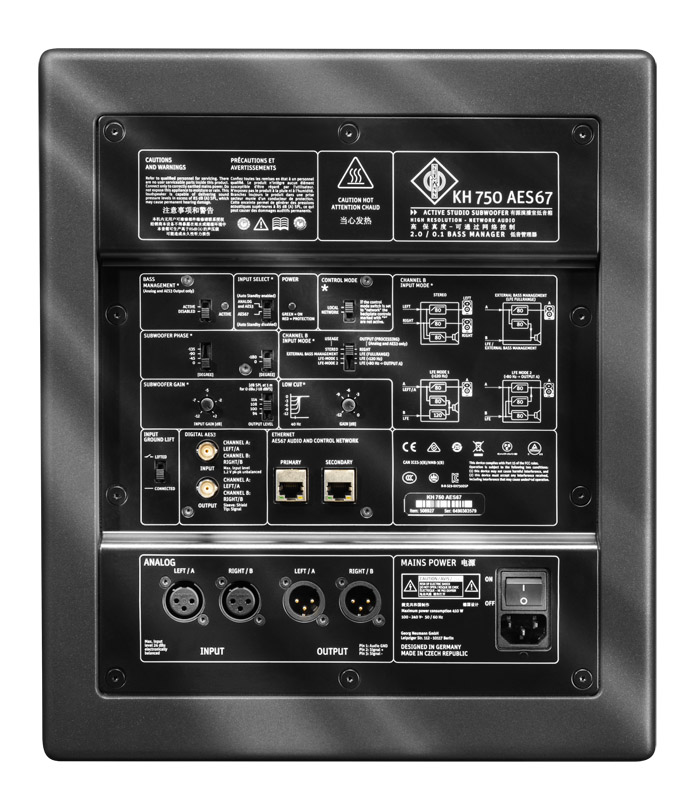

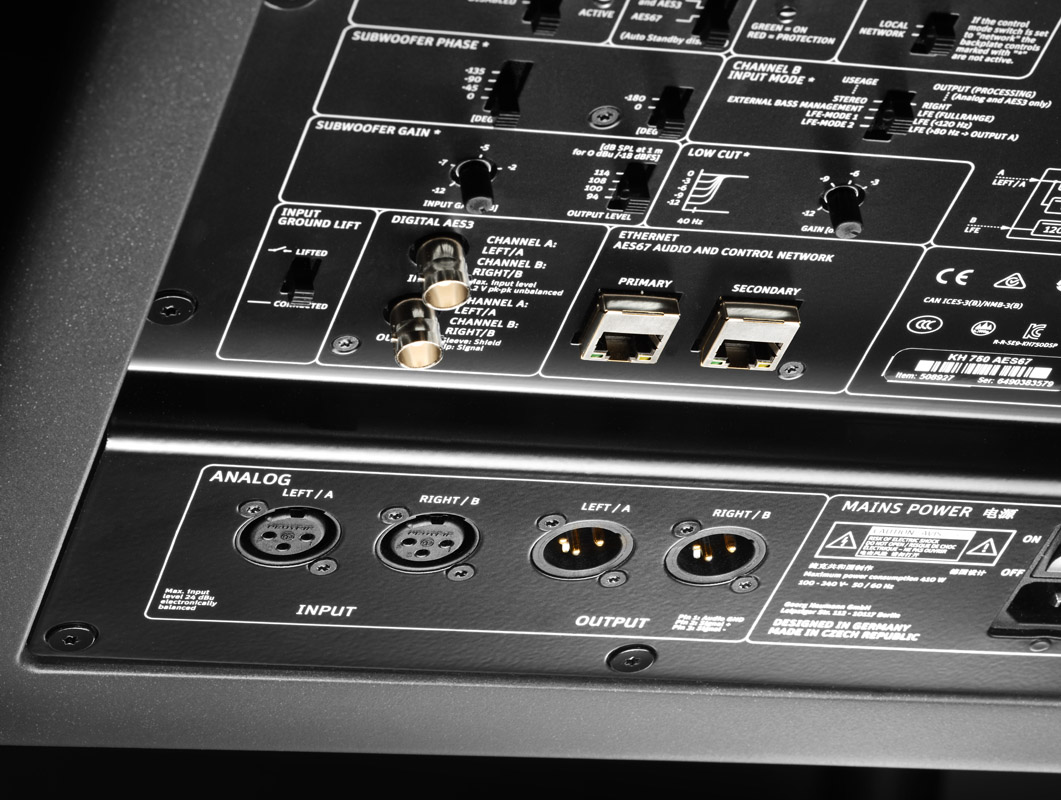

• Analog inputs and outputs with XLR connector
• Digital inputs/outputs with BNC connector (75 ohms, AES3)
• Connection to Neumann Control software via RJ45 port
• Dimensions: 383 x 330 x 383 mm
• Weight: 19.5 kg
