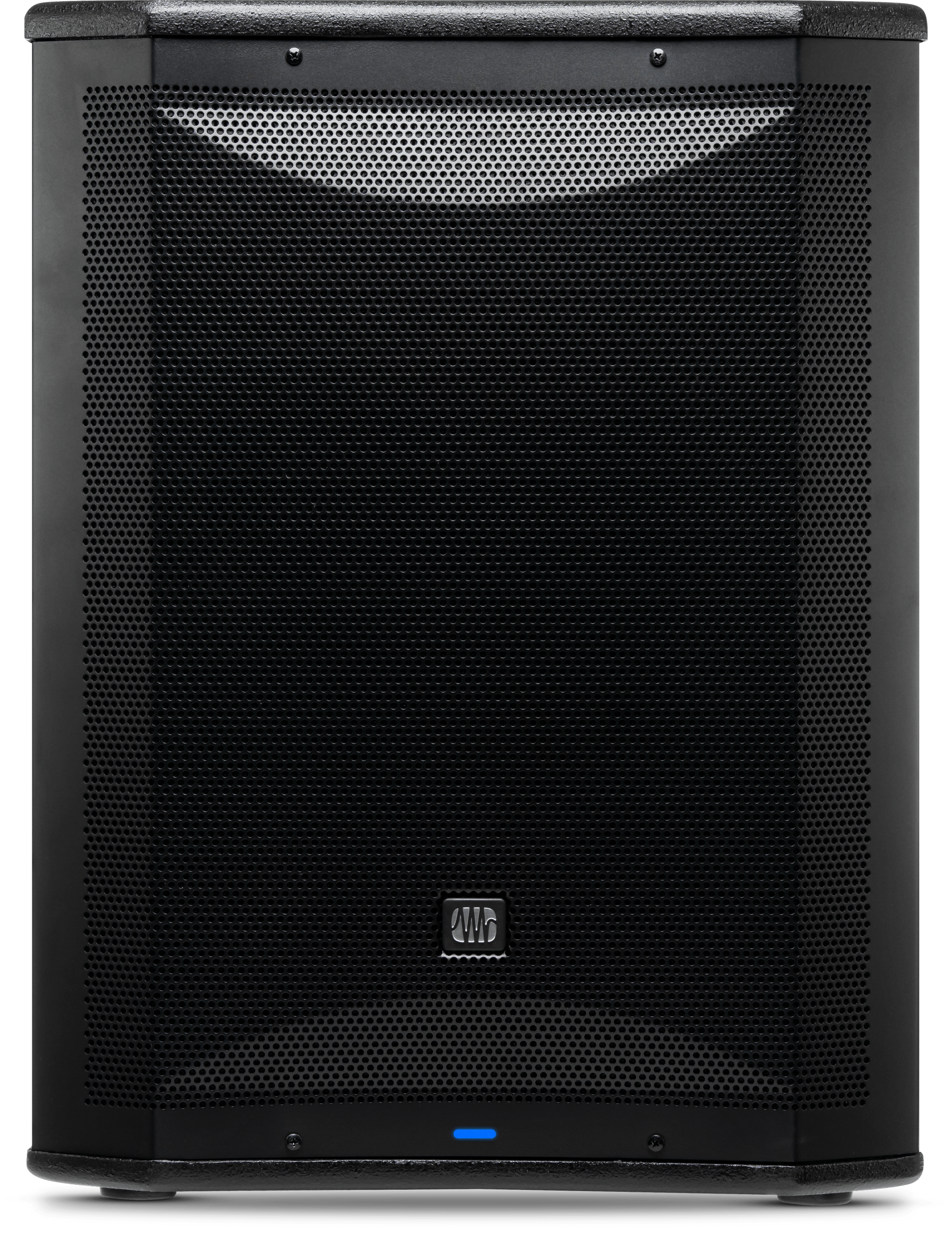

Presonus AIR XD Sub 15 - Active subwoofer with Class D amplification of 2,000 W and a custom 15” driver with a 3” voice coil, providing dynamic and controlled bass with minimal distortion.
Control is simple and intuitive through the integrated 2.6” colour display, offering quick access to metering, DSP presets, and tuning modes. Bluetooth connectivity with TWS Bridge Mode allows for wireless pairing with AIR XD full-range speakers, while flexible routing and direct outputs facilitate integration into FOH or monitoring systems.
The robust wooden construction, with ergonomic handles, stacking options, and wheel mounting, makes it ideal for mobile applications, fixed installations, or suspended mounting.
Features:
- 15” driver for low frequencies, with a 3” voice coil for dynamic bass and minimal distortion
- Class D amplifier of 2,000 W for powerful and efficient performance in low frequencies
- Frequency response: 39 Hz – 95 Hz (-3 dB), 32 Hz – 131 Hz (-10 dB)
- Maximum SPL: 128 dB
- Advanced DSP processing with variable low-pass filter, alignment delay, and presets for cardioid or end-fire configurations
- Integrated “Mo’ Bass” function for added impact in low frequencies
- 2.6” colour display for monitoring, DSP control, and tuning options
- Integrated Bluetooth with TWS Bridge mode for wireless stereo connection with AIR XD full-range models
- Dual combo inputs with direct outputs for flexible routing and easy system integration
- Robust wooden enclosure, with ergonomic handles, ground stacking support, and wheel mounting for portability
Specifications:
- System type: active subwoofer, vented design (bass reflex)
- Amplification: Class D
- Power
- Total output power: 2,000 W
- Maximum SPL (peak): 128 dB
- Driver: 15” woofer with a 3” voice coil
- Frequency response
- (-3 dB): 39 Hz – 95 Hz
- (-10 dB): 32 Hz – 131 Hz
- Crossover frequency: adjustable between 60 Hz – 150 Hz
- DSP processing
- Low-pass EQ
- Adjustable crossover
- Alignment delay
- Polarity inversion
- “Mo’ Bass” mode for enhancing low frequencies
- Presets for cardioid / end-fire configurations
- Control via 2.6” colour display (levels, DSP settings, adjustments)
- Connectivity
- Inputs: 3 (2 x combo XLR/TRS line, 1 x Bluetooth stereo)
- Outputs: 2 x XLR Link Out (balanced)
- Bluetooth: version 5.0, with TWS Bridge mode for wireless stereo connection
- Mixer channels: 2
- Input impedance: 14K ohm
- Maximum line input level: +25 dBu
- Audio control
- Gain
- Volume
- High/low EQ
- Crossover
- Power
- Power consumption: 5.6 A (230V-50 Hz), 11.1 A (120V)
- Voltage: 100-240 VAC, 50-60 Hz
- Power cable: IEC
- Construction
- Enclosure material: 15 mm plywood
- Grille: 1.5 mm perforated steel
- Cooling: passive radiator
- Handles: 2 side
- Mounting: prepared for ground stacking
- Wheels included
- Dimensions (L x W x H)
- Width: 42.4 cm
- Depth: 69.6 cm
- Height: 53.4 cm
- Net weight: 32.9 kg
